Name: R+M Suttner Turbofoam365+ 90mm Brush, 1.60mm Nozzle, 1/4" Female Inlet
Brand: R&M Suttner
SKU: 500023205
Price: 222 GBP
Availability: InStock

Overview

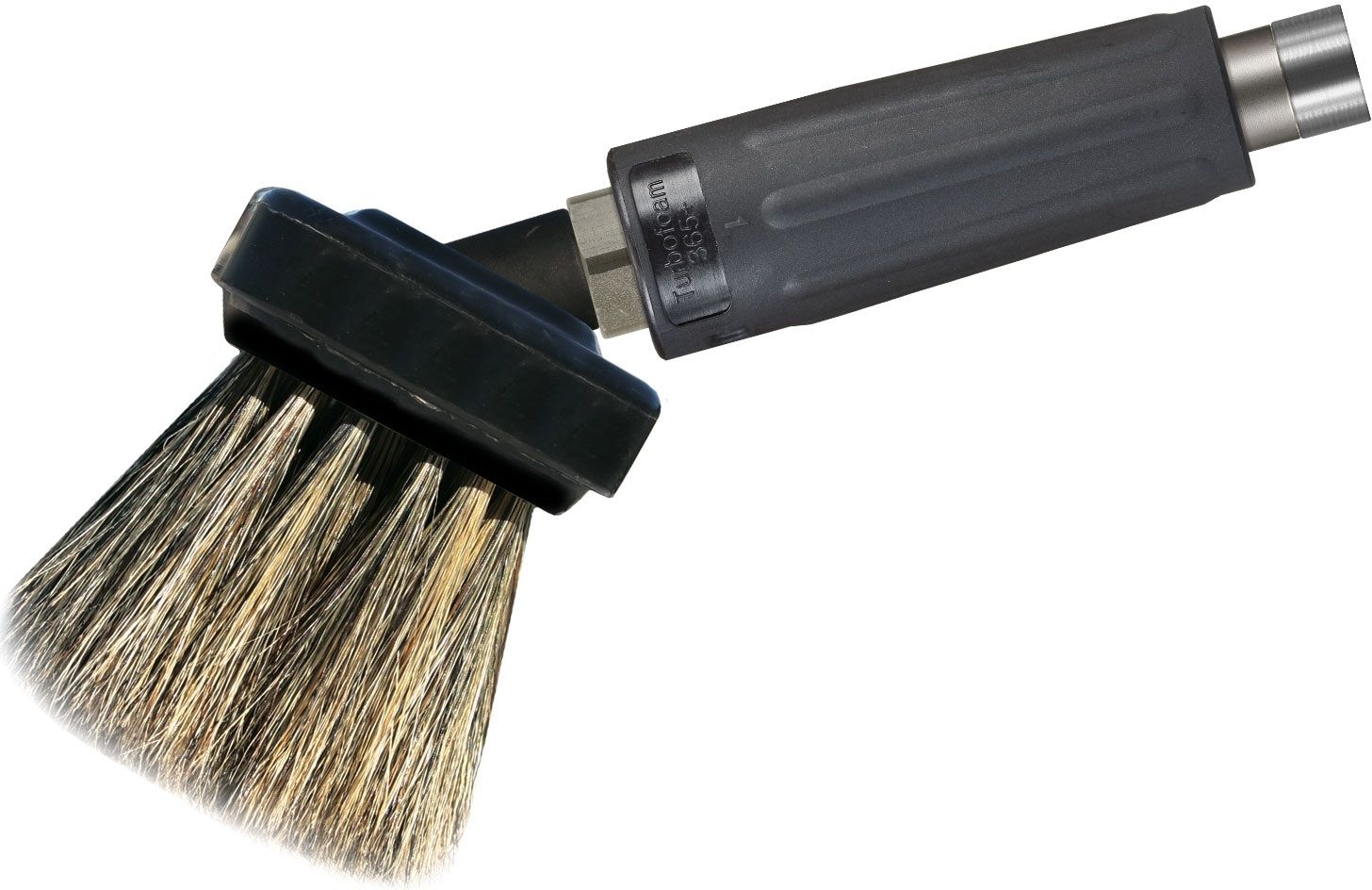

TurboFoam365+ retrofit kit for lances, with an air injector and a 90mm hog hair wash brush with cover plate, and a 1/4" BSP female inlet.

It is rated to 20 to 150 bar and 50°C. It weighs 0.77kg.

Specification

Part number	500023205
Brand	R+M Suttner
Material	Hogs hair
Colour	Black
Maximum pressure	20 to 150 bar
Maximum temperature	50°C
Inlet	1/4" BSP female
Outlet	Washbrush
Range	TurboFoam365+
Air injector size	1.6mm
Nozzle	070
Bristle length	90mm
Bristles	Hog hair
Weight	0.77kg
Country of origin	Germany

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

Specifications

Brand: R&M Suttner
Max Pressure Rating: 150 bar
Inlet: ¼" BSP Female
Outlet: Washbrush
Max Temperature Rating: 50°C

Foam & Chemical Method: Foam Brush
Output: Foam
Material: Hogs Hair
Colour: Black
Weight: 0.77 kg

Technical information

Maximum pressure: 20 to 150 bar

Maximum temperature: 50°C

Inlet: 1/4" BSP female

Outlet: Washbrush

Material: Hogs hair

Colour: Black

Range: TurboFoam365+

Air injector size: 1.6mm

Nozzle: 070

Bristle length: 90mm

Bristles: Hog hair

Weight: 0.77kg

Country of origin: Germany

Compare similar products

Detail	This product	Foam Injector, 2.5mm, 34 LPM, 100 Bar, 1/4" F x 1/4" M	Foam Injector, 1.5mm, 13 LPM, 100 Bar, 1/4" F x 1/4" M	Brush Frame includes fixing bolts
Price	£185.00 ex VAT £222.00 inc VAT	£27.40 ex VAT £32.88 inc VAT	£34.00 ex VAT £40.80 inc VAT	£68.10 ex VAT £81.72 inc VAT
Max pressure	150 bar	100 bar	100 bar	–
Max flow	–	34 LPM	13 LPM	–
Max temperature	50°C	–	–	50°C
Inlet	¼" BSP Female	¼" BSP Female	¼" BSP Female	¼" BSP Female
Outlet	Washbrush	¼" BSP Male	¼" BSP Male	–
Availability	In stock	In stock	In stock	In stock

Delivery & returns

Free delivery on online orders over £200 + VAT to a UK mainland address.

Orders processed by 2pm go out on tracked, insured next-working-day delivery.

Orders under £200 + VAT: delivery £11.99 + VAT.

Returns: ask us for a returns number first. Unused goods in their original packaging can come back at our discretion, less a restocking fee; faulty or wrong items have no fee.
