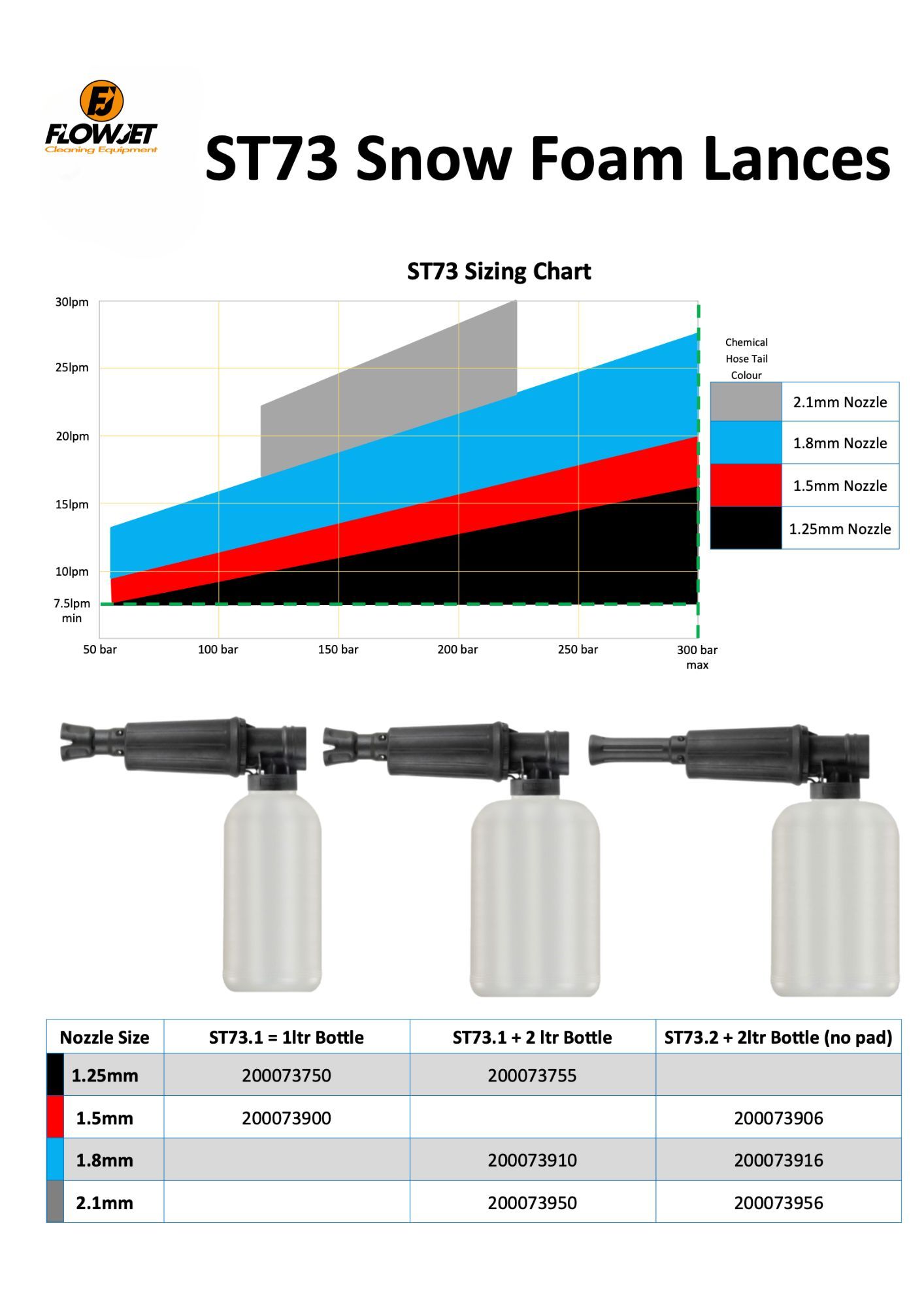

Foam Nozzle Size Chart
Foam Nozzle Size Chart
Foam Injector size guide.
Use the below chart to help you select the correct injector size
| Flow \ Pressure | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 | 210 | 220 | 230 | 240 | 250 | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 2.2 (15) | 2.0 (15) | 1.8 (13) | 1.8 (13) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.6 (075) | 1.6 (075) | 1.5 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.3 (05) | 1.3 (05) | 1.3 (05) | 1.3 (05) | 1.3 (05) | 1.3 (05) | 1.3 (05) | 1.3 (05) | See notes |
| 11 | 2.2 (15) | 2.0 (15) | 1.9 (13) | 1.8 (13) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.5 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.3 (05) | 1.3 (05) | 1.3 (05) | 1.3 (05) | 1.3 (05) | See notes | |
| 12 | 2.2 (15) | 2.1 (15) | 2.0 (15) | 1.9 (13) | 1.8 (13) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.5 (07) | 1.5 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.3 (05) | See notes | |
| 13 | 2.2 (15) | 2.1 (15) | 1.9 (13) | 1.9 (13) | 1.8 (13) | 1.8 (13) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.5 (07) | 1.5 (07) | 1.5 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | See notes | ||
| 14 | 2.2 (15) | 2.1 (15) | 2.0 (15) | 1.9 (13) | 1.9 (13) | 1.8 (13) | 1.8 (13) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.5 (07) | 1.5 (07) | 1.5 (07) | 1.4 (07) | 1.4 (07) | 1.4 (07) | See notes | ||
| 15 | 2.2 (15) | 2.1 (15) | 2.0 (15) | 1.9 (13) | 1.9 (13) | 1.8 (13) | 1.8 (13) | 1.8 (13) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.5 (07) | 1.5 (07) | 1.4 (07) | See notes | |||
| 16 | 2.2 (15) | 2.1 (15) | 2.0 (15) | 2.0 (15) | 1.9 (13) | 1.8 (13) | 1.8 (13) | 1.8 (13) | 1.8 (13) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.6 (075) | 1.6 (075) | See notes | ||||
| 18 | 2.3 (20) | 2.2 (15) | 2.1 (15) | 2.1 (15) | 2.0 (15) | 2.0 (15) | 1.9 (13) | 1.9 (13) | 1.8 (13) | 1.8 (13) | 1.8 (13) | 1.8 (13) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.6 (075) | See notes | ||||
| 19 | 2.3 (20) | 2.3 (20) | 2.2 (15) | 2.1 (15) | 2.1 (15) | 2.0 (15) | 2.0 (15) | 2.0 (15) | 1.9 (13) | 1.8 (13) | 1.8 (13) | 1.8 (13) | 1.8 (13) | 1.8 (13) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | 1.7 (10) | See notes | ||||
| 21 | 1.9 (13) | 1.9 (13) | 1.8 (13) | 1.8 (13) | 1.8 (13) | 1.8 (13) | 1.8 (13) | 1.8 (13) | 1.7 (10) | 1.7 (10) | 1.7 (10) | See notes |
Notes
You will need to know the flow rate and pressure of the pressure washer or system the injector is being fitted to.
- Select the closest flow rate (round up if needed).
- Move right across the chart to the nearest pressure column.
- The top number (e.g. 1.6) is the injector size.
For foam injectors not using compressed air, the number in brackets underneath is the correct ST75 foam lance size required.
Foam Injector / Lance Cross-ref
| Injector Size | Injector Part No | ST75 Size | ST75 Foam Lance | ST72 Foam Lance |
|---|---|---|---|---|
| 1.3 | 200160500 | 05 | 200075576 | 200072633 |
| 1.4 | 200160505 | 07 | 200075572 | 200072633 |
| 1.5 | 200160510 | 07 | 200075572 | 200072633 |
| 1.6 | 200160515 | 075 | 200075572 | 200072633 |
| 1.7 | 200160520 | 10 | 200075573 | 200072625 |
| 1.8 | 200160525 | 13 | 200075578 | 200072625 |
| 1.9 | 200160530 | 13 | 200075578 | 200072625 |
| 2.0 | 200160535 | 15 | 200075579 | 200072629 |
| 2.1 | 200160540 | 15 | 200075579 | 200072629 |
| 2.2 | 200160545 | 15 | 200075579 | 200072629 |
| 2.3 | 200160550 | 20 | Please Contact | 200072629 |
