Name: R+M Suttner Turbofoam365+ 90mm Brush, 1.20mm Nozzle, 1/4" Female Inlet
Brand: R&M Suttner
SKU: 500023201
Price: 222 GBP
Availability: InStock

Overview

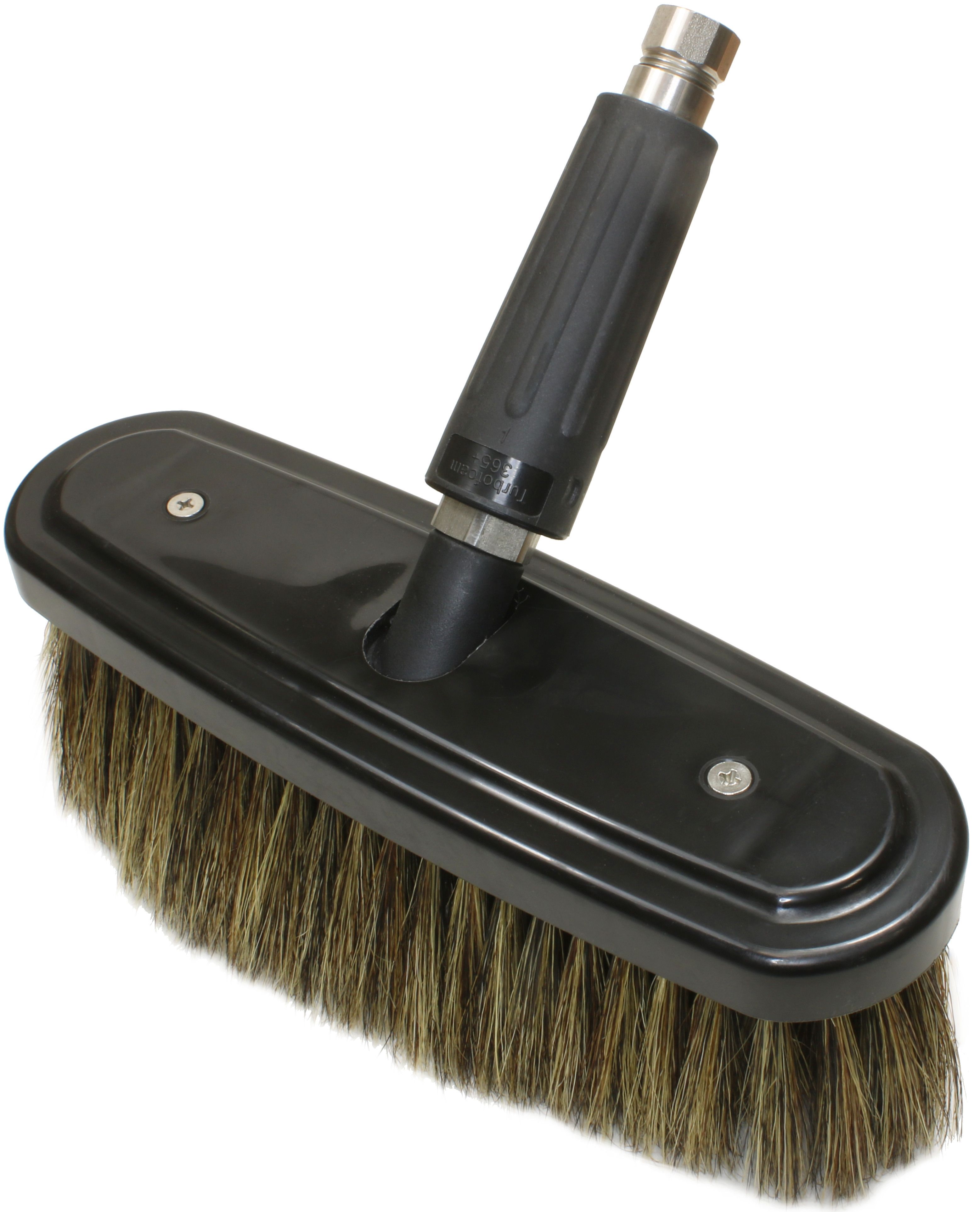

TurboFoam365+ retrofit kit for lances, with an air injector and a 90mm hog hair wash brush with cover plate, and a 1/4" BSP female inlet.

It is rated to 20 to 150 bar and 50°C. It weighs 0.77kg.

Specification

Part number	500023201
Brand	R+M Suttner
Material	Hogs hair
Colour	Black
Orifice diameter	1.2mm
Maximum pressure	20 to 150 bar
Maximum temperature	50°C
Inlet	1/4" BSP female
Outlet	Washbrush
Range	TurboFoam365+
Air injector size	1.2mm
Nozzle	040
Bristle length	90mm
Bristles	Hog hair
Weight	0.77kg
Country of origin	Germany

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

Specifications

Brand: R&M Suttner
Max Pressure Rating: 150 bar
Inlet: ¼" BSP Female
Outlet: Washbrush
Max Temperature Rating: 50°C
Foam & Chemical Method: Foam Brush

Output: Foam
Injector / Nozzle Size: Injector Size 1.2mm
Material: Hogs Hair
Colour: Black
Weight: 0.77 kg

Technical information

Maximum pressure: 20 to 150 bar

Maximum temperature: 50°C

Inlet: 1/4" BSP female

Outlet: Washbrush

Material: Hogs hair

Colour: Black

Orifice diameter: 1.2mm

Range: TurboFoam365+

Air injector size: 1.2mm

Nozzle: 040

Bristle length: 90mm

Bristles: Hog hair

Weight: 0.77kg

Country of origin: Germany

Compare similar products

Detail	This product	Foam Injector, 2.5mm, 34 LPM, 100 Bar, 1/4" F x 1/4" M	Foam Injector, 1.5mm, 13 LPM, 100 Bar, 1/4" F x 1/4" M	Brush Frame includes fixing bolts
Price	£185.00 ex VAT £222.00 inc VAT	£27.40 ex VAT £32.88 inc VAT	£34.00 ex VAT £40.80 inc VAT	£68.10 ex VAT £81.72 inc VAT
Max pressure	150 bar	100 bar	100 bar	–
Max flow	–	34 LPM	13 LPM	–
Max temperature	50°C	–	–	50°C
Inlet	¼" BSP Female	¼" BSP Female	¼" BSP Female	¼" BSP Female
Outlet	Washbrush	¼" BSP Male	¼" BSP Male	–
Availability	In stock	In stock	In stock	In stock
