Name: R+M Suttner ST2300 Wash Gun with Freeze Stop 3/8" F Swivel Coupling, 310 Bar, 45 LPM
Brand: R&M Suttner
SKU: 202300582

Overview

R+M Suttner ST2300 wash gun with a freeze stop valve, a 3/8" BSP female swivel inlet and a 1/4" BSP female outlet.

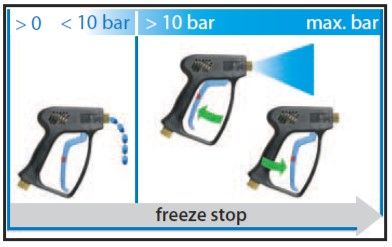

It is rated to 310 bar, 45 litres per minute and 150°C, with an opening force of 41N and a holding force of 21N at 100 bar. It works with unloader valves such as the ST261, ST280 and GSVRT3, but not with trapped pressure unloaders such as the Interpump K series. It weighs 0.29kg.

Specification

Part number	202300582
Brand	R+M Suttner
Model	ST2300 freeze stop
Colour	Yellow
Maximum pressure	310 bar
Maximum flow	45 litres per minute
Maximum temperature	150°C
Inlet	3/8" BSP female swivel
Outlet	1/4" BSP female
Opening force	41N at 100 bar
Holding force	21N at 100 bar
Valve	Freeze stop
Weight	0.29kg

Before installation: Check the connection threads using our BSP thread size chart and the pressure and temperature ratings of your system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Valve Housing Material: Brass
Inlet: ⅜" BSP Female Swivel
Valve Material: Brass / Stainless Steel
Outlet: ¼" BSP Female
Brand: R&M Suttner
Max Pressure Rating: 310 bar

Max Flow Rating: 45 LPM
Max Temperature Rating: 150°C
Wash Gun Series: ST-2300 - 310 Bar 45 LPM 150°C Most Popular
Colour: Yellow
Weight: 0.29 kg

Technical information

Maximum pressure: 310 bar

Maximum flow: 45 litres per minute

Maximum temperature: 150°C

Inlet: 3/8" BSP female swivel

Outlet: 1/4" BSP female

Model: ST2300 freeze stop

Colour: Yellow

Opening force: 41N at 100 bar

Holding force: 21N at 100 bar

Valve: Freeze stop

Weight: 0.29kg

Compare similar products

Detail	This product	Suttner ST2300 Wash Gun, M22 M, 310 Bar, 45 LPM	Suttner ST2300 Wash Gun, M22 Swivel, 310 Bar, 45 LPM	Suttner ST2300 Wash Gun, M22 M x M22 M, 310 Bar, 45 LPM
Price	Call for price	£39.30 ex VAT £47.16 inc VAT	£62.30 ex VAT £74.76 inc VAT	£46.40 ex VAT £55.68 inc VAT
Max pressure	310 bar	310 bar	310 bar	310 bar
Max flow	45 LPM	45 LPM	45 LPM	45 LPM
Max temperature	150°C	150°C	150°C	150°C
Inlet	⅜" BSP Female Swivel	M22 Male	M22 Male Swivel	M22 Male
Outlet	¼" BSP Female	¼" BSP Female	¼" BSP Female	M22 Male
Availability	In stock	In stock	In stock	In stock
