Safety Relief ValveSafety Relief Valve
R+M Suttner ST230 Safety Relief Valve 500 Bar 1/4" F, 40 LPM
RM Suttner ST230 safety relief valve. This valve has a 3/8" female inlet and 1/4" female outlet. The valves maximum flow rate is 40l/pm.
R+M Suttner ST230 Safety Relief Valve 500 Bar 1/4" F, 40 LPM – image 2
R+M Suttner ST230 Safety Relief Valve 500 Bar 1/4" F, 40 LPM – image 3

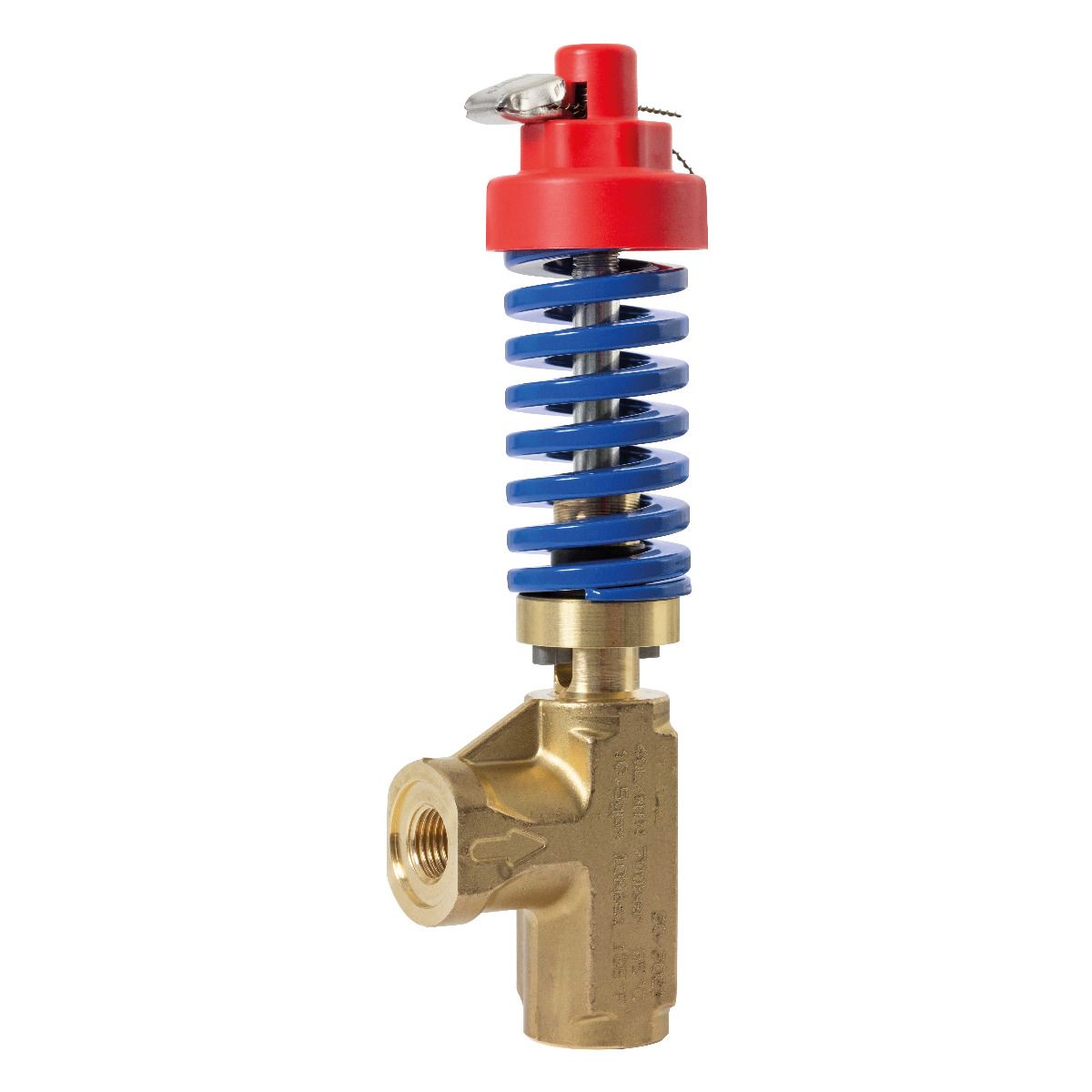

R+M Suttner ST230 Safety Relief Valve 500 Bar 1/4" F, 40 LPM – image 4

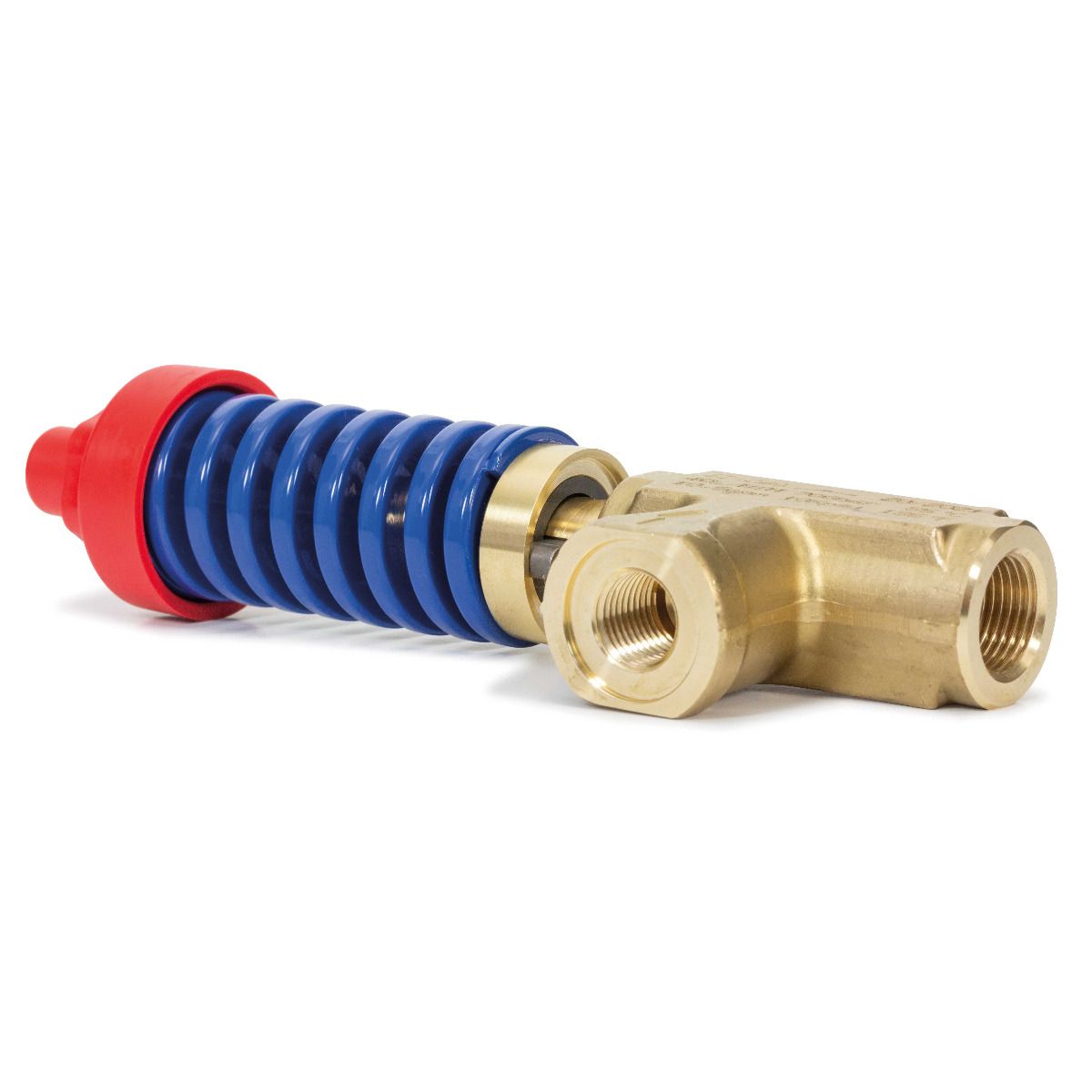

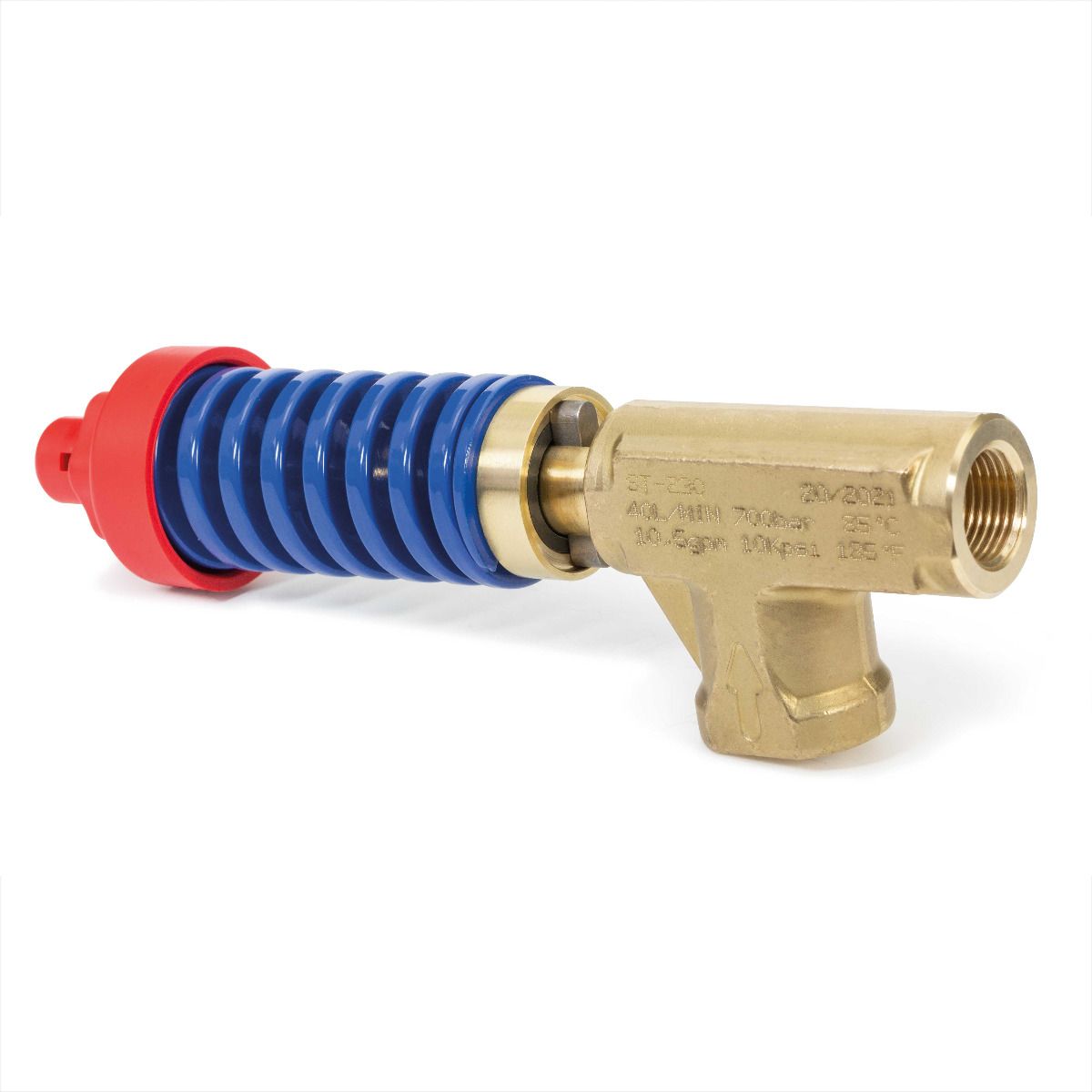

R+M Suttner ST230 Safety Relief Valve 500 Bar 1/4" F, 40 LPM – image 5
R&M Suttner

R+M Suttner ST230 Safety Relief Valve 500 Bar 1/4" F, 40 LPM

SKU 200230700
Max pressure
500 bar
Max flow
40 LPM
Max temperature
85°C
Inlet
¼" BSP Female
Outlet
⅜" BSP Female · Thread chart
£137.00 ex VAT
£164.40 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The ST230 is a brass safety relief valve from R+M Suttner, rated to 500 bar and flows up to 40 litres per minute. It has a 1/4" BSP female inlet and a 3/8" BSP female outlet, and is made in Germany.

It is rated to 85°C. It weighs 0.39kg.

Specification

Part number200230700
BrandR+M Suttner
MaterialBrass
Maximum pressure500 bar
Maximum flow40 litres per minute
Maximum temperature85°C
Inlet1/4" BSP female
Outlet3/8" BSP female
Weight0.39kg
Country of originGermany

Before installation: Safety valves are supplied unset. Set the valve above the working pressure of your system, and check the connection threads using our BSP thread size chart.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.

Specifications

Brand
R&M Suttner
Max Pressure Rating
500 bar
Max Flow Rating
40 LPM
Inlet
¼" BSP Female
Outlet
⅜" BSP Female
Max Temperature Rating
85°C
Material
Brass
Weight
0.39 kg

Technical information

Maximum pressure: 500 bar

Maximum flow: 40 litres per minute

Maximum temperature: 85°C

Inlet: 1/4" BSP female

Outlet: 3/8" BSP female

Material: Brass

Weight: 0.39kg

Country of origin: Germany

Compare similar products

Detail
This product
R+M Suttner ST230 Safety Relief Valve 1/4" F 250 Bar
R+M Suttner S250 Relief Valve 250 Bar, 35 LPM, 3/8" F x 1/4" F
R+M Suttner VS 240 Relief Valve 240 Bar, 24 LPM
Price£137.00 ex VAT
£164.40 inc VAT
£55.00 ex VAT
£66.00 inc VAT
£84.30 ex VAT
£101.16 inc VAT
£44.10 ex VAT
£52.92 inc VAT
Max pressure500 bar250 bar250 bar240 bar
Max flow40 LPM30 LPM35 LPM24 LPM
Max temperature85°C95°C95°C60°C
Inlet¼" BSP Female¼" BSP Female⅜" BSP Female⅜" BSP Male
Outlet⅜" BSP Female¼" BSP Female¼" BSP Female–
AvailabilityIn stockIn stockIn stockIn stock
