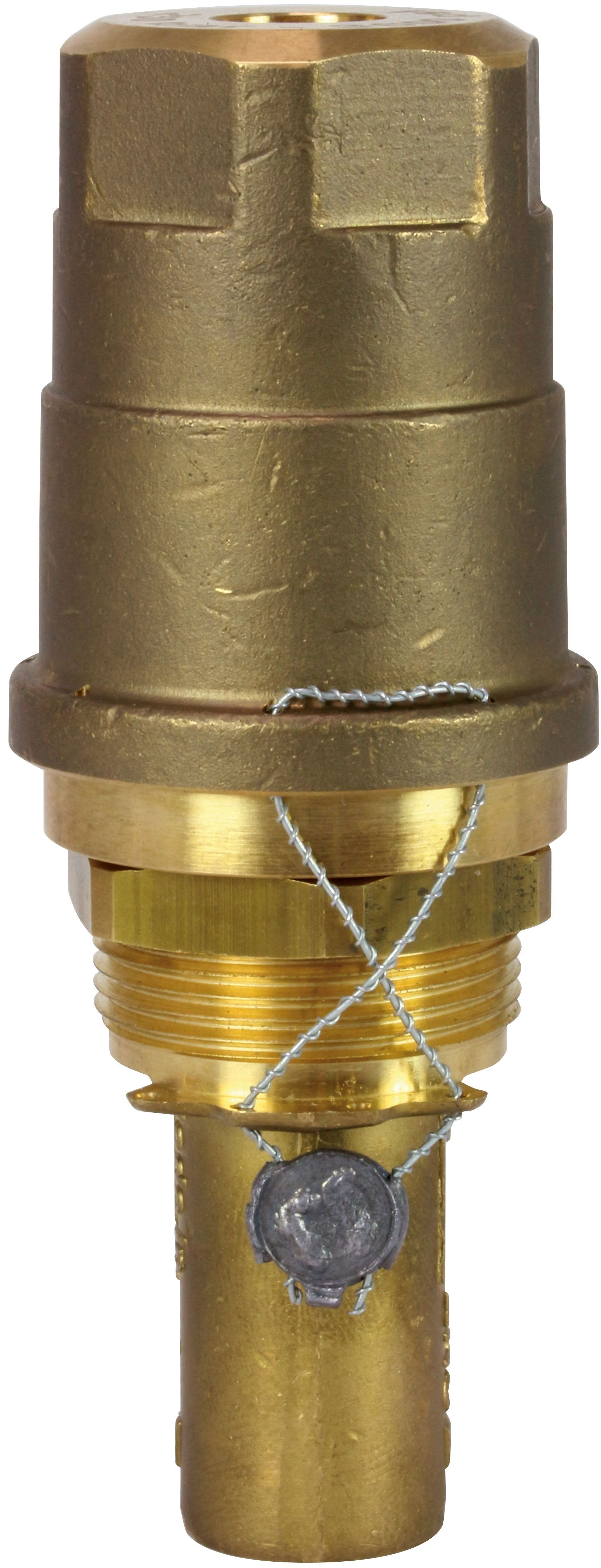

R+M Suttner ST230 Safety Relief Valve 1/4" F 250 Bar
R+M Suttner ST230 Safety Relief Valve 1/4" F 250 Bar – image 1
R+M Suttner ST230 Safety Relief Valve 1/4" F 250 Bar – image 2
R+M Suttner ST230 Safety Relief Valve 1/4" F 250 Bar – image 3

R+M Suttner ST230 Safety Relief Valve 1/4" F 250 Bar

SKU 200230501
Max pressure
250 bar
Max flow
30 LPM
Max temperature
95°C
Inlet
¼" BSP Female
Outlet
¼" BSP Female · Thread chart
£55.00 ex VAT
£66.00 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

R+M Suttner ST230 safety relief valve in stainless steel with 1/4" BSP female inlet and outlet. It is rated to 250 bar and relieves excess pressure in high pressure washer systems.

It is rated to 30 litres per minute and 95°C. It weighs 0.39kg.

Specification

Part number200230501
BrandR+M Suttner
Maximum pressureSupports up to 250 Bar, suitable for high-pressure applications
Flow CapacityHandles up to 30 L/min, suitable for medium to high flow systems
Temperature RatingWithstands temperatures up to 95°C, compatible with hot water systems
Weight0.39kg

Before installation: Safety valves are supplied unset. Set the valve above the working pressure of your system, and check the connection threads using our BSP thread size chart.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.

Specifications

Brand
R&M Suttner
Max Pressure Rating
250 bar
Max Flow Rating
30 LPM
Inlet
¼" BSP Female
Outlet
¼" BSP Female
Max Temperature Rating
95°C
Material
Brass
Weight
0.39 kg

Technical information

Maximum pressure: Supports up to 250 Bar, suitable for high-pressure applications

Flow Capacity: Handles up to 30 L/min, suitable for medium to high flow systems

Temperature Rating: Withstands temperatures up to 95°C, compatible with hot water systems

Weight: 0.39kg

Compare similar products

Detail
This product
R+M Suttner S250 Relief Valve 250 Bar, 35 LPM, 3/8" F x 1/4" F
R+M Suttner VS 240 Relief Valve 240 Bar, 24 LPM

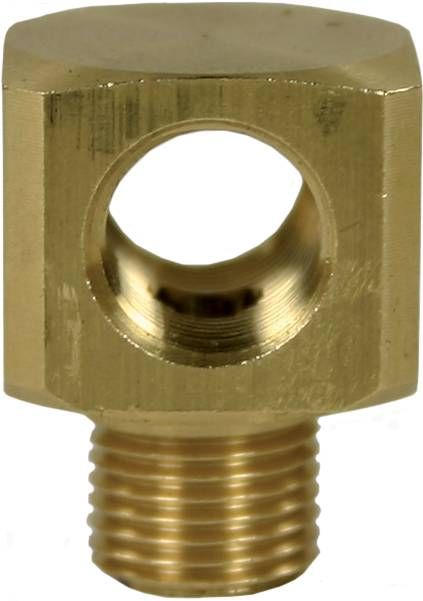

R+M Suttner T-Connection 1/4"F X 1/4"M (T-Block), 250 Bar
