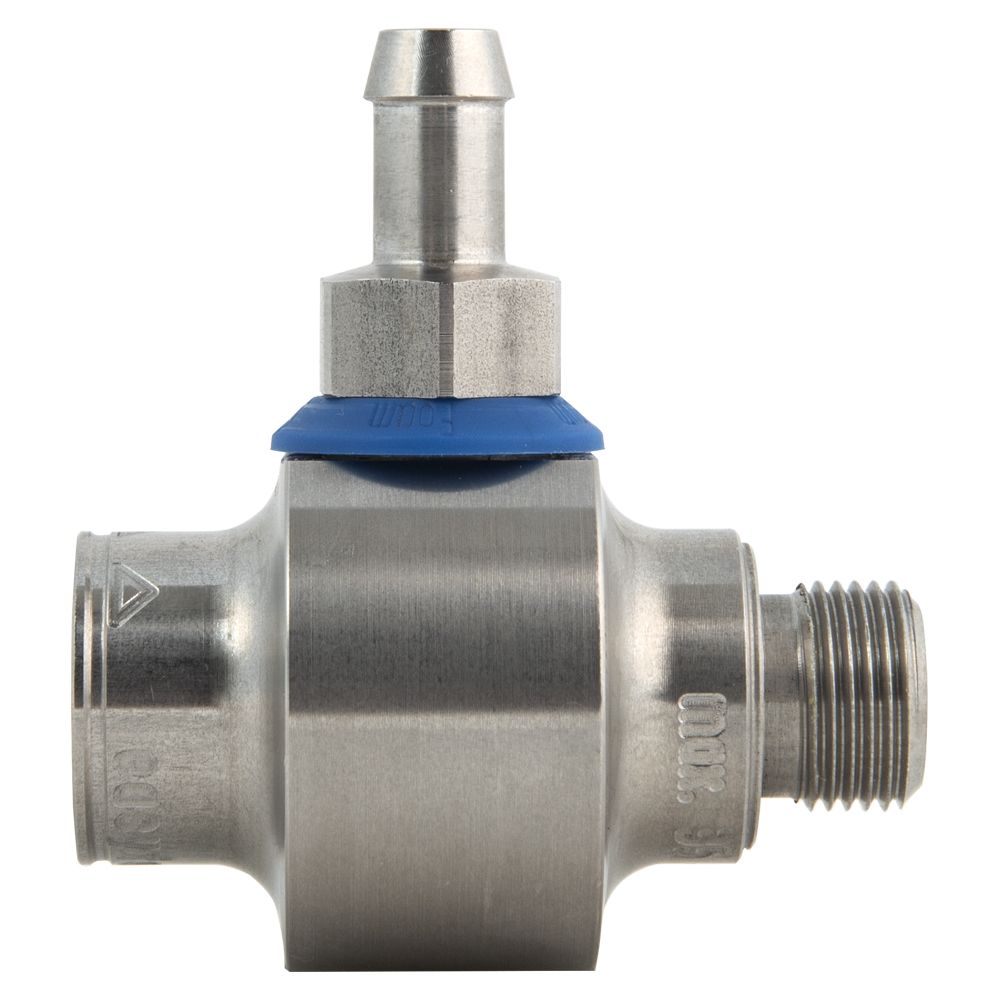

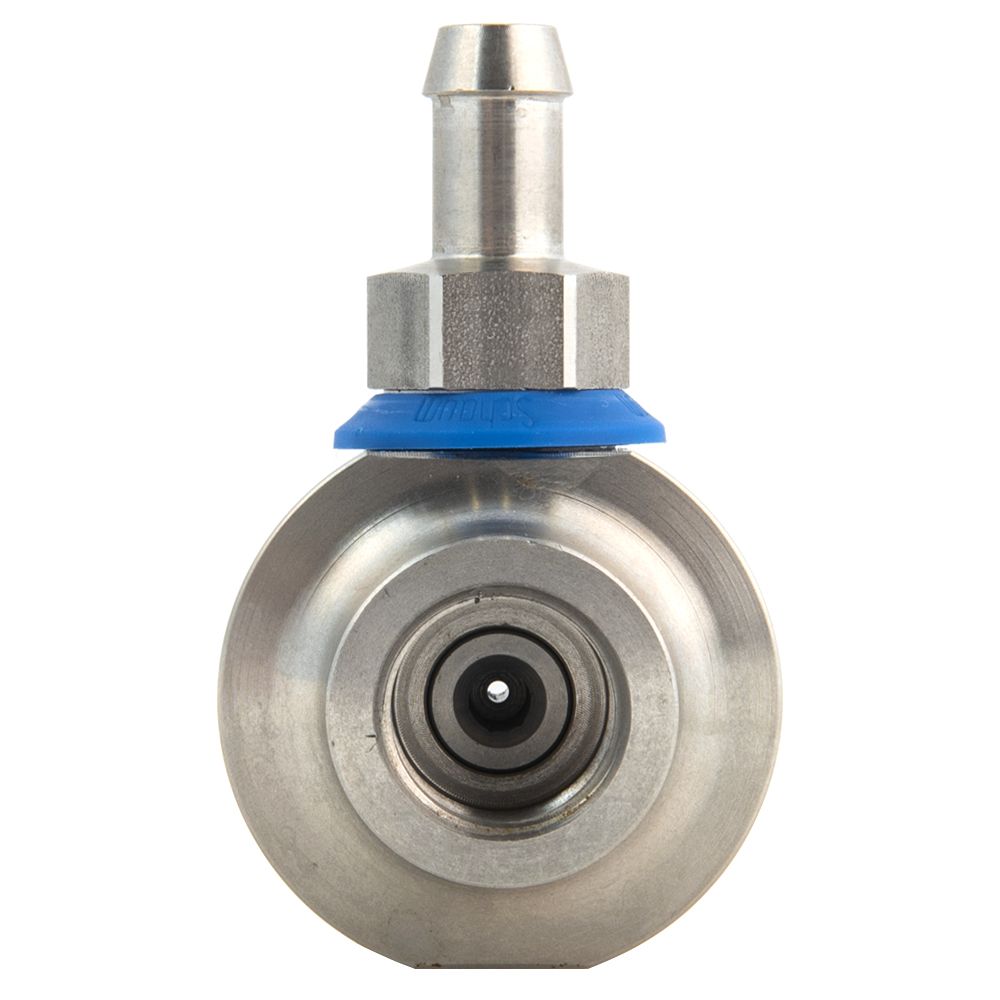

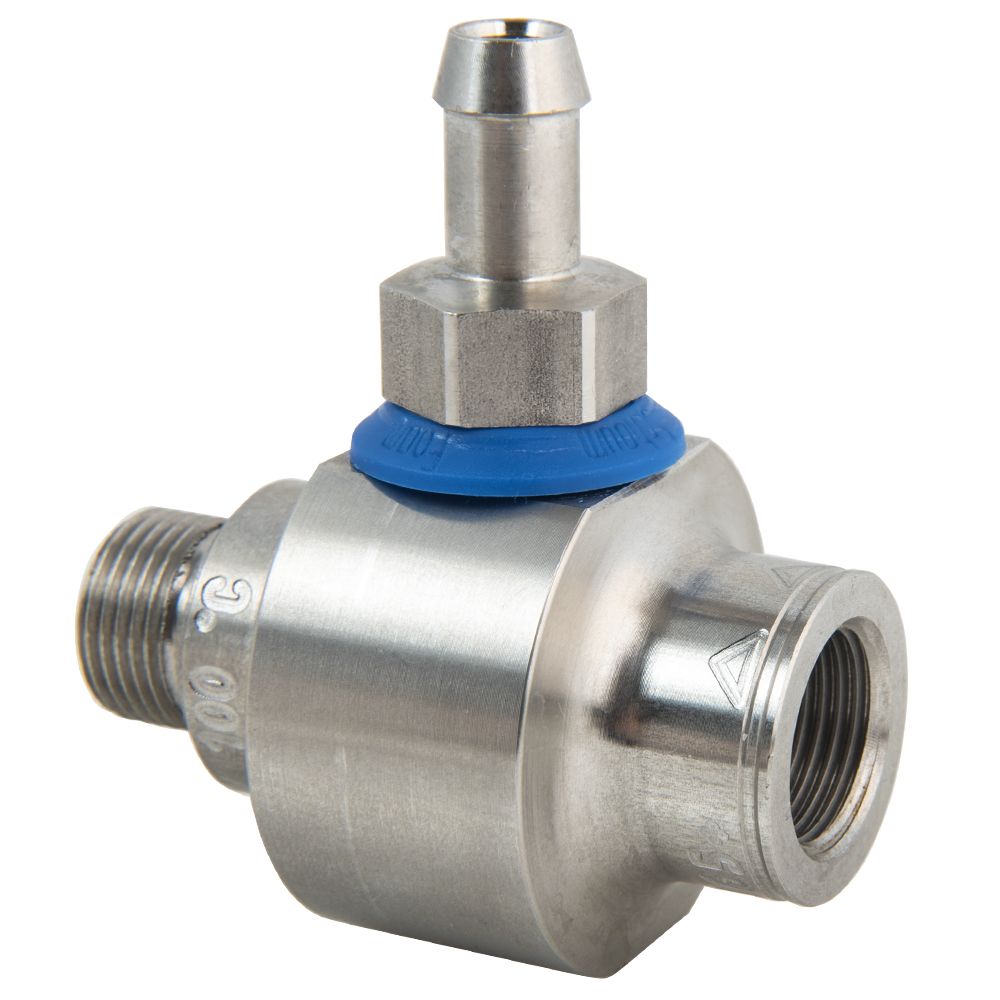

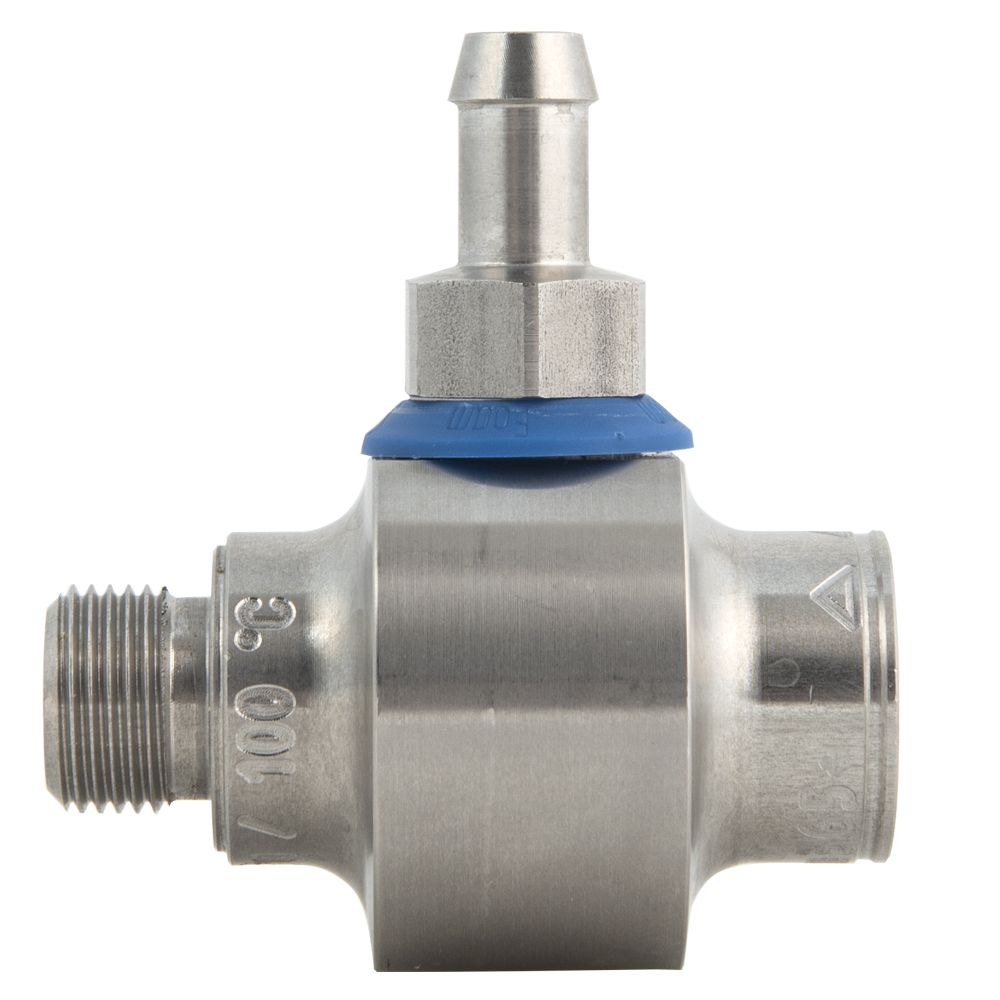

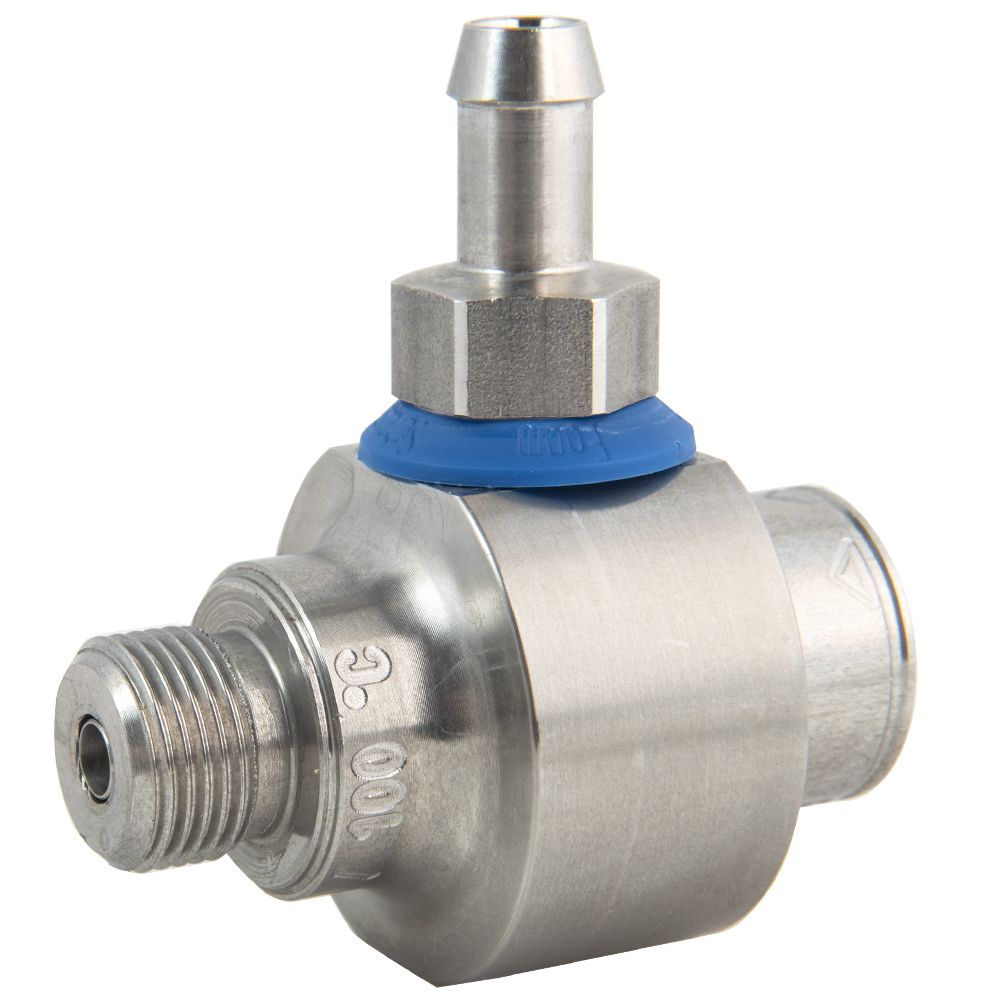

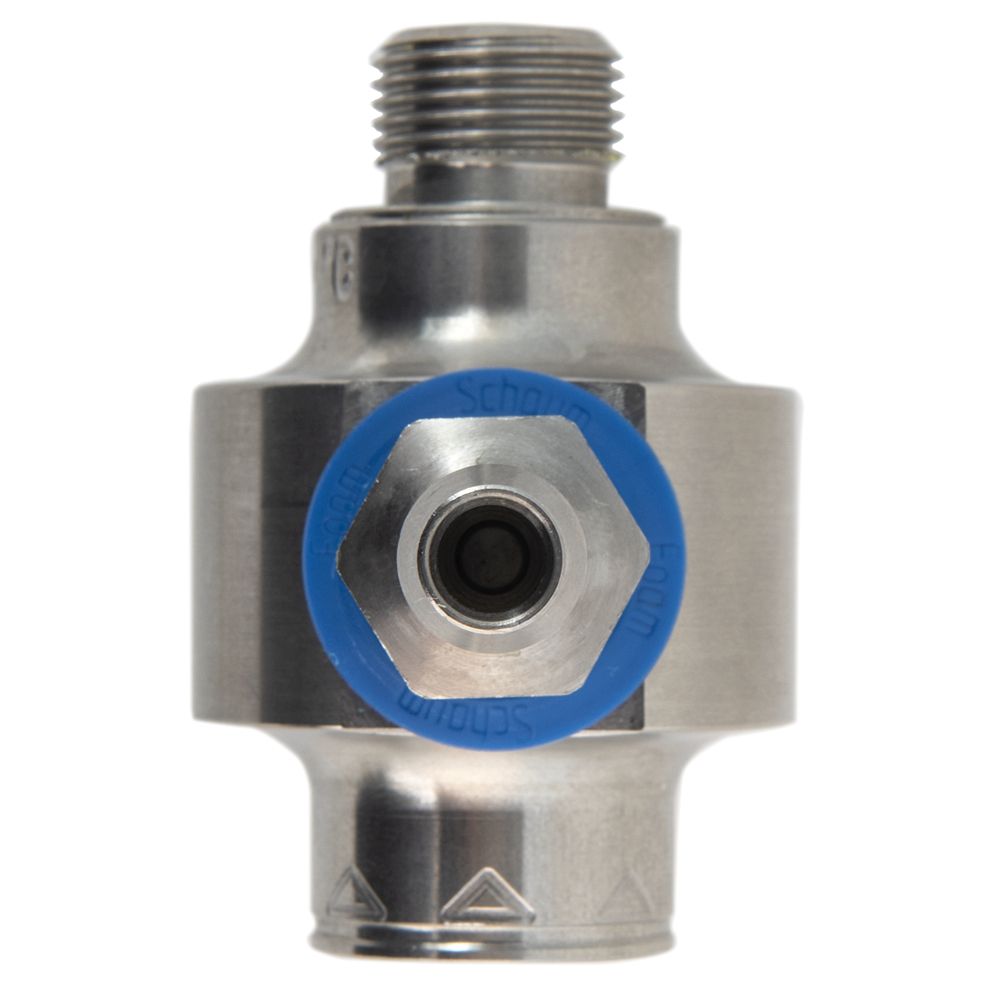

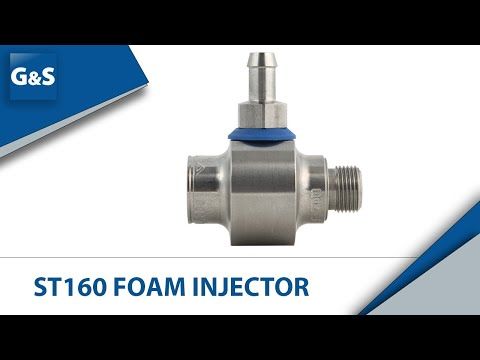

R+M Suttner ST160 Foam Injector -2.0mm, 350 Bar, 3/8" F x 3/8" M

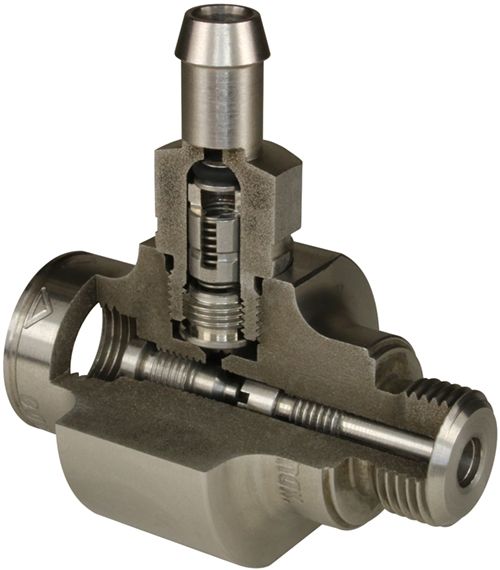

ST160 venturi foam injector from R+M Suttner in stainless steel, 2.0mm injector size. Water is forced through a restrictive orifice, and when the injector is used with a low pressure nozzle such as an ST75 foam head this creates a vacuum that draws chemical into the water stream. It is used for cleaning in agriculture, automotive and food processing, including vehicles that carry livestock.

Ten dosing nozzle inserts are supplied to adjust the chemical dose. Match the injector size and the foam nozzle size to the flow and pressure of the system. Fit a chemical filter on the end of the chemical tube to keep debris out, and check the viscosity of the chemical, as it affects the draw rate. The injector has a 3/8" BSP female inlet and a 3/8" BSP male outlet and is rated to 350 bar and 90°C. It weighs 0.34kg.

Specification

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.
