ST160 Standard Foam Injector ST160 Standard Foam Injector
R+M Suttner ST160 Foam Injector -2.1mm, 350 Bar, 3/8" F x 3/8" M

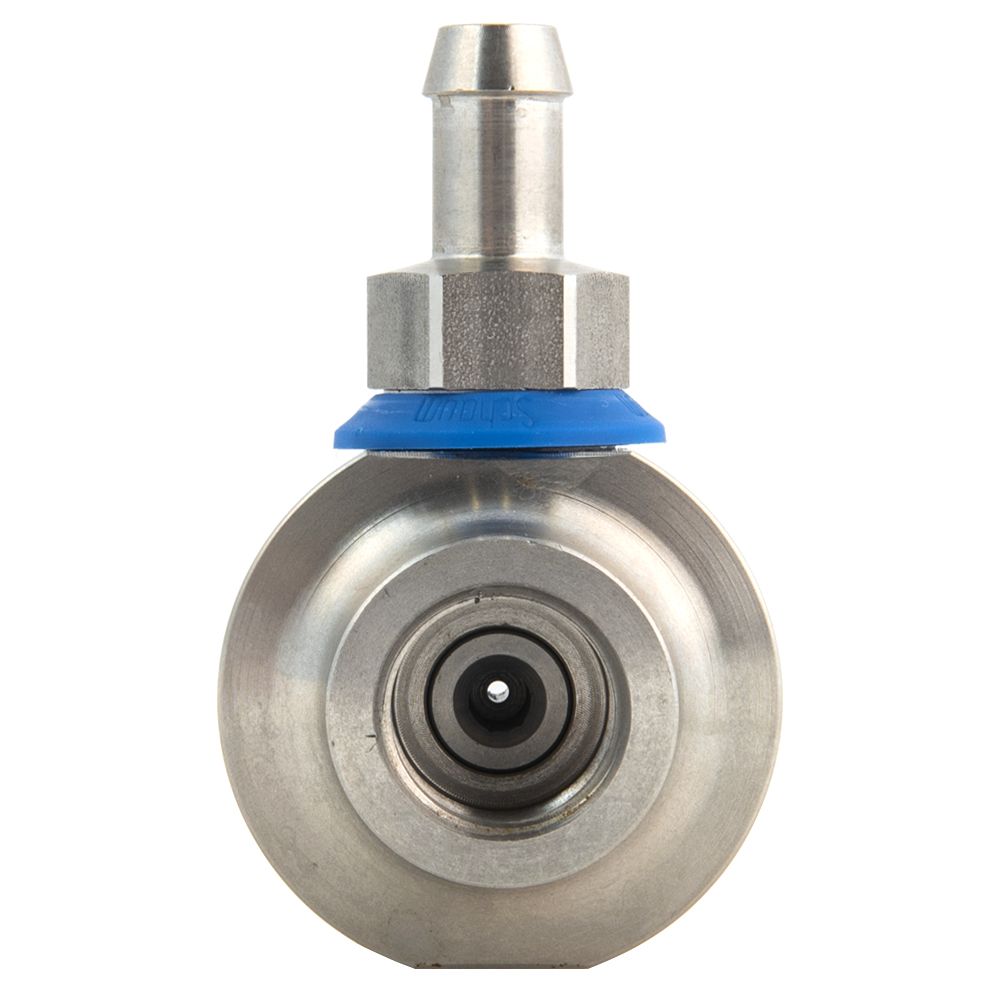

R+M Suttner ST160 Foam Injector -2.1mm, 350 Bar, 3/8" F x 3/8" M – image 1

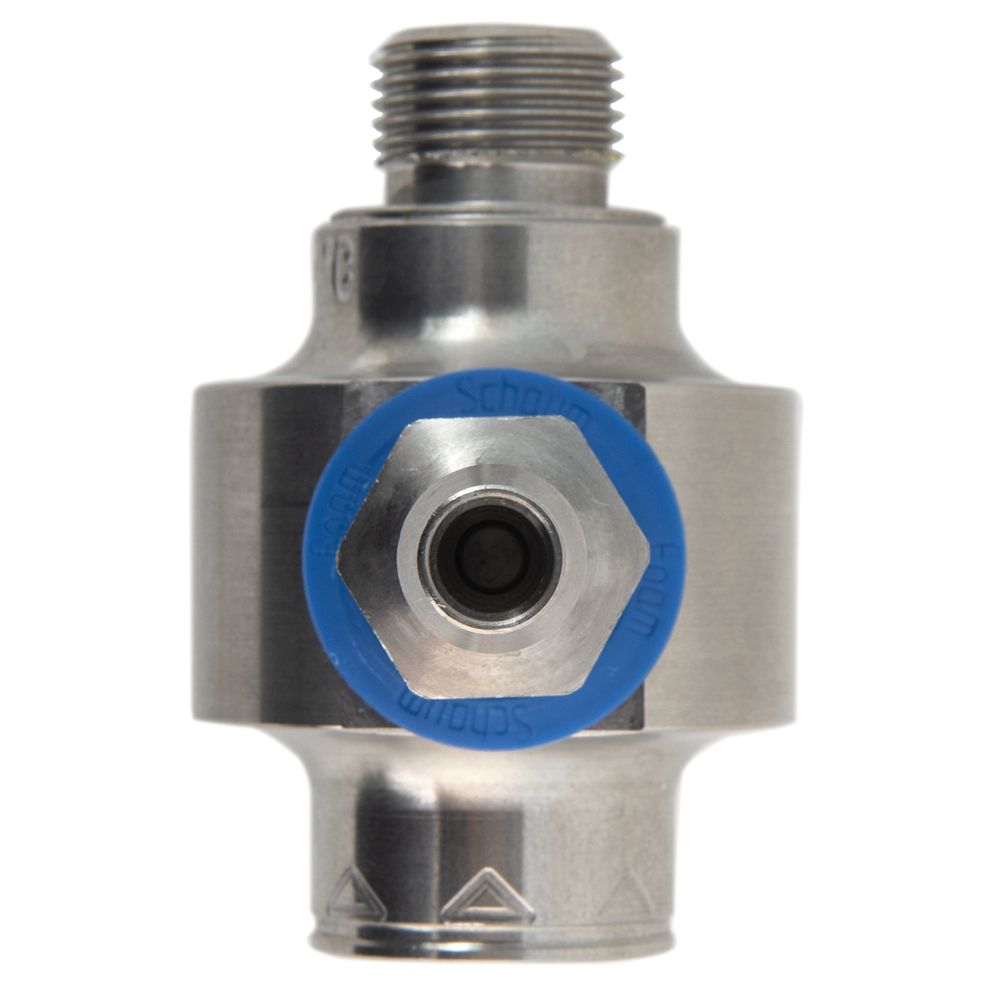

R+M Suttner ST160 Foam Injector -2.1mm, 350 Bar, 3/8" F x 3/8" M – image 2
R+M Suttner ST160 Foam Injector -2.1mm, 350 Bar, 3/8" F x 3/8" M – image 3

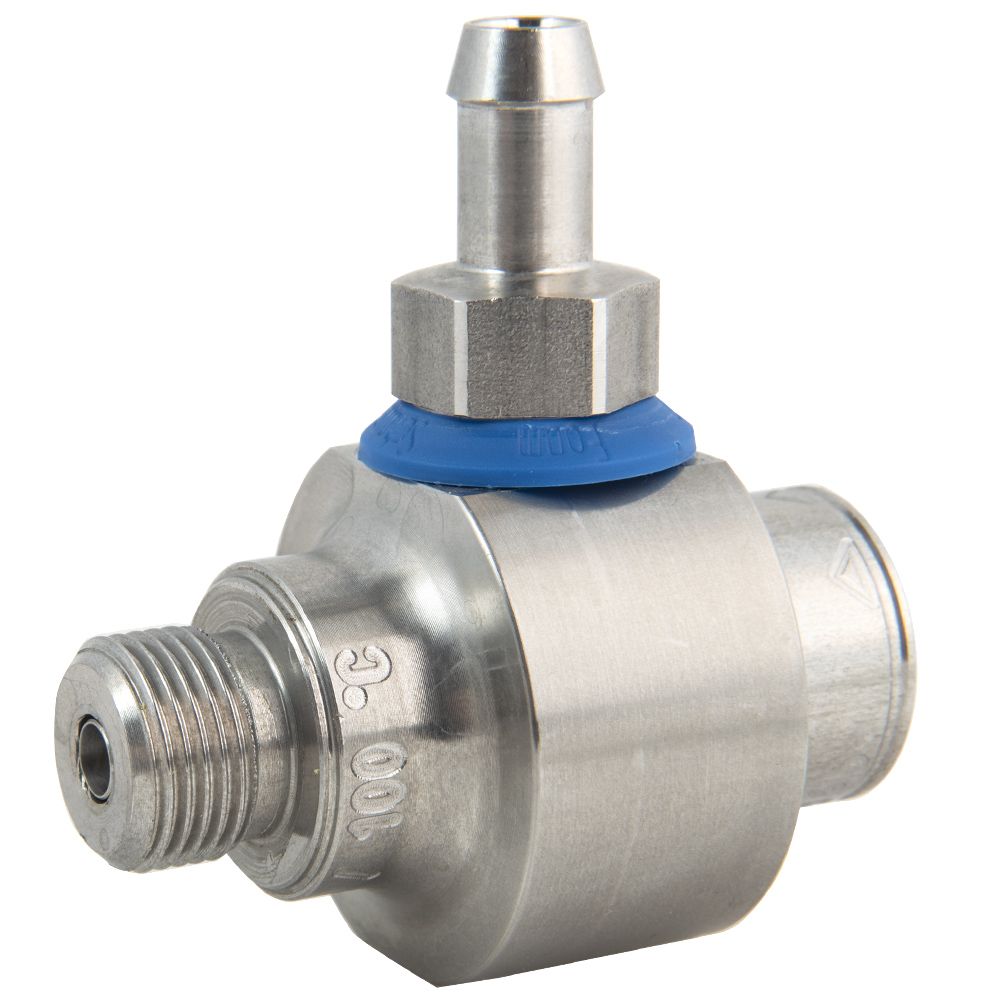

R+M Suttner ST160 Foam Injector -2.1mm, 350 Bar, 3/8" F x 3/8" M – image 4

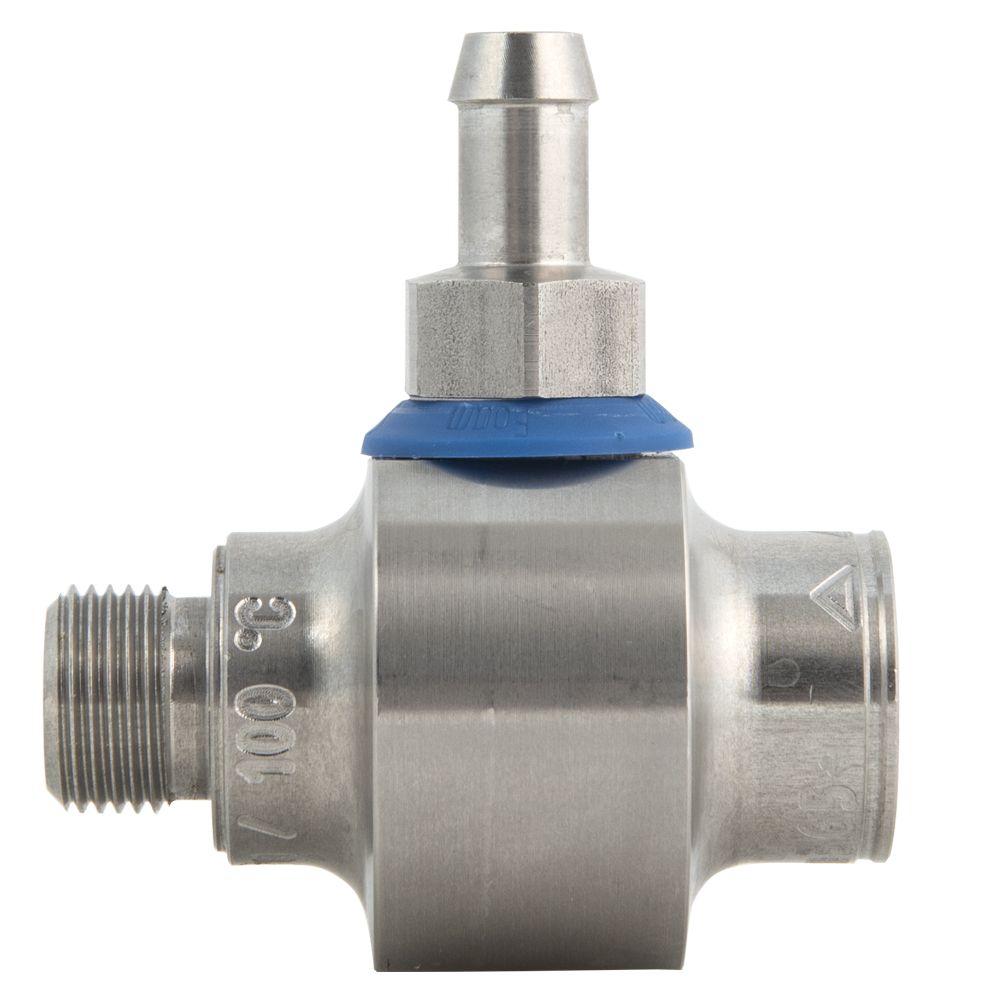

R+M Suttner ST160 Foam Injector -2.1mm, 350 Bar, 3/8" F x 3/8" M – image 5

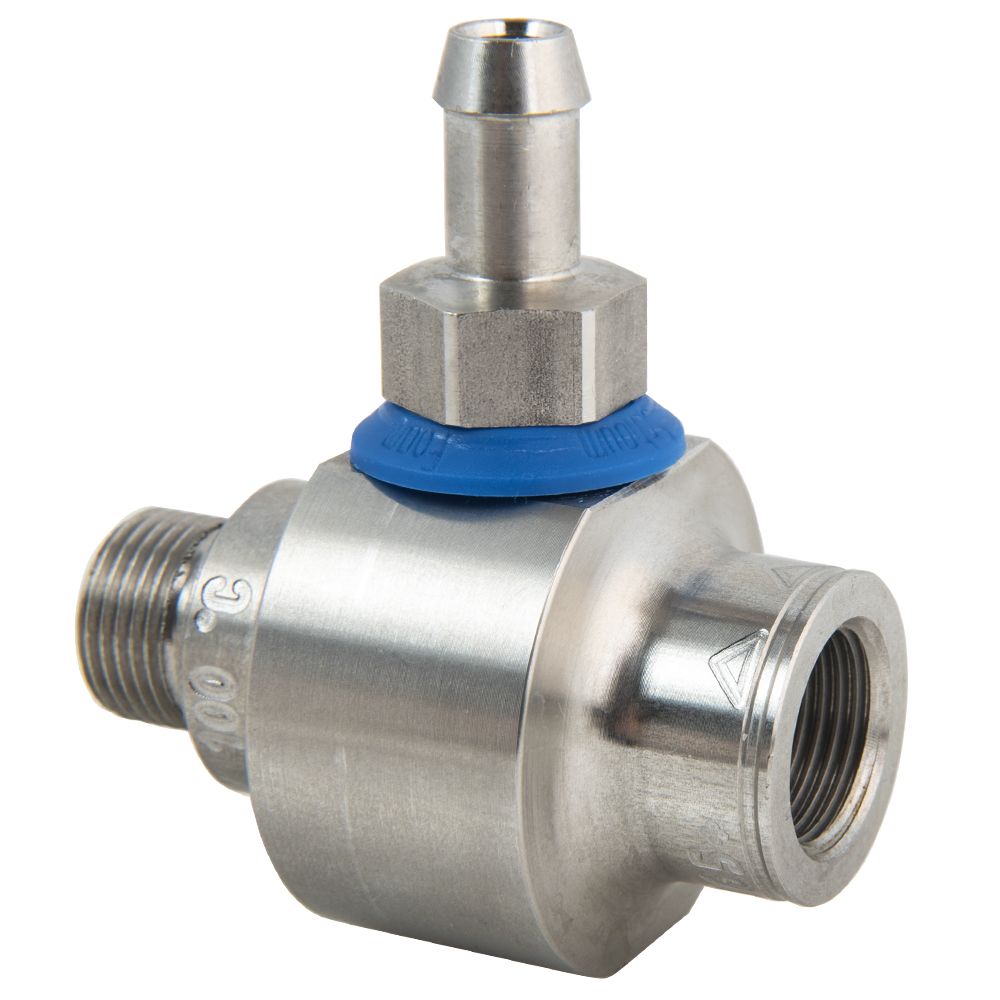

R+M Suttner ST160 Foam Injector -2.1mm, 350 Bar, 3/8" F x 3/8" M – image 6
R+M Suttner ST160 Foam Injector -2.1mm, 350 Bar, 3/8" F x 3/8" M – image 7

R+M Suttner ST160 Foam Injector -2.1mm, 350 Bar, 3/8" F x 3/8" M

SKU: 200160540
exc. VATinc. VAT
Price£133.00£159.60
In Stock
Order by 2 PM for next day delivery
  • Get finance on orders over £1000 Learn More
  • Free UK mainland delivery on orders over £200 excluding VAT
  • Bulk discounts available
  • Stock moves quickly. For large or urgent orders, call 015395 66193 to confirm availability.
  • Need assistance? Call 015395 66193

Overview

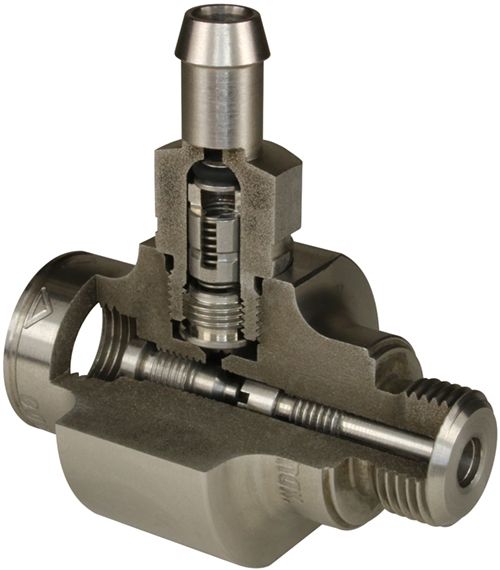

ST160 venturi foam injector from R+M Suttner in stainless steel, 2.1mm injector size. Water is forced through a restrictive orifice, and when the injector is used with a low pressure nozzle such as an ST75 foam head this creates a vacuum that draws chemical into the water stream. It is used for cleaning in agriculture, automotive and food processing, including vehicles that carry livestock.

Ten dosing nozzle inserts are supplied to adjust the chemical dose. Match the injector size and the foam nozzle size to the flow and pressure of the system. Fit a chemical filter on the end of the chemical tube to keep debris out, and check the viscosity of the chemical, as it affects the draw rate. The injector has a 3/8" BSP female inlet and a 3/8" BSP male outlet and is rated to 350 bar and 90°C. It weighs 0.34kg.

Specification

Part number200160540
BrandR+M Suttner
TypeVenturi foam injector
MaterialStainless steel
Orifice diameter2.1mm
Maximum pressure350 bar
Maximum temperature90°C
Inlet3/8" BSP female
Outlet3/8" BSP male
Bore9mm
SeriesST160
Injector size2.1mm
Dose adjustment10 dosing inserts
SuitsST75 foam heads, ST76 foam blasters and the triple nozzle.
Weight0.34kg
Country of originGermany

Before installation: Check the connection threads using our BSP thread size chart and the pressure and temperature ratings of your system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.
