TEHA ST 20. Stainless Steel Automatic Hose Reel, 300 Bar, 1/2" F x 1/2" F
TEHA ST 20. Stainless Steel Automatic Hose Reel, 300 Bar, 1/2" F x 1/2" F – image 1
TEHA ST 20. Stainless Steel Automatic Hose Reel, 300 Bar, 1/2" F x 1/2" F – image 2
TEHA

TEHA ST 20. Stainless Steel Automatic Hose Reel, 300 Bar, 1/2" F x 1/2" F

SKU 7402012
Max pressure
300 bar
Max temperature
90°C
Inlet
½" BSP Female
Outlet
½" BSP Female · Thread chart
£1,156.00 ex VAT
£1,387.20 inc. VAT
Ordered inWe order this in for you: delivery up to 3–4 weeks.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

TEHA ST 20 stainless steel automatic hose reel with spring return, maintenance-free plastic slide bearings and a stainless steel ST-322 swivel.

Inlet and outlet are 1/2" BSP female with a 12mm internal diameter, and it is rated to 300 bar and 90°C. It has 8 stopping positions per rotation and a quick pull releases the lock. Suitable for water, cleaning detergent, air, oils and greases. It weighs 16kg.

Specification

Part number7402012
BrandTEHA
MaterialStainless steel
Maximum pressure300 bar
Maximum temperature90°C
Inlet1/2" BSP female
Outlet1/2" BSP female
Bore12mm

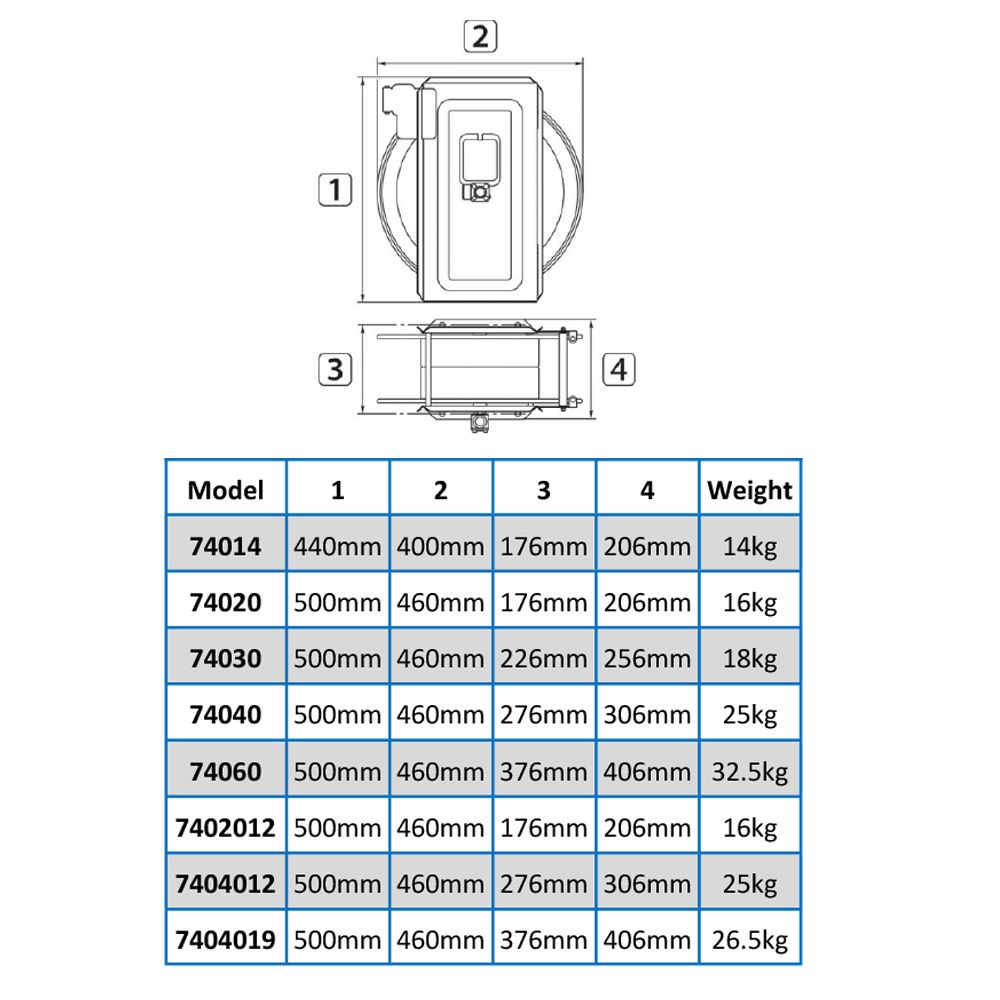

DimensionsHeight 500mm, Width 206mm, Depth 460mm, Reel Width 176mm
Weight16kg

Before installation: Check the connection threads using our BSP thread size chart and the pressure and temperature ratings of your system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Brand
TEHA
Max Pressure Rating
300 bar
Inlet
½" BSP Female
Outlet
½" BSP Female
Max Temperature Rating
90°C
Cleaning Application
Food Processing
Hose Length
17m
Material
Stainless Steel
Weight
16 kg

Technical information

Maximum pressure: 300 bar

Maximum temperature: 90°C

Inlet: 1/2" BSP female

Outlet: 1/2" BSP female

Bore: 12mm

Material: Stainless steel

Dimensions: Height 500mm, Width 206mm, Depth 460mm, Reel Width 176mm

Weight: 16kg

Compare similar products

Detail
This product
TEHA ST 20. Stainless Steel Automatic Hose Reel, 400 Bar, 3/8" F x 3/8" F
TEHA ST 30. Stainless Steel Automatic Hose Reel, 400 Bar, 3/8" F x 3/8" F
TEHA ST 40. Stainless Steel Automatic Hose Reel, 400 Bar, 3/8" F x 3/8" F
Price£1,156.00 ex VAT
£1,387.20 inc VAT
£996.00 ex VAT
£1,195.20 inc VAT
£1,473.00 ex VAT
£1,767.60 inc VAT
£1,750.00 ex VAT
£2,100.00 inc VAT
Max pressure300 bar400 bar400 bar400 bar
Max temperature90°C90°C90°C90°C
Inlet½" BSP Female⅜" BSP Female⅜" BSP Female⅜" BSP Female
Outlet½" BSP Female⅜" BSP Female⅜" BSP Female⅜" BSP Female
AvailabilityIn stockIn stockIn stockIn stock

Documents

74020127402012
7402012-27402012-2
7402012-37402012-3
Data Sheet pdf_link_11

HYGIENE-compressed_1.pdf
