R+M Suttner ST 40. Stainless Steel Automatic Hose Reel, 200 Bar, 3/4" F x 3/4" F
R+M Suttner ST 40. Stainless Steel Automatic Hose Reel, 200 Bar, 3/4" F x 3/4" F – image 1
R+M Suttner ST 40. Stainless Steel Automatic Hose Reel, 200 Bar, 3/4" F x 3/4" F – image 2
R+M Suttner ST 40. Stainless Steel Automatic Hose Reel, 200 Bar, 3/4" F x 3/4" F – image 3
R&M Suttner

R+M Suttner ST 40. Stainless Steel Automatic Hose Reel, 200 Bar, 3/4" F x 3/4" F

SKU 7404019
Max pressure
200 bar
Max temperature
90°C
Inlet
¾" BSP Female
Outlet
¾" BSP Female · Thread chart
£1,990.00 ex VAT
£2,388.00 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

R+M Suttner ST 40 automatic hose reel in V2A / AISI 304 stainless steel, for up to 35m of DN19 hose. It rewinds by spring, locks in 8 positions per turn, and a quick pull releases the lock.

It has a 3/4" BSP female inlet and outlet, an ST-322 stainless steel swivel and maintenance free slide bearings, and is rated to 200 bar and 90°C. It is suitable for water, cleaning detergents, air, oils and greases. It weighs 26.5kg.

Specification

Part number7404019
BrandR+M Suttner
ModelST 40
TypeAutomatic hose reel
MaterialV2A / AISI 304 stainless steel
Maximum pressure200 bar
Maximum temperature90°C
Inlet3/4" BSP female
Outlet3/4" BSP female
Bore19mm
Hose capacity35m of DN19 hose
SwivelST-322 stainless steel
Locking positions8 per turn

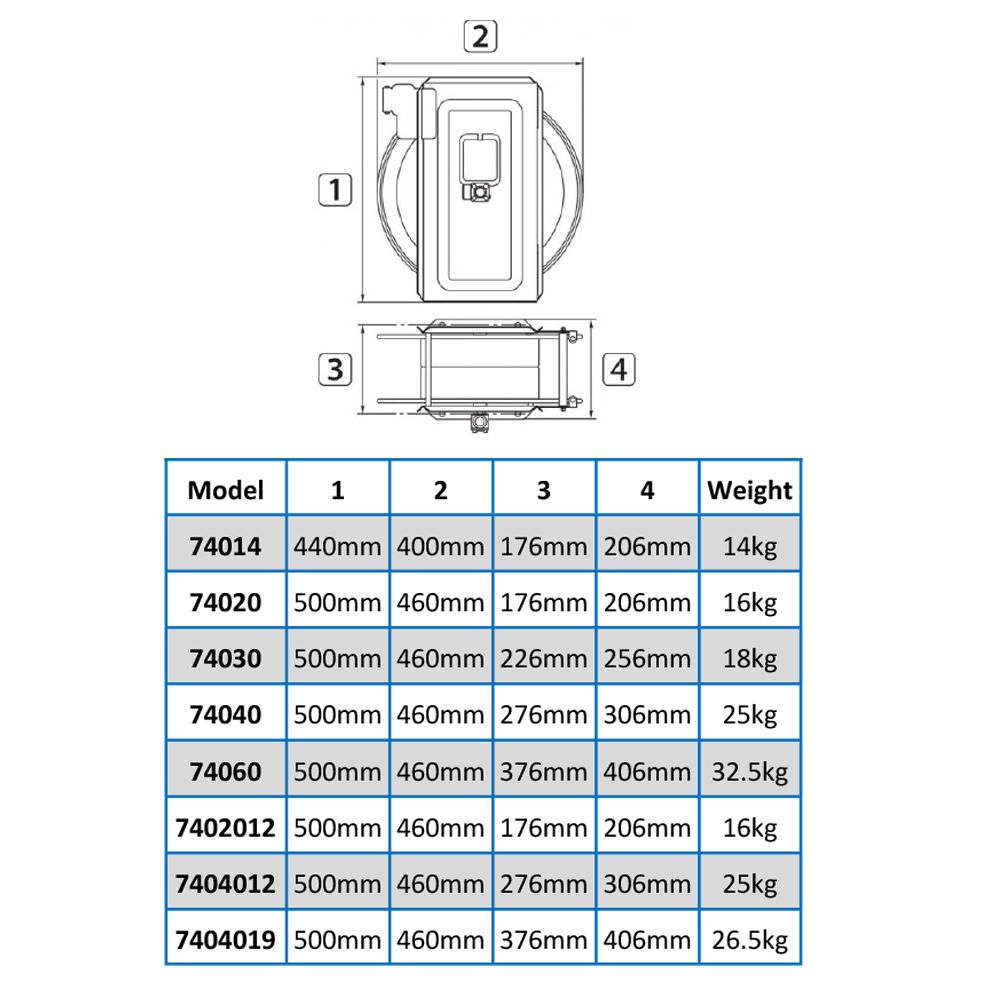

Height500mm
Width406mm
Depth460mm
Reel width376mm
HoseNot included
DimensionsHeight 500mm, Width 406mm, Depth 460mm, Reel Width 376mm
Weight26.5kg

Before installation: Check the connection threads using our BSP thread size chart and the pressure and temperature ratings of your system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Brand
R&M Suttner
Max Pressure Rating
200 bar
Inlet
¾" BSP Female
Outlet
¾" BSP Female
Max Temperature Rating
90°C
Cleaning Application
Food Processing
DN Bore
19mm
Hose Length
35m
Material
Stainless Steel
Weight
26.5 kg

Technical information

Maximum pressure: 200 bar

Maximum temperature: 90°C

Inlet: 3/4" BSP female

Outlet: 3/4" BSP female

Bore: 19mm

Swivel: ST-322 stainless steel

Model: ST 40

Type: Automatic hose reel

Material: V2A / AISI 304 stainless steel

Hose capacity: 35m of DN19 hose

Locking positions: 8 per turn

Height: 500mm

Width: 406mm

Depth: 460mm

Reel width: 376mm

Weight: 26.5kg

Hose: Not included

Documents

74040197404019
7404019-27404019-2
7404019-37404019-3
Data Sheet pdf_link_11

HYGIENE-compressed_1.pdf
