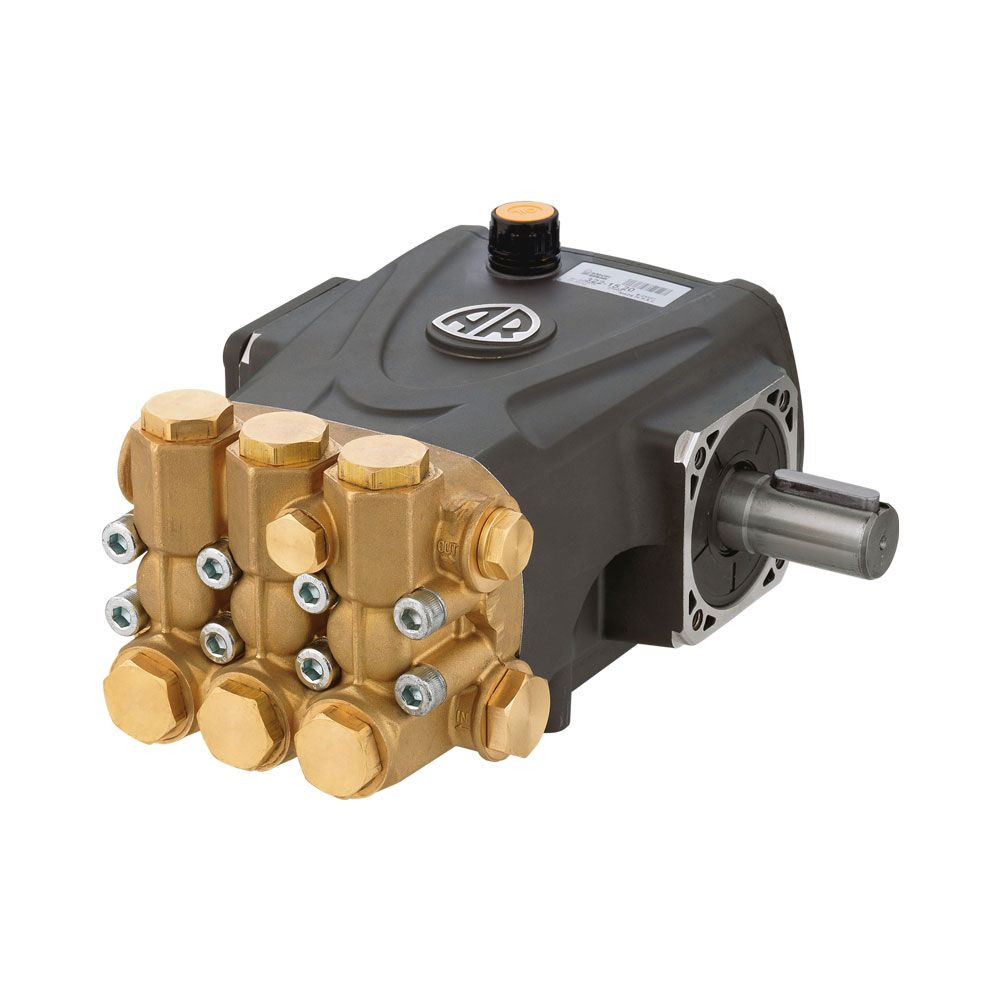

Annovi Reverberi RR15.20 Solid Shaft Pump, 200 Bar, 15 LPM, 1450 RPM

Overview

Annovi Reverberi RR15.20 three piston pump for electric motor drive, delivering 15 litres per minute at 200 bar at 1450 RPM and needing 7.5hp to run at full pressure.

It has a die-cast aluminium alloy body and cover, a crank-connecting rod piston drive and a rear cover with oil drain and sight glass. It is designed to fit 100 frame electric motors and does not fit 112 frame motors (such as our 46-004) or 1" gearboxes (such as our RS500).

Specification

Repair kits

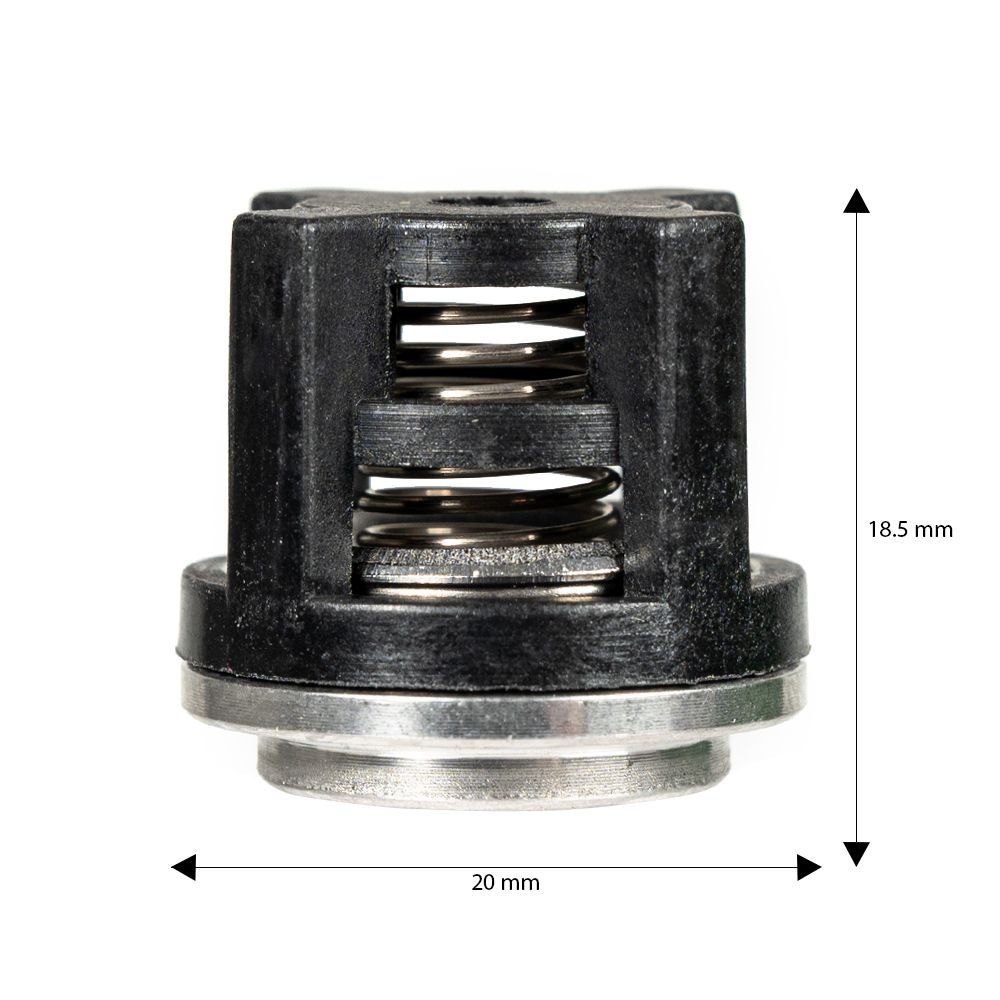

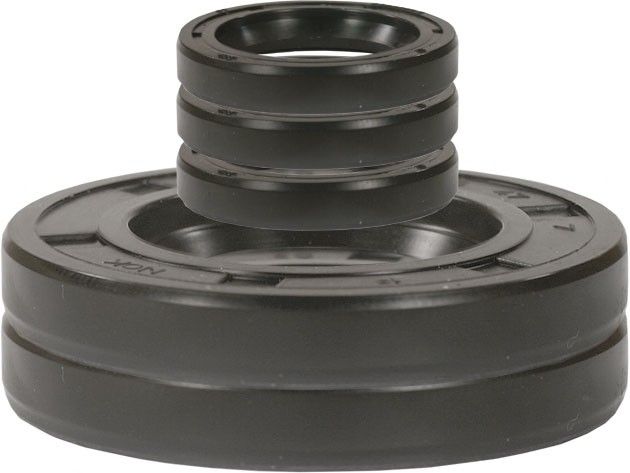

Valve kit 2864, water seal kit 42549 (pumps made before May 2022), water seal kit 47110 (pumps made after May 2022), oil seal kit 42547 and piston kit 2746. Support ring kit 2745, gasket kit 42550, and piston guide kit 42548 for pumps built before week 20 of 2022.

Unloader valves

Suitable unloader valves: Gymatic 3B 20080 without chemical injector, or Gymatic 3B 20400 with chemical injector.

Sizing help

To match a motor to your pump, see our electric motor sizing guide.

Repair video

Watch Annovi Reverberi's video on servicing and repairing RR series pumps: RR pump repair and maintenance video.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.
