Annovi Reverberi RK13.17 Solid Shaft Pump, 170 Bar, 13 LPM, 1450 RPM
Annovi Reverberi RK13.17 Solid Shaft Pump, 170 Bar, 13 LPM, 1450 RPM – image 1

Annovi Reverberi RK13.17 Solid Shaft Pump, 170 Bar, 13 LPM, 1450 RPM

SKU RK13.17
£425.00 ex VAT
£510.00 inc. VAT
Available on backorderSecure your order now for delivery in approx 2–3 weeks.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

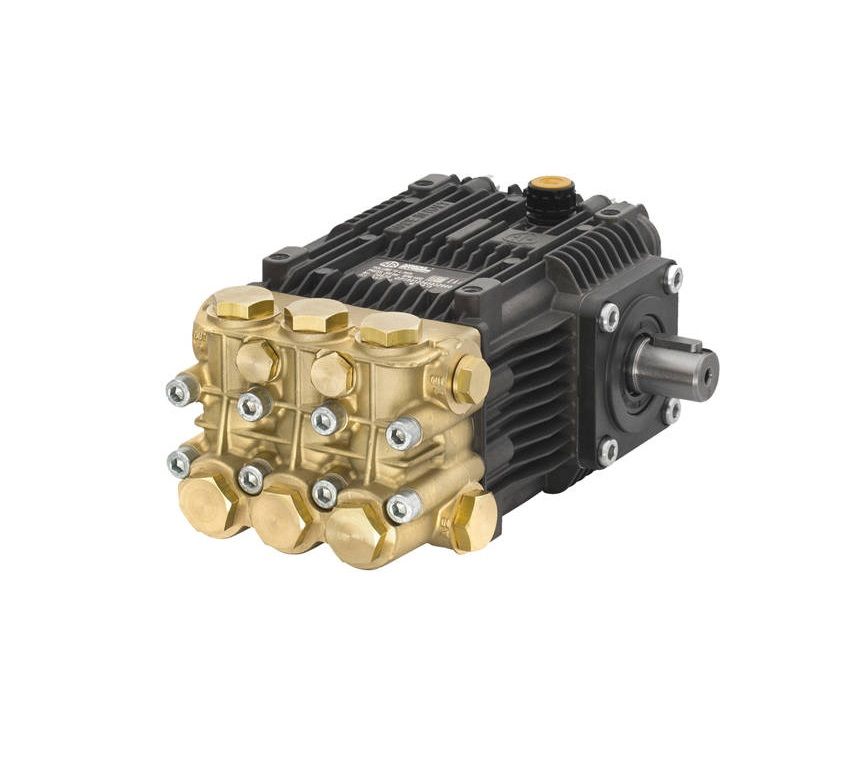

Annovi Reverberi RK13.17 three piston pump for electric motor drive, delivering 13 litres per minute at 170 bar (2500 psi) at 1450 RPM and needing 5.5hp to run at full pressure.

It has a 24mm solid shaft in pressed high-strength steel, a die-cast aluminium alloy body and cover, and a crank-connecting rod piston drive. The rear cover has an oil drain outlet and oil sight glass, and the oil cap has a dipstick.

Specification

Part numberRK13.17
BrandAnnovi Reverberi
ModelRK13.17
Maximum pressure170 bar (2500 psi)
Maximum flow13 litres per minute
Speed1450 RPM
Power required5.5hp
Shaft24mm solid
Body and coverDie-cast aluminium alloy
Weight8.95kg
Piston diameter18mm
OilSAE 15W40, 0.435 kg

Repair kits

Valve kit 2864, water seal kit 1857, oil seal kit 1855 and piston kit 2757. Support ring kit 1829.

Unloader valves

Suitable unloader valves: Gymatic 3B 20080 without chemical injector, or Gymatic 3B 20400 with chemical injector.

Sizing help

To match a motor to your pump, see our electric motor sizing guide.

Repair video

Watch a video showing how to replace the seals, valves and pistons on Annovi Reverberi RK pumps: RK pump seal, valve and piston repair video.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Annovi Reverberi RK13.17 pump, 170 bar, 13 litres per minute, 1450 RPM, 24mm solid shaft.

Specifications

Brand
Annovi Reverberi
Pumps and Parts by Series
Annovi Reverberi RK Series
Search By A&R Pump Model
RK13.17
Working Pressure
170
Flow Rate
13
RPM
1450
Shaft
Solid Shaft 24mm
HP Power Required
4KW / 5.5 Hp
Weight
8.95 kg

Technical information

Flow: 13 LPM

Pressure: 170 BAR

RPM: 1450

HP: 5.5

Shaft: 24mm solid
