Interpump 59CW Series Pumps HTInterpump 59CW Series Pumps HT
Interpump 59CW Series Pump

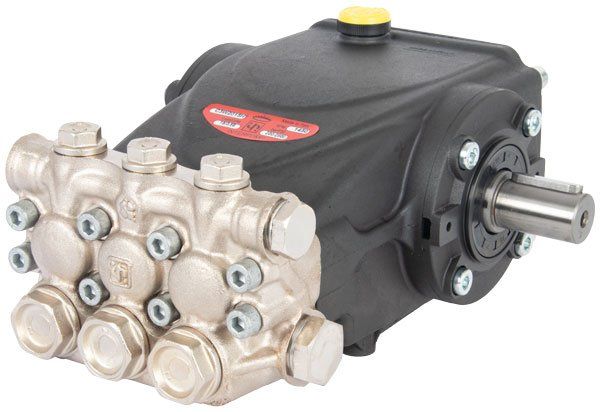

Interpump 59CW Series C3W2013 Pressure Washer Pump – 200 Bar 13 Lpm
Interpump

Interpump 59CW Series Pump

SKU C3W2013
Was £883.04 ex VATSave 19%
£715.26 ex VAT
£858.31 inc. VAT
Out of stockWe are sorry, this product is currently out of stock. Call 015395 66193 for availability.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Interpump C3W2013 59CW series pump, rated to 200 bar and 13 litres per minute at 1450 RPM, with a 24mm male shaft and nickel plated AISI 420B stainless steel manifold. It needs 6.8hp (5.00kW) to drive it.

HNBR seals and brass pressure seal supports suit car wash and industrial use with water up to 60°C. It can run between 1450 and 1750 RPM. Made in Italy.

Specification

Part numberC3W2013
BrandInterpump
Series59CW
Maximum pressure200 bar
Maximum flow13 litres per minute
Speed1450 to 1750 RPM (13 litres per minute at 1450 RPM)
Power required6.8hp (5.00kW)
Shaft24mm male
ManifoldNickel plated AISI 420B stainless steel
Inlet1/2" BSP female
Outlet3/8" BSP female
SealsHNBR
Pressure seal supportsBrass
Maximum water temperature60°C

Sizing help

To match a motor to your pump, see our electric motor sizing guide.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Service kits

Interpump kits for this pump, taken from the Interpump parts list and quick kit guide. Check the model on your pump plate before ordering.

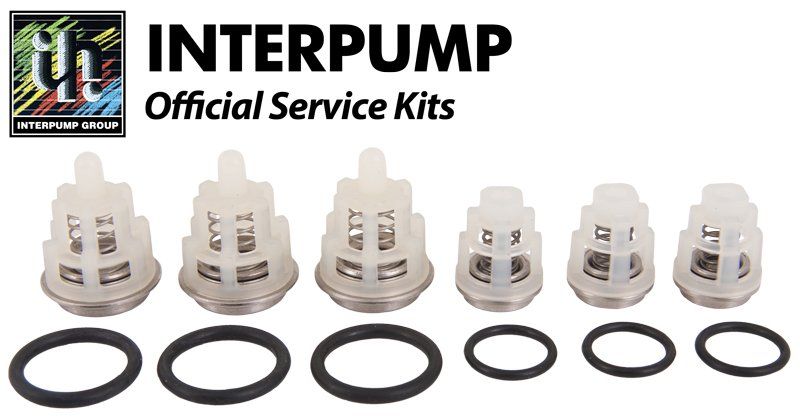

Valve kitKIT269

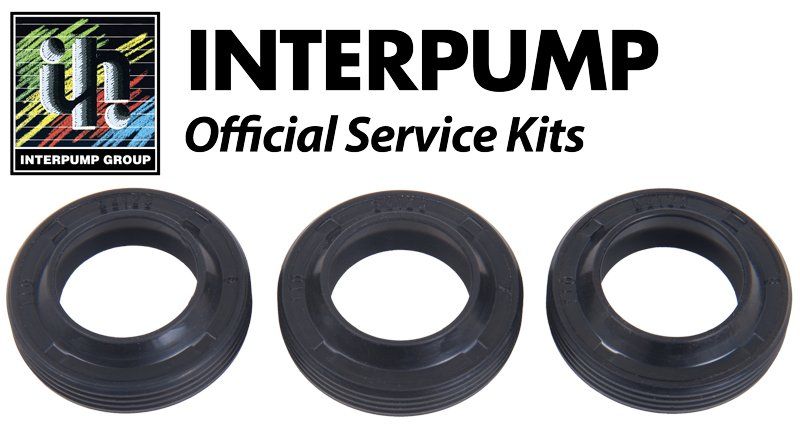

Oil seal kitKIT271

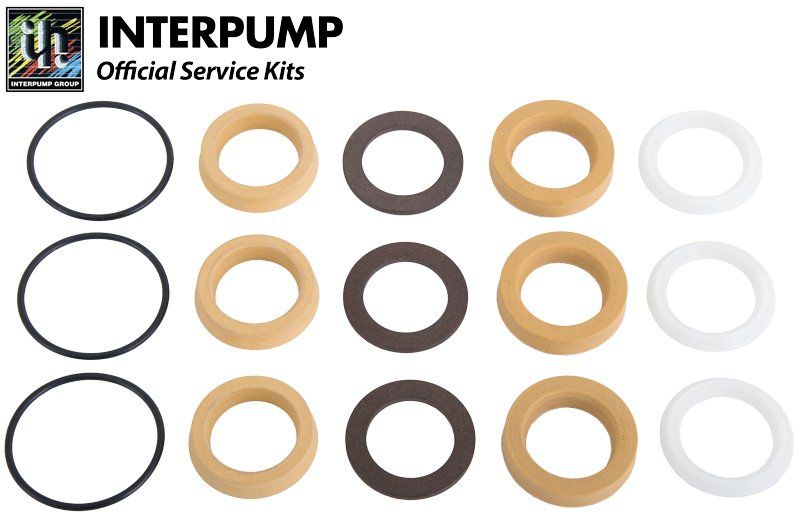

Water seal kit (3 pistons)KIT344

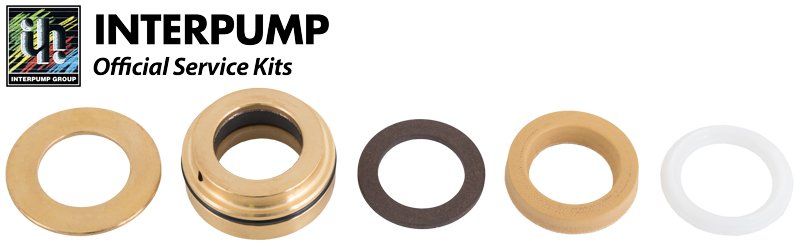

Complete seal assembly (1 piston)KIT345
Nickel plated valve capsKIT292

Interpump C3W2013 59CW series pump, 200 bar, 13 litres per minute, 1450 RPM, 24mm male shaft.

Specifications

Brand
Interpump
Pumps and Parts by Series
Interpump 59CW Series
Search by Interpump model
C3W2013
Working Pressure
200
Flow Rate
13
RPM
1450
Shaft
Solid Shaft 24mm
Pump Inlet
½" BSP Female
Pump Outlet
⅜" BSP Female
Temperature
60°C
HP Power Required
5.00KW / 6.8 Hp
Weight
10 kg

Technical information

200 Bar

13 Lpm @ 1450 Rpm

1450-1750 Rpm

6.8 Hp, 5.00 kW (1450 Rpm)

24mm male shaft

Nickel plated AISI420B manifold

HNBR seals for carwash & industrial applications

Brass pressure seal supports

60°C max water temperature

1/2"BSP female inlet

3/8"BSP female outlet

Compare similar products

Detail
This product
VRT3 Unloader Valve 220 Bar 40LPM Stainless Internals
VRT3 Unloader Valve 140 Bar
VRT3-P Unloader Valve & Pressure Switch 220 Bar
Price£715.26 ex VAT
£858.31 inc VAT
£100.75 ex VAT
£120.90 inc VAT
£100.75 ex VAT
£120.90 inc VAT
£122.13 ex VAT
£146.56 inc VAT
Max pressure–220 bar140 bar220 bar
Max flow–40 LPM40 LPM40 LPM
Inlet–⅜" BSP Female⅜" BSP Female⅜" BSP Female
Outlet–⅜" BSP Female–⅜" BSP Female
AvailabilityOut of stockIn stockIn stockIn stock

Documents

Data Sheet pdf_link_1

Interpump 59CW Series Parts List.pdf

Data Sheet pdf_link_2

Interpump 59CW Series Technical Data.pdf

Data Sheet pdf_link_3

Interpump General User Manual.pdf

Data Sheet pdf_link_4

Interpump 59CW Presentation.pdf

Delivery & returns

  • Free delivery on online orders over £200 + VAT to a UK mainland address.
  • Orders processed by 2pm go out on tracked, insured next-working-day delivery.
  • Orders under £200 + VAT: delivery £11.99 + VAT.
  • Returns: ask us for a returns number first. Unused goods in their original packaging can come back at our discretion, less a restocking fee; faulty or wrong items have no fee.
Full delivery & returns details

Related Products

Trapped Pressure Unloader Valve
TecomecSKU 4072000108

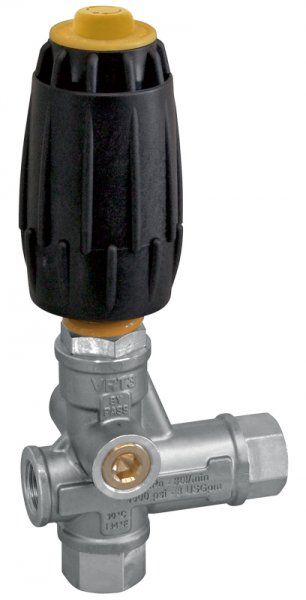

VRT3 Unloader Valve 140 Bar

140 bar40 LPM
140 bar · 40 LPM
In
⅜" BSP Female
In stock · next-day delivery
£100.75ex VAT£120.90 inc VAT
Trapped Pressure Unloader Valve
TecomecSKU 4072000111

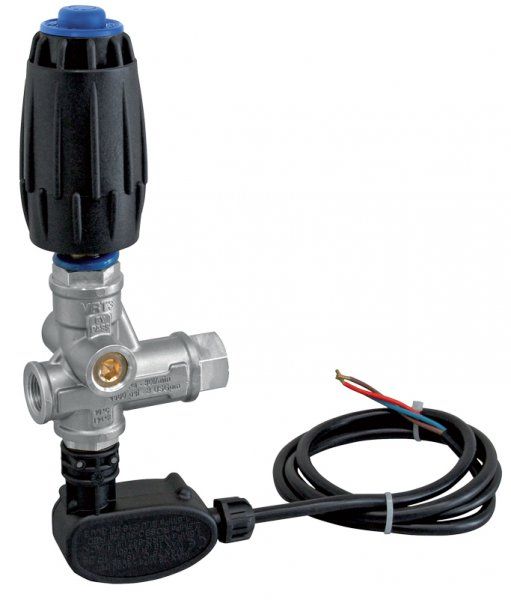

VRT3-P Unloader Valve & Pressure Switch 220 Bar

220 bar40 LPM
220 bar · 40 LPM
In
⅜" BSP Female
Out
⅜" BSP Female
In stock · next-day delivery
£122.13ex VAT£146.56 inc VAT
Trapped Pressure Unloader Valve
TecomecSKU 4072000113

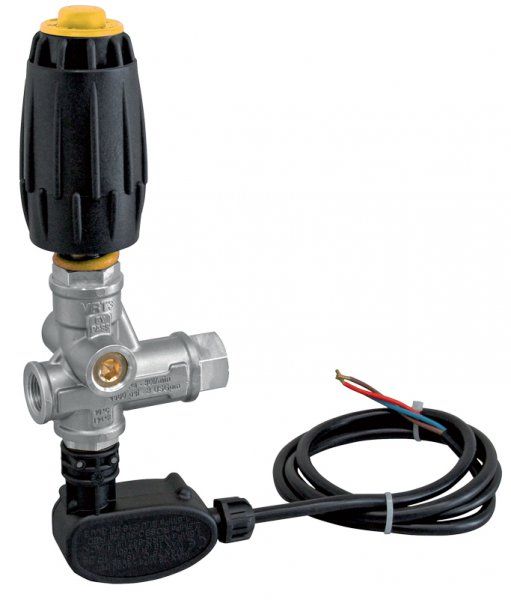

VRT3-P Unloader Valve & Pressure Switch 140 Bar
