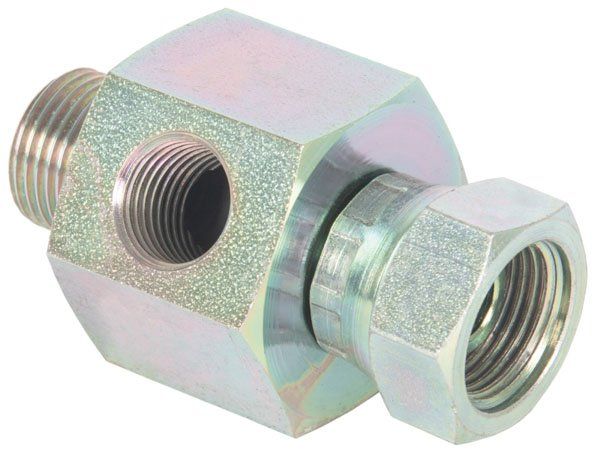

Water Pressure Gauge Testing Tee 3/8"

Plated steel pressure gauge test tee with 3/8" BSP male and 3/8" BSP female threads and a 1/4" BSP female test point, rated to 380 bar working pressure.

Specification

• Part number: 501-2431
• Type: pressure gauge test tee, hydraulic fitting
• Threads: 3/8" BSP male x 3/8" BSP female
• Test point: 1/4" BSP female
• Working pressure: 380 bar
• Proof pressure: 570 bar
• Material: plated steel
• Cone: 60° (BS5200)
