Product Overview

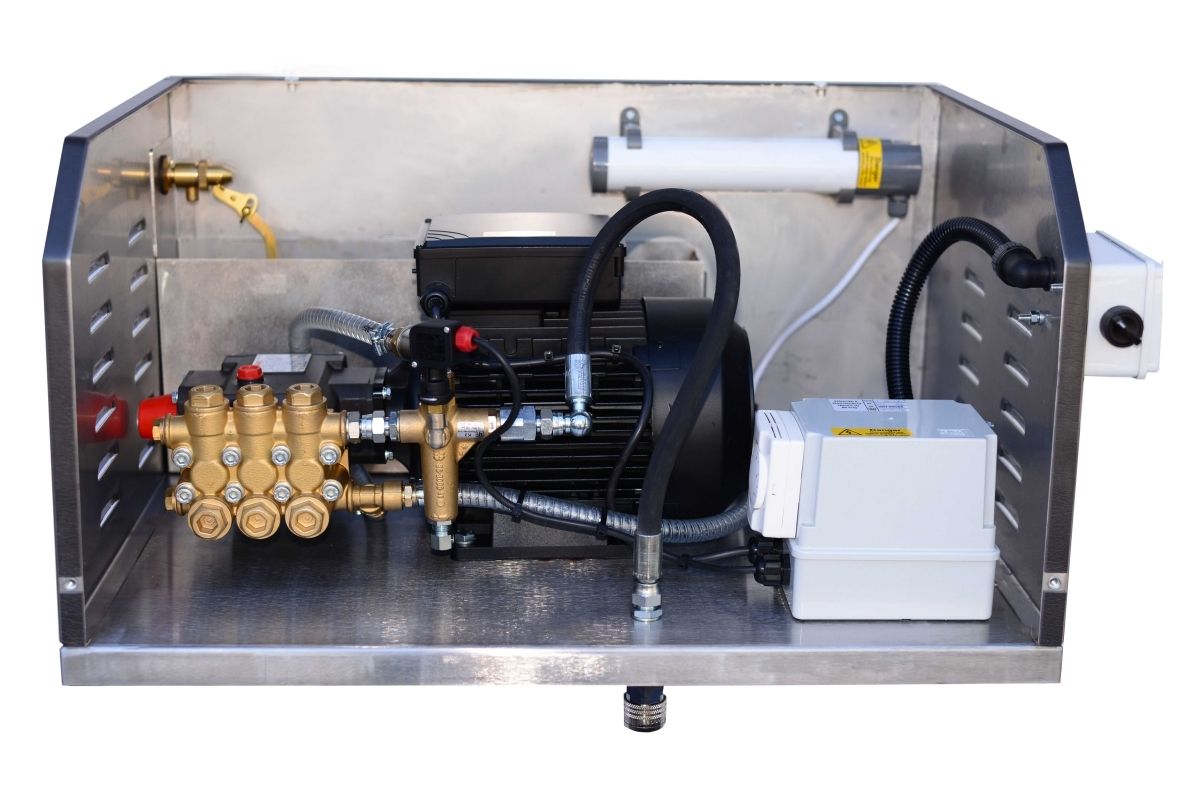

The Dirt Driver WM160/18HC Wall Mounted Static Cold Pressure Washer is a high-performance fixed installation cleaning system designed for demanding commercial and industrial environments. Delivering 160 Bar of pressure with a powerful 18 litres per minute flow rate, this machine is ideal for heavy-duty cleaning applications including vehicle fleets, agricultural equipment, engineering workshops, food processing facilities, manufacturing plants, utility depots, and transport yards.

Powered by a 400V three-phase electrical supply, the WM160/18HC features a heavy-duty 5.5kW four-pole (1500 RPM) motor directly coupled to a Hawk ceramic plunger triplex pump, providing exceptional reliability, smooth operation, and a long service life. The machine is housed within a robust, lockable, ventilated steel cabinet with integrated frost protection and heavy-duty wall mounting brackets supplied as standard. A built-in 9-litre break tank also complies with Category 5 Backflow Prevention Regulations, making the machine suitable for professional installations.

---

Standard Flow Actuated Timed Shutdown System

Every WM160/18HC is supplied as standard with a flow-actuated unloader valve and an automatic timed total shutdown system.

When the operator releases the trigger gun, the pump enters bypass mode. If the trigger is not operated again within approximately 4–8 minutes, the machine automatically switches itself off. To continue cleaning, the operator simply returns to the machine and restarts it using the power switch.

This system is particularly popular with local authorities, utility companies, highways contractors, fleet operators, and industrial sites, where machines are often left unattended between cleaning tasks.

Unlike automatic restart systems, the machine cannot unexpectedly restart if a hose, trigger gun, or coupling develops a leak while unattended. This provides an additional level of safety while preventing the pump from remaining in bypass for extended periods.

Benefits

• Flow-actuated unloader valve fitted as standard
• Automatic shutdown after approximately 4–8 minutes
• Prevents prolonged bypass operation
• Helps extend pump and motor life
• Reduces unnecessary electricity consumption
• Prevents unexpected restarting caused by leaking hoses or couplings
• Ideal for shared workplaces and industrial environments

---

Optional Upgrade – Automatic Trapped Pressure System

For applications where maximum operator convenience is preferred, the WM160/18HC can be supplied with an Automatic Trapped Pressure System.

With this option, the machine automatically stops after a preset delay when the trigger gun is released. When the operator wants to continue cleaning, they simply squeeze the trigger again and the pressure washer automatically restarts without returning to the machine.

This upgrade is particularly beneficial in vehicle wash bays and fleet cleaning applications where the trigger gun is frequently released during washing.

Please Note: Once cleaning has been completed, the pressure washer should always be switched off at the main power switch. The automatic restart feature is designed purely as an operational convenience and should not replace normal shutdown procedures.

---

Key Features

• 160 Bar maximum working pressure
• 18 litres per minute maximum flow rate
• 400 Volt three-phase electrical supply
• Heavy-duty 5.5kW four-pole (1500 RPM) motor
• Hawk ceramic plunger triplex pump
• Direct drive pump and motor
• Lockable ventilated steel cabinet
• Heavy-duty wall mounting brackets included
• Integrated frost protection heater
• 9-litre break tank compliant with Category 5 backflow regulations
• Flow-actuated unloader valve
• Timed total shutdown system as standard
• Optional automatic trapped pressure restart system
• Low voltage 24V switching for increased operator safety
• Designed for heavy industrial use

---

Typical Applications

The WM160/18HC is ideal for:

• Commercial vehicle fleets
• Bus and coach depots
• Agricultural machinery cleaning
• Utility company depots
• Council maintenance yards
• Food manufacturing facilities
• Engineering workshops
• Manufacturing plants
• Plant hire companies
• Industrial washdown stations

---

Technical Specification

---

Why Choose the Dirt Driver WM160/18HC?

The Dirt Driver WM160/18HC is designed for businesses that demand high water flow, reliable performance, and long service life. Its combination of a slow-running four-pole motor, professional Hawk pump, integrated frost protection, compliant break tank, and intelligent shutdown system makes it an excellent choice for fixed industrial washdown installations.

The option of either the standard Timed Total Shutdown system or the Automatic Trapped Pressure system allows the machine to be configured to suit your preferred working practices, balancing convenience with operator safety.

---

Order Now

If you're looking for a powerful wall-mounted cold water pressure washer for industrial or commercial use, the Dirt Driver WM160/18HC delivers dependable performance day after day.

For technical advice or assistance selecting the right machine for your application, contact our experienced team.
