Interpump Trapped Pressure Unloader ValvesInterpump Trapped Pressure Unloader Valves
VRF2 Controlset Valve - 280 Bar
VRF2 Controlset Valve - 280 Bar – image 1
Tecomec

VRF2 Controlset Valve - 280 Bar

SKU 4072401000
Max pressure
280 bar
Max flow
30 LPM
£46.96 ex VAT
£56.35 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

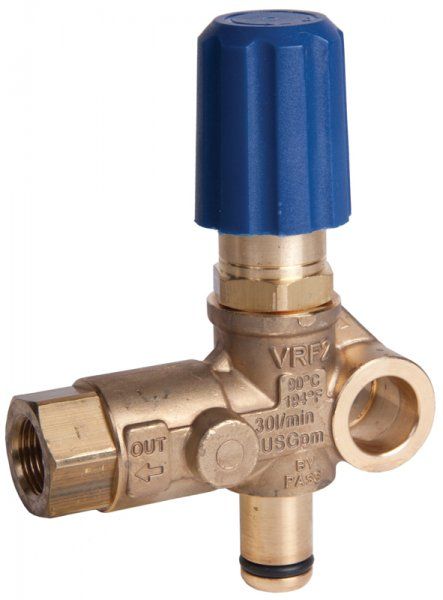

Tecomec VRF2 controlset valve, a brass and stainless steel trapped pressure unloader with bypass, rated to 280 bar, 30 litres per minute and 90°C. It has a 3/8" BSP male inlet and a 3/8" BSP female outlet.

It is supplied without the lower valve body or valve lowers, so reuse the existing lowers or order them separately. Check the existing valve configuration and connection sizes before ordering.

Specification

Part number4072401000
BrandTecomec
ModelVRF2
TypeTrapped pressure with bypass
Maximum pressure280 bar
Maximum flow30 litres per minute
Maximum temperature90°C
Inlet3/8" BSP male
Outlet3/8" BSP female
ConstructionBrass and stainless steel
Valve lowersNot included

Sizing help

To check thread sizes, see our BSP thread size chart.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Tecomec VRF2 controlset valve, 280 bar, 30 litres per minute, 90°C. Valve lowers not included.

Specifications

Brand
Tecomec
Max Pressure Rating
280 bar
Max Flow Rating
30 LPM
Material
Brass
Weight
0.55 kg

Technical information

280 Bar rated pressure

30 Lpm max flow

90°C max temperature

Trapped pressure valve & bypass

NOT SUPPLIED WITH VALVE LOWERS

Brass & st.steel construction

3/8" male inlet

3/8"BSPF outlet

Documents

Actuated and Trapped Pressure unloader valves comparisons.Actuated and Trapped Pressure unloader valves comparisons.
Data Sheet pdf_link_1

Mecline VRF2 Valve Parts List.pdf

Data Sheet pdf_link_2

Mecline VRF2 Technical Data.pdf

Data Sheet pdf_link_3

Mecline VRF2 Lowers Parts List.pdf

Data Sheet pdf_link_4

Mecline VRF2 User Manual.pdf

Data Sheet pdf_link_5

Mecline VRF2 Torque Settings.pdf

Data Sheet pdf_link_6

Mecline Valve Declaration of Conformity.pdf
