VRC25 S/Start Unloader Valve & Pressure Switch 220 Bar 30 Lpm
VRC25 S/Start Unloader Valve & Pressure Switch 220 Bar 30 Lpm
Tecomec

VRC25 S/Start Unloader Valve & Pressure Switch 220 Bar 30 Lpm

SKU 0215010490
Max pressure
220 bar
Max flow
30 LPM
Inlet
⅜" BSP Female Swivel
Outlet
⅜" BSP Female · Thread chart
£101.31 ex VAT
£121.57 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

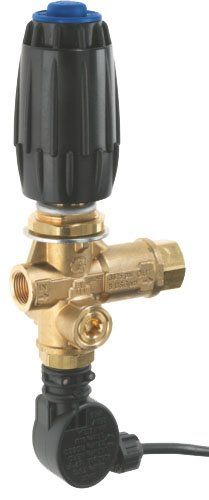

Tecomec VRC25 soft start trapped pressure unloader valve with a 45 bar pressure switch, rated to 220 bar and 30 LPM, with a pressure regulator knob and a panel mount option.

Specification

  • Part number: 0215010490
  • Brand: Tecomec
  • Model: VRC25
  • Type: trapped pressure unloader valve, soft start, with pressure switch
  • Rated pressure: 220 bar
  • Maximum flow: 30 LPM
  • Rated water temperature: 90°C
  • Switch pressure: 45 bar
  • Maximum current: 6A
  • Mounting: panel mount option
  • Construction: brass and steel
  • Adjustment: pressure regulator knob
  • Inlet: 3/8" BSP female
  • Outlet: 3/8" BSP female
  • Bypass: 3/8" BSP female

Tecomec VRC25 soft start trapped pressure unloader valve with 45 bar pressure switch, rated to 220 bar, 30 LPM and 90°C, 3/8" BSP female ports.

Specifications

Brand
Tecomec
Max Pressure Rating
220 bar
Max Flow Rating
30 LPM
Inlet
⅜" BSP Female Swivel
Outlet
⅜" BSP Female
Unloader Valve Series
VRC25 Soft Start Unloader Valve
Material
Brass
Weight
5 kg

Technical information

220 Bar rated pressure

30 Lpm max flow

90°C rated water temperature

Trapped pressure valve - Soft start

45 Bar switch pressure

6 Amps max current

Panel mount option

Brass & steel construction

Pressure regulator knob

3/8"BSPF inlet

3/8"BSPF outlet

3/8"BSPF bypass
