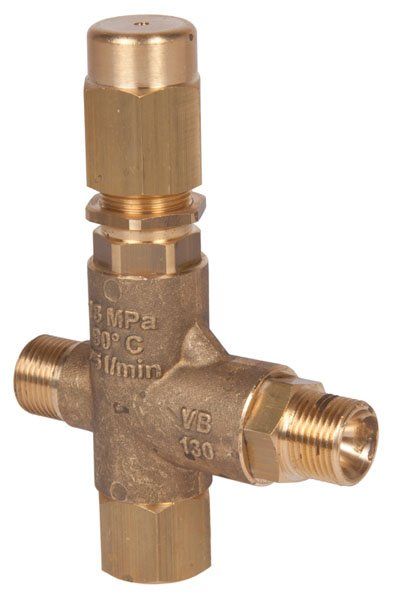

VB130 Unloader Valve 160 Bar 25lpm
VB130 Unloader Valve 160 Bar 25lpm
VB130 Unloader Valve 160 Bar 25lpm – image 3

VB130 Unloader Valve 160 Bar 25lpm

SKU 60.0300.00
Max pressure
160 bar
Max flow
25 LPM
Inlet
⅜" BSP Male
Outlet
⅜" BSP Male · Thread chart
£58.65 ex VAT
£70.38 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

PA VB130 trapped pressure unloader valve in brass and steel, rated to 160 bar, 25 LPM and 90°C water temperature. It has a white spring with no regulator knob, 3/8" BSP male inlet and outlet and a 3/8" BSP female bypass.

Specification

  • Part number: 60.0300.00
  • Brand: PA
  • Model: VB130
  • Type: trapped pressure unloader valve
  • Rated pressure: 160 bar
  • Maximum flow: 25 LPM
  • Rated water temperature: 90°C
  • Construction: brass and steel
  • Spring: white, no regulator knob
  • Inlet: 3/8" BSP male
  • Outlet: 3/8" BSP male
  • Bypass: 3/8" BSP female

PA VB130 trapped pressure unloader valve in brass and steel, rated to 160 bar, 25 LPM and 90°C, with 3/8" BSP male inlet and outlet.

Specifications

Brand
PA
Max Pressure Rating
160 bar
Max Flow Rating
25 LPM
Inlet
⅜" BSP Male
Outlet
⅜" BSP Male
Unloader Valve Series
VB130
Material
Brass
Weight
5 kg

Technical information

160 Bar rated pressure

25 Lpm max flow

90°C rated water temperature

Trapped pressure valve

Brass & steel construction

White spring, no regulator knob

3/8"BSPM inlet

3/8"BSPM outlet

3/8"BSPF bypass
