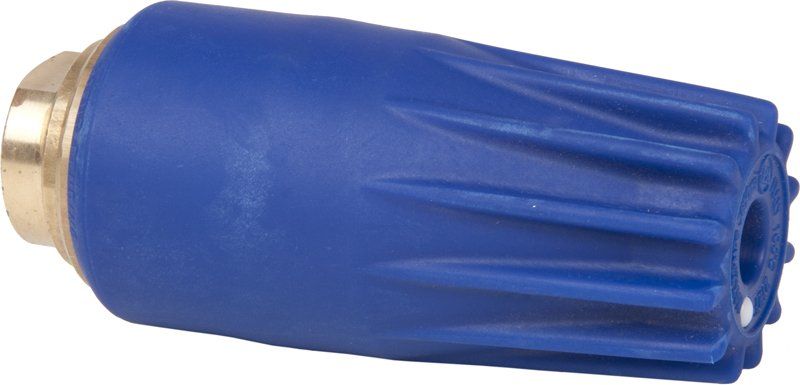

UR25 Rotary Nozzle 045 250 Bar Blue

PA UR25 rotating turbo nozzle, size 045, with a 1/4" BSP female inlet, for fixed pressure use from 80 to 250 bar at up to 16.5 LPM and 100°C. An internal turbine gives a steady rotation speed and a spring keeps the nozzle against the ceramic seat, so the gun can be triggered with the nozzle in any position, including facing upwards.

Specification

• Part number: 25.1620.45
• Brand: PA
• Model: UR25 turbo nozzle
• Nozzle size: 045
• Colour: blue
• Rated pressure: 250 bar
• Minimum pressure: 80 bar
• Maximum flow: 16.5 LPM
• Minimum flow: 6 LPM
• Rated temperature: 100°C
• Inlet: 1/4" BSP female
• Spray angle: 20°
• Body: brass
• Seat and nozzle: ceramic
• Sheath: rubber, protective
• Operation: fixed pressure
