Udor Pump CKC3030S 30 LPM 300 Bar, 3/4" F x 3/8" F
Udor Pump CKC3030S 30 LPM 300 Bar
Udor

Udor Pump CKC3030S 30 LPM 300 Bar, 3/4" F x 3/8" F

SKU CKC3030S
£1,124.00 ex VAT
£1,348.80 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

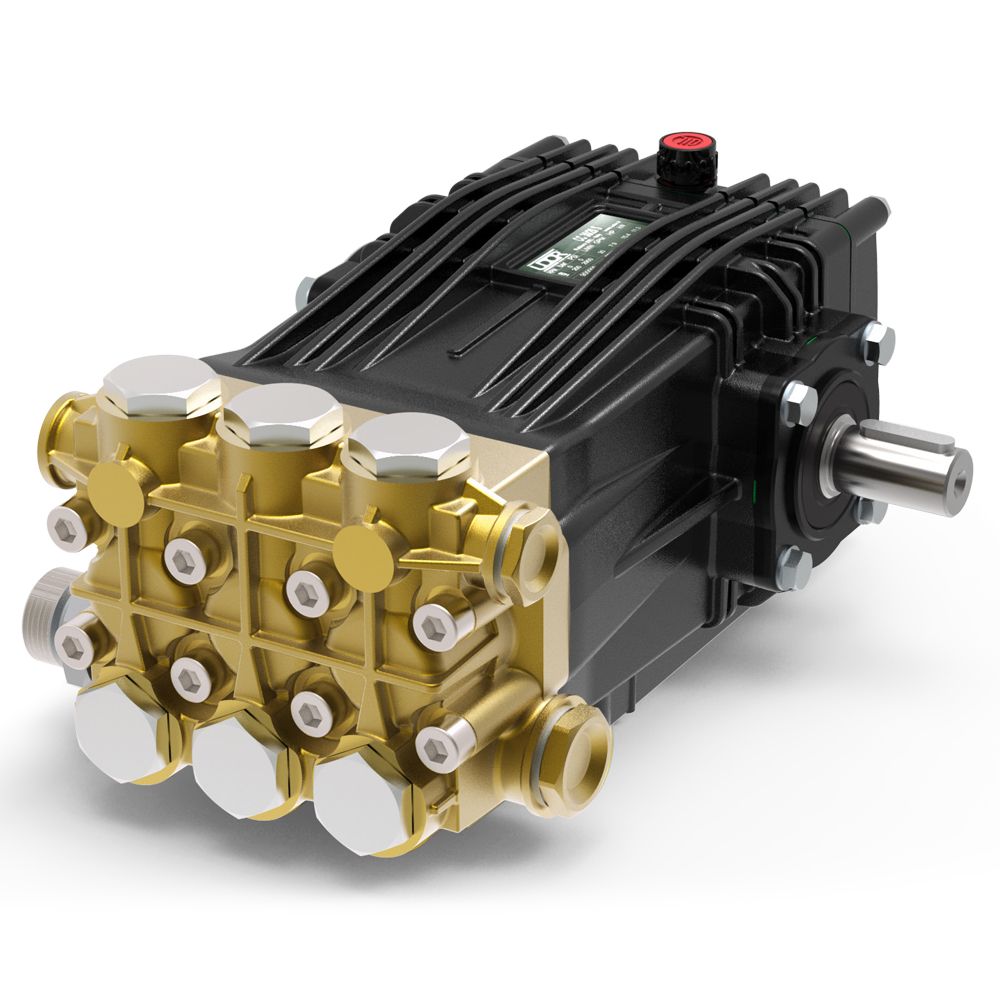

Udor CKC3030S CKC series triplex piston pump, rated to 300 bar (4,350 psi) and 30 litres per minute at 1450 RPM, needing at least 17.2kW (23.1hp). The series is used for water jetting, pressure washers and mining.

It has three solid ceramic pistons, a forged reinforced brass head, a die cast aluminium crankcase with cataphoresis coating, a double sealing system, a hardened steel crankshaft and oversize roller bearings. It measures 341 x 247 x 159mm. Made in Italy. It weighs 18.2kg.

Specification

Part numberCKC3030S
BrandUdor
ModelCKC3030S
Maximum pressure300 bar
Maximum flow30 litres per minute
Inlet3/4" BSP female
Outlet3/8" BSP female
SeriesCKC
Speed1450 rpm
Minimum power required23.1hp (17.2kW)
Shaft24mm
Piston width25mm
PistonsSolid ceramic
HeadForged brass
DimensionsCeramic Width 25mm
Weight18.2kg
Country of originItaly

Before installation: Check the part matches your pump model and piston diameter before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.

Specifications

Brand
Udor
Pumps and Parts by Series
Udor CK Series
Working Pressure
300
Flow Rate
30
RPM
1450
Weight
18.2 kg

Technical information

Maximum pressure: 300 bar

Maximum flow: 30 litres per minute

Inlet: 3/4" BSP female

Outlet: 3/8" BSP female

Speed: 1450 rpm

Minimum power required: 23.1hp (17.2kW)
