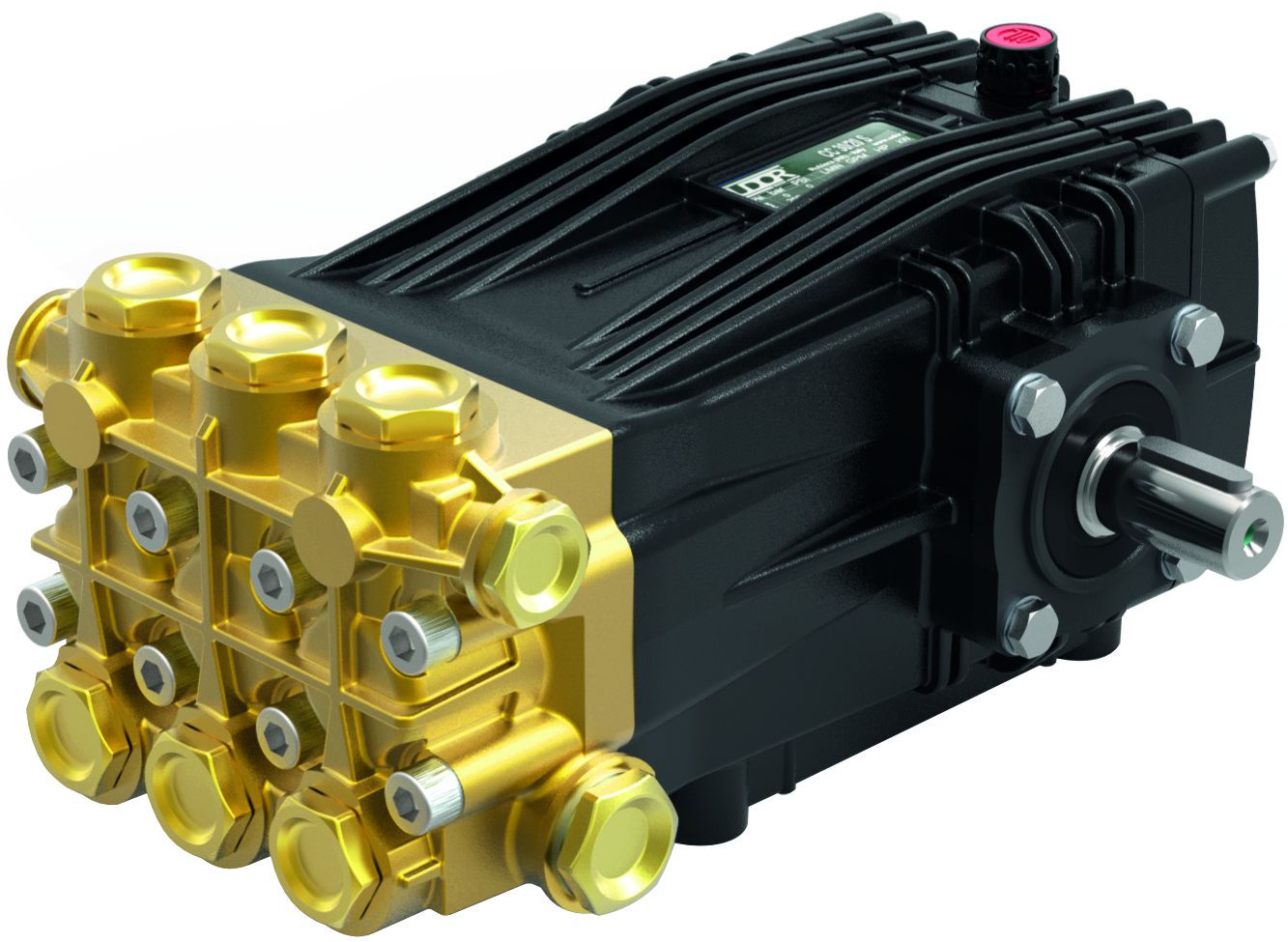

Udor Pump CC3817S 38 LPM 170 Bar
Udor

Udor Pump CC3817S 38 LPM 170 Bar

SKU CC3817S
£936.00 ex VAT
£1,123.20 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Udor CC3817S C series triplex piston pump, rated to 170 bar (2,465 psi) and 38 litres per minute at 1450 RPM, needing at least 12.4kW (16.6hp). The series is used for car washes, construction, drilling, sewer jetting, fire fighting, agriculture and misting.

It has three solid ceramic pistons, a forged reinforced brass head, a die cast aluminium crankcase with cataphoresis coating, a double sealing system, a hardened steel crankshaft and oversize roller bearings. It measures 333 x 246 x 153.5mm. Made in Italy.

Specification

Part numberCC3817S
BrandUdor
ModelCC3817S
SeriesC
Maximum pressure170 bar
Maximum flow38 litres per minute
Speed1450 RPM
Minimum power required16.6hp (12.4kW)
Shaft24mm
Piston width25mm
Inlet3/4" BSP female
Outlet1/2" BSP female
PistonsSolid ceramic
HeadForged brass
Dimensions333 x 246 x 153.5mm
Weight15.8kg
Country of originItaly

Sizing help

To match a motor to your pump, see our electric motor sizing guide.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Udor's C Series pumps are suitable for car washes, construction, drilling, sewer jetting, fire fighting, agricultural and misting.

Specifications

Brand
Udor
Pumps and Parts by Series
Udor C Series
Working Pressure
170
Flow Rate
38
RPM
1450
Weight
15.8 kg

Technical information

Inlet: 3/4" Female

Outlet: 1/2" Female

Maximum Pressure: 170bar / 2,465psi

Maximum Flow: 38LPM

Minimum Required Power: 12.4kW / 16.6HP

RPM: 1,450

Shaft Size: 24mm

Piston Width: 25mm

Commodity Code: 8413506990

Country of Origin: Italy

Weight: 15.8kg
