Udor B Series Pumps (13–18 LPM)Udor B Series Pumps (13–18 LPM)
Udor BC1320S Pressure Washer Pump – 13 LPM, 200 Bar
Udor BC1320S pressure washer pump 13 LPM 200 Bar
Udor BC1320S Pressure Washer Pump – 13 LPM, 200 Bar – image 2
Udor

Udor BC1320S Pressure Washer Pump – 13 LPM, 200 Bar

SKU BC1320S
Inlet
½" BSP Female
Outlet
⅜" BSP Female · Thread chart
£516.00 ex VAT
£619.20 inc. VAT
Available on backorderSecure your order now for delivery in approx 2–3 weeks.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Udor BC1320S B series plunger pump for pressure washers and vehicle wash systems, rated to 200 bar and 13 litres per minute at 1450 RPM, with a 24mm solid male shaft, a 1/2" BSP female inlet and a 3/8" BSP female outlet.

It has three solid 15mm ceramic pistons, a reinforced forged brass head, a coated die-cast aluminium crankcase, double sealing, a hardened steel crankshaft and oversized roller bearings. It weighs 4.13kg.

Specification

Part numberBC1320S
BrandUdor
ModelBC1320S
Maximum pressure200 bar
Maximum flow13 litres per minute
Inlet1/2" BSP female
Outlet3/8" BSP female
SeriesB
Speed1450 rpm
Power required4.9kW; drive rated at least 5.0kW (6.7hp)
Shaft24mm solid male
Pistons3 x 15mm solid ceramic
HeadForged brass
DimensionsCeramic Width 15mm
Weight4.13kg

Before installation: Check the part matches your pump model and piston diameter before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.

Specifications

Brand
Udor
Working Pressure
200
Flow Rate
13
Pressure Washer Pump Series
Udor B Series
RPM
1450
Shaft
Solid Shaft 24mm
Inlet
½" BSP Female
Outlet
⅜" BSP Female
Weight
4.13 kg

Technical information

Maximum pressure: 200 bar

Maximum flow: 13 litres per minute

Inlet: 1/2" BSP female

Outlet: 3/8" BSP female

Speed: 1450 rpm

Power required: 4.9kW; drive rated at least 5.0kW (6.7hp)

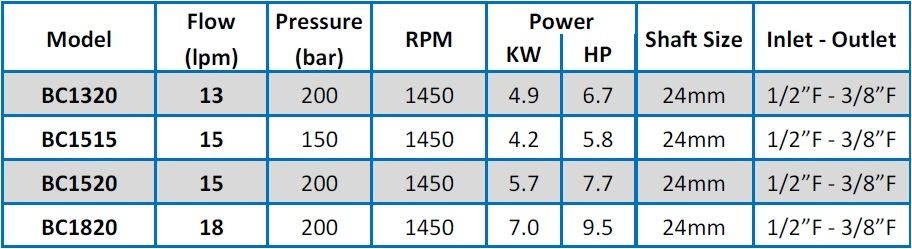

Compare similar products
