Udor Pump AWTC1020S 10 LPM 200 Bar (Hot Water), 1/2" F x 3/8" F
Udor Pump AWTC1020S 10 LPM 200 Bar (hot Water)
Udor

Udor Pump AWTC1020S 10 LPM 200 Bar (Hot Water), 1/2" F x 3/8" F

SKU AWTC1020S
£934.00 ex VAT
£1,120.80 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

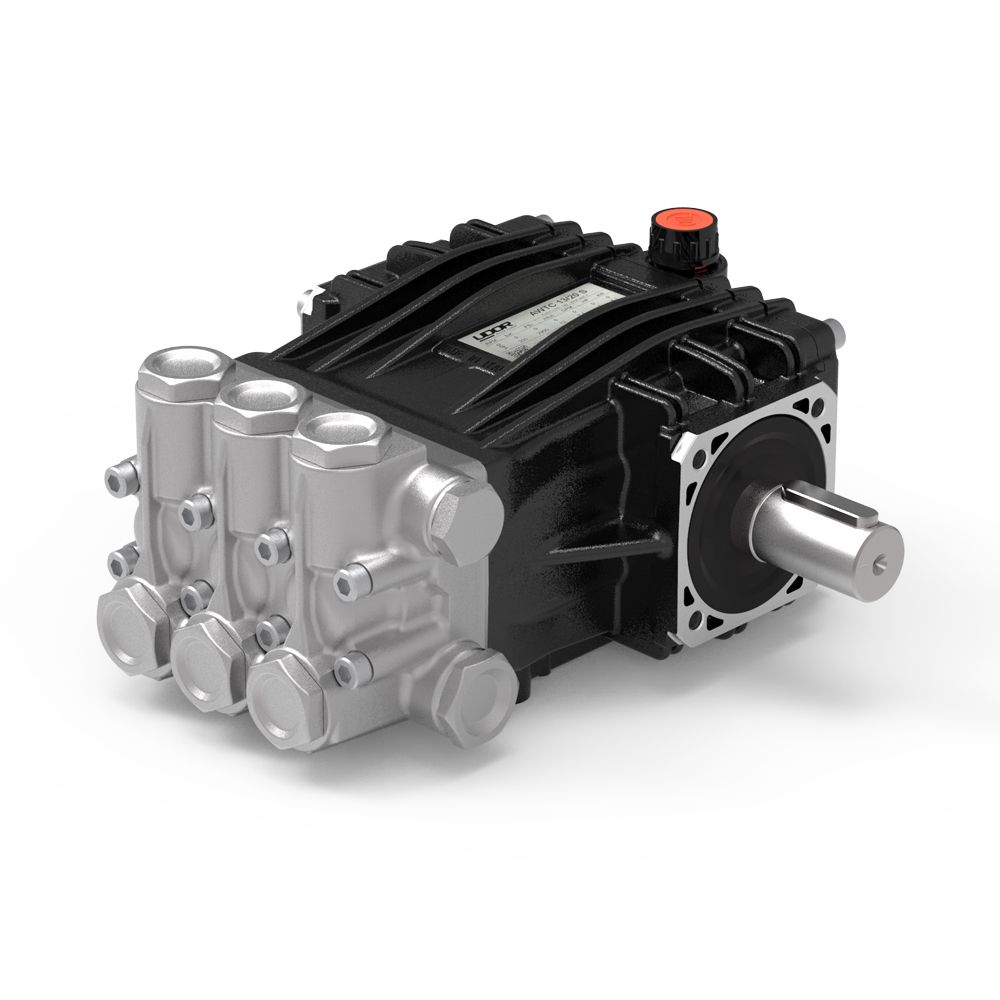

Udor AWTC1020S AWT series triplex piston pump, rated to 200 bar (2,900 psi) and 10 litres per minute at 1450 RPM, needing at least 3.8kW (5.1hp). The series is used for pest control, disinfection systems and the food and pharmaceutical industries. It handles hot water up to 85°C.

It has three solid ceramic pistons, a forged reinforced brass head, a die cast aluminium crankcase with cataphoresis coating, a double sealing system, a hardened steel crankshaft and oversize roller bearings. It measures 222 x 217 x 109mm. Made in Italy. It weighs 6.8kg.

Specification

Part numberAWTC1020S
BrandUdor
ModelAWTC1020S
Maximum pressure200 bar
Maximum flow10 litres per minute
Maximum temperature85°C
Inlet1/2" BSP female
Outlet3/8" BSP female
SeriesAWT
Speed1450 rpm
Minimum power required5.1hp (3.8kW)
Shaft24mm
Piston width15mm
PistonsSolid ceramic
HeadForged brass
Maximum water temperature85°C
Dimensions222 x 217 x 109mm
Weight6.8kg
Country of originItaly

Before installation: Check the part matches your pump model and piston diameter before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.

Specifications

Brand
Udor
Working Pressure
200
Flow Rate
10
RPM
1450
Temperature
85°C
Weight
6.8 kg

Technical information

Maximum pressure: 200 bar

Maximum flow: 10 litres per minute

Maximum temperature: 85°C

Inlet: 1/2" BSP female

Outlet: 3/8" BSP female

Speed: 1450 rpm

Minimum power required: 5.1hp (3.8kW)

Maximum water temperature: 85°C
