Udor PN Series Pumps (4–13 LPM)Udor PN Series Pumps (4–13 LPM)
Udor Pump PNC0610S, 100 Bar, 6 LPM, 3/8" F x 3/8" F
Udor Pump PNC0610S, 100 Bar, 6 LPM, 3/8" F x 3/8" F – image 1
Udor Pump PNC0610S, 100 Bar, 6 LPM, 3/8" F x 3/8" F – image 2
Udor

Udor Pump PNC0610S, 100 Bar, 6 LPM, 3/8" F x 3/8" F

SKU PNC0610s
Inlet
⅜" BSP Female
Outlet
⅜" BSP Female · Thread chart
£432.00 ex VAT
£518.40 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Udor PNC0610S PN series plunger pump, rated to 6 litres per minute and 100 bar at 1450 RPM, with a 24mm solid shaft, 3/8" BSP female inlet and 3/8" BSP female outlet. PN series pumps suit car wash, pressure washing and misting or cooling systems, and can be driven by electric or hydraulic motors or diesel engines.

Udor recommend changing the oil after the first 50 hours and then every 500 hours, and changing the valves and piston seal rings every 1000 hours. It weighs 2.38kg.

Specification

Part numberPNC0610s
BrandUdor
ModelPNC0610S
Maximum pressure100 bar
Maximum flow6 litres per minute
Inlet3/8" BSP female
Outlet3/8" BSP female
SeriesPN
Speed1450 rpm
Power required1.11kW (1.5hp)
Shaft24mm solid
Weight2.38kg

Before installation: Check the part matches your pump model and piston diameter before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with a pressure-washer pump, contact Flowjet Cleaning Equipment.

Specifications

Brand
Udor
Working Pressure
100
Flow Rate
6
Pressure Washer Pump Series
Udor PN Series
RPM
1450
Shaft
Solid Shaft 24mm
Inlet
⅜" BSP Female
Outlet
⅜" BSP Female
HP Power Required
1.11KW / 1.5Hp
Weight
2.38 kg

Technical information

Maximum pressure: 100 bar

Maximum flow: 6 litres per minute

Inlet: 3/8" BSP female

Outlet: 3/8" BSP female

Speed: 1450 rpm

Power required: 1.11kW (1.5hp)

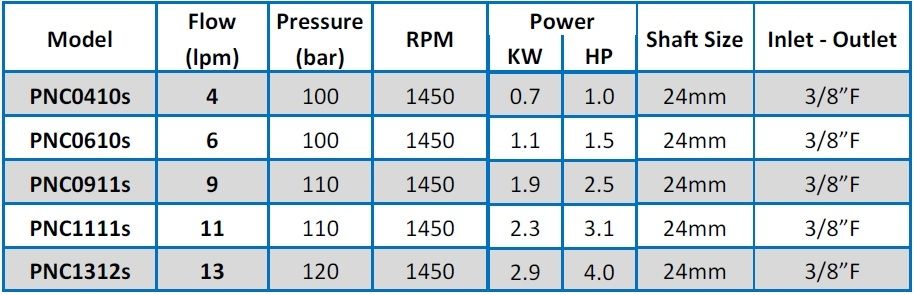

Compare similar products

Detail
This product
Udor Pump PNC0410S, 100 Bar, 4 LPM, 3/8" F x 3/8" F
Udor Pump PNC0911s, 110 Bar, 9 LPM, 3/8" F x 3/8" F
Udor Pump PNC1111s, 110 Bar, 11 LPM, 3/8" F x 3/8" F
Price£432.00 ex VAT
£518.40 inc VAT
£410.00 ex VAT
£492.00 inc VAT
Call for price£476.00 ex VAT
£571.20 inc VAT
Inlet⅜" BSP Female⅜" BSP Female⅜" BSP Female⅜" BSP Female
Outlet⅜" BSP Female⅜" BSP Female⅜" BSP Female⅜" BSP Female
AvailabilityIn stockIn stockIn stockIn stock

Documents

PNC0610sPNC0610s
