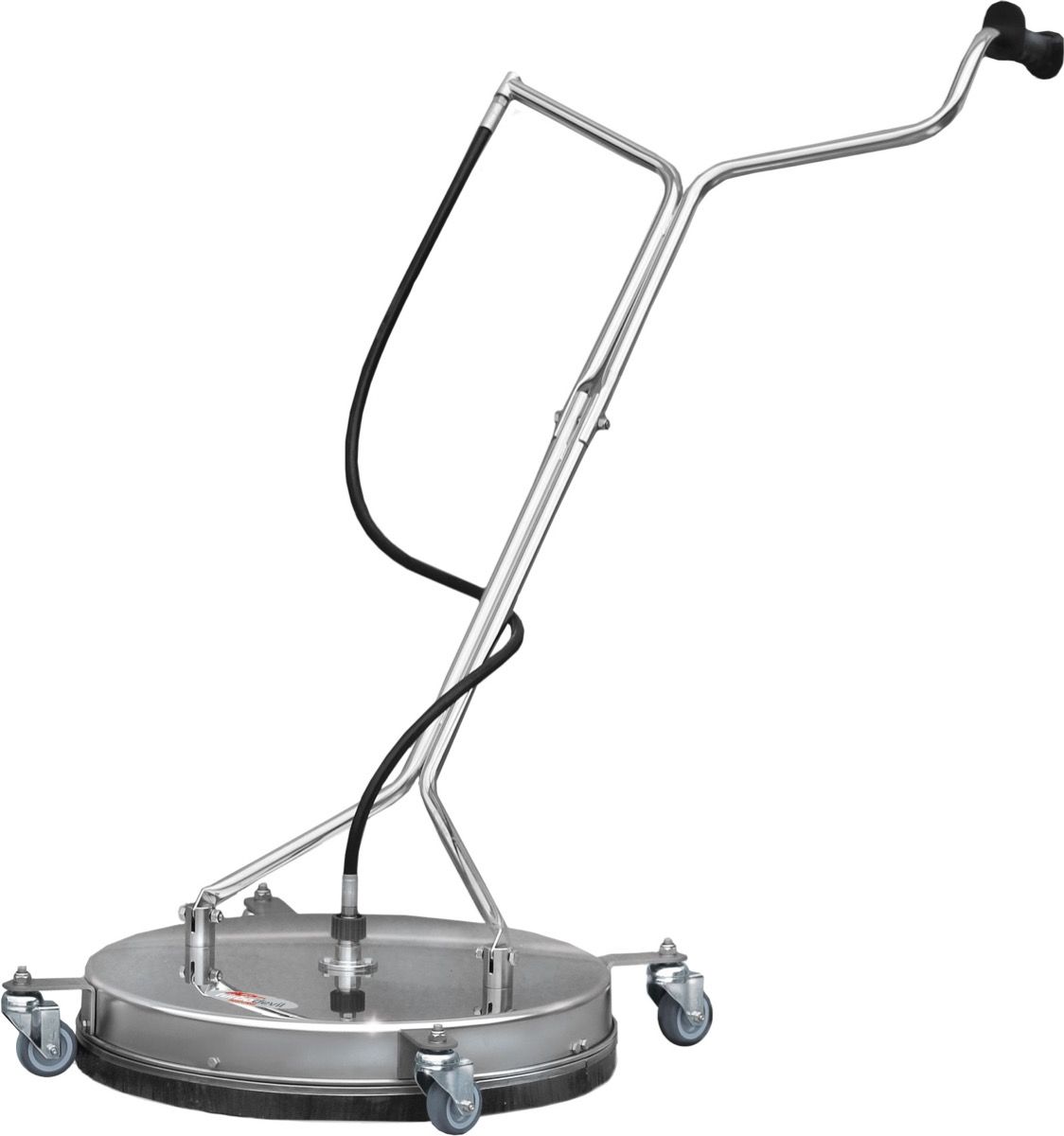

Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet (Stainless Steel, 2-Jet)
Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet
Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet (Stainless Steel, 2-Jet) – image 2
Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet (Stainless Steel, 2-Jet) – image 3
Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet (Stainless Steel, 2-Jet) – image 4
Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet (Stainless Steel, 2-Jet) – image 5
Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet (Stainless Steel, 2-Jet) – image 6
Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet (Stainless Steel, 2-Jet) – image 7
Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet (Stainless Steel, 2-Jet) – image 8
Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet (Stainless Steel, 2-Jet) – image 9
Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet (Stainless Steel, 2-Jet) – image 10
Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet (Stainless Steel, 2-Jet) – image 11
Turbo Devil

Turbo Devil TD520 Surface Cleaner – 520 mm, M22 Female Inlet (Stainless Steel, 2-Jet)

SKU 521052402
Max pressure
275 bar
Max flow
40 LPM
Max temperature
120°C
Inlet
M22 Female ⌀ 14mm Nose
Outlet
¼" BSP Female · Thread chart
£1,008.00 ex VAT
£1,209.60 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Turbo Devil TD520 surface cleaner, 520mm diameter, with a stainless steel housing, for hot and cold water pressure washers.

It has an M22 female inlet with a 14mm nose and is rated to 275 bar, 40 litres per minute and 120°C. The rotor arm is balanced and robot welded, and the spray angle is adjustable. It takes two 1/4" male nozzles, which are not included. To size them, find the nozzle size for your machine and divide the flow between the two jets. It weighs 9.67kg and is made in Switzerland.

Specification

Part number521052402
BrandTurbo Devil
ModelTD520
TypeSurface cleaner
MaterialStainless steel
Spray angleAdjustable
Maximum pressure275 bar
Maximum flow40 litres per minute
Maximum temperature120°C
InletM22 female, 14mm nose
Outlet1/4" BSP female
Diameter520mm
High pressure nozzles2 x 1/4" male, not included
Weight9.67kg
Country of originSwitzerland

Before installation: Choose the nozzle size to suit the pressure and flow of your pump using our pressure washer nozzle chart, and check the thread using our BSP thread size chart.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Brand
Turbo Devil
Max Pressure Rating
275 bar
Max Flow Rating
40 LPM
Inlet
M22 Female ⌀ 14mm Nose
Outlet
¼" BSP Female
Max Temperature Rating
120°C
Cleaning Application
Hard Surface Cleaning
Length
520mm
Material
Stainless Steel
Weight
9.67 kg

Technical information

Maximum pressure: 275 bar

Maximum flow: 40 litres per minute

Maximum temperature: 120°C

Inlet: M22 female, 14mm nose

Outlet: 1/4" BSP female

Model: TD520

Type: Surface cleaner

Material: Stainless steel

Spray angle: Adjustable

Diameter: 520mm

Weight: 9.67kg

Country of origin: Switzerland

High pressure nozzles: 2 x 1/4" male, not included

Compare similar products

Detail
This product

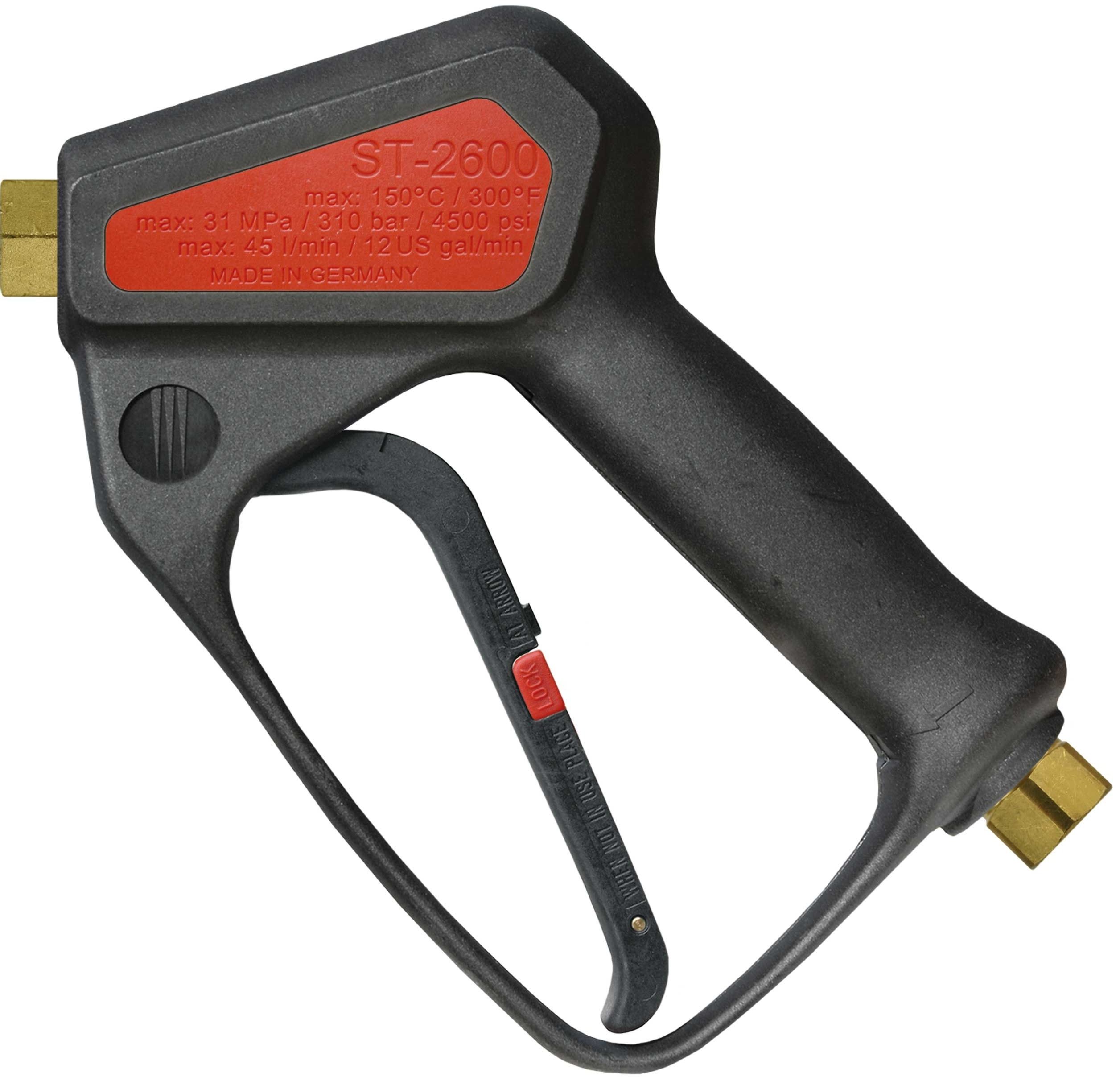

R+M Suttner ST2600 Wash Gun Easy Pull Quick Release (KEW) Outlet, 310 Bar, 45 LPM
