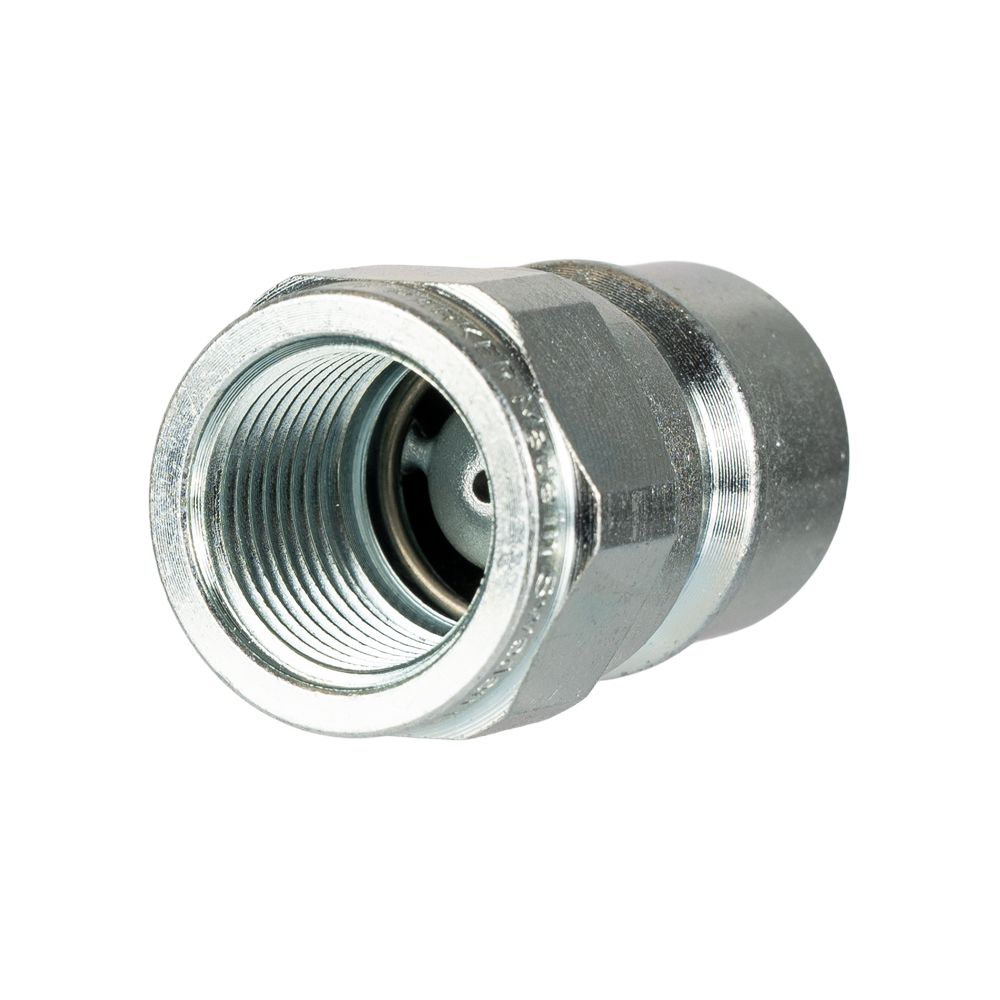

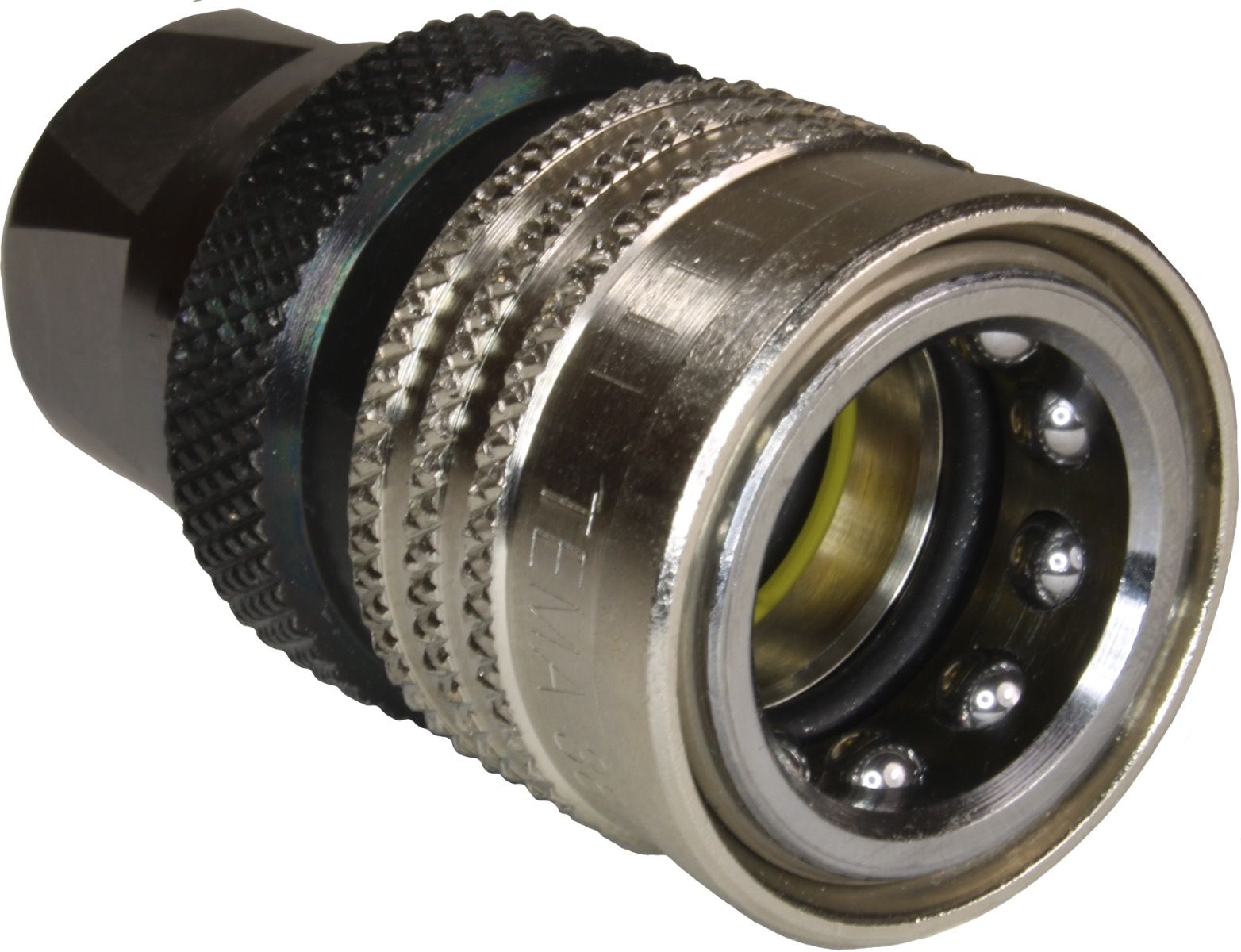

TEMA 3/8" Valved Coupling Complete – Male & Female – 350 Bar

The TEMA 3/8" Valved Coupling Complete is a heavy-duty high pressure quick release coupling set supplied with both the male and female coupling halves.

Both halves are valved, creating a double shut-off connection. When the coupling is disconnected, the valves automatically close on both sides, helping to minimise water loss and retain pressure within the hose or system.

Designed for industrial pressure washer and high pressure cleaning applications, the TEMA coupling is rated to 350 barand features a safety locking ring to help prevent accidental disconnection.

Key Features

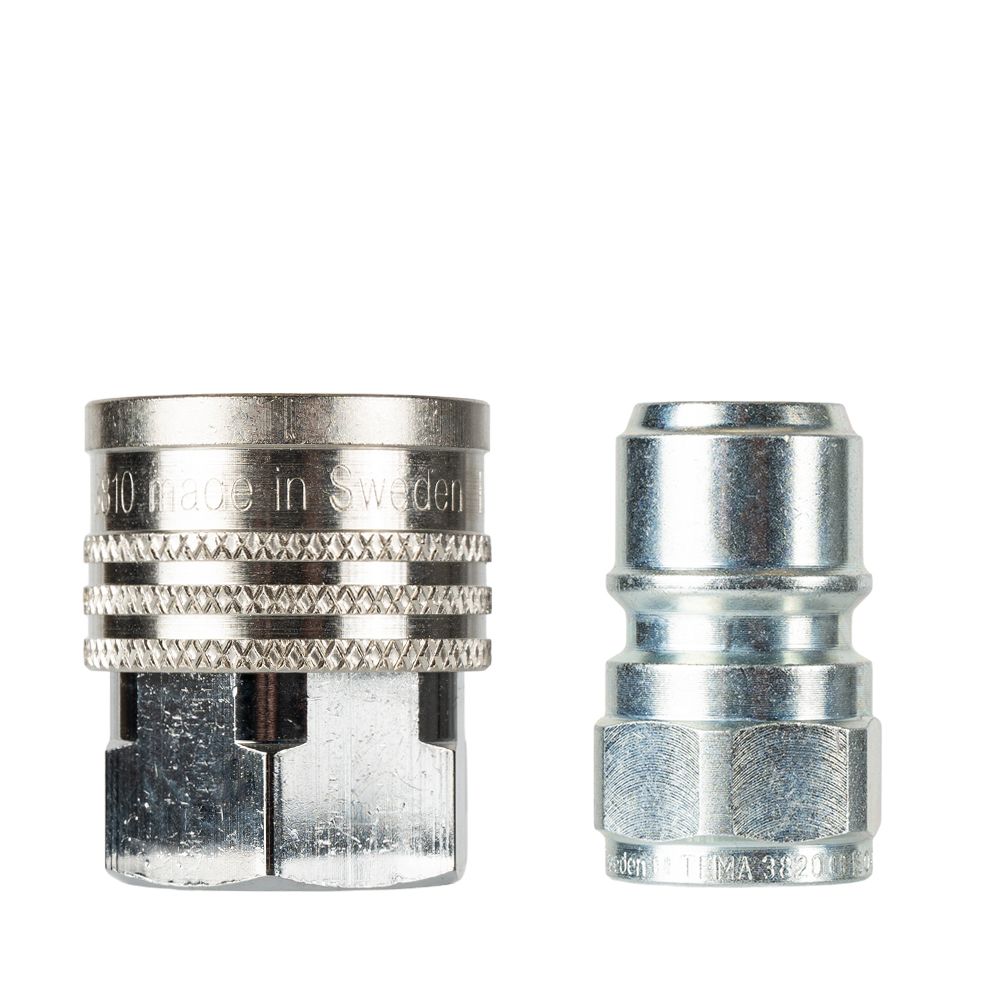

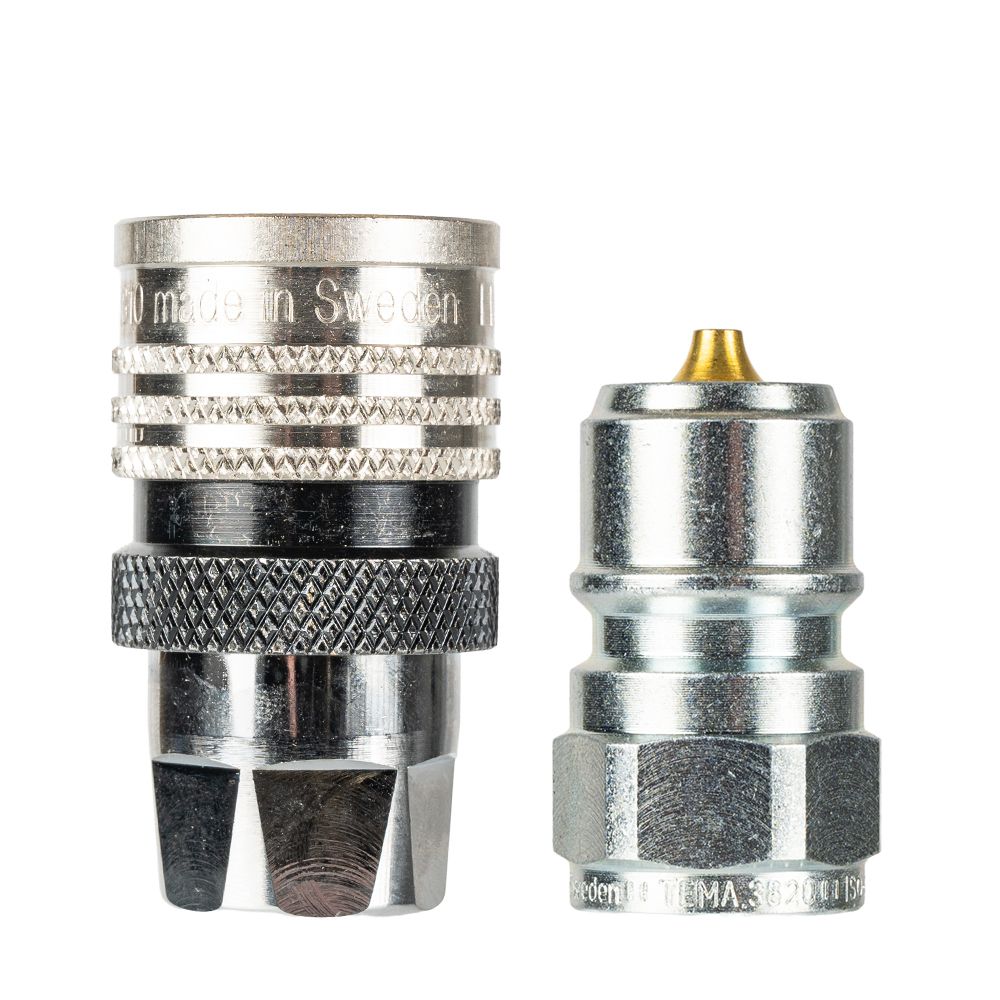

• Complete TEMA male and female coupling

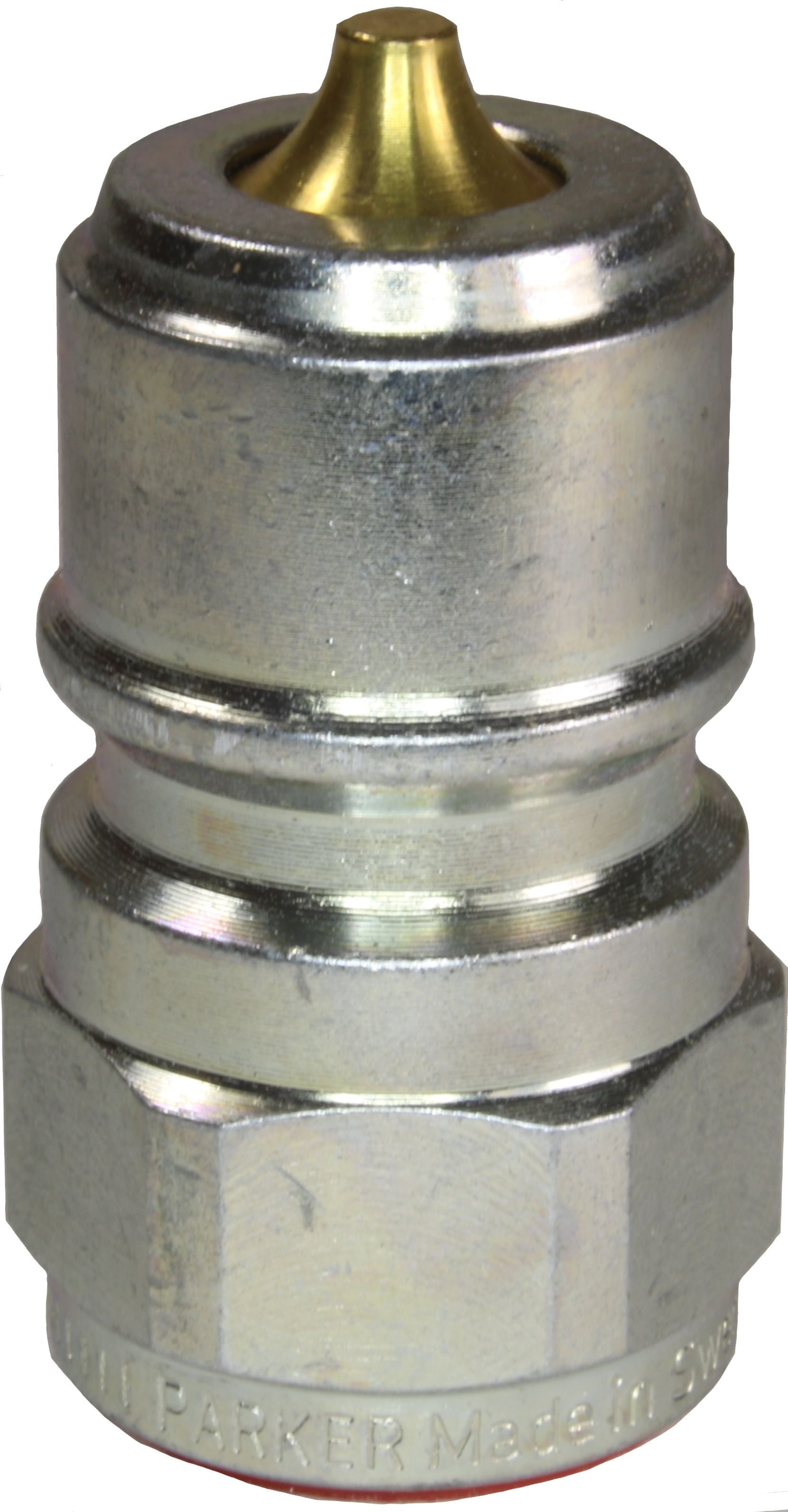

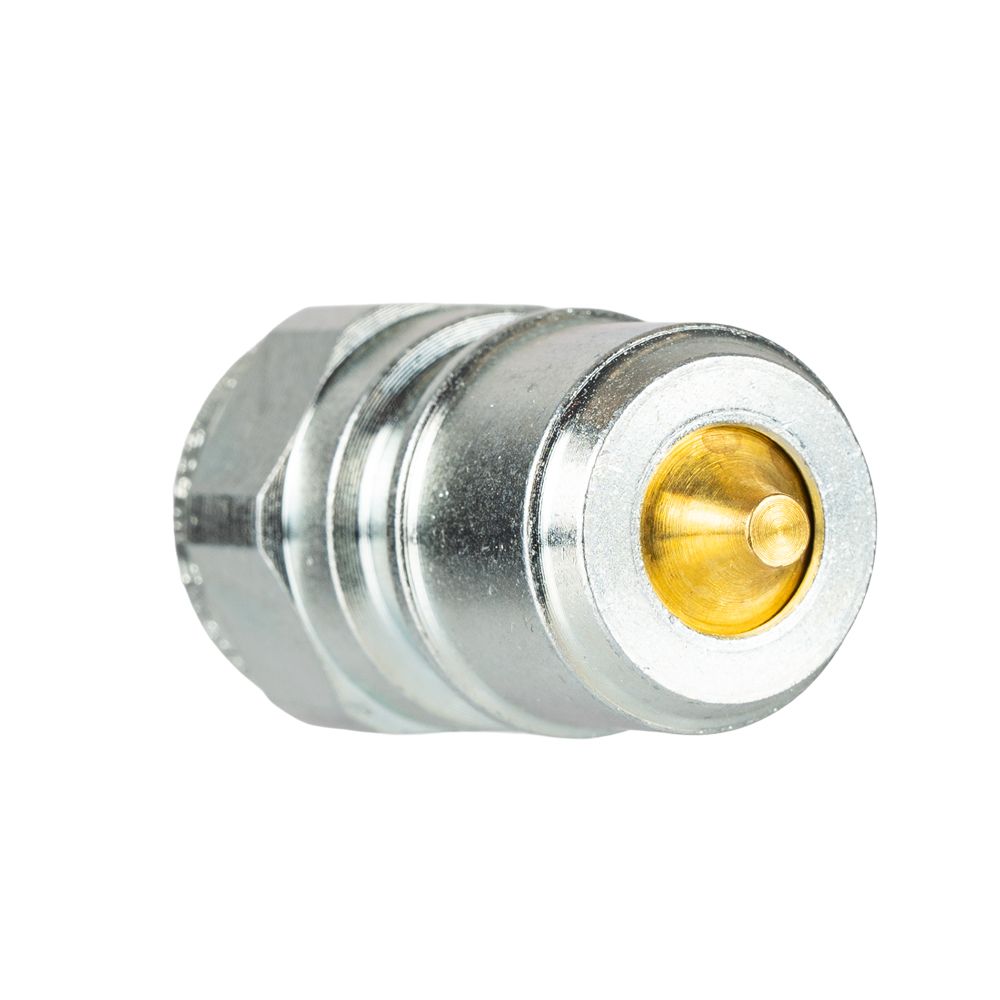

• Valved male and female halves

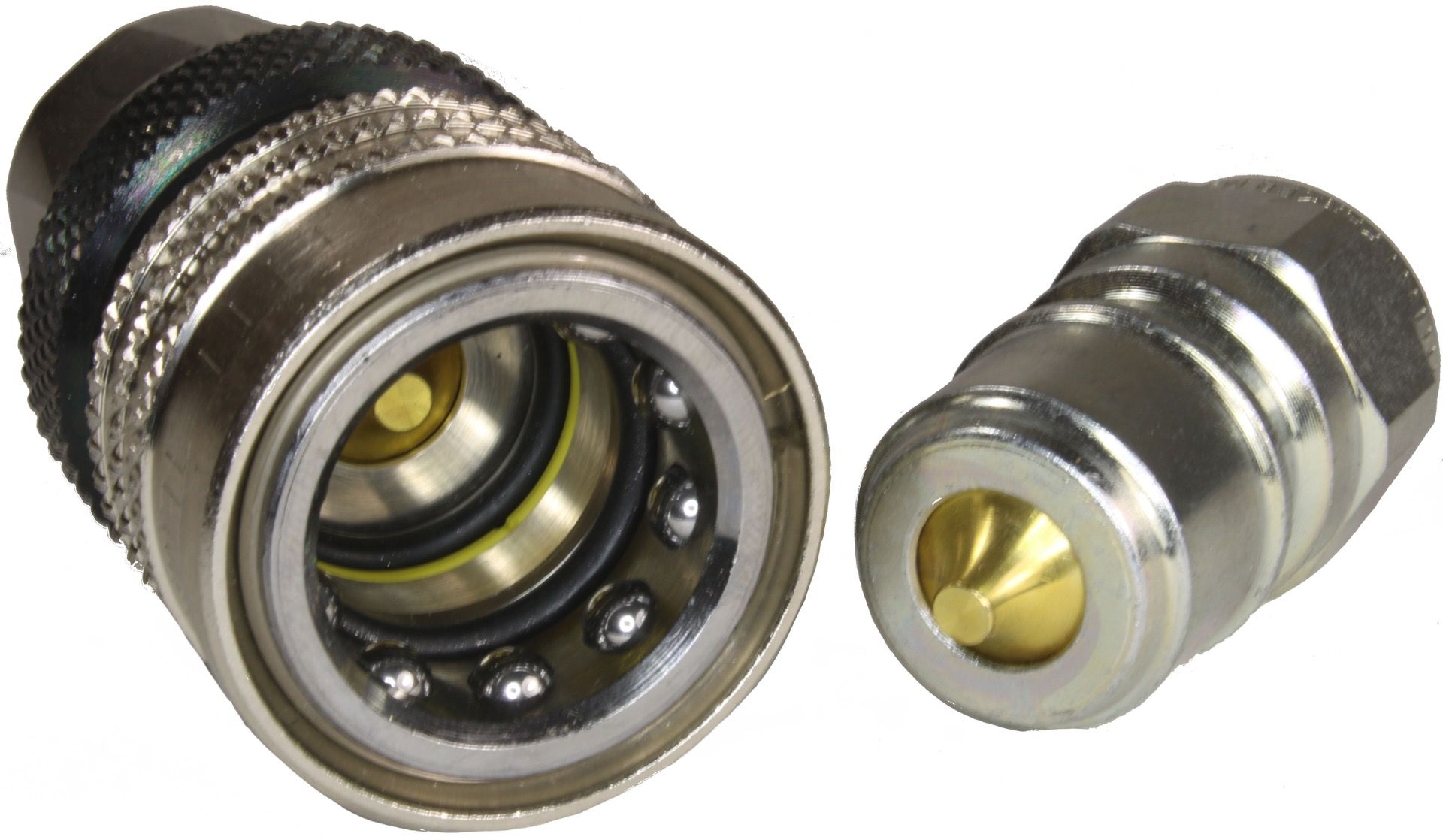

• Double shut-off design

• Valves automatically close when disconnected

• Helps minimise water loss during disconnection

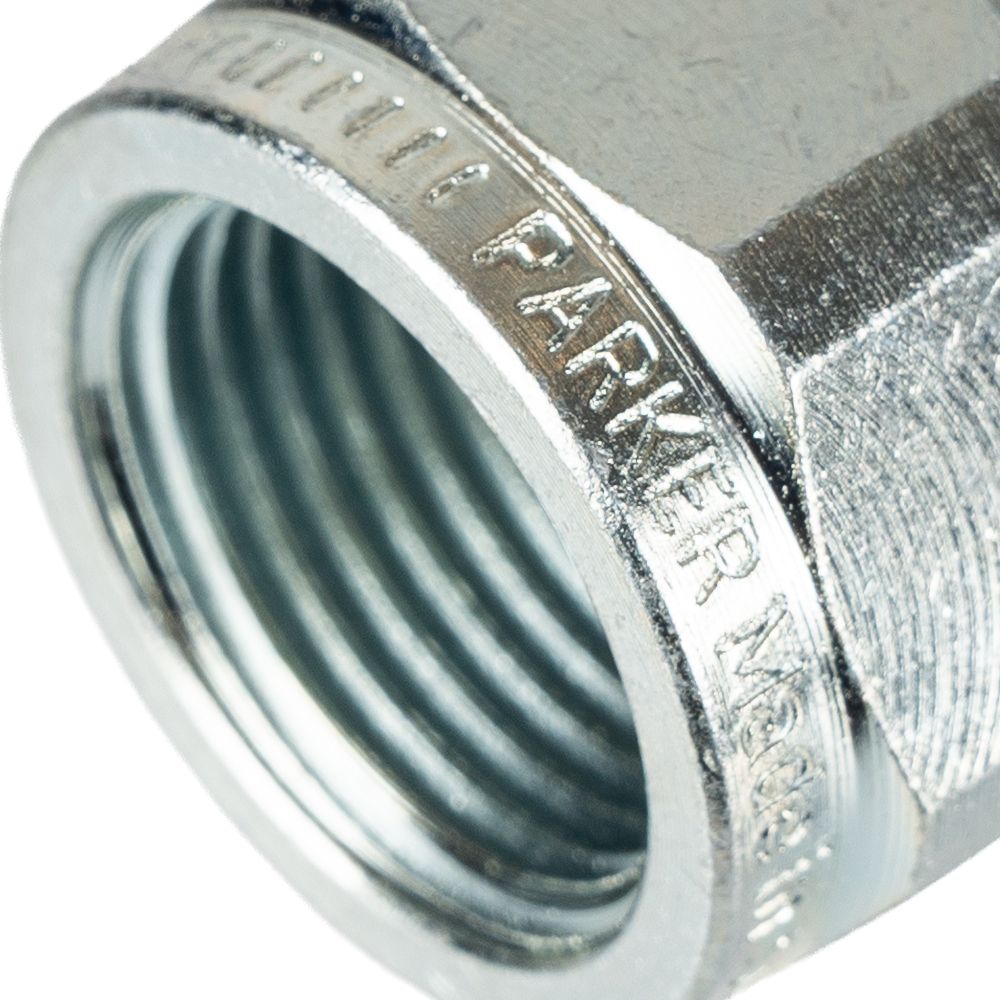

• 3/8" BSP female inlet

• 3/8" BSP female outlet

• Maximum working pressure: 350 bar

• Maximum temperature: 100°C

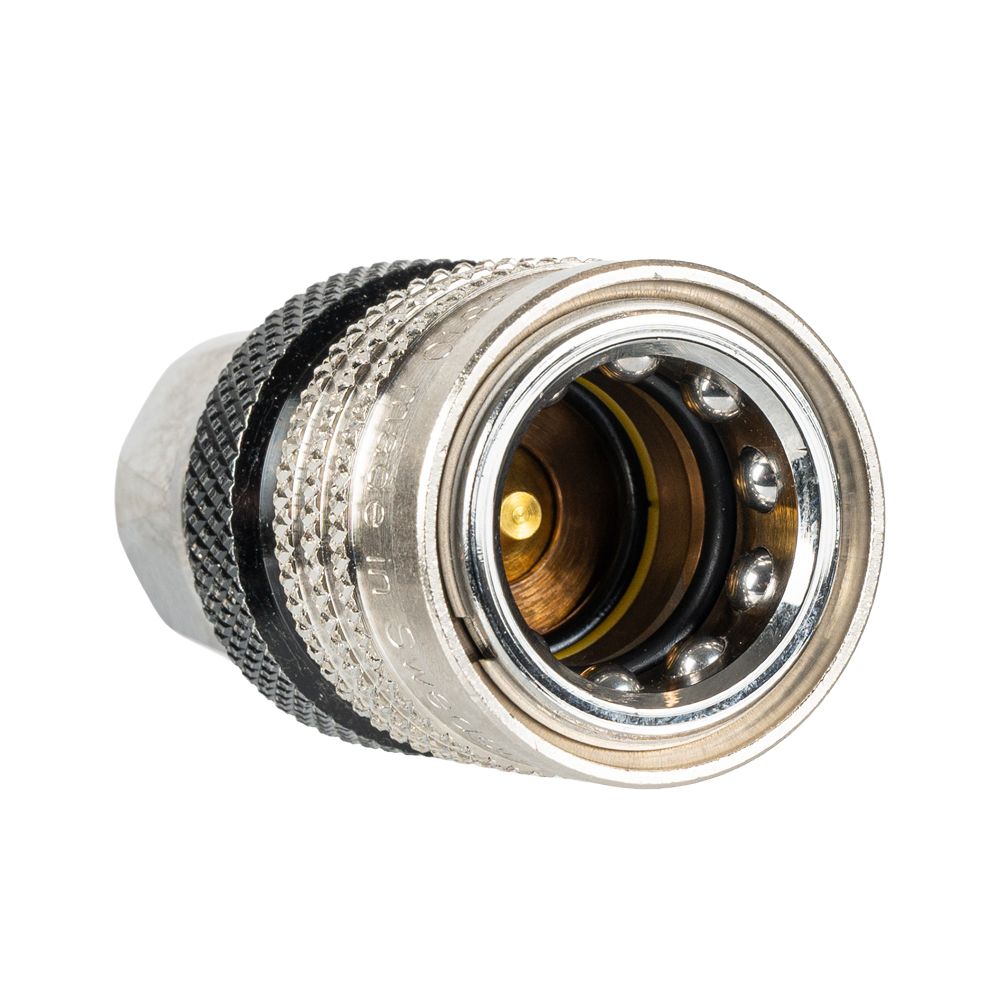

• Double O-ring sealing system

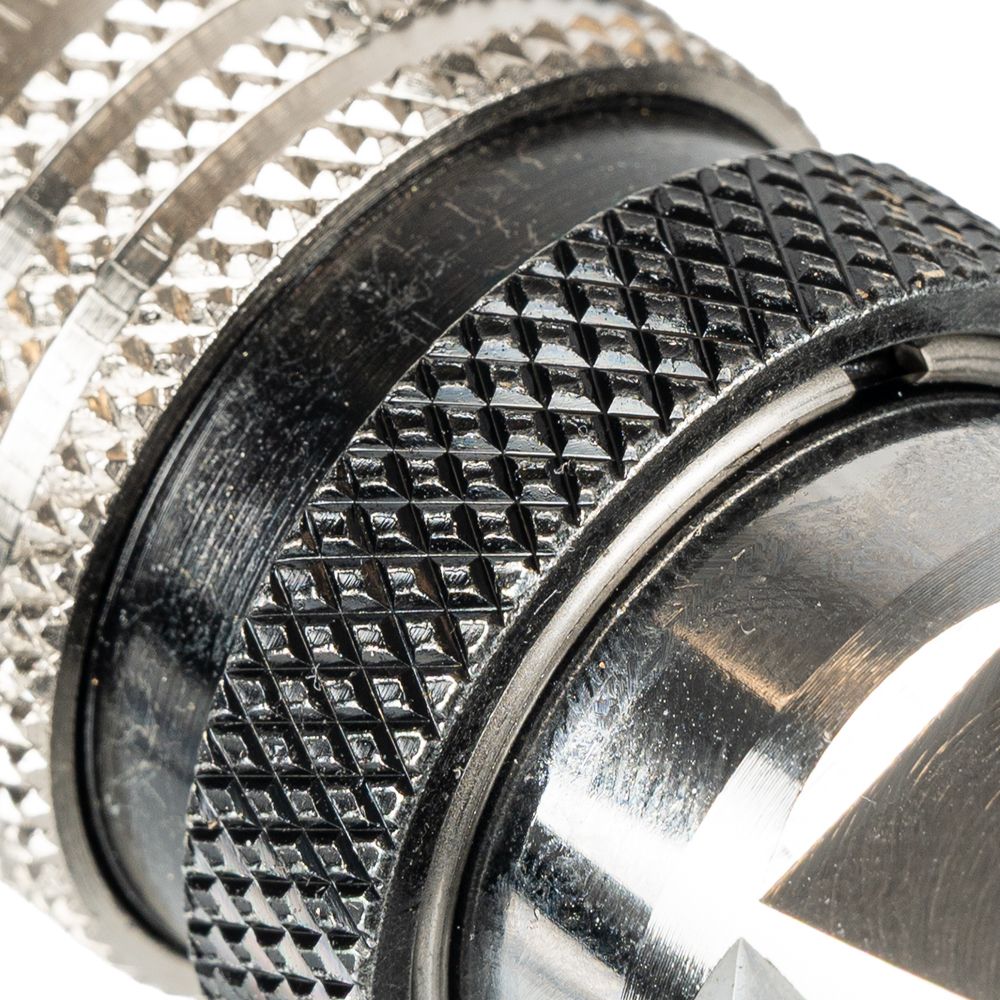

• Safety locking ring prevents accidental uncoupling

• Heavy-duty construction for industrial applications

• Manufactured in Sweden

Technical Specification

Applications

Suitable for industrial pressure washers, high pressure hoses, hose reels and fixed cleaning installations where a quick release connection is required without allowing the system to freely discharge when disconnected.
