Product Overview

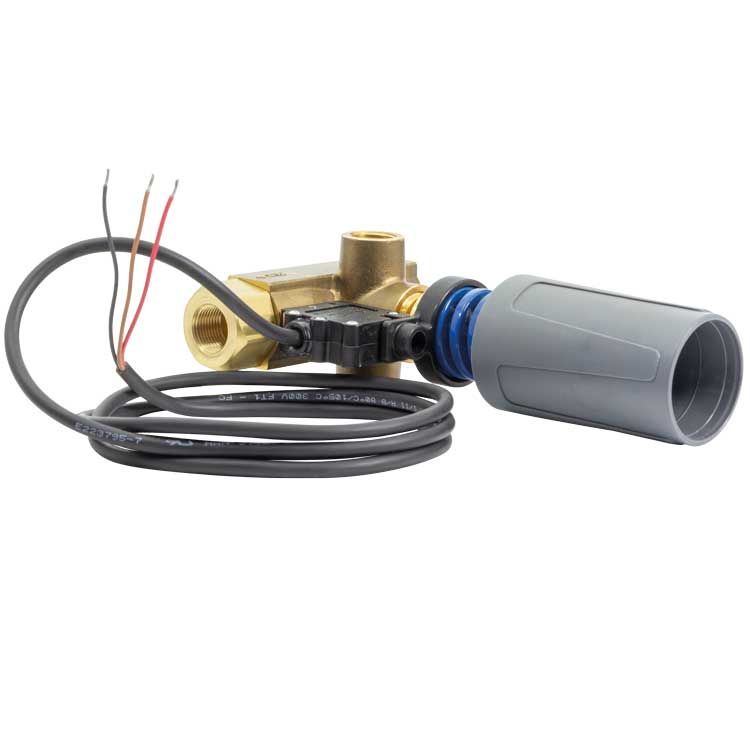

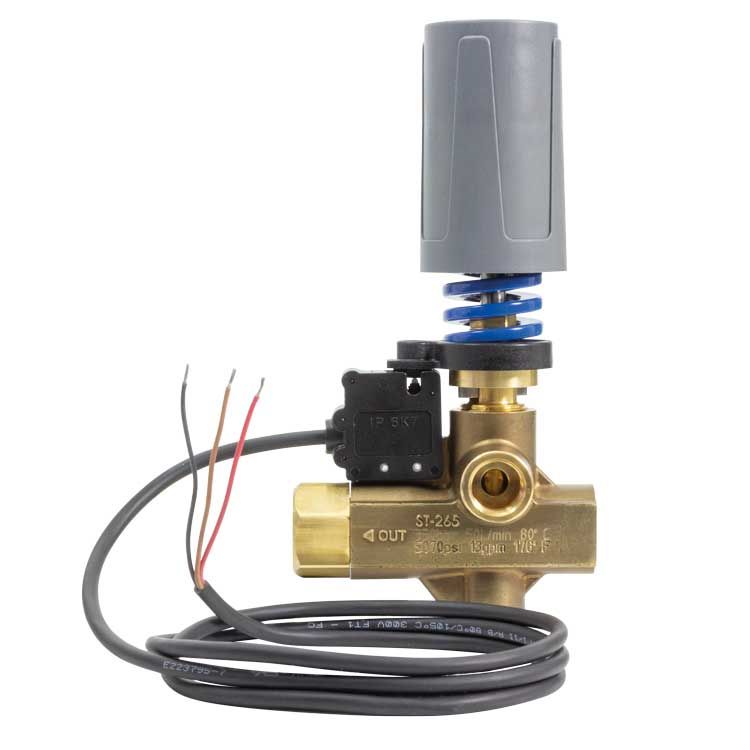

The Suttner ST-265 Unloader Valve with Pressure Switch is designed to regulate operating pressure and control pressure washer systems used in demanding professional and industrial applications. It is rated for pressures up to 350 bar, flow rates up to 50 LPM, and water temperatures up to 80°C.

When the trigger gun closes or the preset pressure is reached, the unloader valve diverts the water through the bypass circuit. This reduces the load on the pump and protects the system against excessive pressure.

The integrated pressure switch can be used as part of an automatic stop/start or control system. It detects changes in system pressure and sends an electrical signal to the machine’s control circuit. The exact operation will depend on the pressure washer’s electrical configuration.

This patent-pending Suttner design features high-grade stainless steel and ceramic valve components for dependable operation and long service life. Its adjustable pressure setting allows it to be configured for different pressure washer pumps and operating requirements.

Key Features

• Integrated pressure switch for use with machine control systems
• Maximum working pressure of 350 bar
• Maximum flow rate of 50 LPM
• Maximum water temperature of 80°C
• Adjustable operating-pressure setting
• Diverts water through the bypass when the trigger closes
• Helps protect the pump and system components
• High-grade stainless steel and ceramic valve elements
• Durable brass valve body
• Suitable for automatic pressure washer control systems
• Designed for heavy-duty industrial applications
• Manufactured in Germany

Technical Specifications

Applications

The ST-265 unloader valve with pressure switch is suitable for:

• Industrial pressure washers
• Automatic stop/start pressure washer systems
• Static and wall-mounted pressure washers
• Mobile cleaning equipment
• Motor Pump Unit (MPU) pressure washers
• Bespoke pressure washer control systems
• Replacement and repair installations

Important Installation Information

The unloader valve must be correctly selected and adjusted to match the pump’s pressure and flow rate. The pressure switch must also be connected through a compatible electrical control circuit by a suitably qualified person.

The pressure switch should not be assumed to switch the pressure washer motor directly. A suitable contactor, relay or control system may be required, depending on the motor rating and machine design.

If you are unsure whether this ST-265 is suitable, contact Flowjet Cleaning Equipment with your pump model, motor details and electrical control requirements.
