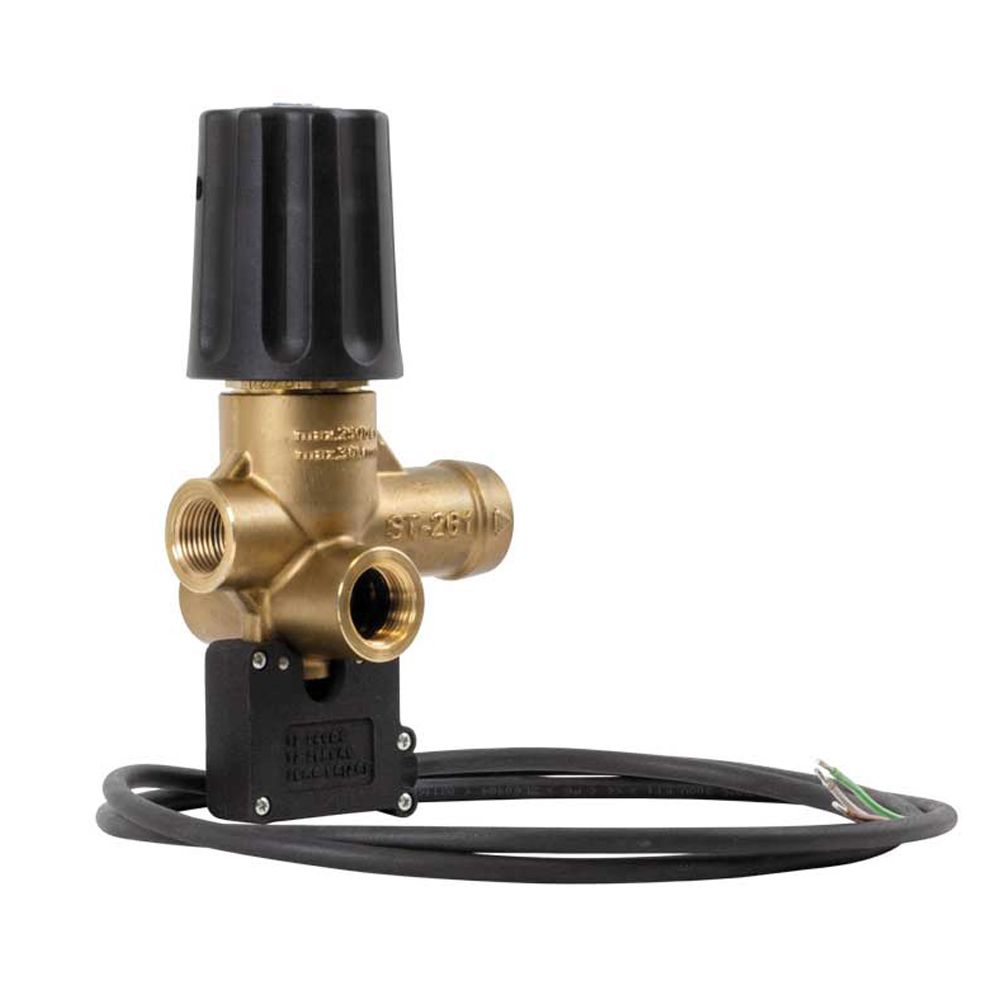

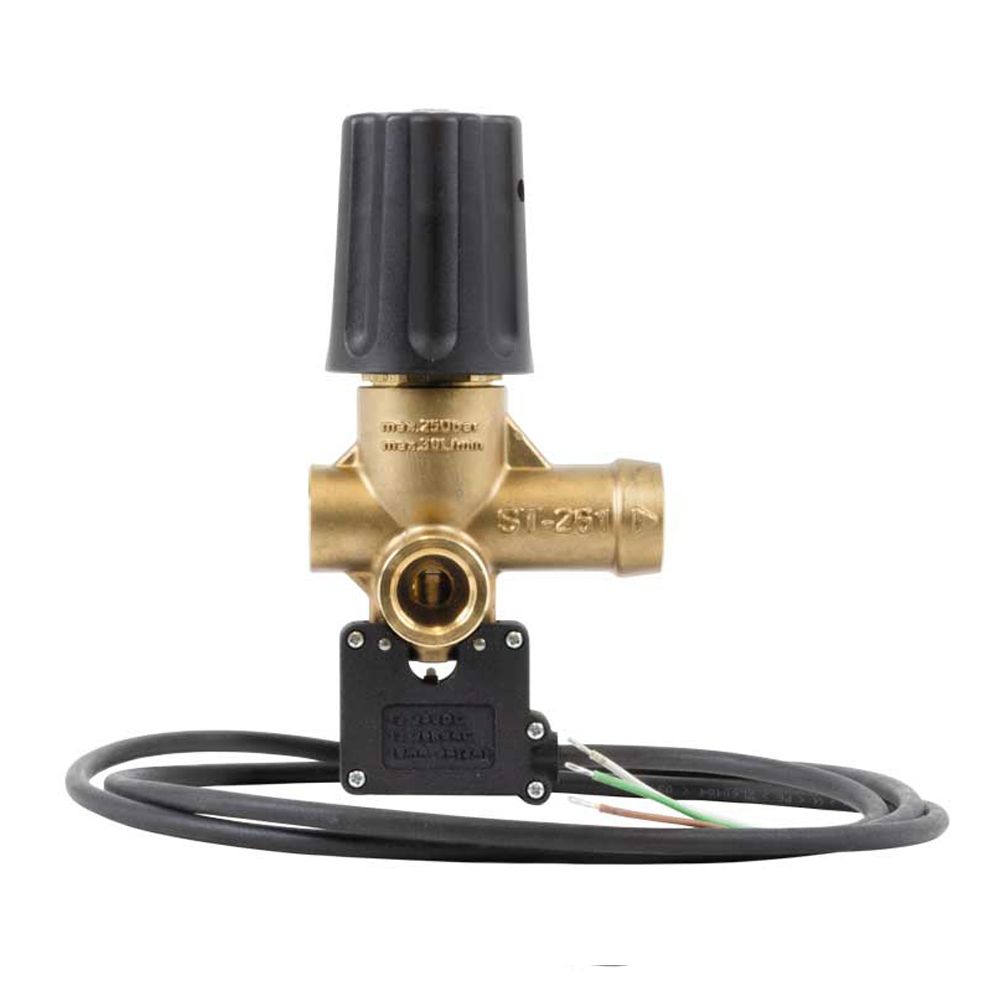

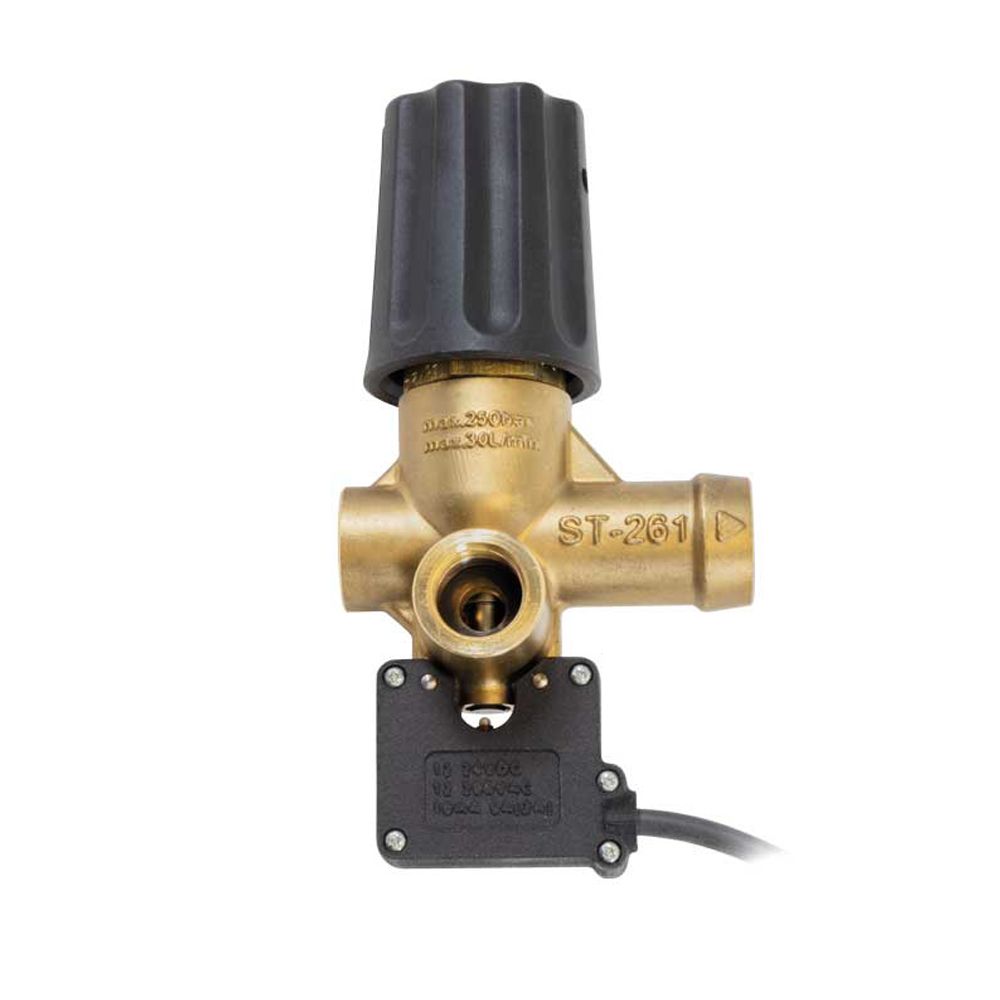

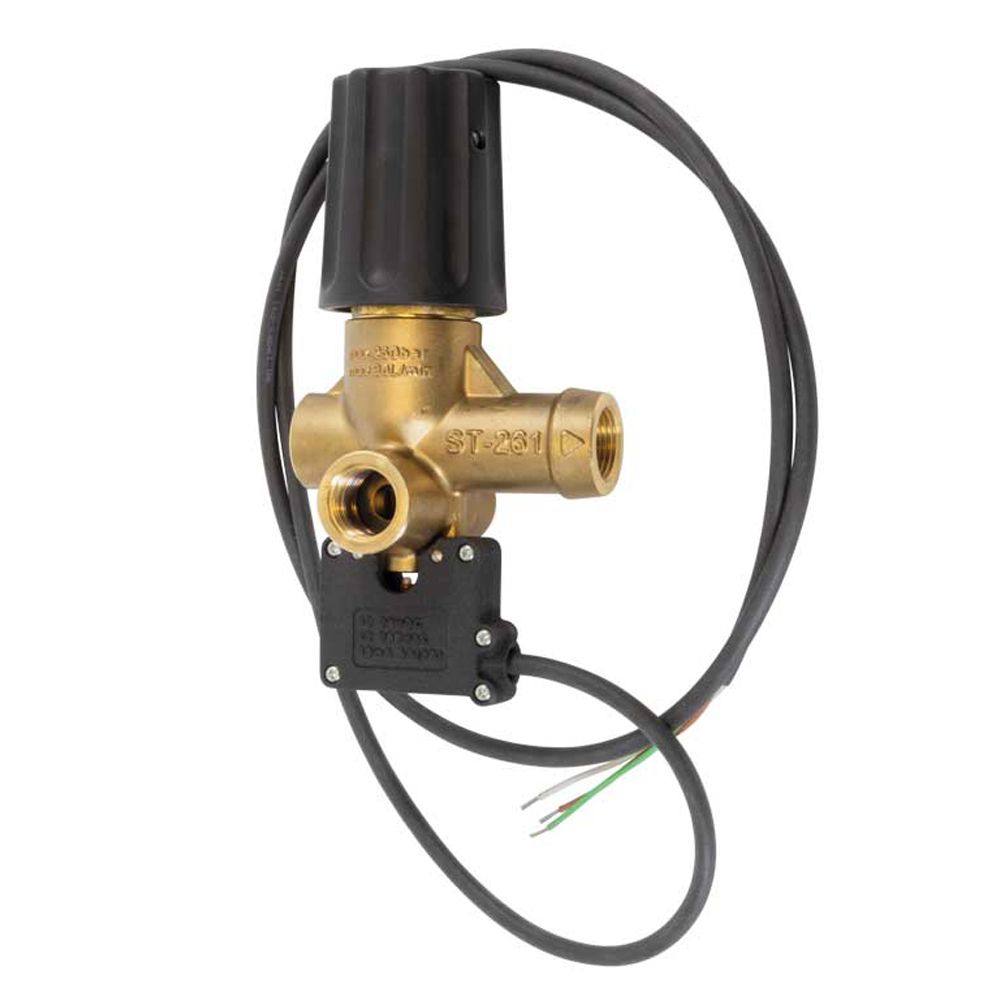

Suttner ST261.2 Unloader Valve with Pressure Switch
Suttner ST261.2 Unloader Valve With Pressure Switch
Suttner ST261.2 Unloader Valve With Pressure Switch
Suttner ST261.2 Unloader Valve With Pressure Switch
Suttner ST261.2 Unloader Valve With Pressure Switch

Suttner ST261.2 Unloader Valve with Pressure Switch

SKU 200261750
Max pressure
250 bar
Max temperature
80°C
Inlet
⅜" BSP Female
Outlet
⅜" BSP Female · Thread chart
£113.00 ex VAT
£135.60 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

R+M Suttner ST261.2 unloader valve with an integrated pressure switch, rated to 250 bar, 30 litres per minute and 80°C. It diverts excess pressure away from the pump, and the integrated switch can be used to automate machine control.

It has a brass body with stainless steel valve elements and 3/8" BSP female inlet, outlet and bypass ports. The switch is rated IP6K7 and comes with a 1200mm cable. Made in Germany.

Specification

Part number200261750
BrandR+M Suttner
ModelST261.2 with pressure switch
Maximum pressure250 bar
Maximum flow30 litres per minute
Maximum temperature80°C
Inlet3/8" BSP female
Outlet3/8" BSP female
Bypass3/8" BSP female
MaterialBrass, stainless steel valve elements
Switch protectionIP6K7
Switch current10mA to 5A (2A)
Switch voltage12 to 24V DC, 12 to 250V AC
Cable length1200mm
Country of originGermany
Check valve repair kit200261420
Switch repair kit200261430
Sealing set200261426

Sizing help

To check thread sizes, see our BSP thread size chart.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

R+M Suttner ST261.2 unloader valve with pressure switch, 250 bar, 30 litres per minute, 80°C, 3/8" BSP female ports.

Specifications

Brand
R&M Suttner
Max Pressure Rating
250 bar
Inlet
⅜" BSP Female
Outlet
⅜" BSP Female
Max Temperature Rating
80°C
Weight
10.7 kg

Technical information

Inlet: 3/8" Female

Outlet: 3/8" Female

Maximum Pressure: 250bar / 580psi

Bypass: 3/8" F

Inlet / Outlet: 3/8" F

Material: Brass / Stainless steel valve elements

Maximum Temperature: 80°C

Maximum Flow: 30 lpm

Dust Class: IP6K7

Power: 10mA-5A(2A)

Tension: 12-24VDC 12-250VAC

Cable Length: 1200mm

Commodity Code: 8481805940

Country of Origin: Germany

Weight: 10.7kg
