Corrected Product Description

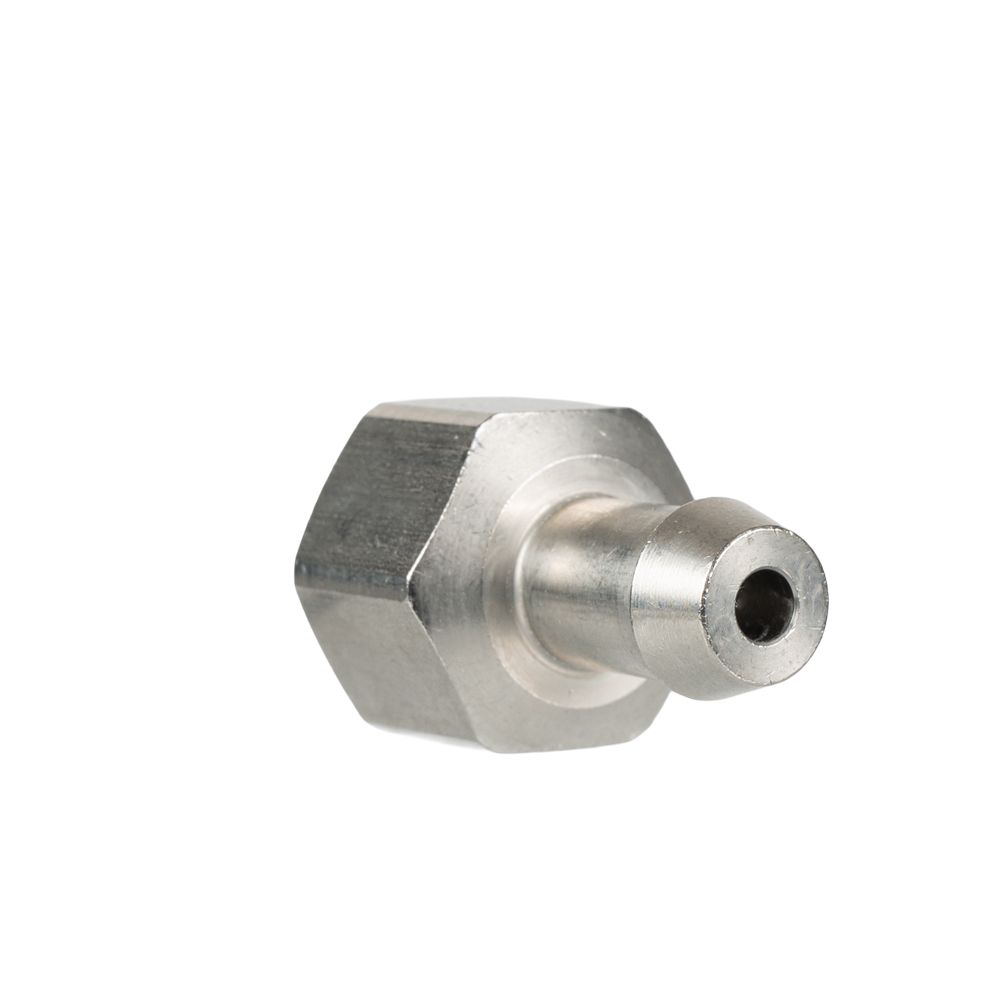

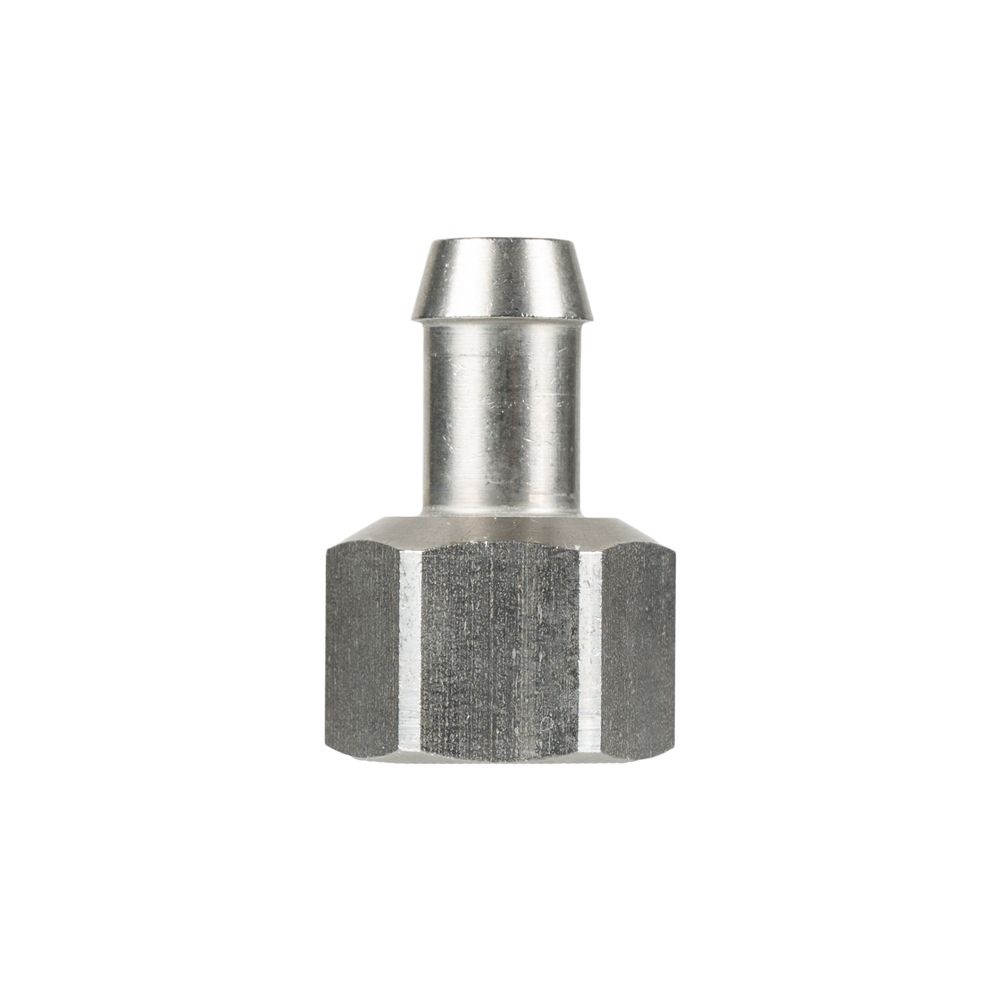

The R+M Suttner ST-163.1 stainless steel hose tail adaptor allows the four-way chemical valve to be installed remotely from the foam injector.

When direct mounting to the injector is unsuitable, the ST-163.1 valve can be secured in a more convenient position using the dedicated wall bracket. A length of suitable 9 mm chemical hose can then be run between the remotely mounted valve and the injector.

This arrangement makes the chemical selector easier to reach while allowing the injector to remain positioned within the pressure-washer system or fixed cleaning installation. It is particularly useful where space around the injector is restricted or where the chemical-selection control needs to be accessible to the operator.

Manufactured from stainless steel, the adaptor is suitable for professional foam cleaning, washdown and disinfection systems.

Typical Installation

Chemical containers → ST-163.1 four-way valve → 9 mm connecting hose → foam injector

Compatibility

• 200163185: Suttner ST-163.1 four-way chemical valve
• 040004013: Wall bracket for the ST-163.1 valve
• Suitable 9 mm chemical hose
• Suttner foam and chemical injectors with a suitable 9 mm suction connection

Key Features

• Allows the ST-163.1 valve to be positioned away from the injector
• Provides a connection for 9 mm chemical hose
• Enables convenient wall mounting of the chemical selector
• Suitable for use with wall bracket 040004013
• Stainless steel construction
• Helps improve access to the chemical-selection control
• Useful where direct mounting is impractical
• Genuine R+M Suttner component

Technical Specifications

Important Installation Note

Use chemical-resistant 9 mm hose suitable for the cleaning product being drawn through the system. The injector-side connection must also be suitable for the selected injector.

For help checking compatibility with your foam injector or chemical system, contact Flowjet Cleaning Equipment.
