R+M Suttner ST7 High Flow Switch with Micro Switch, 350 Bar, 45 LPM, 3/8" F x 3/8" F
ST7 High Flow Switch
R+M Suttner ST7 High Flow Switch with Micro Switch, 350 Bar, 45 LPM, 3/8" F x 3/8" F – image 2
R+M Suttner ST7 High Flow Switch with Micro Switch, 350 Bar, 45 LPM, 3/8" F x 3/8" F – image 3
R+M Suttner ST7 High Flow Switch with Micro Switch, 350 Bar, 45 LPM, 3/8" F x 3/8" F – image 4

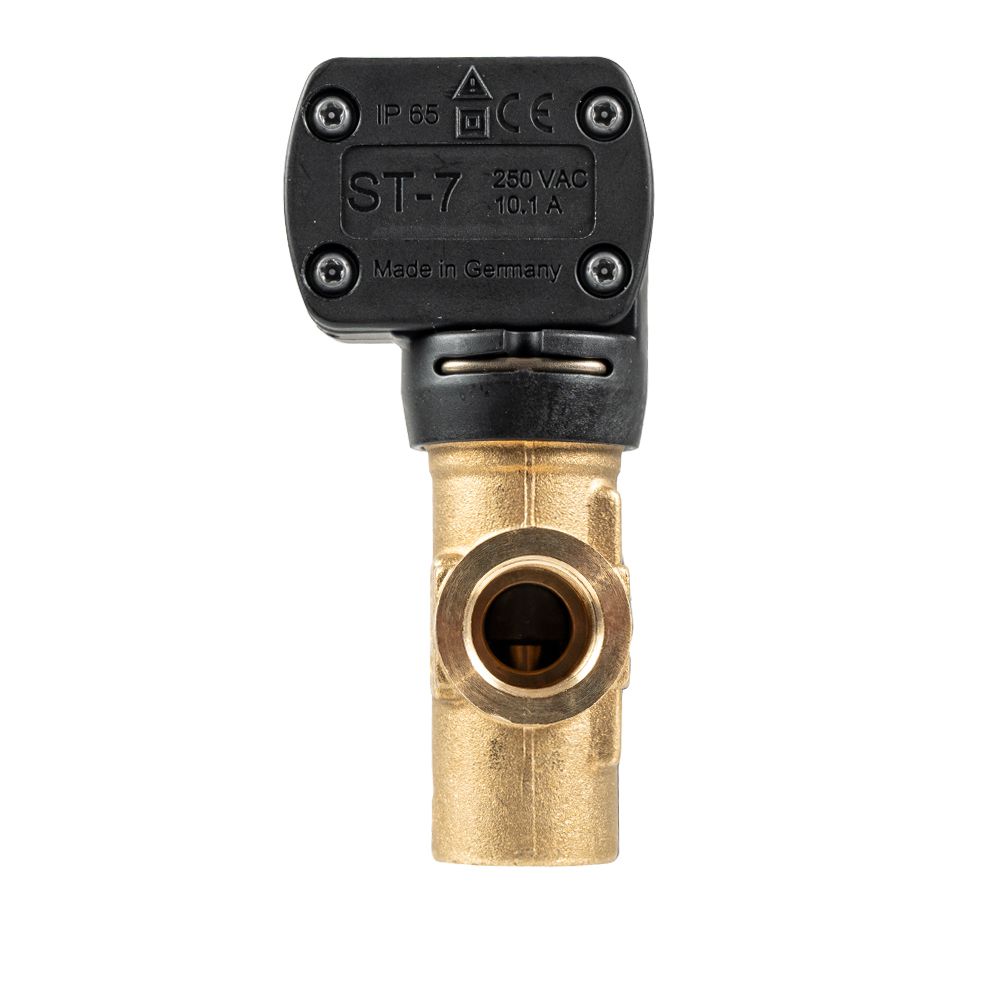

R+M Suttner ST7 High Flow Switch with Micro Switch, 350 Bar, 45 LPM, 3/8" F x 3/8" F – image 5
R+M Suttner ST7 High Flow Switch with Micro Switch, 350 Bar, 45 LPM, 3/8" F x 3/8" F – image 6
R+M Suttner ST7 High Flow Switch with Micro Switch, 350 Bar, 45 LPM, 3/8" F x 3/8" F – image 7
R+M Suttner ST7 High Flow Switch with Micro Switch, 350 Bar, 45 LPM, 3/8" F x 3/8" F – image 8
R+M Suttner ST7 High Flow Switch with Micro Switch, 350 Bar, 45 LPM, 3/8" F x 3/8" F – image 9

R+M Suttner ST7 High Flow Switch with Micro Switch, 350 Bar, 45 LPM, 3/8" F x 3/8" F

SKU: 200007500
£64.70 ex VAT
£77.64 inc. VAT
In Stock
Order by 2 PM for next day delivery
  • Get finance on orders over £1000 Learn More
  • Free UK mainland delivery on orders over £200 excluding VAT
  • Bulk discounts available
  • Stock moves quickly. For large or urgent orders, call 015395 66193 to confirm availability.
  • Need assistance? Call 015395 66193

Overview

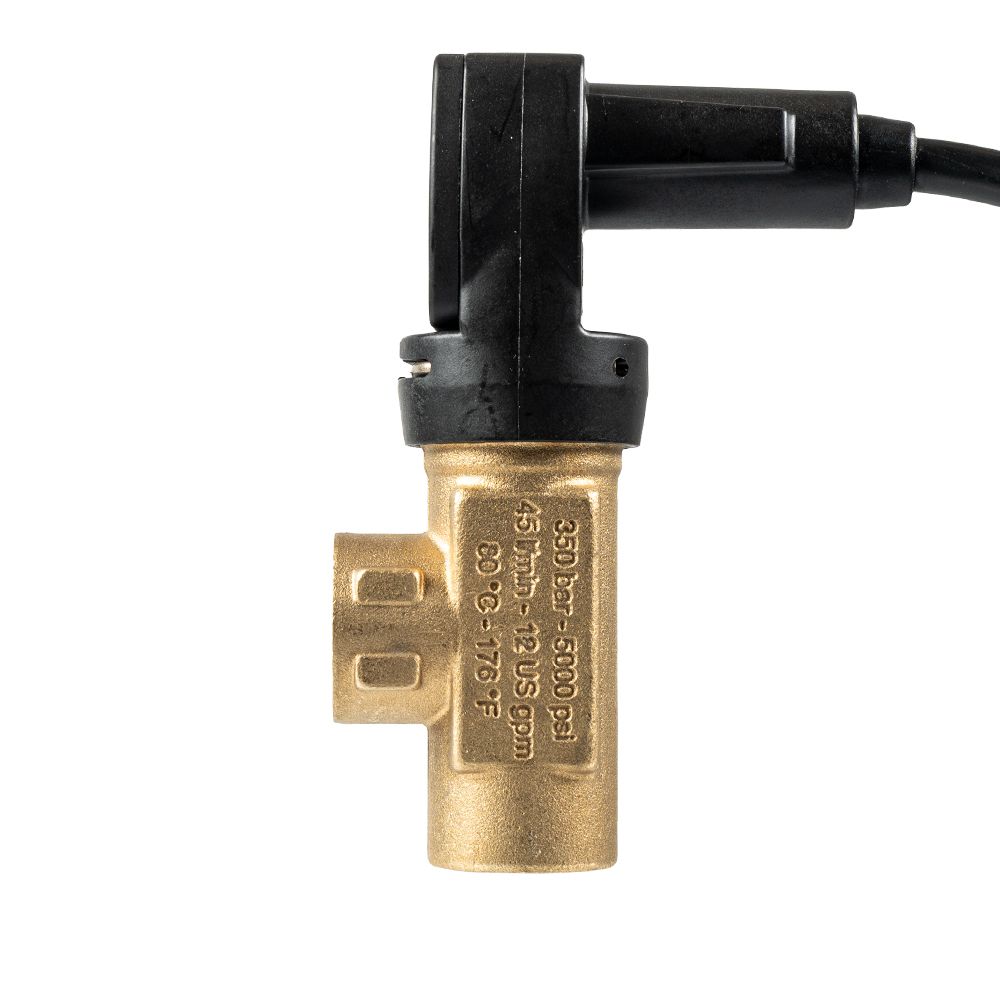

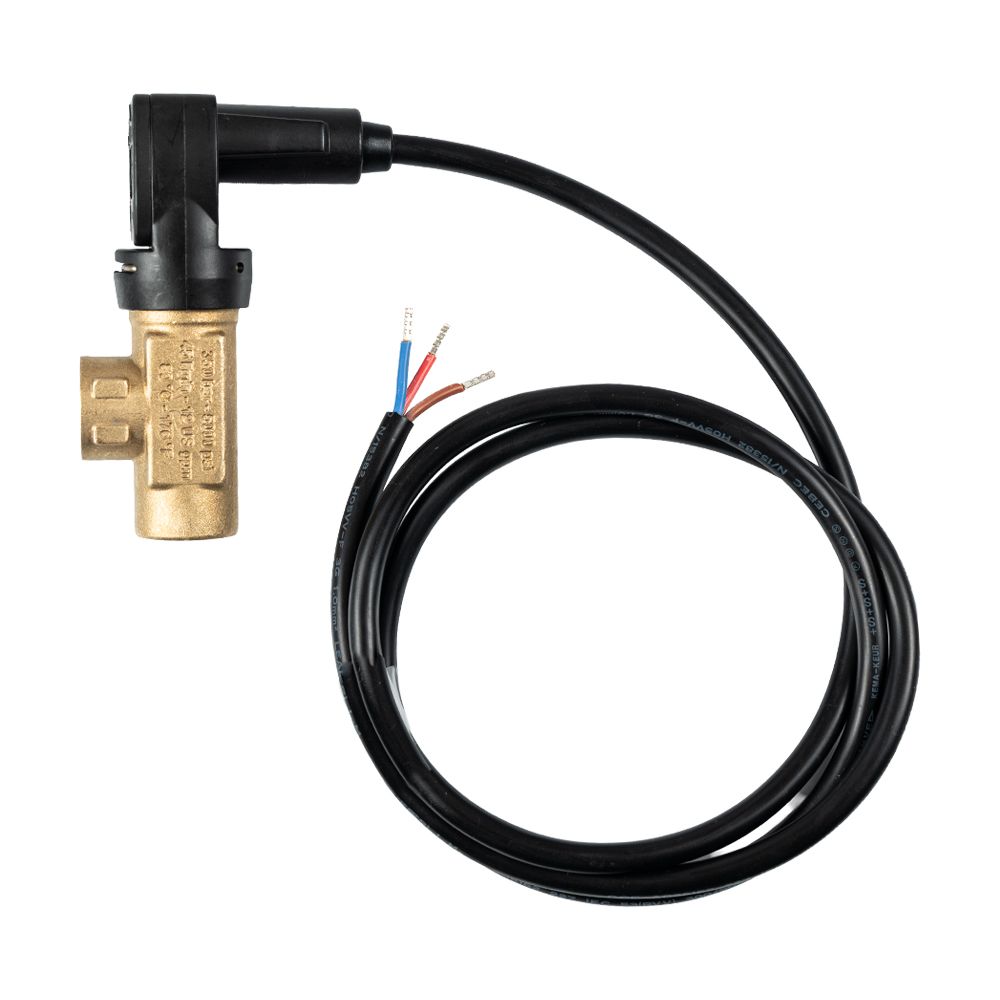

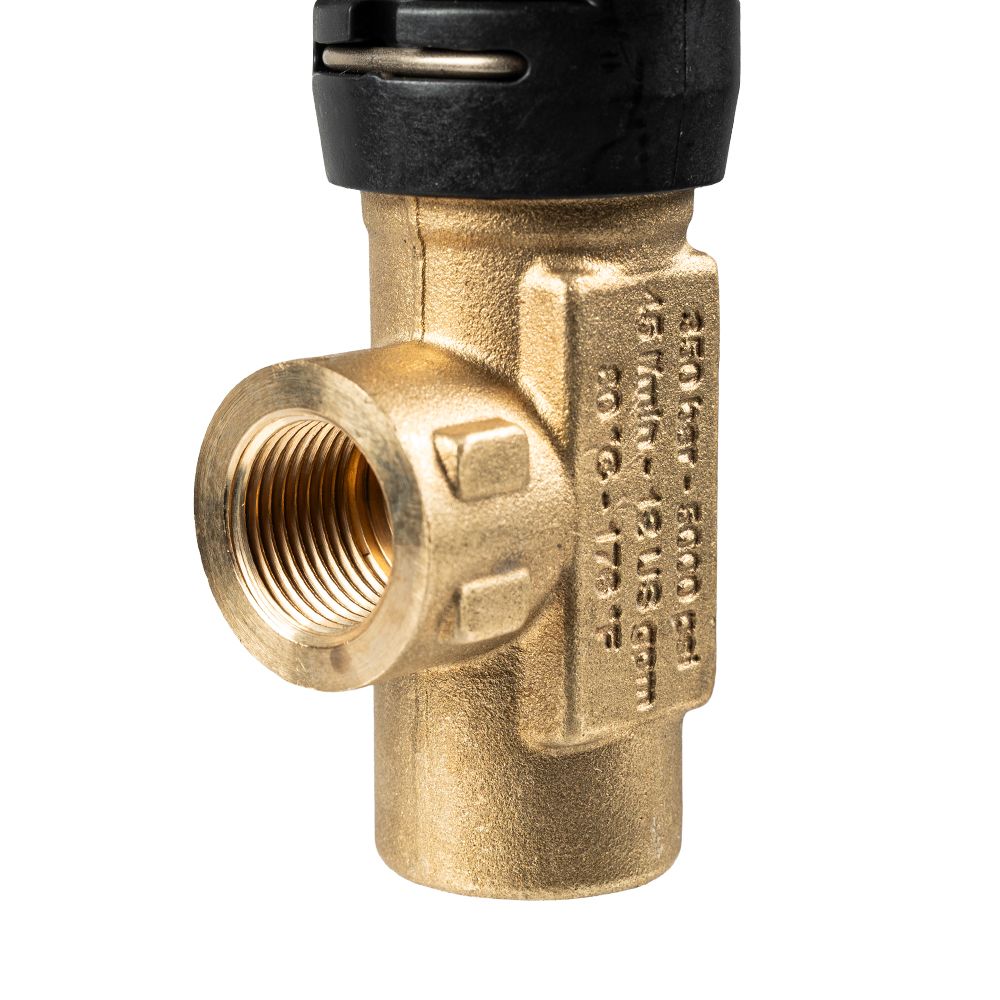

Suttner ST7 high flow switch with a brass body and industrial micro switch, rated to 350 bar, 45 litres per minute and 80°C, with 3/8" BSP female inlet and outlet. The switch closes at 4.9 litres per minute and opens at 3.5 litres per minute.

It uses an industrial micro switch rather than a reed contact, giving a higher switching capacity and longer life, and the hydraulic and electrical parts are fully separated so water cannot reach the switch. Pressure drop is 1.5 bar at 30 litres per minute. It weighs 0.36kg.

Specification

Part number200007500
BrandR+M Suttner
ModelST7 high flow
MaterialBrass
ColourBlack
Maximum pressure350 bar
Maximum flow45 litres per minute
Maximum temperature80°C

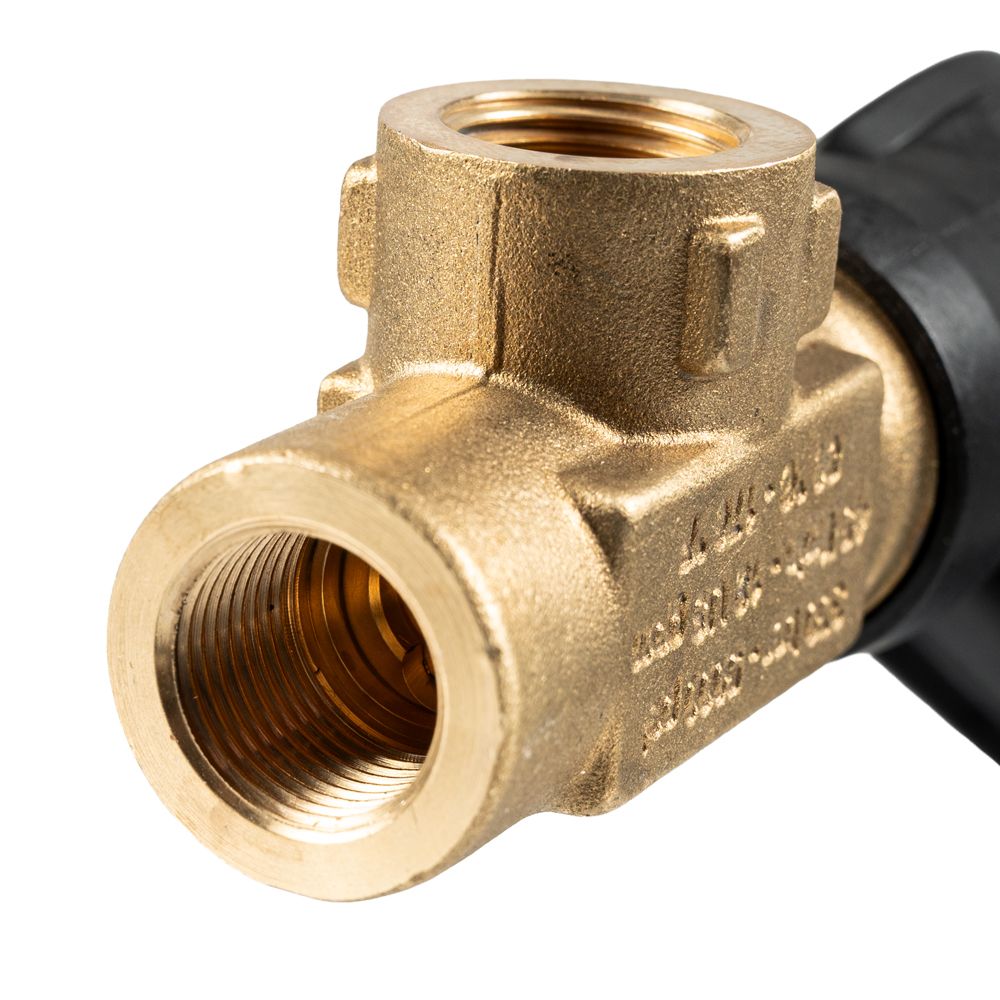

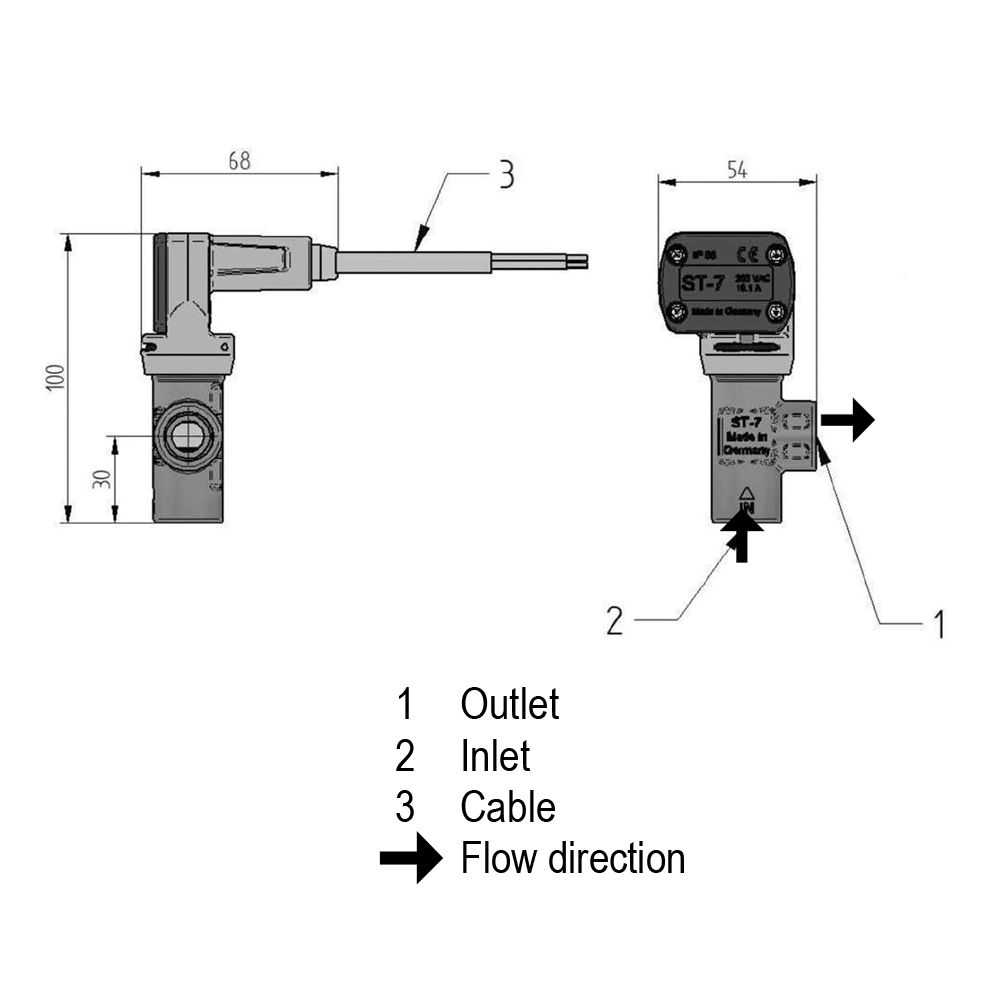

Inlet3/8" BSP female
Outlet3/8" BSP female
Length1200mm
Switch closes4.9 litres per minute
Switch opens3.5 litres per minute
Pressure drop1.5 bar at 30 litres per minute

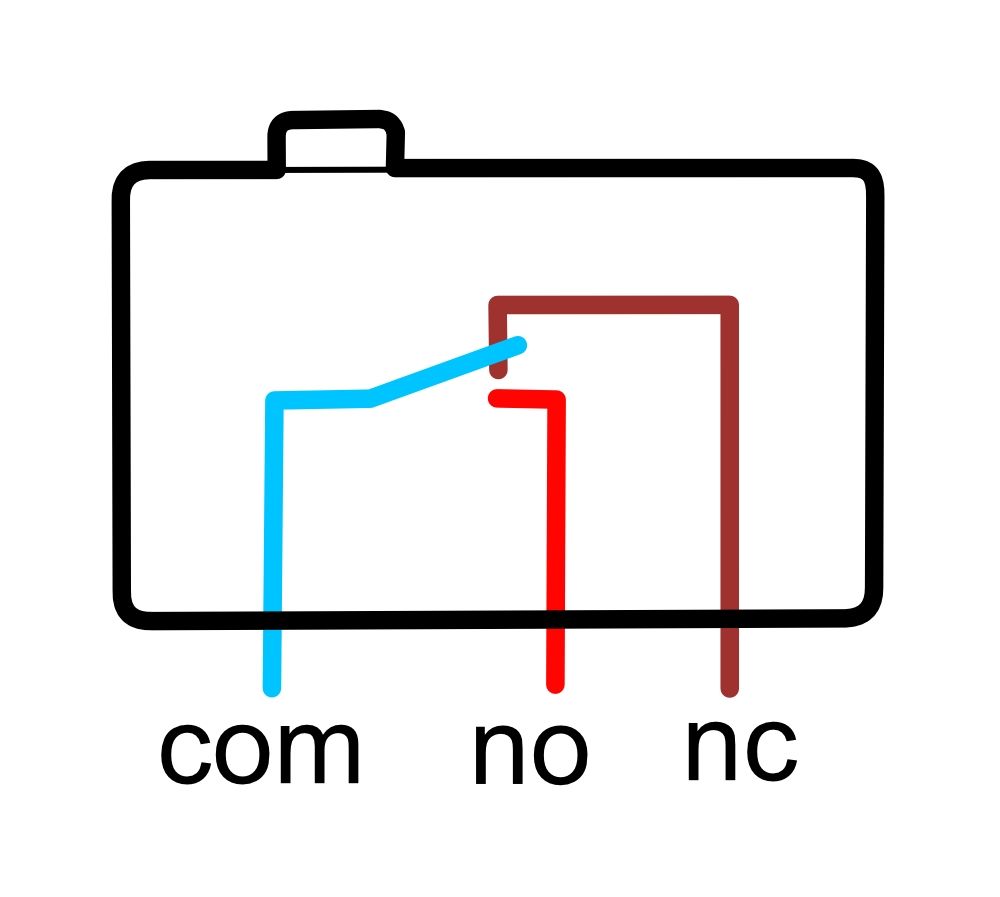

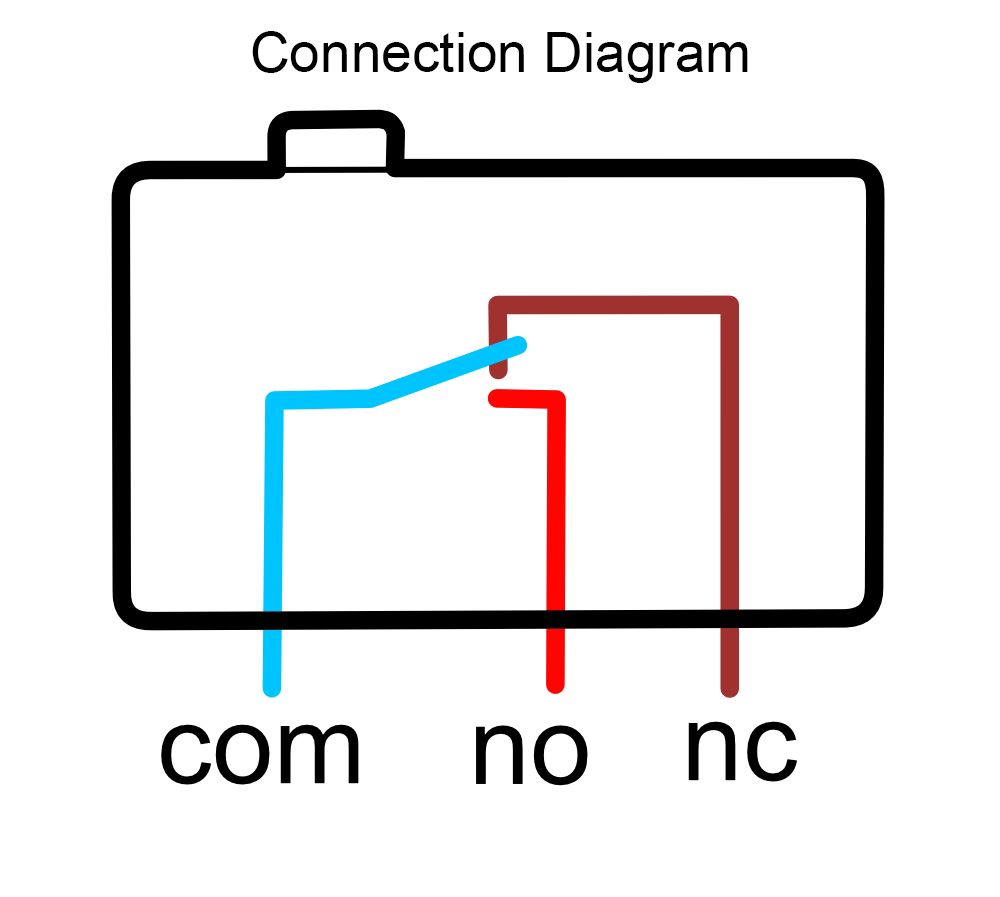

Electrical rating250V, 10A (inrush 20A NC, 15A NO)
ProtectionIP65

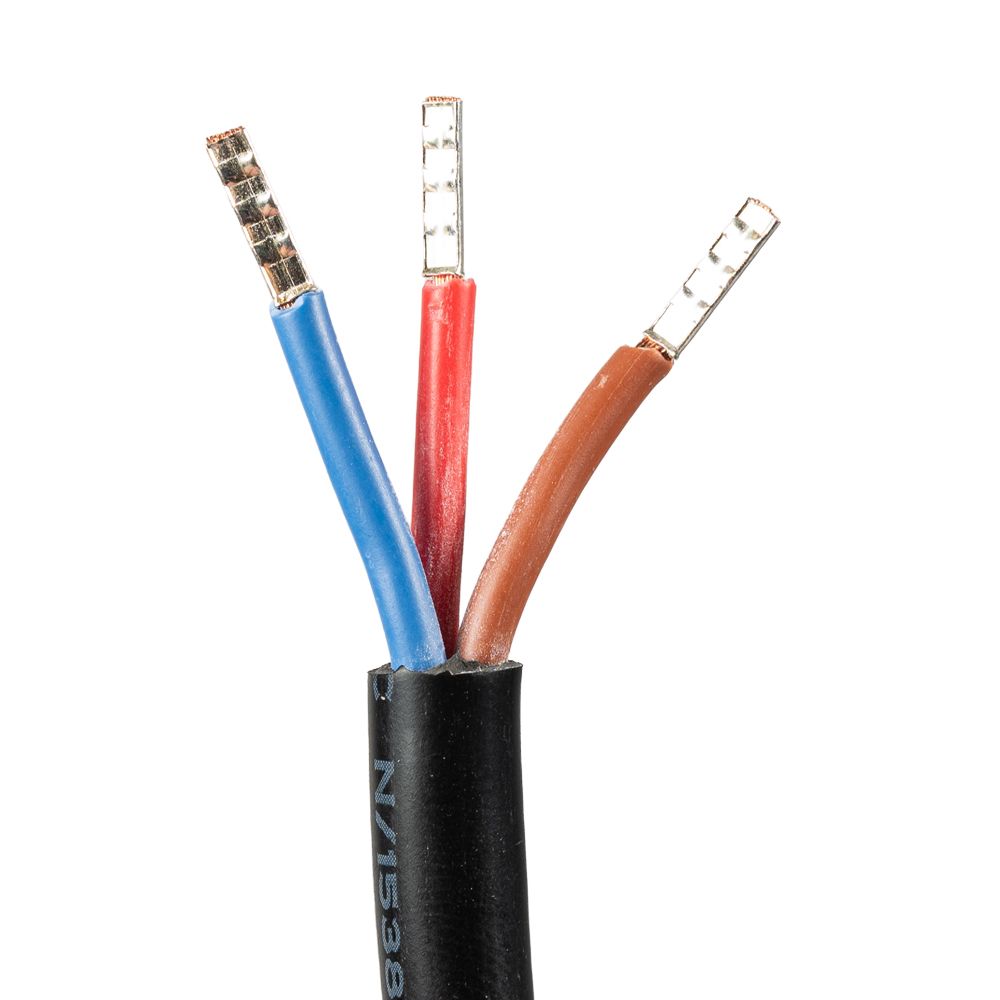

Cable length1200mm
BodyBrass
Voltage250V
Weight0.36kg
Country of originGermany

Before installation: Check the connection threads using our BSP thread size chart and the pressure and temperature ratings of your system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.
