R+M Suttner ST601 Inline Gun Weep 3/8" F x 1/4" F, 275 Bar, 45 LPM
R+M Suttner ST601 Inline Gun Weep 3/8" F x 1/4" F, 275 Bar, 45 LPM – image 1
R+M Suttner ST601 Inline Gun Weep 3/8" F x 1/4" F, 275 Bar, 45 LPM – image 2
R+M Suttner ST601 Inline Gun Weep 3/8" F x 1/4" F, 275 Bar, 45 LPM – image 3
R&M SuttnerST-601 series

R+M Suttner ST601 Inline Gun Weep 3/8" F x 1/4" F, 275 Bar, 45 LPM

SKU 200601602
Max pressure
275 bar
Max flow
45 LPM
Max temperature
150°C
Inlet
⅜" BSP Female
Outlet
¼" BSP Female · Thread chart
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Suttner ST601 inline wash gun with weep design, rated to 275 bar, 45 litres per minute and 150°C, with a 3/8" BSP female inlet and 1/4" BSP female outlet.

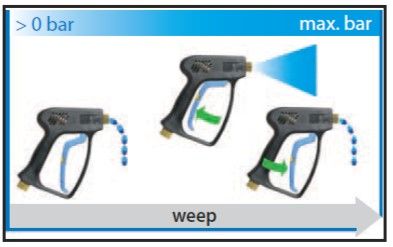

The Suttner ST601 is an inline wash gun designed for use with extra long lances, such as telescopic high pressure lances. The housing is impact-resistant plastic with a trigger safety lock, and the internals are made from corrosion-resistant materials. The weep design lets a small amount of water keep passing through the gun when the trigger is released, which reduces the risk of freezing in the pipework, hose and spray device. It weighs 0.24kg.

Specification

Part number200601602
BrandR+M Suttner
ModelST601 inline, weep
ColourBlack
Maximum pressure275 bar
Maximum flow45 litres per minute
Maximum temperature150°C
Inlet3/8" BSP female
Outlet1/4" BSP female
Opening force56N at 100 bar
Holding force22N at 100 bar
Weight0.24kg

Before installation: Check the connection threads using our BSP thread size chart and the pressure and temperature ratings of your system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Valve Housing Material
Brass
Inlet
⅜" BSP Female
Outlet
¼" BSP Female
Valve Material
Brass / Stainless Steel
Brand
R&M Suttner
Max Pressure Rating
275 bar
Max Flow Rating
45 LPM
Max Temperature Rating
150°C
Wash Gun Series
ST-601 - 275 Bar 45 LPM 150°C - Inline Trigger
Colour
Black
Weight
0.54 kg

Technical information

Maximum pressure: 275 bar

Maximum flow: 45 litres per minute

Maximum temperature: 150°C

Inlet: 3/8" BSP female

Outlet: 1/4" BSP female

Model: ST601 inline, weep

Colour: Black

Opening force: 56N at 100 bar

Holding force: 22N at 100 bar

Weight: 0.24kg
