ST166 Twin Chemical Foam InjectorST166 Twin Chemical Foam Injector
R+M Suttner ST166 Injector-1.3mm, 350 Bar, 3/8" F x 3/8" M

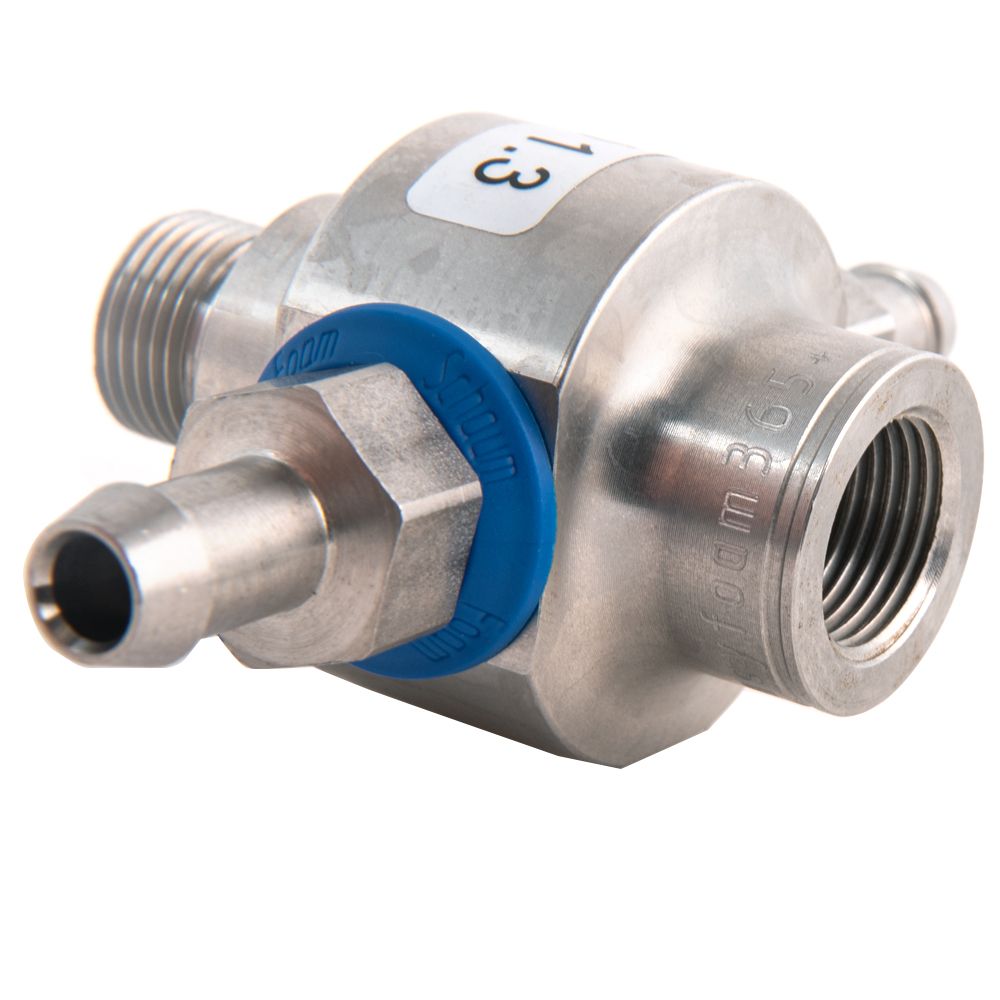

R+M Suttner ST166 Injector-1.3mm, 350 Bar, 3/8" F x 3/8" M – image 1

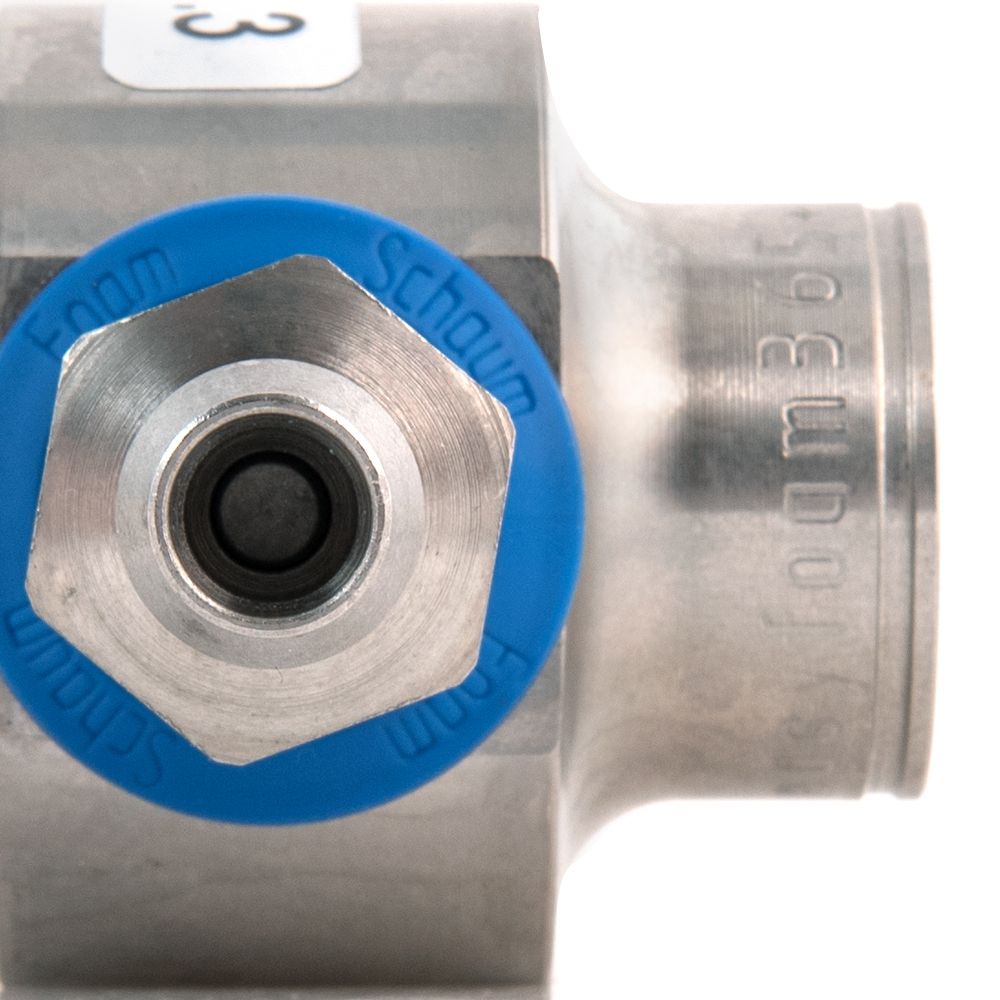

R+M Suttner ST166 Injector-1.3mm, 350 Bar, 3/8" F x 3/8" M – image 2

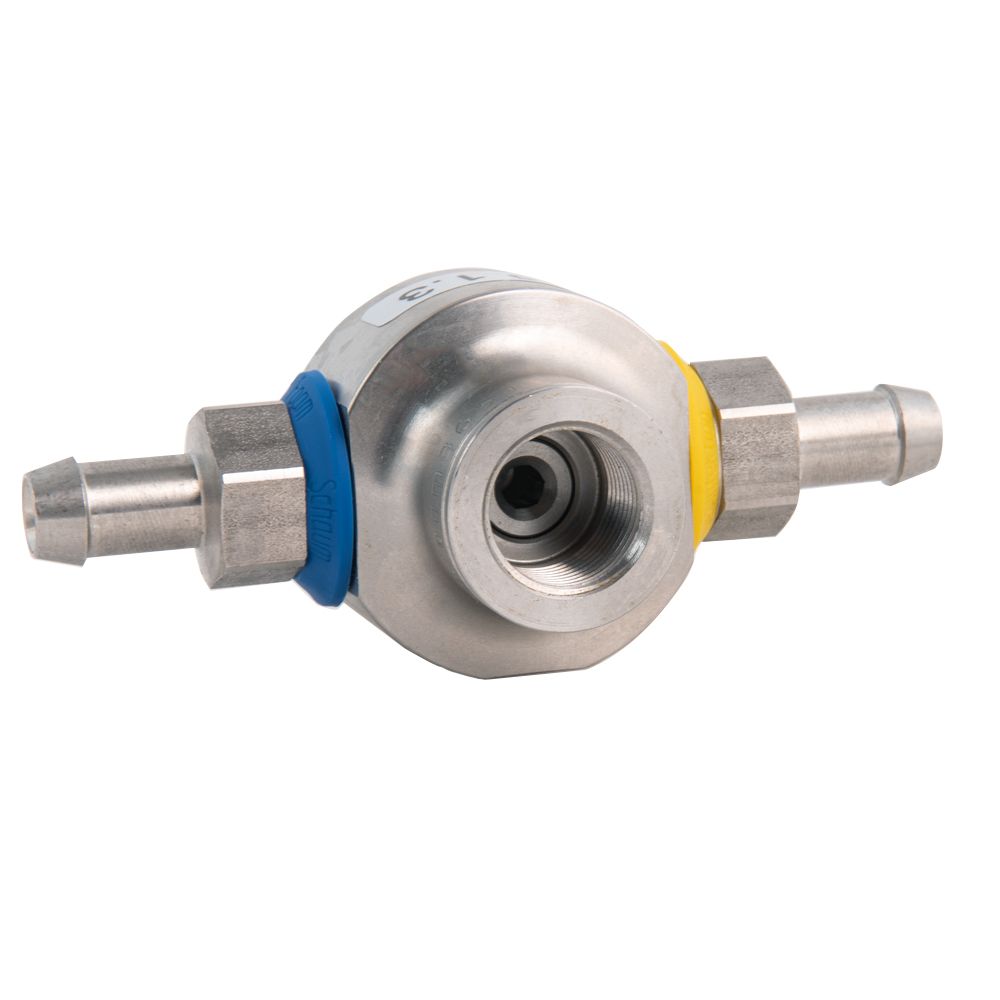

R+M Suttner ST166 Injector-1.3mm, 350 Bar, 3/8" F x 3/8" M – image 3

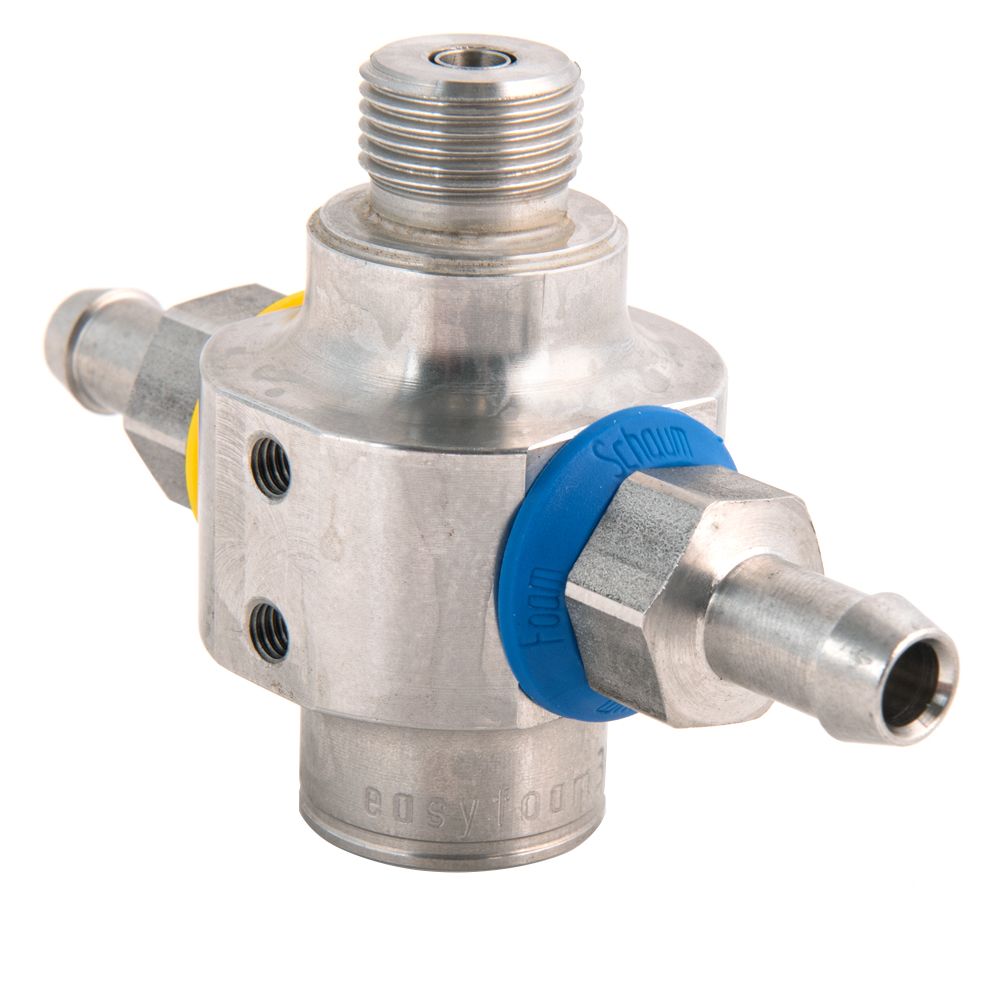

R+M Suttner ST166 Injector-1.3mm, 350 Bar, 3/8" F x 3/8" M – image 4

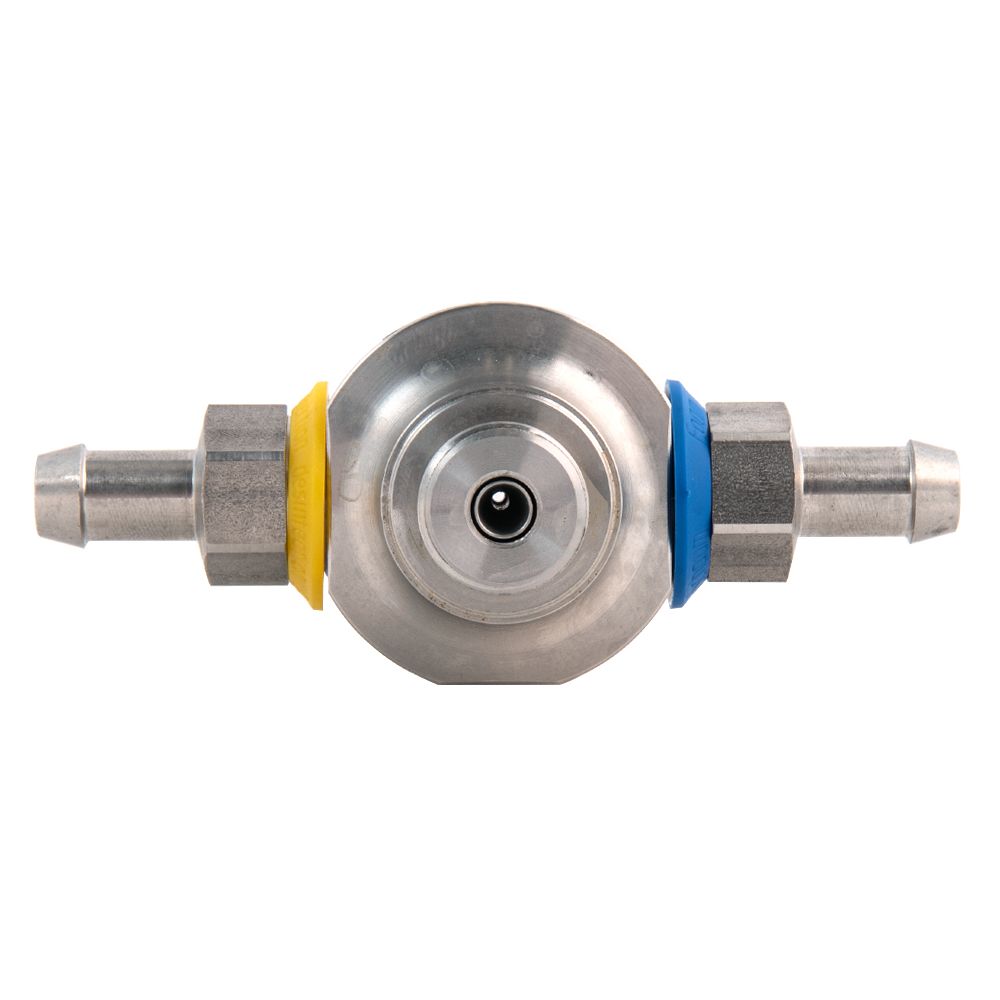

R+M Suttner ST166 Injector-1.3mm, 350 Bar, 3/8" F x 3/8" M – image 5
R+M Suttner ST166 Injector-1.3mm, 350 Bar, 3/8" F x 3/8" M – image 6
R&M Suttner

R+M Suttner ST166 Injector-1.3mm, 350 Bar, 3/8" F x 3/8" M

SKU 200166500
Max pressure
350 bar
Max temperature
90°C
Inlet
⅜" BSP Female
Outlet
⅜" BSP Male · Thread chart
£178.00 ex VAT
£213.60 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

ST166 dual chemical venturi injector from R+M Suttner in stainless steel, 1.3mm injector size. It draws and mixes two chemicals into the water stream for cleaning and sanitising systems in industrial, agricultural and food processing use.

Chemical dosing is set with exchangeable nozzle inserts from 0.5mm to 2.0mm. It has a 3/8" BSP female inlet and a 3/8" BSP male outlet and is rated to 350 bar and 90°C. It weighs 0.4kg.

Specification

Part number200166500
BrandR+M Suttner
TypeDual chemical venturi injector
MaterialStainless steel
Orifice diameter1.3mm
Maximum pressure350 bar
Maximum temperature90°C
Inlet3/8" BSP female
Outlet3/8" BSP male
Bore9mm
SeriesST166
Injector size1.3mm
Dose adjustmentNozzle inserts, 0.5mm to 2.0mm
Weight0.4kg
Country of originGermany

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Brand
R&M Suttner
Max Pressure Rating
350 bar
Inlet
⅜" BSP Female
Outlet
⅜" BSP Male
Max Temperature Rating
90°C
Foam & Chemical Method
Pressure Washer Foam Injector
Injector / Nozzle Size
ST-166 Injector (⌀1.3mm)
Material
Stainless Steel
Weight
0.4 kg

Technical information

Maximum pressure: 350 bar

Maximum temperature: 90°C

Inlet: 3/8" BSP female

Outlet: 3/8" BSP male

Bore: 9mm

Dose adjustment: Nozzle inserts, 0.5mm to 2.0mm

Type: Dual chemical venturi injector

Series: ST166

Material: Stainless steel

Orifice diameter: 1.3mm

Injector size: 1.3mm

Weight: 0.4kg

Country of origin: Germany
