ST164 Injector Without Compressed Air Module-1.7mm

Overview

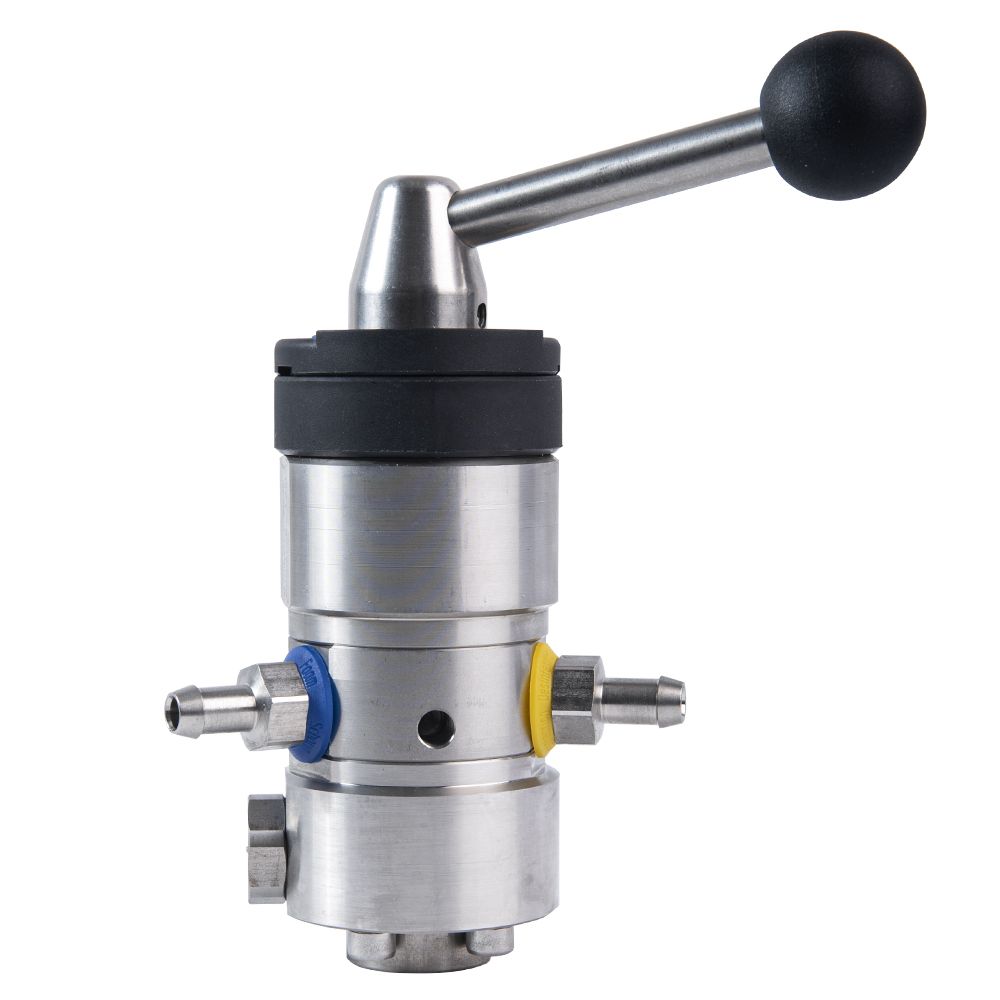

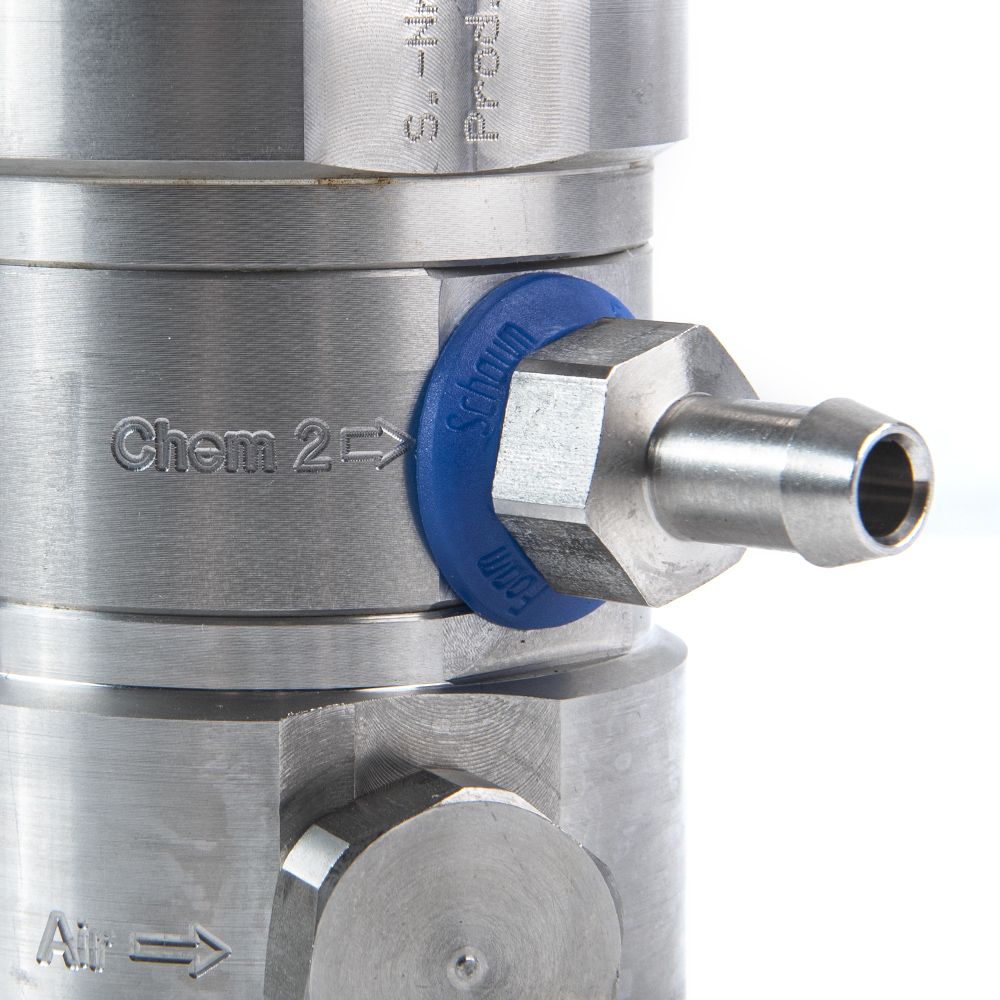

ST164 twin chemical injector without compressed air module from R+M Suttner in stainless steel, 1.7mm injector size. Water is forced through a restrictive orifice, and with a low pressure nozzle such as an ST75 foam head this creates a vacuum that draws chemical into the water stream. A lever selects which of two connected chemicals is drawn in. It is used for cleaning in agriculture, automotive and food processing, including vehicles that carry livestock.

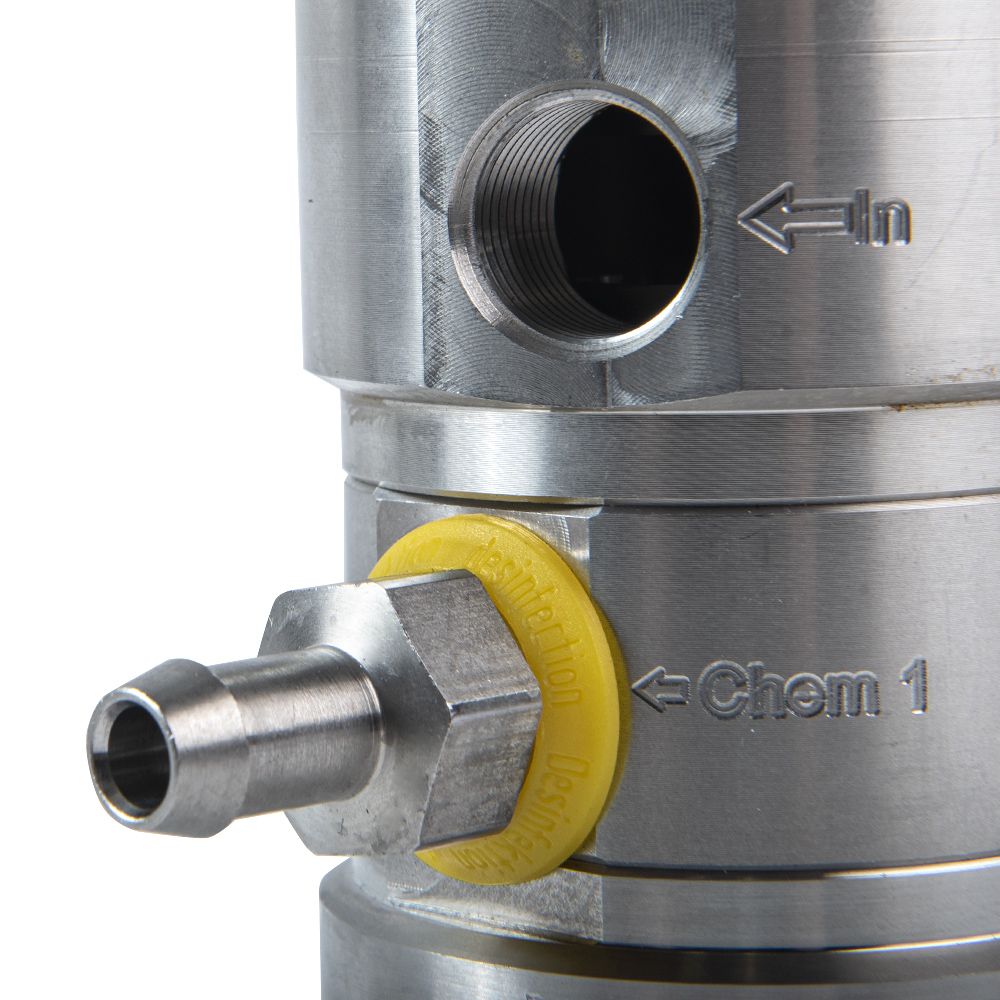

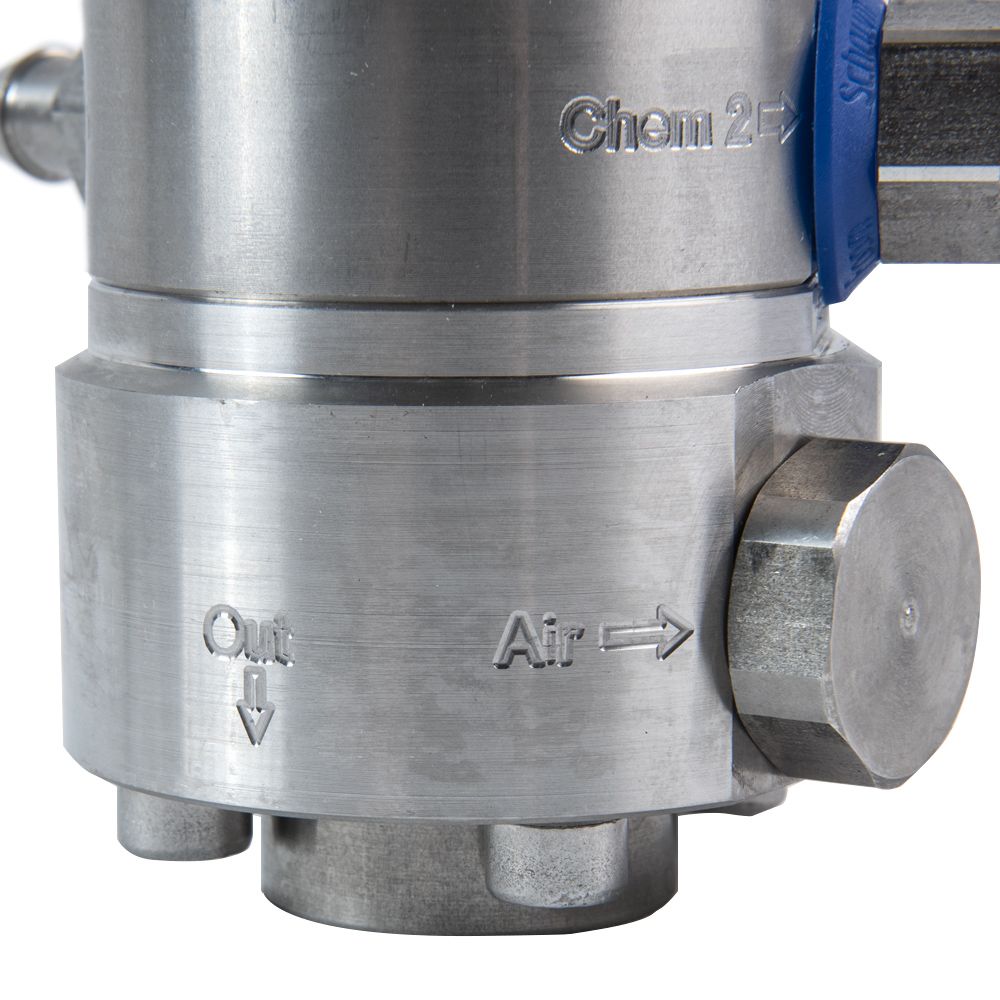

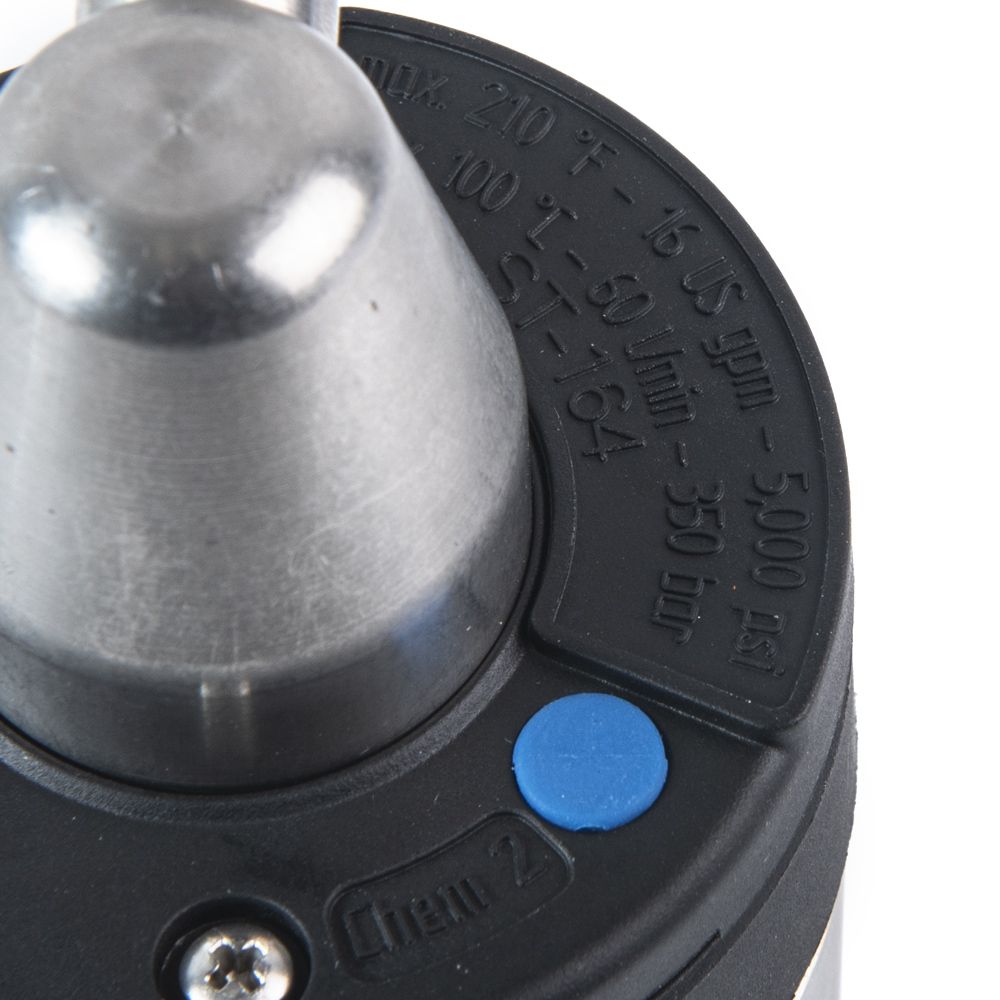

This version has no compressed air module. Ten dosing nozzle inserts are supplied to adjust the chemical dose. Fit a chemical filter on the end of each chemical tube and check the viscosity of the chemical, as it affects the draw rate. It has a 3/8" BSP female inlet and a 1/2" BSP female outlet and is rated to 350 bar, 60 litres per minute and 100°C.

Specification

Compatibility

ST75 foam heads, ST76 foam blasters and the triple nozzle.

Sizing help

To choose the right nozzle size, see our foam nozzle size chart.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.
