ST164 Twin chemical injectorST164 Twin chemical injector
R+M Suttner ST164 Injector Without Compressed Air Module-1.5mm, 350 Bar, 60 LPM
R+M Suttner ST164 Injector Without Compressed Air Module-1.5mm, 350 Bar, 60 LPM – image 1
R+M Suttner ST164 Injector Without Compressed Air Module-1.5mm, 350 Bar, 60 LPM – image 2
R+M Suttner ST164 Injector Without Compressed Air Module-1.5mm, 350 Bar, 60 LPM – image 3
R+M Suttner ST164 Injector Without Compressed Air Module-1.5mm, 350 Bar, 60 LPM – image 4
R+M Suttner ST164 Injector Without Compressed Air Module-1.5mm, 350 Bar, 60 LPM – image 5
R+M Suttner ST164 Injector Without Compressed Air Module-1.5mm, 350 Bar, 60 LPM – image 6
R&M Suttner

R+M Suttner ST164 Injector Without Compressed Air Module-1.5mm, 350 Bar, 60 LPM

SKU 200164503
Max pressure
350 bar
Max flow
60 LPM
Max temperature
100°C
Inlet
⅜" BSP Female
Outlet
½" BSP Female · Thread chart
£639.00 ex VAT
£766.80 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

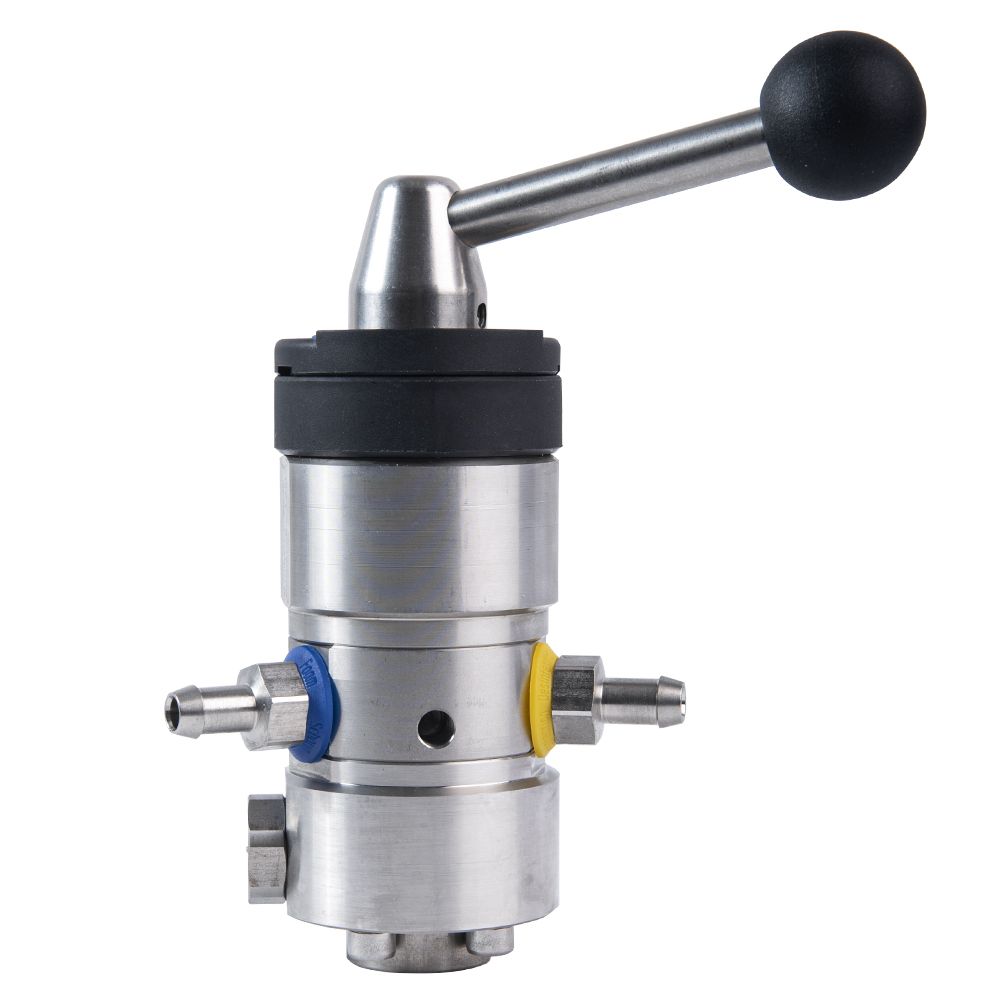

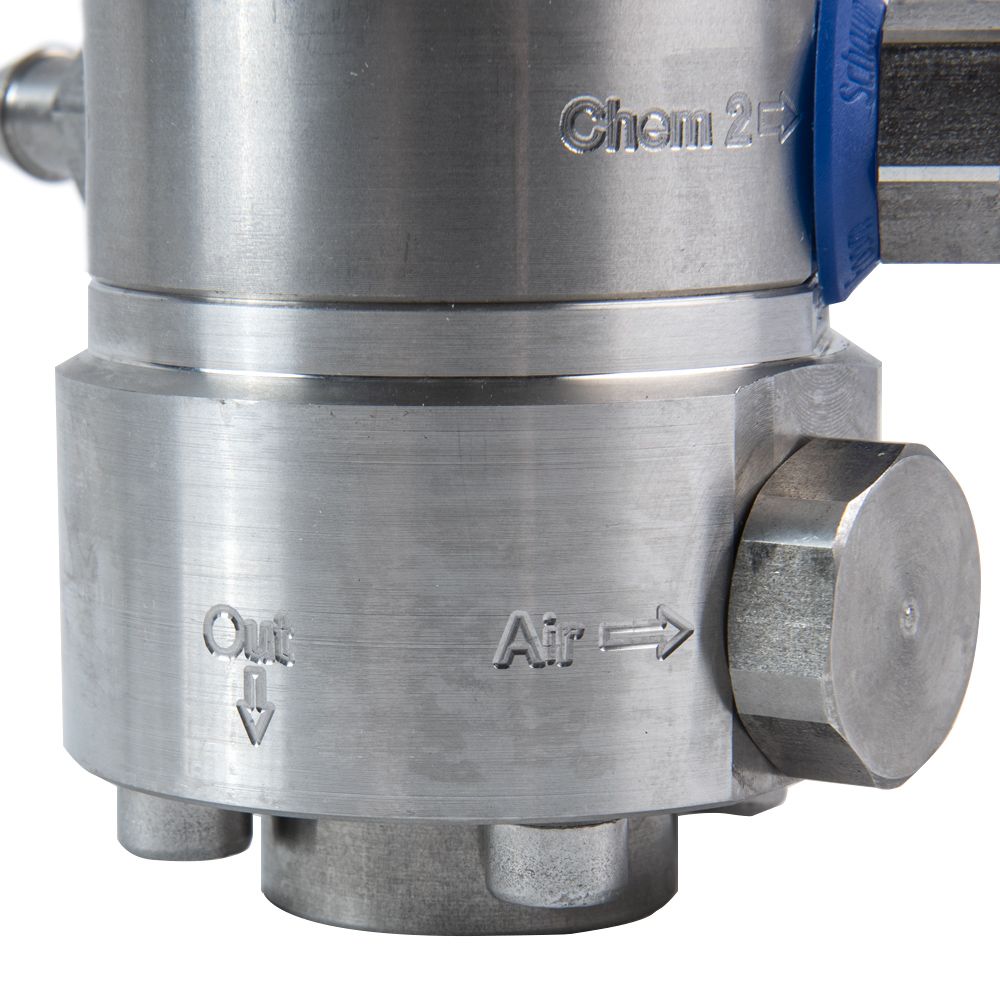

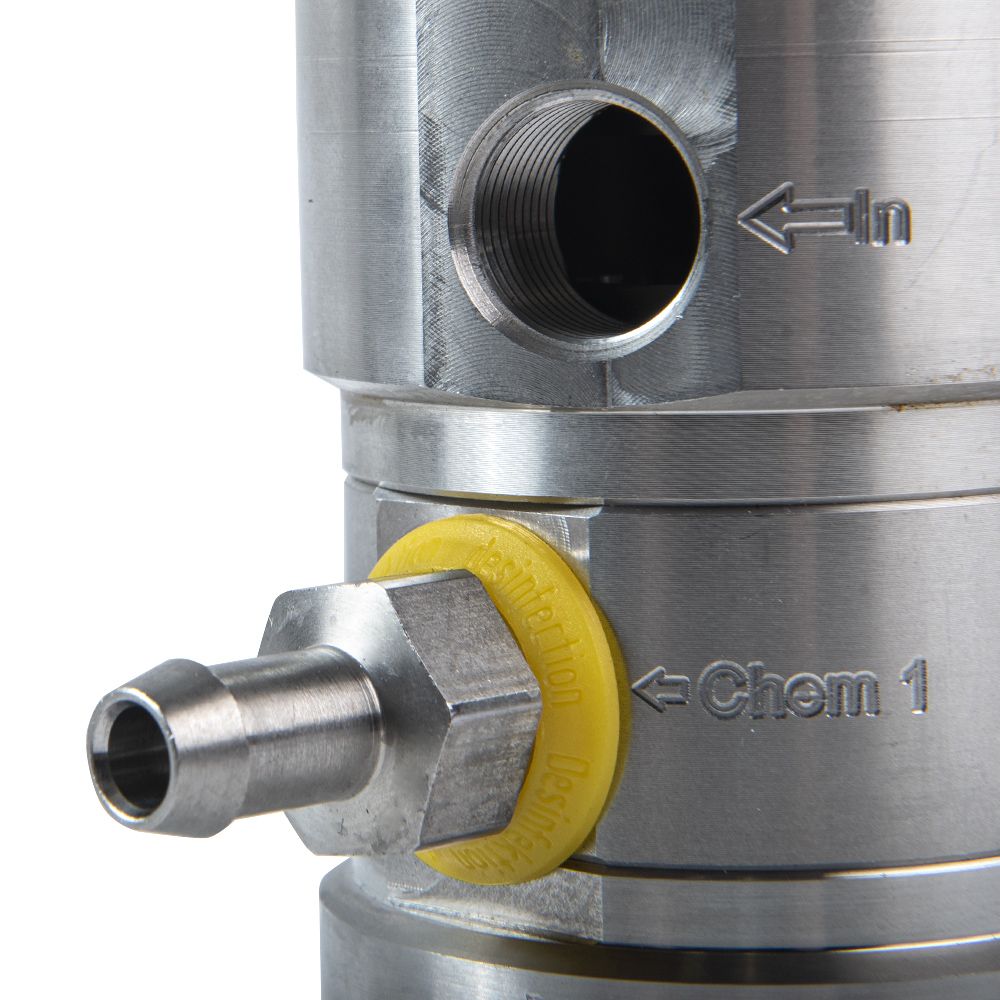

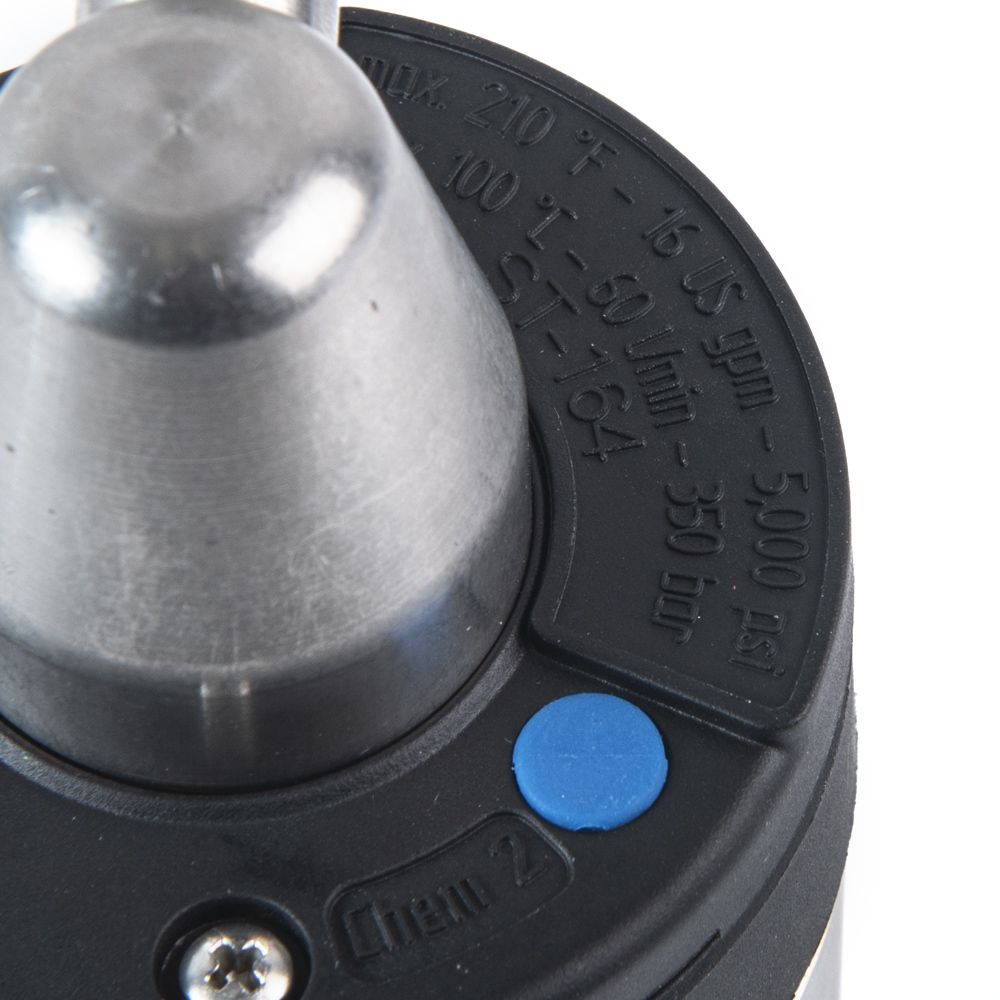

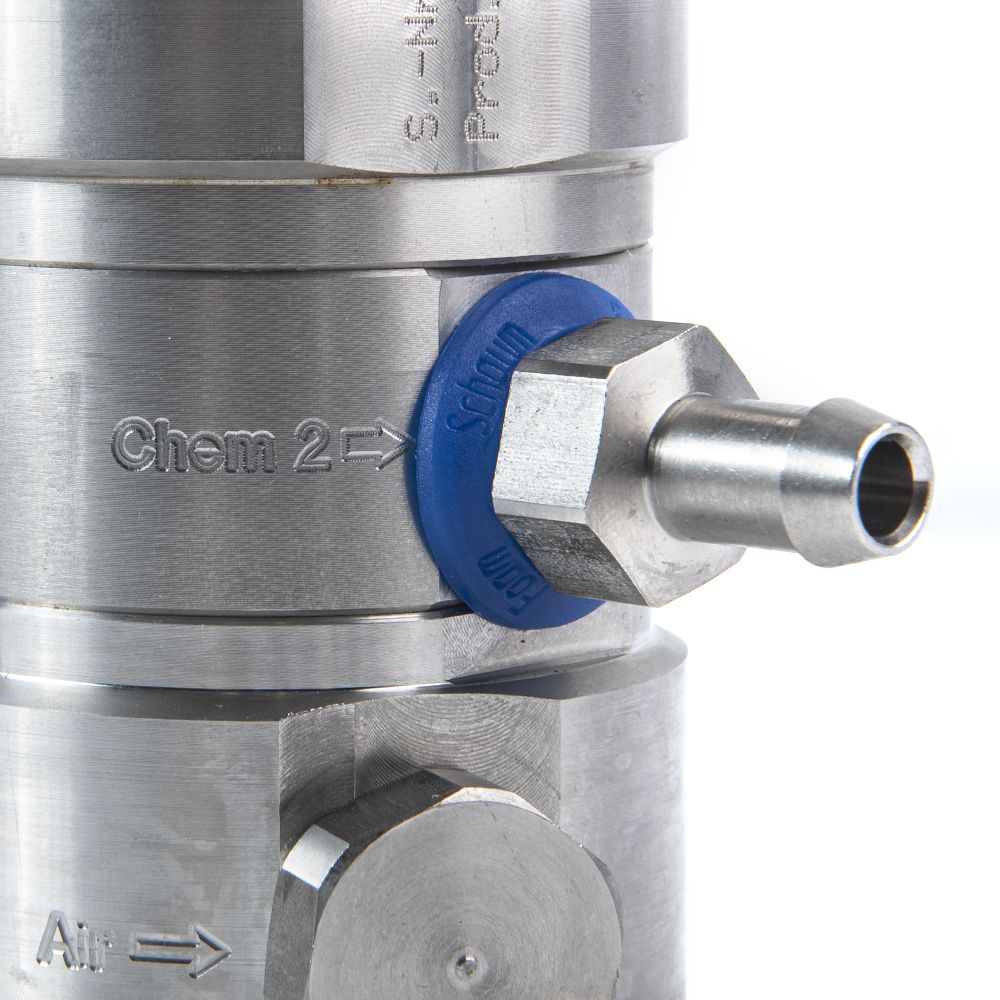

Suttner ST164 twin chemical injector in stainless steel without a compressed air module, with a 1.5mm nozzle. A lever selects which of two connected chemicals is drawn into the water stream.

It has a 3/8" BSP female inlet and a 1/2" BSP female outlet and is rated to 350 bar, 60 litres per minute and 100°C. It works with a low pressure nozzle such as the ST75 foam head, ST76 foam blaster or triple nozzle. It weighs 2.4kg.

Specification

Part number200164503
BrandR+M Suttner
MaterialStainless steel
Orifice diameter1.5mm
Maximum pressure350 bar
Maximum flow60 litres per minute
Maximum temperature100°C
Inlet3/8" BSP female
Outlet1/2" BSP female
Bore9mm
Weight2.4kg
Country of originGermany

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Brand
R&M Suttner
Max Pressure Rating
350 bar
Max Flow Rating
60 LPM
Inlet
⅜" BSP Female
Outlet
½" BSP Female
Max Temperature Rating
100°C
Foam & Chemical Method
Pressure Washer Foam Injector
Injector / Nozzle Size
ST-164 Injector (⌀1.5mm)
Material
Stainless Steel
Weight
2.4 kg

Technical information

Maximum pressure: 350 bar

Maximum flow: 60 litres per minute

Maximum temperature: 100°C

Inlet: 3/8" BSP female

Outlet: 1/2" BSP female

Bore: 9mm

Material: Stainless steel

Orifice diameter: 1.5mm

Weight: 2.4kg

Country of origin: Germany

Compare similar products

Detail
This product
R+M Suttner ST-164 Repair Kit
R+M Suttner ST-164 Injector, Body Only - Without nozzles, 350 Bar, 1/4" F x 1/2" F
R+M Suttner Double Suction ST-160/160.2/160.3/162/164/166/167/168/
Price£639.00 ex VAT
£766.80 inc VAT
£70.50 ex VAT
£84.60 inc VAT
£550.00 ex VAT
£660.00 inc VAT
£73.40 ex VAT
£88.08 inc VAT
Max pressure350 bar–350 bar–
Max flow60 LPM–––
Max temperature100°C100°C100°C–
Inlet⅜" BSP Female–¼" BSP FemaleM14 Female
Outlet½" BSP Female–½" BSP Female–
AvailabilityIn stockIn stockIn stockIn stock

Documents

200164503200164503
Data Sheet pdf_link_11

HYGIENE-compressed_1.pdf
