ST164 Twin chemical injectorST164 Twin chemical injector
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.8mm, 350 Bar
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.8mm, 350 Bar – image 1
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.8mm, 350 Bar – image 2
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.8mm, 350 Bar – image 3
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.8mm, 350 Bar – image 4
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.8mm, 350 Bar – image 5
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.8mm, 350 Bar – image 6
R&M SuttnerCompressed Air Injector

R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.8mm, 350 Bar

SKU 200164614
Max pressure
350 bar
Max flow
80 LPM
Max temperature
100°C
Inlet
⅜" BSP Female
Outlet
½" BSP Female · Thread chart
£792.00 ex VAT
£950.40 inc. VAT
Available on backorderSecure your order now for delivery in approx 2–3 weeks.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

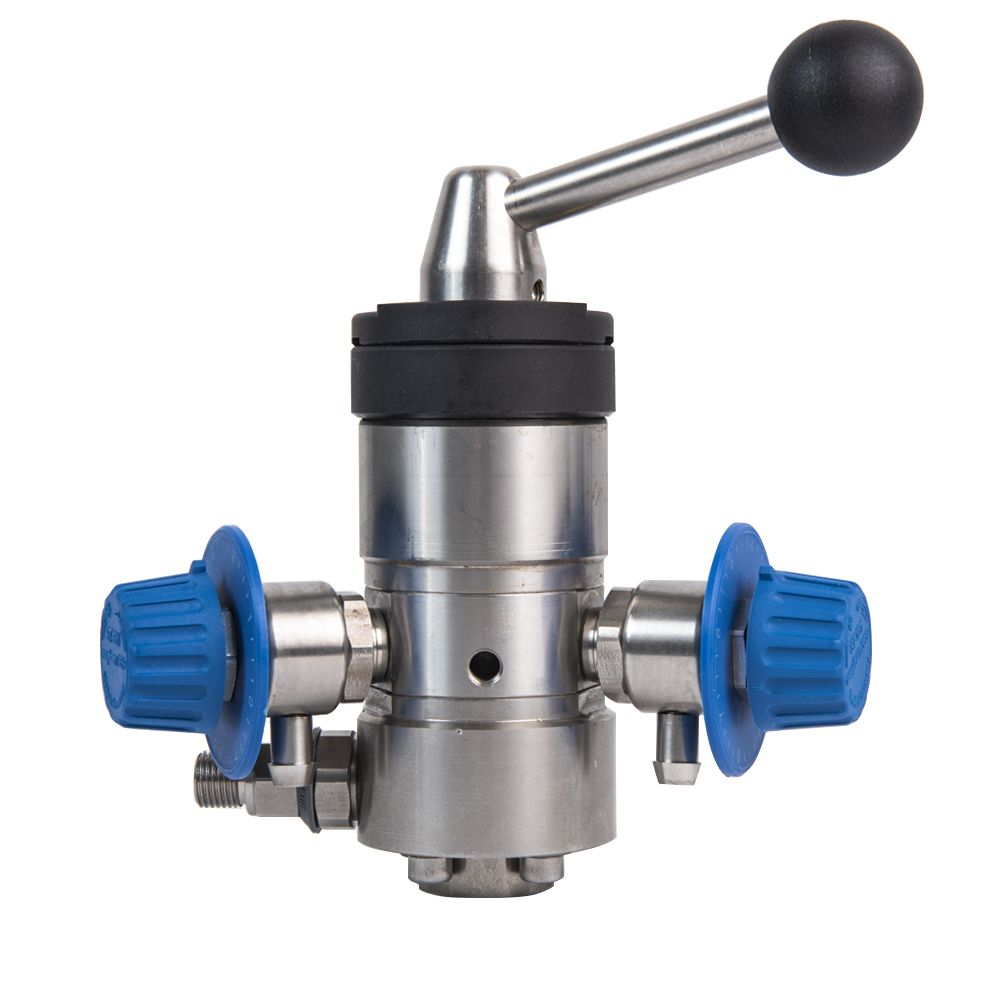

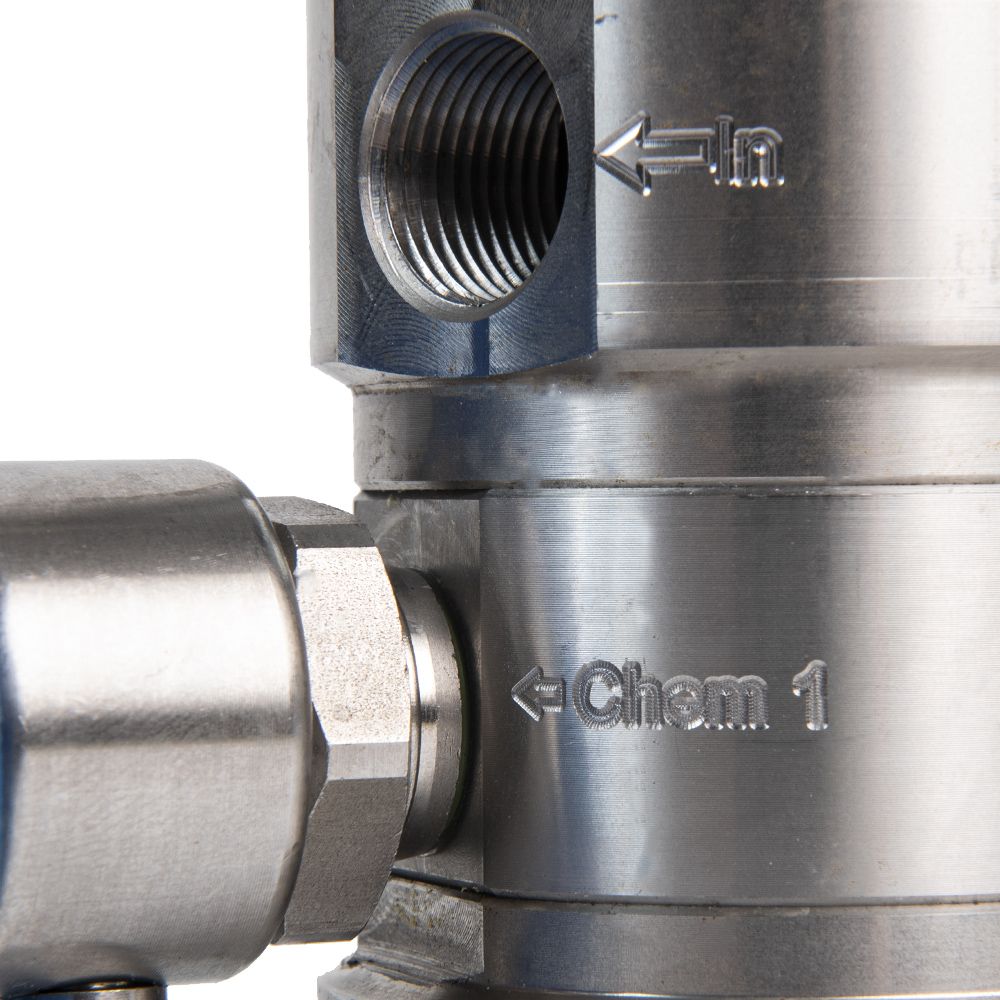

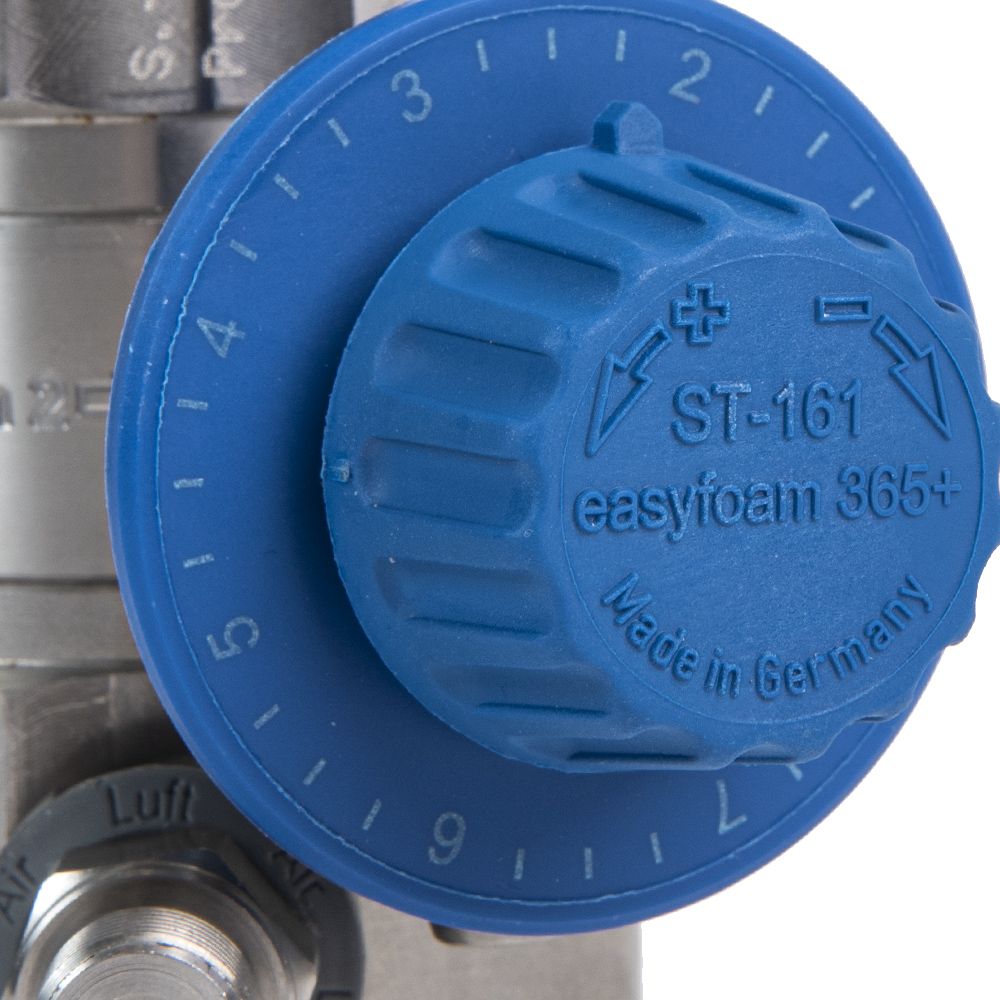

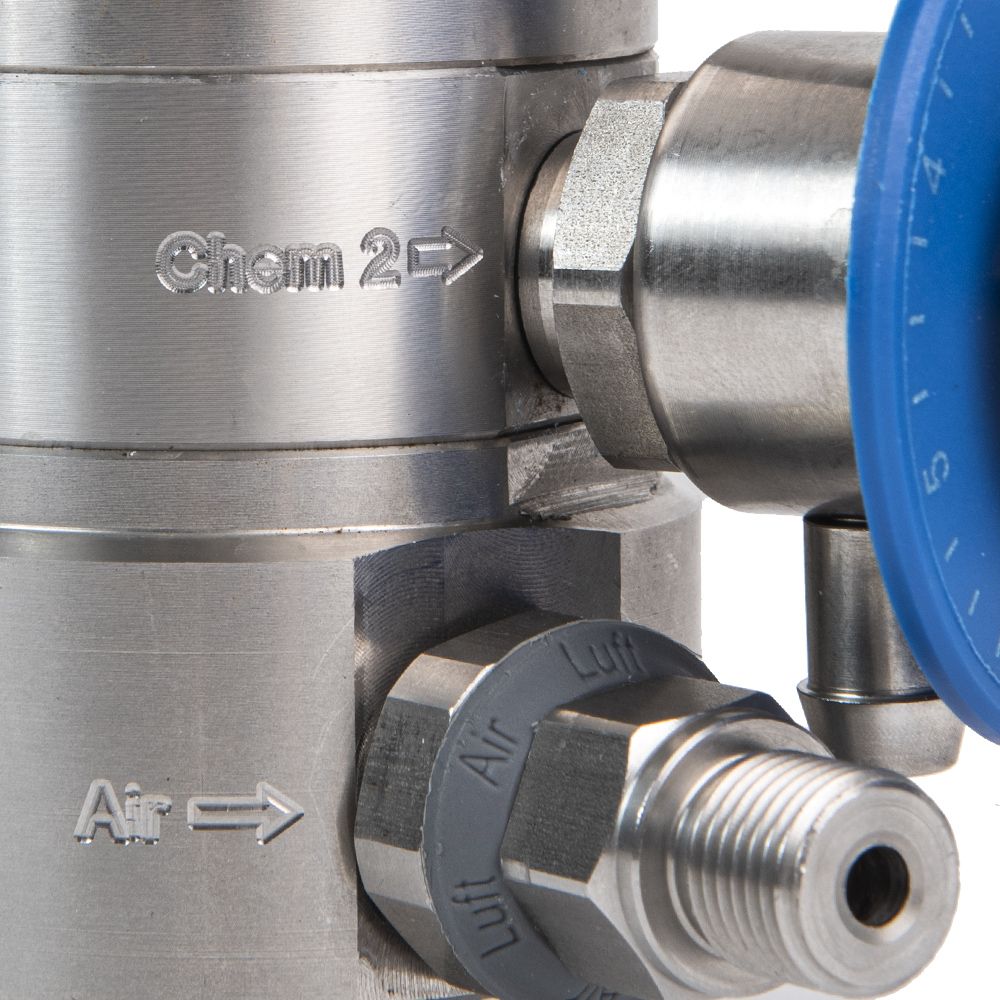

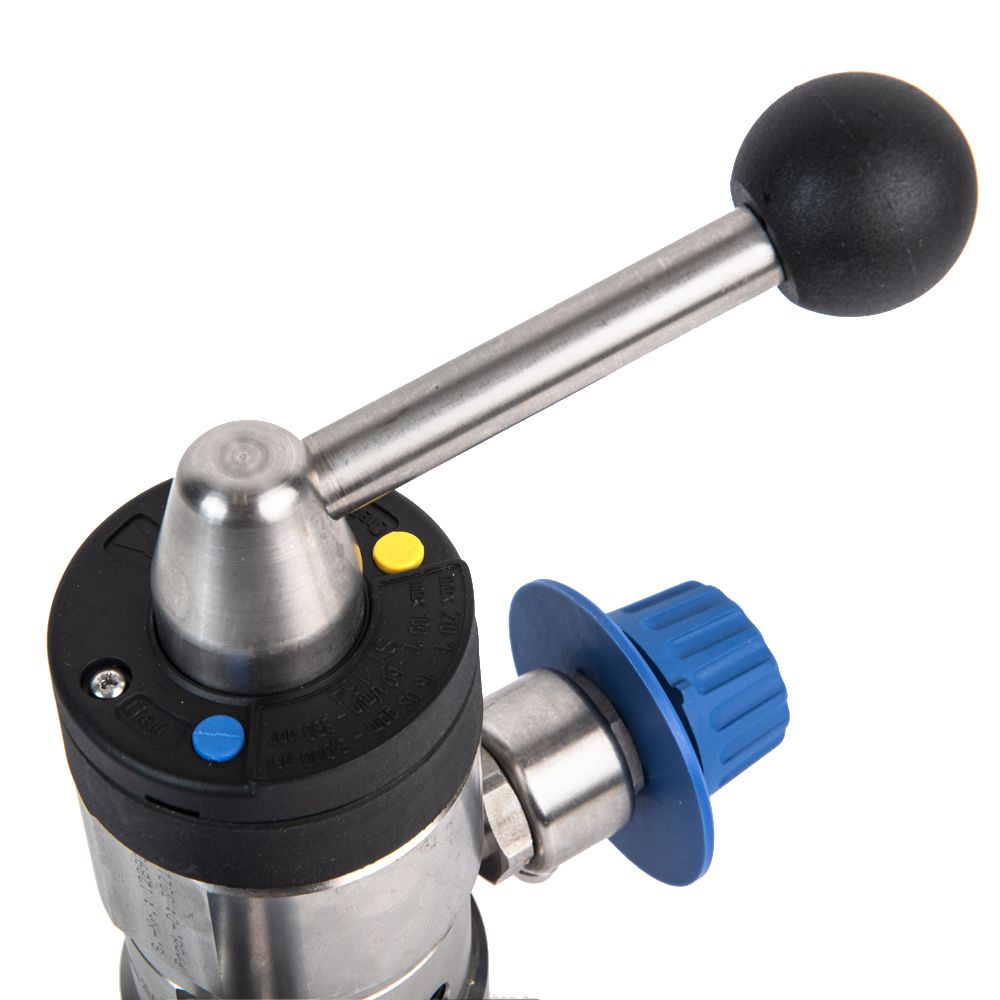

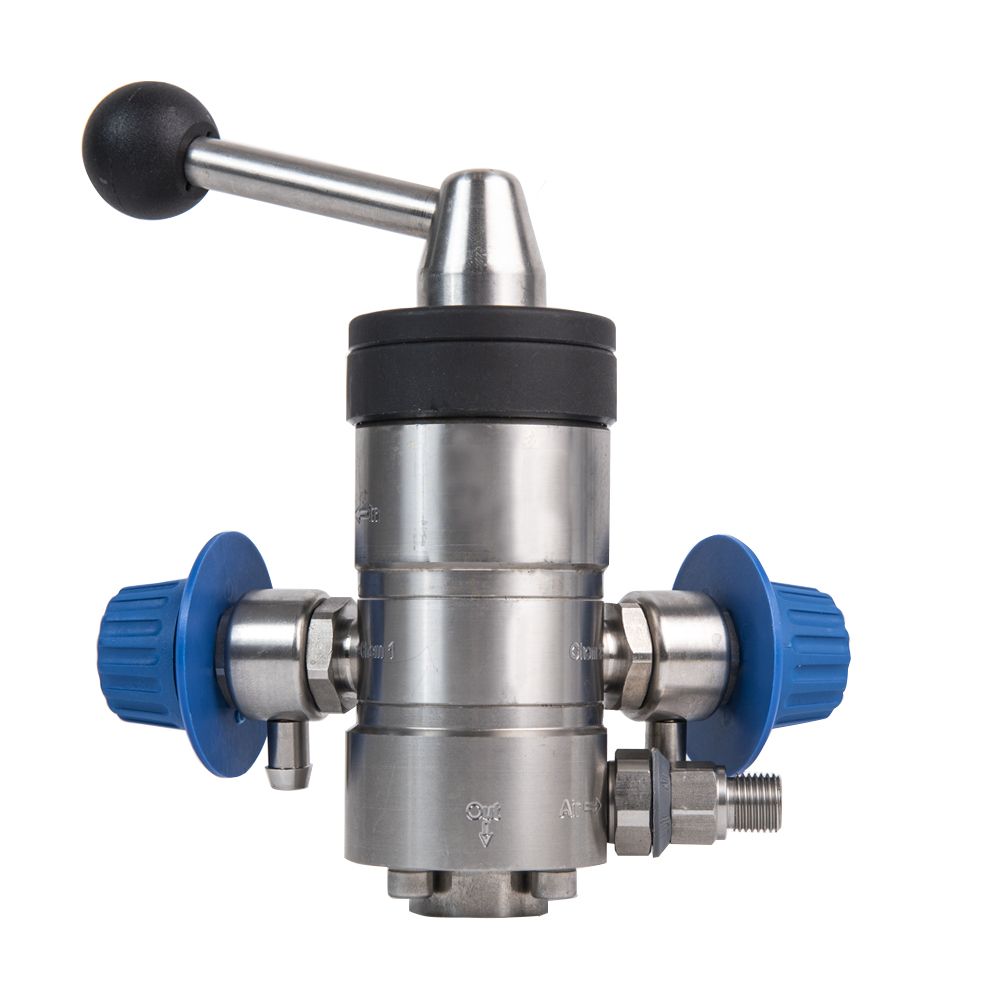

Suttner ST164 twin chemical injector in stainless steel with a compressed air module and metering valves, with a 2.8mm nozzle. A lever selects which of two connected chemicals is drawn in, and dosing is set with the metering valves.

It has a 3/8" BSP female inlet and a 1/2" BSP female outlet and is rated to 350 bar, 80 litres per minute and 100°C. The compressed air connection gives a drier, stickier foam. Use DN12 hose and a 1/2" wash gun with a large cross section, such as the ST2720, ST2725, ST3100 or ST3300; no lance with an air injector is needed. It weighs 2.75kg.

Specification

Part number200164614
BrandR+M Suttner
TypeTwin chemical injector with compressed air module and metering valves
MaterialStainless steel
ColourBlue
Orifice diameter2.8mm
Maximum pressure350 bar
Maximum flow80 litres per minute
Maximum temperature100°C
Inlet3/8" BSP female
Outlet1/2" BSP female
Bore9mm
SeriesST164
Injector size2.8mm
Dose adjustmentMetering valves
SuitsST75 foam heads, ST76 foam blasters and the triple nozzle.
Weight2.75kg
Country of originGermany

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Brand
R&M Suttner
Max Pressure Rating
350 bar
Max Flow Rating
80 LPM
Inlet
⅜" BSP Female
Outlet
½" BSP Female
Max Temperature Rating
100°C
Foam & Chemical Method
Compressed Air Foam Injector
Injector / Nozzle Size
ST-164 Air & Valve Injector (⌀2.8mm)
Material
Stainless Steel
Colour
Blue
Weight
2.75 kg

Technical information

Maximum pressure: 350 bar

Maximum flow: 80 litres per minute

Maximum temperature: 100°C

Inlet: 3/8" BSP female

Outlet: 1/2" BSP female

Bore: 9mm

Dose adjustment: Metering valves

Type: Twin chemical injector with compressed air module and metering valves

Series: ST164

Material: Stainless steel

Colour: Blue

Orifice diameter: 2.8mm

Injector size: 2.8mm

Weight: 2.75kg

Country of origin: Germany

Suits: ST75 foam heads, ST76 foam blasters and the triple nozzle.
