ST164 Twin chemical injectorST164 Twin chemical injector
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.1mm, 350 Bar
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.1mm, 350 Bar – image 1
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.1mm, 350 Bar – image 2
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.1mm, 350 Bar – image 3
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.1mm, 350 Bar – image 4
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.1mm, 350 Bar – image 5
R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.1mm, 350 Bar – image 6

R+M Suttner ST164 Injector with Compressed Air Module and Metering Valves-2.1mm, 350 Bar

SKU: 200164609
exc. VATinc. VAT
Price£792.00£950.40
Available on backorder
Secure your order now for delivery in approx 2–3 weeks. Need help? Call us on 015395 66193.
  • Get finance on orders over £1000 Learn More
  • Free UK mainland delivery on orders over £200 excluding VAT
  • Bulk discounts available
  • Stock moves quickly. For large or urgent orders, call 015395 66193 to confirm availability.
  • Need assistance? Call 015395 66193

Overview

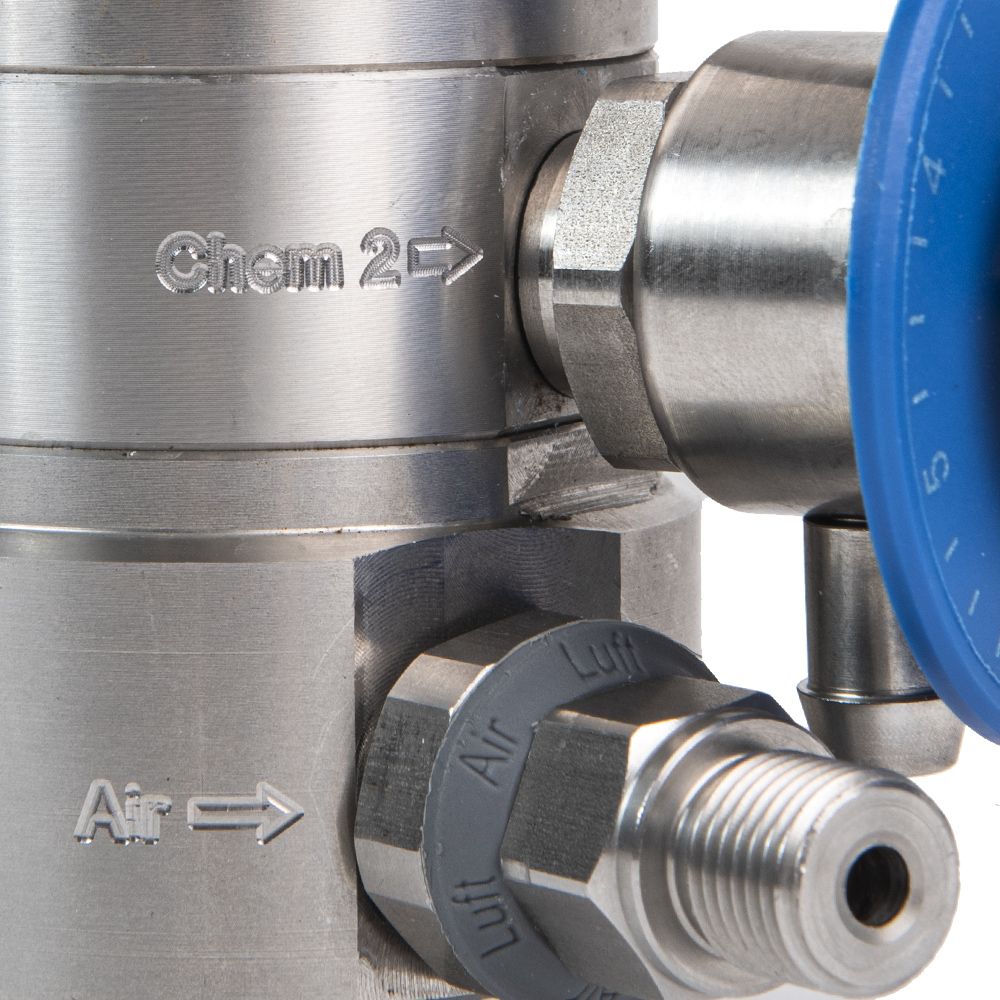

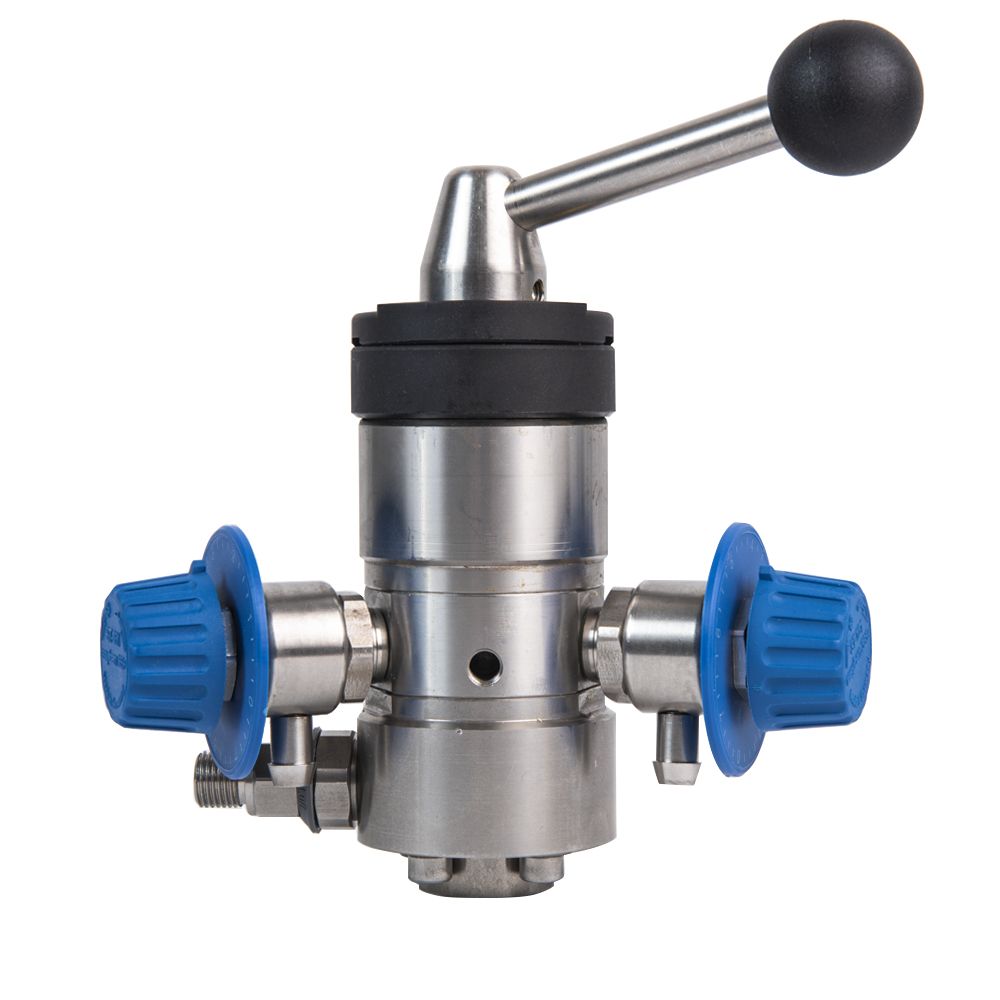

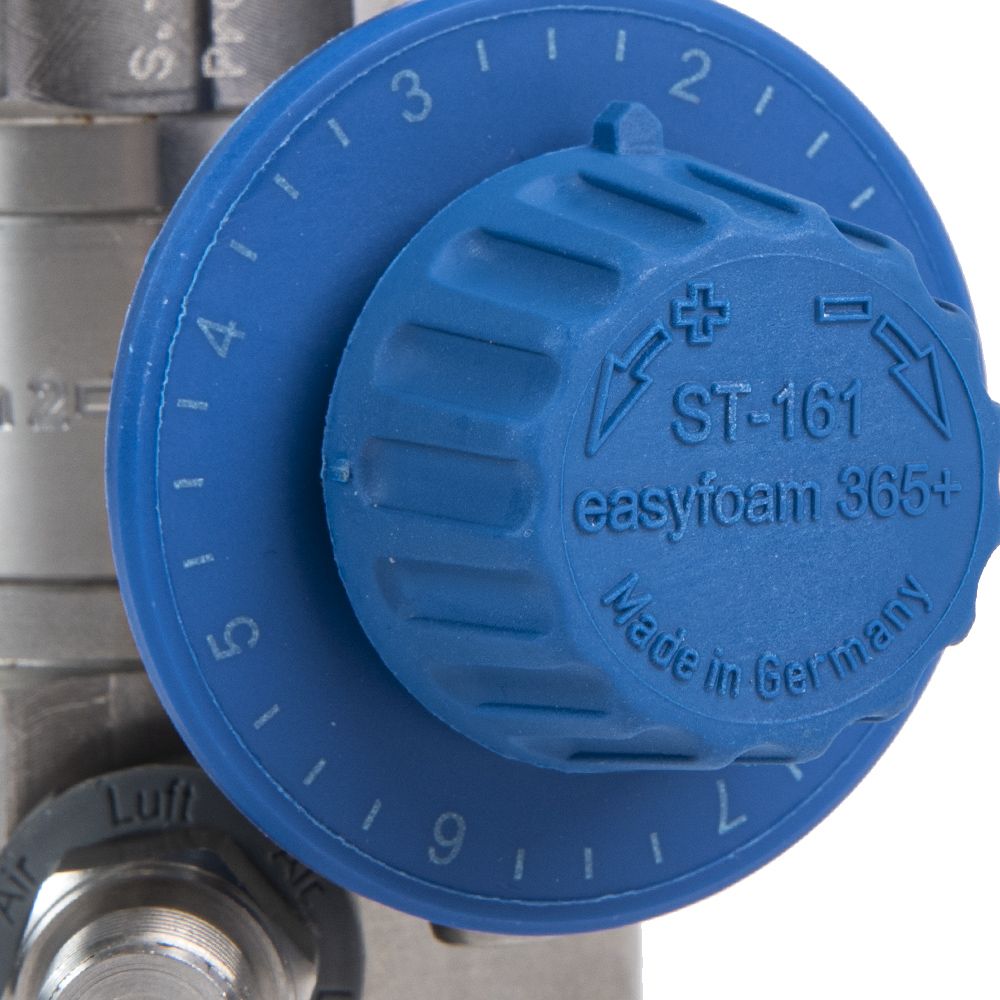

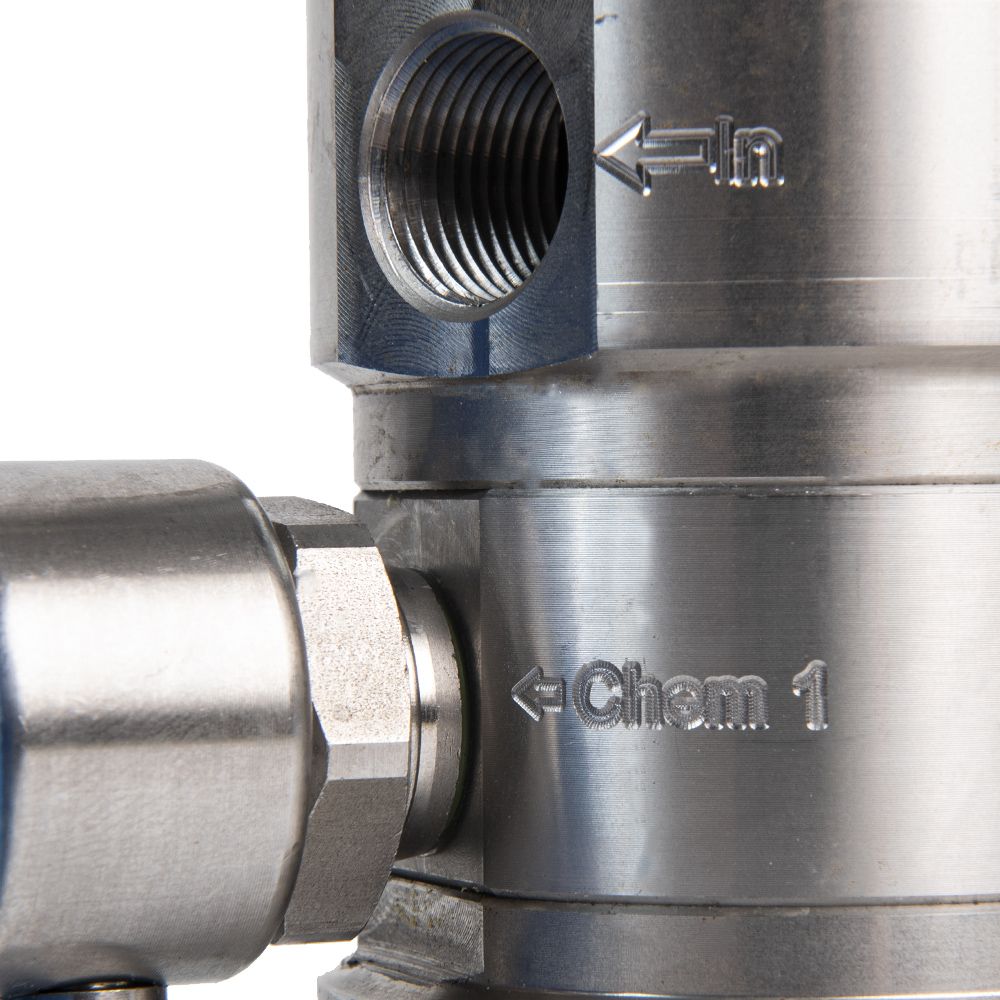

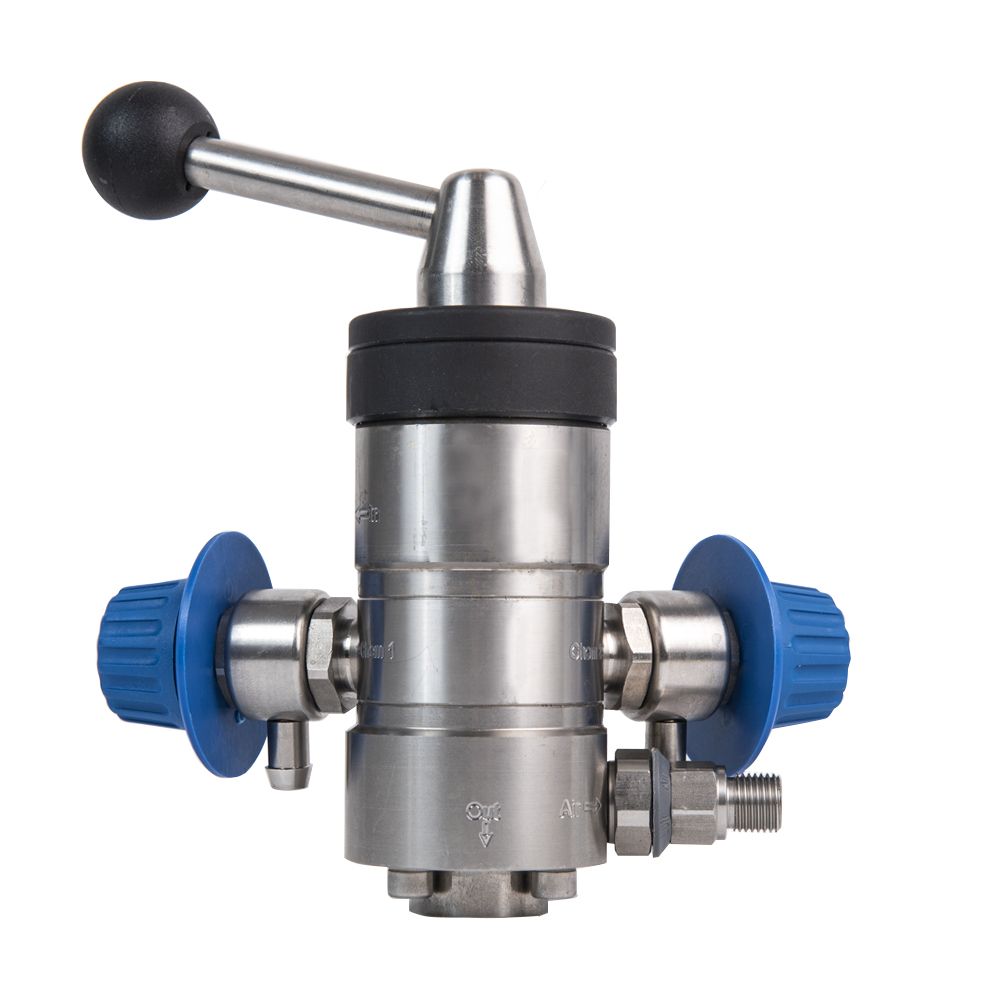

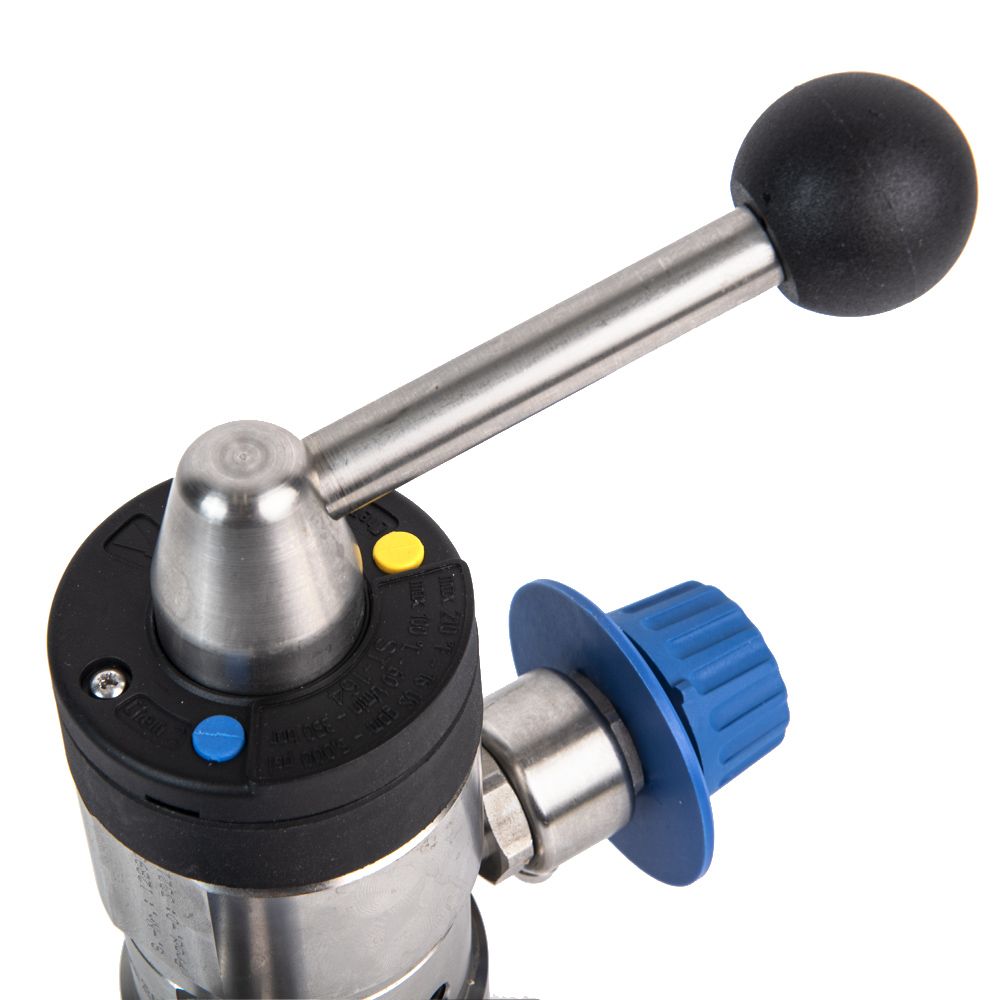

Suttner ST164 twin chemical injector in stainless steel with a compressed air module and metering valves, with a 2.1mm nozzle. A lever selects which of two connected chemicals is drawn in, and dosing is set with the metering valves.

It has a 3/8" BSP female inlet and a 1/2" BSP female outlet and is rated to 350 bar, 80 litres per minute and 100°C. The compressed air connection gives a drier, stickier foam. Use DN12 hose and a 1/2" wash gun with a large cross section, such as the ST2720, ST2725, ST3100 or ST3300; no lance with an air injector is needed. It weighs 2.75kg.

Specification

Part number200164609
BrandR+M Suttner
TypeTwin chemical injector with compressed air module and metering valves
MaterialStainless steel
ColourBlue
Orifice diameter2.1mm
Maximum pressure350 bar
Maximum flow80 litres per minute
Maximum temperature100°C
Inlet3/8" BSP female
Outlet1/2" BSP female
Bore9mm
SeriesST164
Injector size2.1mm
Dose adjustmentMetering valves
SuitsST75 foam heads, ST76 foam blasters and the triple nozzle.
Weight2.75kg
Country of originGermany

Before installation: Check the connection threads using our BSP thread size chart and the pressure and temperature ratings of your system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.
