ST164 Twin chemical injectorST164 Twin chemical injector
R+M Suttner ST164 Injector with Compressed Air Module-1.4mm, 350 Bar, 80 LPM
R+M Suttner ST164 Injector with Compressed Air Module-1.4mm, 350 Bar, 80 LPM – image 1
R+M Suttner ST164 Injector with Compressed Air Module-1.4mm, 350 Bar, 80 LPM – image 2
R+M Suttner ST164 Injector with Compressed Air Module-1.4mm, 350 Bar, 80 LPM – image 3
R+M Suttner ST164 Injector with Compressed Air Module-1.4mm, 350 Bar, 80 LPM – image 4
R+M Suttner ST164 Injector with Compressed Air Module-1.4mm, 350 Bar, 80 LPM – image 5
R&M SuttnerCompressed Air Injector

R+M Suttner ST164 Injector with Compressed Air Module-1.4mm, 350 Bar, 80 LPM

SKU 200164582
Max pressure
350 bar
Max flow
80 LPM
Max temperature
100°C
Inlet
⅜" BSP Female
Outlet
½" BSP Female · Thread chart
£738.00 ex VAT
£885.60 inc. VAT
Available on backorderSecure your order now for delivery in approx 2–3 weeks.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

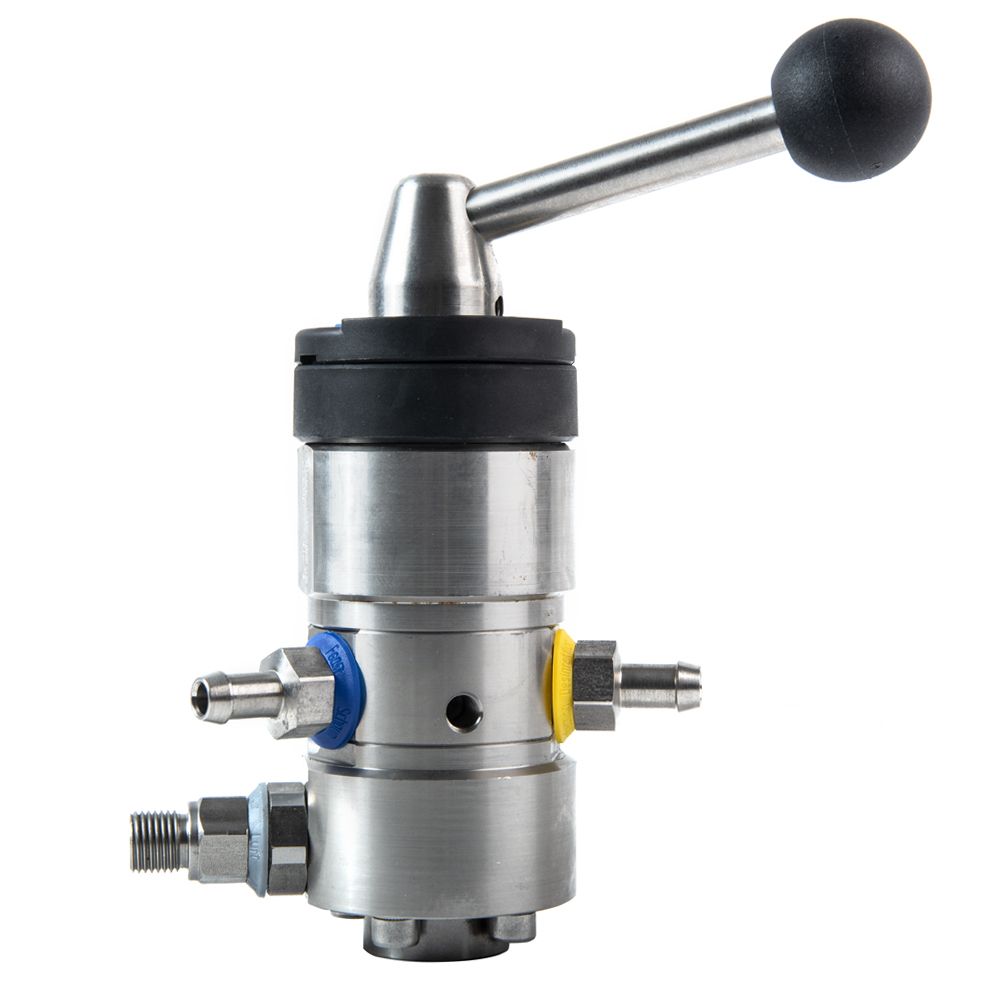

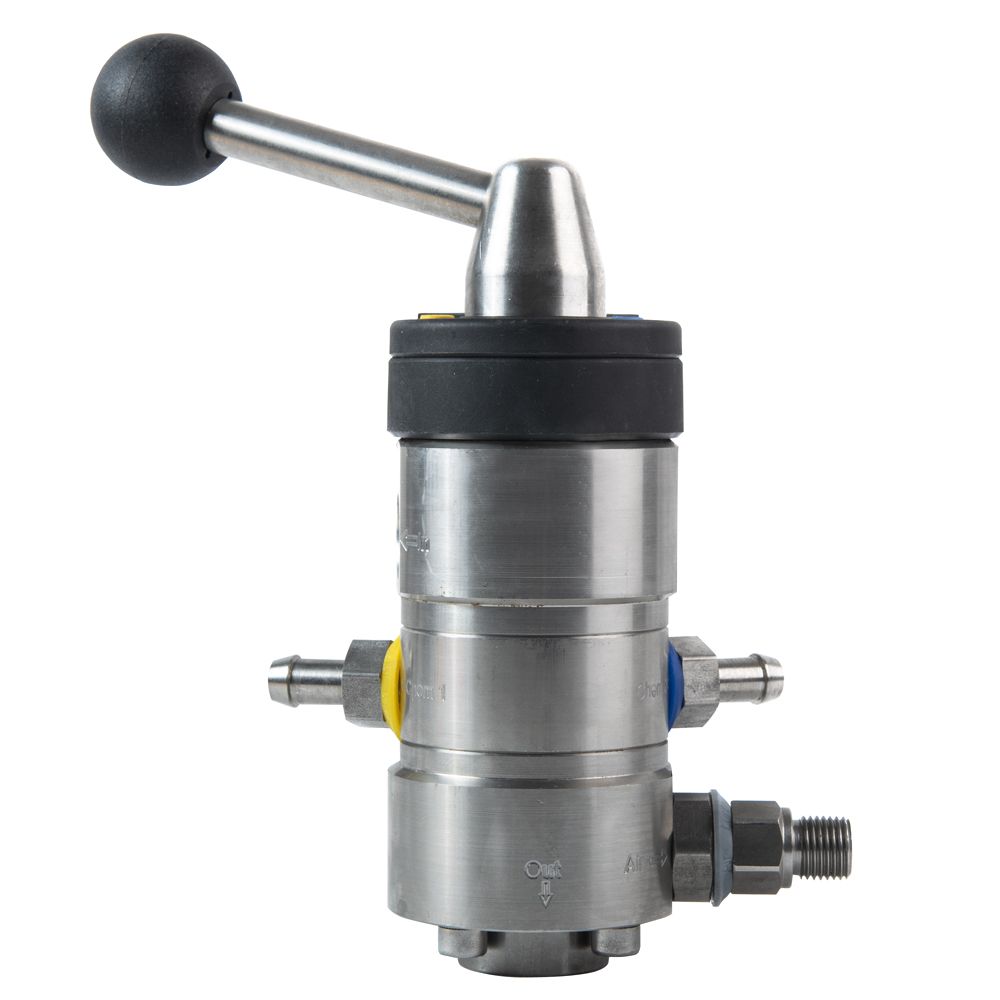

Suttner ST164 easyfoam365+ twin chemical injector in stainless steel with a compressed air module, with a 1.4mm nozzle. A lever selects which of two chemicals is drawn into the water stream.

It has a 3/8" BSP female inlet and a 1/2" BSP female outlet and is rated to 350 bar, 80 litres per minute and 100°C. The compressed air connection gives a drier, stickier foam, used with DN12 hose and a 1/2" wash gun, and no lance with an air injector is needed. It weighs 2.37kg.

Specification

Part number200164582
BrandR+M Suttner
MaterialStainless steel
Orifice diameter1.4mm
Maximum pressure350 bar
Maximum flow80 litres per minute
Maximum temperature100°C
Inlet3/8" BSP female
Outlet1/2" BSP female
Bore9mm
Weight2.37kg
Country of originGermany

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Brand
R&M Suttner
Max Pressure Rating
350 bar
Max Flow Rating
80 LPM
Inlet
⅜" BSP Female
Outlet
½" BSP Female
Max Temperature Rating
100°C
Foam & Chemical Method
Compressed Air Foam Injector
Injector / Nozzle Size
ST-164 Air Injector (⌀1.4mm)
Material
Stainless Steel
Weight
2.37 kg

Technical information

Maximum pressure: 350 bar

Maximum flow: 80 litres per minute

Maximum temperature: 100°C

Inlet: 3/8" BSP female

Outlet: 1/2" BSP female

Bore: 9mm

Material: Stainless steel

Orifice diameter: 1.4mm

Weight: 2.37kg

Country of origin: Germany

Compare similar products

Detail
This product
R+M Suttner ST-164 Compressed Air Check Valve with Pressure Monitoring
R+M Suttner ST-164 Repair Kit
R+M Suttner ST-164 Compressed Air Check Valve
Price£738.00 ex VAT
£885.60 inc VAT
£111.00 ex VAT
£133.20 inc VAT
£70.50 ex VAT
£84.60 inc VAT
£57.90 ex VAT
£69.48 inc VAT
Max pressure350 bar–––
Max flow80 LPM–––
Max temperature100°C–100°C–
Inlet⅜" BSP Female¼" BSP Male–¼" BSP Male
Outlet½" BSP FemaleM18 Male–M18 Male
AvailabilityIn stockIn stockIn stockIn stock

Documents

Data Sheet pdf_link_11

HYGIENE-compressed_1.pdf
