ST160 Standard Foam Injector ST160 Standard Foam Injector

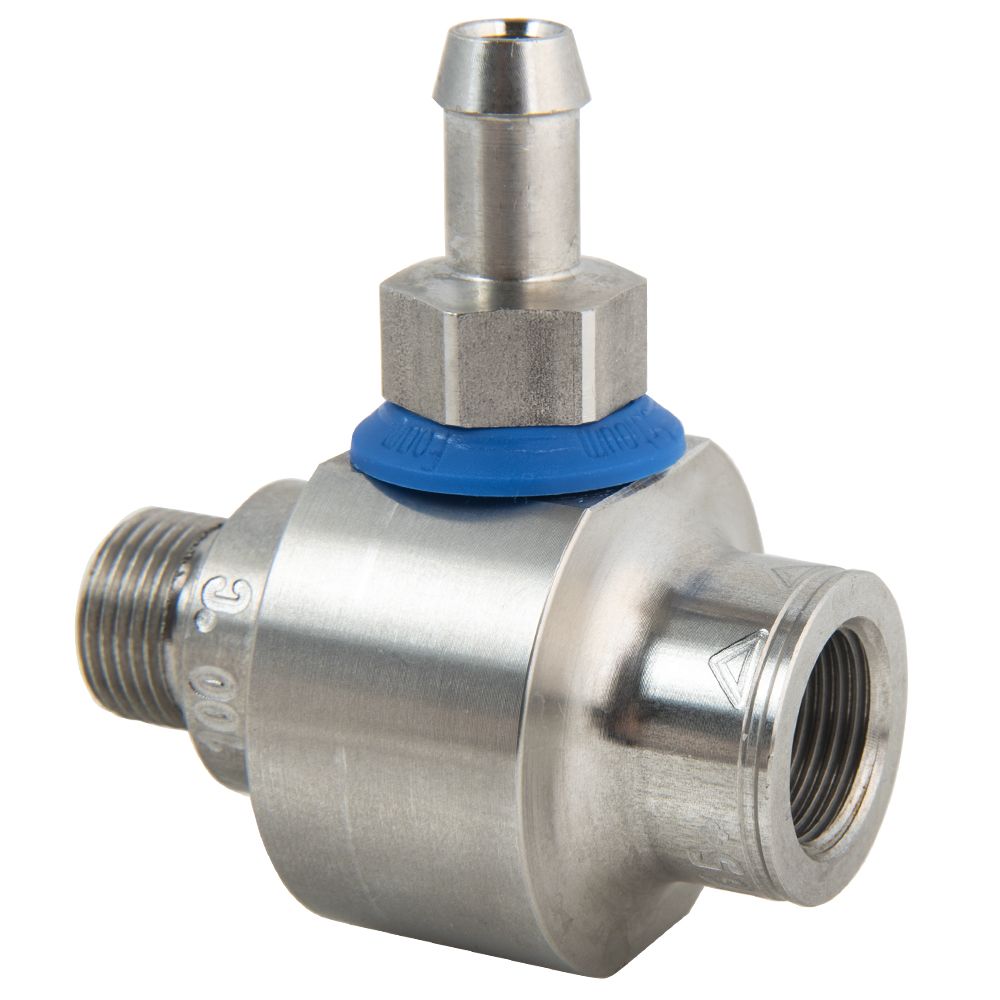

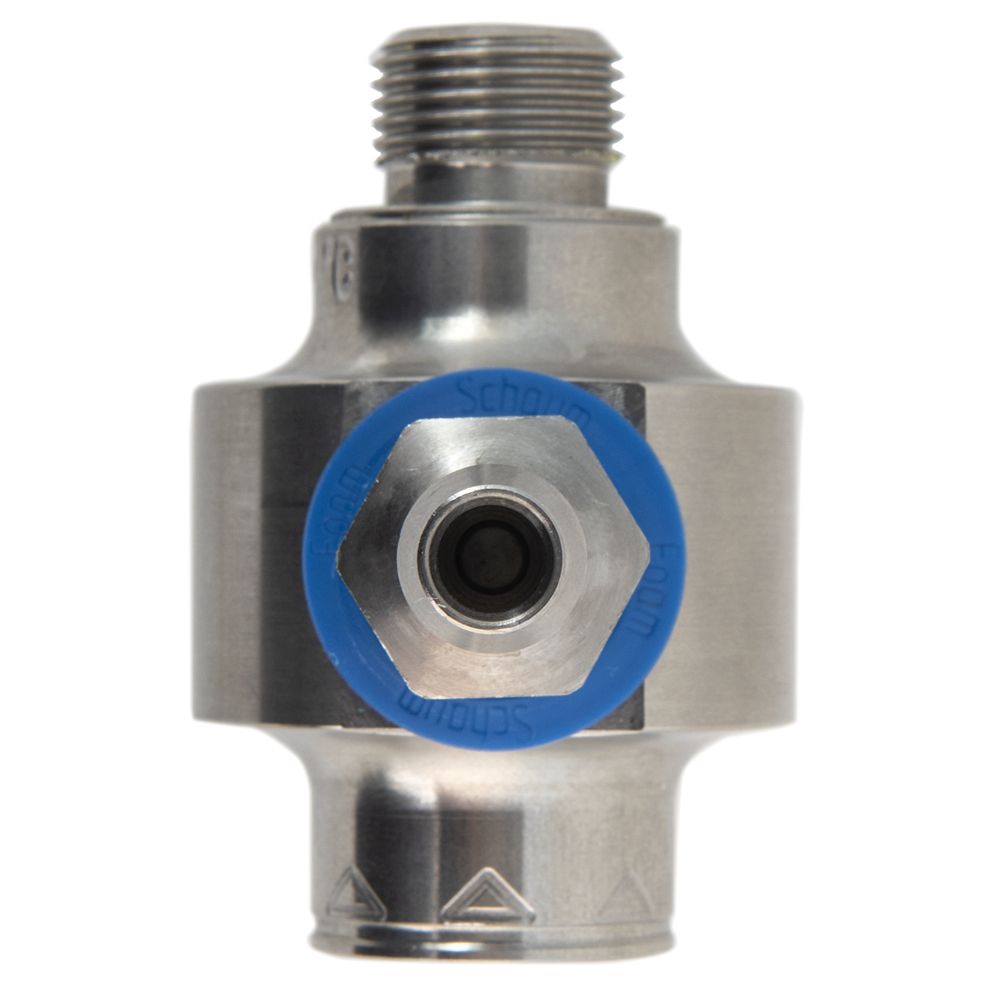

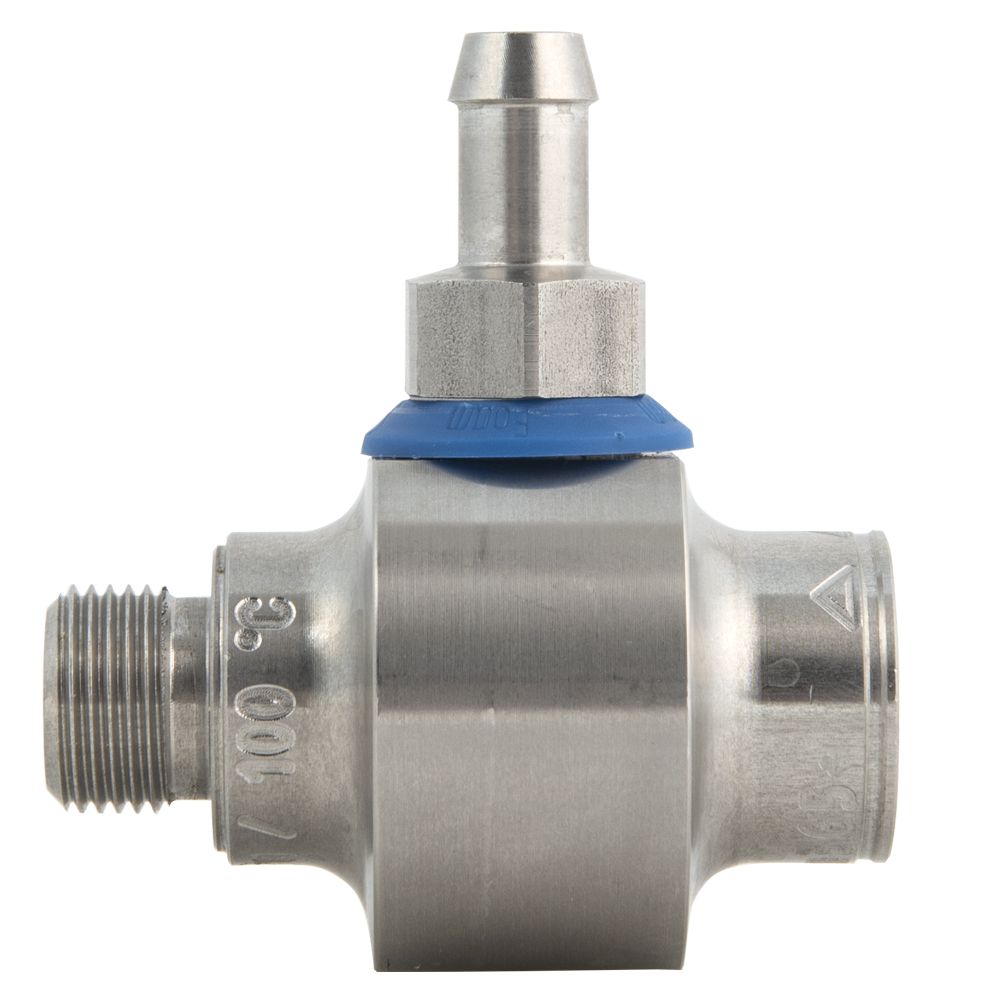

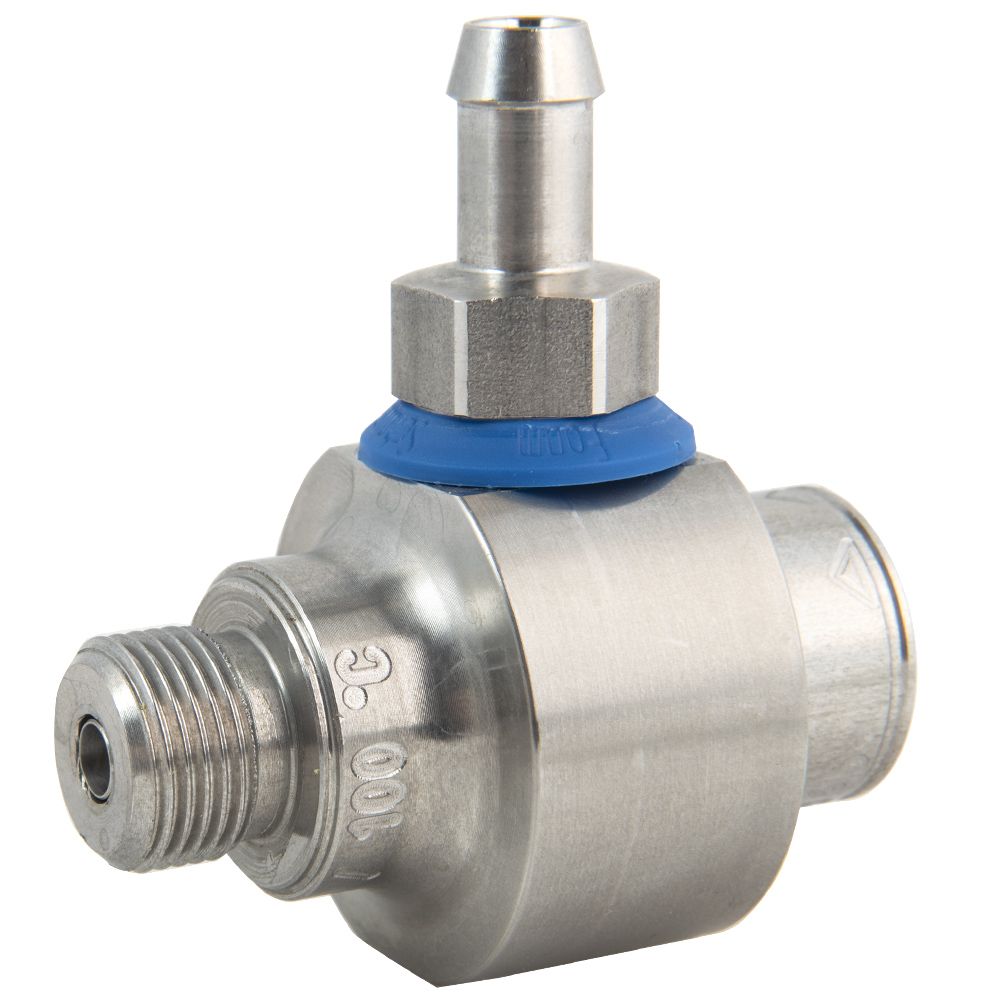

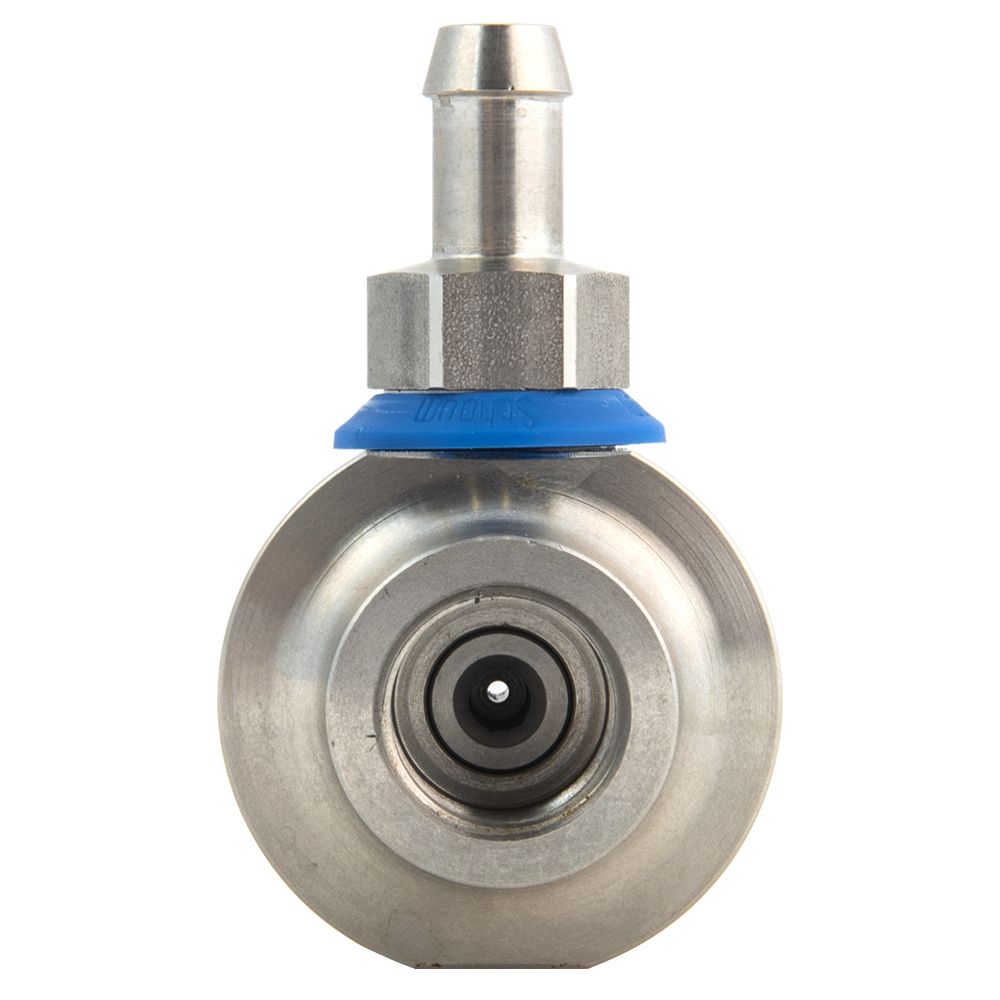

R+M Suttner ST160 Foam Injector -2.2mm, 350 Bar, 3/8" F x 3/8" M
R+M Suttner ST160 Foam Injector -2.2mm, 350 Bar, 3/8" F x 3/8" M – image 1
R+M Suttner ST160 Foam Injector -2.2mm, 350 Bar, 3/8" F x 3/8" M – image 2
R+M Suttner ST160 Foam Injector -2.2mm, 350 Bar, 3/8" F x 3/8" M – image 3
R+M Suttner ST160 Foam Injector -2.2mm, 350 Bar, 3/8" F x 3/8" M – image 4
R+M Suttner ST160 Foam Injector -2.2mm, 350 Bar, 3/8" F x 3/8" M – image 5
R+M Suttner ST160 Foam Injector -2.2mm, 350 Bar, 3/8" F x 3/8" M – image 6
R+M Suttner ST160 Foam Injector -2.2mm, 350 Bar, 3/8" F x 3/8" M – image 7
R&M Suttner

R+M Suttner ST160 Foam Injector -2.2mm, 350 Bar, 3/8" F x 3/8" M

SKU 200160545
Max pressure
350 bar
Max temperature
90°C
Inlet
⅜" BSP Female
Outlet
⅜" BSP Male · Thread chart
£144.00 ex VAT
£172.80 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

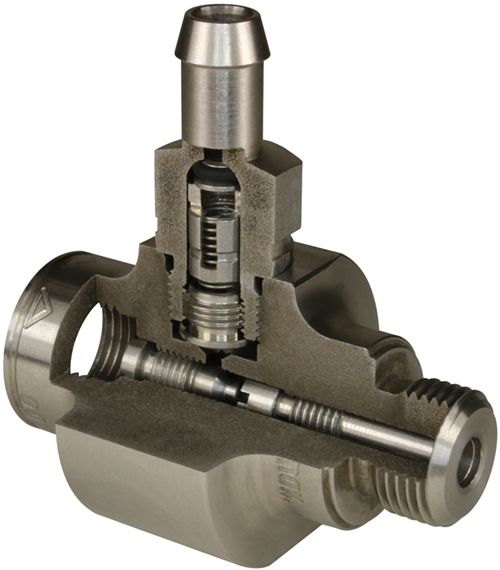

ST160 venturi foam injector from R+M Suttner in stainless steel, 2.2mm injector size. Water is forced through a restrictive orifice, and when the injector is used with a low pressure nozzle such as an ST75 foam head this creates a vacuum that draws chemical into the water stream. It is used for cleaning in agriculture, automotive and food processing, including vehicles that carry livestock.

Ten dosing nozzle inserts are supplied to adjust the chemical dose. Match the injector size and the foam nozzle size to the flow and pressure of the system. Fit a chemical filter on the end of the chemical tube to keep debris out, and check the viscosity of the chemical, as it affects the draw rate. The injector has a 3/8" BSP female inlet and a 3/8" BSP male outlet and is rated to 350 bar and 90°C. It weighs 0.34kg.

Specification

Part number200160545
BrandR+M Suttner
TypeVenturi foam injector
MaterialStainless steel
Orifice diameter2.2mm
Maximum pressure350 bar
Maximum temperature90°C
Inlet3/8" BSP female
Outlet3/8" BSP male
SeriesST160
Injector size2.2mm
Dose adjustment10 dosing inserts
SuitsST75 foam heads, ST76 foam blasters and the triple nozzle.
Weight0.34kg
Country of originGermany

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

Specifications

Brand
R&M Suttner
Max Pressure Rating
350 bar
Inlet
⅜" BSP Female
Outlet
⅜" BSP Male
Max Temperature Rating
90°C
Foam & Chemical Method
Pressure Washer Foam Injector
Injector / Nozzle Size
ST-160 Injector (⌀2.2mm)
Material
Stainless Steel
Weight
0.34 kg

Technical information

Maximum pressure: 350 bar

Maximum temperature: 90°C

Inlet: 3/8" BSP female

Outlet: 3/8" BSP male

Dose adjustment: 10 dosing inserts

Type: Venturi foam injector

Series: ST160

Material: Stainless steel

Orifice diameter: 2.2mm

Injector size: 2.2mm

Weight: 0.34kg

Country of origin: Germany

Suits: ST75 foam heads, ST76 foam blasters and the triple nozzle.

Compare similar products

Detail
This product
R+M Suttner ST160 Foam Injector -2.5mm, 350 Bar, 3/8" F x 3/8" M
Price£144.00 ex VAT
£172.80 inc VAT
£133.00 ex VAT
£159.60 inc VAT
Max pressure350 bar350 bar
Max temperature90°C90°C
Inlet⅜" BSP Female⅜" BSP Female
Outlet⅜" BSP Male⅜" BSP Male
AvailabilityIn stockIn stock

Documents

ST160-Foam-Injector-SparesST160-Foam-Injector-Spares
ST160 Spare Parts ST160 Spare Parts
Flowjet-ST160-TroubleshootingFlowjet-ST160-Troubleshooting
ST160 InstructionsST160 Instructions
Data Sheet pdf_link_11

HYGIENE-compressed_1.pdf
