Name: R+M Suttner ST1500 with Freeze Stop Valve, 275 Bar, 45 LPM, 3/8" F x 1/4" F
Brand: R&M Suttner
SKU: 201500580

Overview

Suttner ST1500 freeze stop wash gun with an impact-resistant plastic case, a safety-locked trigger and corrosion-resistant materials.

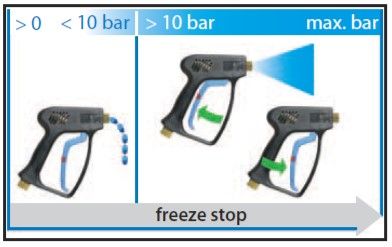

The inlet is 3/8" BSP female and the outlet is 1/4" BSP female. It is rated to 275 bar, 45 litres per minute and 150°C. The freeze stop valve opens when pressure drops to around 5 bar. It works with ST261 and ST280 unloader valves but not with trapped pressure unloaders such as the Interpump K series. It weighs 0.26kg.

Specification

Part number	201500580
Brand	R+M Suttner
Model	ST1500 freeze stop
Colour	Black
Maximum pressure	275 bar
Maximum flow	45 litres per minute
Maximum temperature	150°C
Inlet	3/8" BSP female
Outlet	1/4" BSP female
Opening force	62N at 100 bar
Holding force	39N at 100 bar
Valve	Freeze stop, opens at around 5 bar
Weight	0.26kg

Before installation: Check the connection threads using our BSP thread size chart and the pressure and temperature ratings of your system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Valve Housing Material: Brass
Inlet: ⅜" BSP Female
Valve Material: Brass / Stainless Steel
Outlet: ¼" BSP Female
Brand: R&M Suttner
Max Pressure Rating: 275 bar

Max Flow Rating: 45 LPM
Max Temperature Rating: 150°C
Wash Gun Series: ST-1500 - 275 Bar 45 LPM 150°C Classic High Pressure Gun
Colour: Black
Weight: 0.26 kg

Technical information

Maximum pressure: 275 bar

Maximum flow: 45 litres per minute

Maximum temperature: 150°C

Inlet: 3/8" BSP female

Outlet: 1/4" BSP female

Model: ST1500 freeze stop

Colour: Black

Opening force: 62N at 100 bar

Holding force: 39N at 100 bar

Valve: Freeze stop, opens at around 5 bar

Weight: 0.26kg

Compare similar products

Detail	This product	R+M Suttner ST1500 Wash Gun STD 3/8" F x 1/4", 275 Bar, 45 LPM	R+M Suttner ST1500 Wash Gun M22 M x M22 M, 275 Bar, 45 LPM	R+M Suttner ST1500 Wash Gun M22 M x 1/4" F, 275 Bar, 45 LPM
Price	Call for price	£24.40 ex VAT £29.28 inc VAT	£39.20 ex VAT £47.04 inc VAT	£30.00 ex VAT £36.00 inc VAT
Max pressure	275 bar	275 bar	275 bar	275 bar
Max flow	45 LPM	45 LPM	45 LPM	45 LPM
Max temperature	150°C	150°C	150°C	150°C
Inlet	⅜" BSP Female	⅜" BSP Female	M22 Male	M22 Male
Outlet	¼" BSP Female	¼" BSP Female	M22 Male	¼" BSP Female
Availability	In stock	In stock	In stock	In stock
