Name: R+M Suttner ST1100S Wash Gun Weep 3/8" F Swivel x 1/4" F, 210 Bar, 25 LPM
Brand: R&M Suttner
SKU: 201100530

Overview

Suttner ST1100S weep wash gun, the entry level gun in the Suttner professional range, with an impact-resistant case, a trigger safety lock and corrosion-resistant materials.

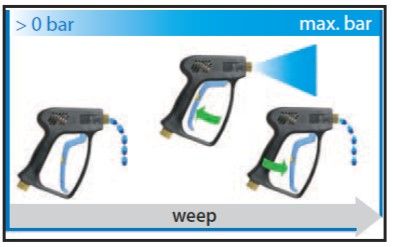

The inlet is a 3/8" BSP female swivel and the outlet is 1/4" BSP female. It is rated to 210 bar, 25 litres per minute and 150°C. The weep valve lets a little water pass when the trigger is released, to stop the gun freezing. It does not work with trapped pressure unloaders such as the Interpump K series. It weighs 0.2kg.

Specification

Part number	201100530
Brand	R+M Suttner
Model	ST1100S weep
Colour	Black
Maximum pressure	210 bar
Maximum flow	25 litres per minute
Maximum temperature	150°C
Inlet	3/8" BSP female swivel
Outlet	1/4" BSP female
Opening force	35N at 100 bar
Holding force	20N at 100 bar
Valve	Weep, anti-freeze
Weight	0.2kg

Before installation: Check the connection threads using our BSP thread size chart and the pressure and temperature ratings of your system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Valve Housing Material: Brass
Inlet: ⅜" BSP Female Swivel
Valve Material: Brass / Stainless Steel
Outlet: ¼" BSP Female
Brand: R&M Suttner
Max Pressure Rating: 210 bar

Max Flow Rating: 25 LPM
Max Temperature Rating: 150°C
Wash Gun Series: ST-1100 - 210 Bar 25 LPM 150°C Standard Economy Gun
Colour: Black
Weight: 0.43 kg

Technical information

Maximum pressure: 210 bar

Maximum flow: 25 litres per minute

Maximum temperature: 150°C

Inlet: 3/8" BSP female swivel

Outlet: 1/4" BSP female

Model: ST1100S weep

Colour: Black

Opening force: 35N at 100 bar

Holding force: 20N at 100 bar

Valve: Weep, anti-freeze

Weight: 0.2kg

Compare similar products

Detail	This product	R+M Suttner ST1100S Wash Gun with Swivel (Popular), 210 Bar, 25 LPM	R+M Suttner ST1100S Wash Gun M22 M x M22 M, 210 Bar, 25 LPM	R+M Suttner ST1100 Wash Gun + QR Coupling x 3/8" F, 210 Bar, 25 LPM
Price	Call for price	£33.40 ex VAT £40.08 inc VAT	£43.10 ex VAT £51.72 inc VAT	£51.60 ex VAT £61.92 inc VAT
Max pressure	210 bar	210 bar	210 bar	210 bar
Max flow	25 LPM	25 LPM	25 LPM	25 LPM
Max temperature	150°C	150°C	150°C	150°C
Inlet	⅜" BSP Female Swivel	⅜" BSP Female Swivel	M22 Male	⅜" BSP Female
Outlet	¼" BSP Female	¼" BSP Female	M22 Male	KEW Quick Release Female / AR4
Availability	In stock	In stock	In stock	In stock

Delivery & returns

Free delivery on online orders over £200 + VAT to a UK mainland address.

Orders processed by 2pm go out on tracked, insured next-working-day delivery.

Orders under £200 + VAT: delivery £11.99 + VAT.

Returns: ask us for a returns number first. Unused goods in their original packaging can come back at our discretion, less a restocking fee; faulty or wrong items have no fee.
