Spray Washer 4020 Honda GX160 Petrol Soft Wash Engine Pump Unit, 20 Bar, 40 LPM, Trolley Frame
Spray Washer 4020 engine pump unit SW4020PHR with Honda GX160 and Comet P40/20 pump
Spray Washer 4020 Honda GX160 Petrol Soft Wash Engine Pump Unit, 20 Bar, 40 LPM, Trolley Frame – image 2
Softwash House Comparison
Spray Washer SeriesSoft Wash

Spray Washer 4020 Honda GX160 Petrol Soft Wash Engine Pump Unit, 20 Bar, 40 LPM, Trolley Frame

SKU SW4020PHR
£2,769.43 ex VAT
£3,323.32 inc. VAT
Out of stockWe are sorry, this product is currently out of stock. Call 015395 66193 for availability.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

A Spray Washer 4020 soft wash engine pump unit, delivering 40 LPM at 20 bar (290 psi) for chemical application and wash down. It suits soft washing, disinfecting, agricultural and commercial cleaning where a steady high flow matters.

A Honda GX160 petrol engine with oil alert drives a Comet P40/20 pump through a 650 rpm gearbox, and an adjustable pressure regulator gives control over output pressure. The unit sits on a powder coated trolley with 13 inch wheels and comes with a soft wash lance, four QR nozzles, a 25m delivery hose and a 3m suction hose with filter.

Key features

  • Comet P40/20 pump designed for soft wash work
  • 40 LPM at 20 bar (290 psi)
  • Honda GX160 petrol engine with oil alert
  • 650 rpm gearbox drive for smooth running and longer pump life
  • Adjustable pressure regulator
  • Powder coated trolley with 13 inch wheels
  • Soft wash lance with QR nozzle holder and 0°, 15°, 25° and 40° QR nozzles

Specification

Part numberSW4020PHR
EngineHonda GX160 petrol, with oil alert
PumpComet P40/20 diaphragm pump, Viton seals
Drive650 rpm gearbox
Maximum pressure20 bar (290 psi)
Maximum flow40 LPM
Pressure controlAdjustable regulator
FramePowder coated trolley, 13 inch wheels
StartingManual recoil
Fuel tank3.1 litres
Dimensions1100mm long x 620mm wide x 700mm high
Weight75kg

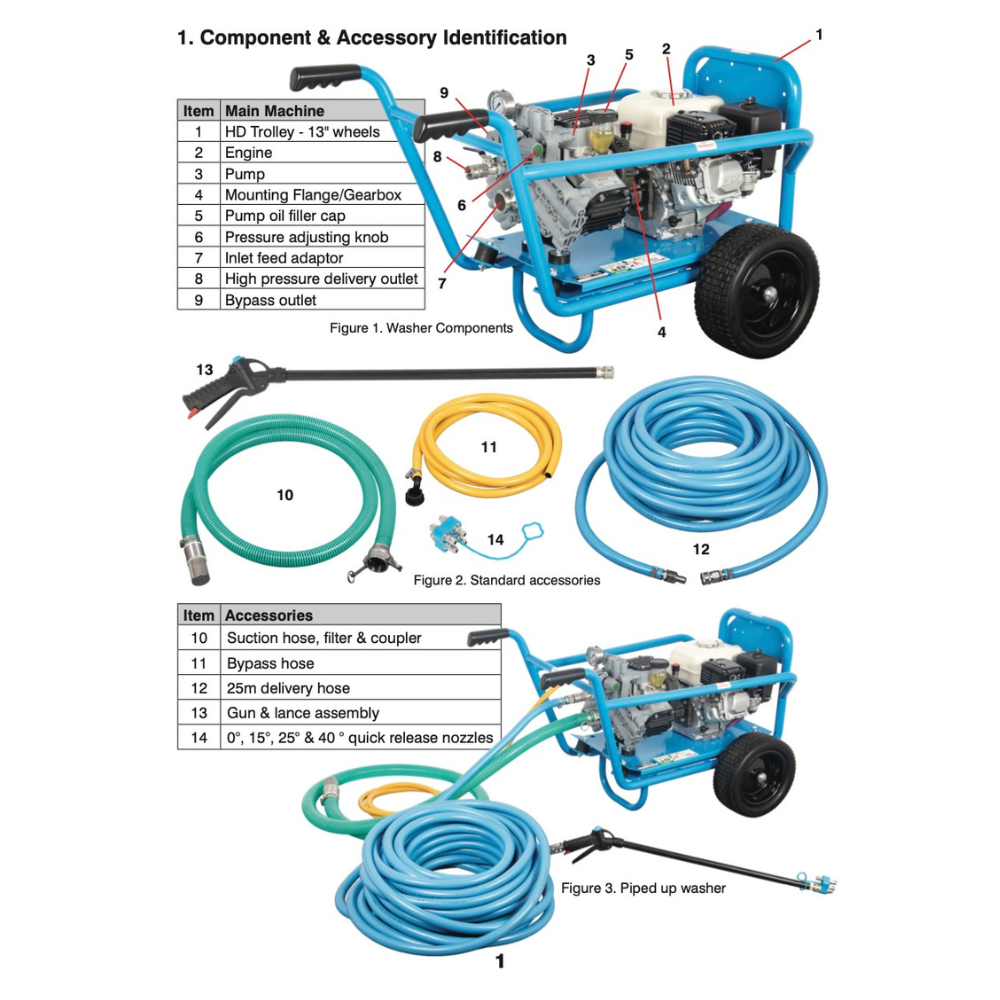

What's included

  • Soft wash lance with QR nozzle holder
  • 0°, 15°, 25° and 40° QR nozzles
  • 25m PVC delivery hose
  • 3m heavy duty suction hose with filter

Finance is available on orders over £1,000. Not sure this is the right machine? Call 015395 66193 or email sales@flowjet.co.uk and we will help you choose.

Spray Washer 4020 Honda GX160 petrol soft wash unit, 20 bar and 40 LPM from a Comet P40/20 pump with 650 rpm gearbox drive, on a trolley.

Specifications

Brand
Spray Washer Series
Working Pressure
20
Flow Rate
40
RPM
650
Power Source
Petrol
Engine Model
Honda GX
Shutdown Feature
Bypass
Chemical Application
Optional Chemical Injector
Cleaning Application
Soft Wash

Technical information

20 Bar - 290 psi

40 Lpm

Comet P40/20 pump - For Soft Wash

Honda GX160 with oil alert

650 Rpm gearbox drive

Adjustable pressure regulator

Powder-coated trolley - 13" wheels

Soft Wash lance w/ QR nozzle holder

0°, 15°, 25° & 40° QR nozzles

25m PVC delivery hose

3m heavy duty suction hose & filter

Compare similar products

Detail
This product
1/4" 0° Pencil Jet Spray Nozzle, Size 30

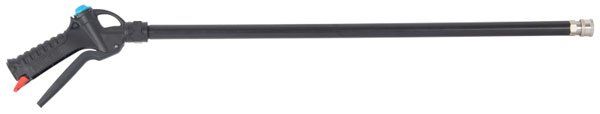

Jolly25HF Soft Wash Lance with AR1 Stainless QRC Outlet
