Nilfisk SH SOLAR 7P-170/1200 E54 Stationary Electric-Heated Hot Pressure Washer, 400V, 170 Bar, 20 LPM
Nilfisk SH SOLAR 7P-170/1200 E54 Stationary Electric-Heated Hot Pressure Washer, 400V, 170 Bar, 20 LPM – image 1
Nilfisk SH SOLAR 7P-170/1200 E54 Stationary Electric-Heated Hot Pressure Washer, 400V, 170 Bar, 20 LPM – image 2
Nilfisk SH SOLAR 7P-170/1200 E54 Stationary Electric-Heated Hot Pressure Washer, 400V, 170 Bar, 20 LPM – image 3
Nilfisk SH SOLAR 7P-170/1200 E54 Stationary Electric-Heated Hot Pressure Washer, 400V, 170 Bar, 20 LPM – image 4
NilfiskElectrically Heated

Nilfisk SH SOLAR 7P-170/1200 E54 Stationary Electric-Heated Hot Pressure Washer, 400V, 170 Bar, 20 LPM

SKU 107370276
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Nilfisk SH SOLAR 7P-170/1200 E54 stationary hot water pressure washer with 54kW electric heating, for 400V three-phase supplies. It delivers 170 bar and up to 1200 litres per hour (20 litres per minute), with no exhaust emissions, so it suits indoor and environmentally sensitive areas.

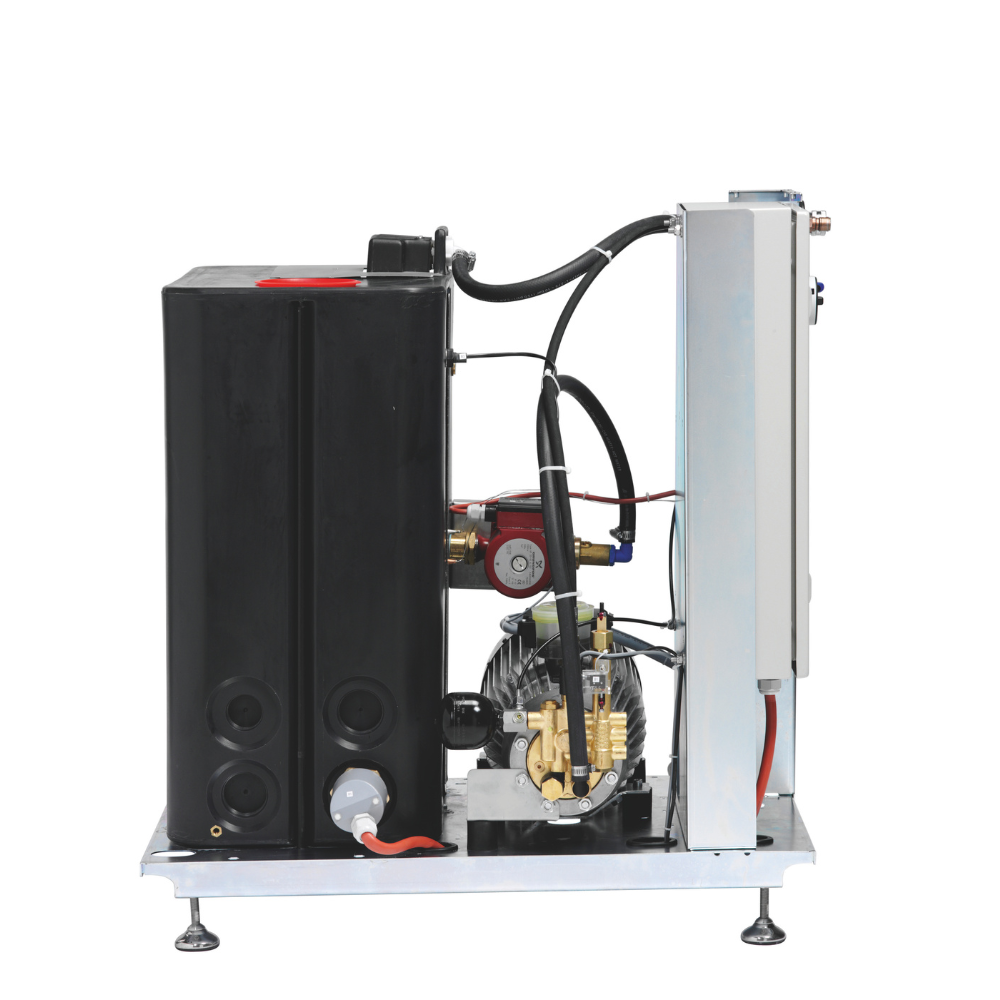

A C3 pump with four ceramic pistons and a brass cylinder head runs at 1450 rpm. A 119 litre heating tank with a feeder pump before the high pressure pump gives hot water as soon as the gun is opened, up to a maximum of 85°C. It has a PLC control system with automatic fault diagnosis and a galvanised and powder-coated steel frame and cabinet. Water is heated by 42°C at full flow. The cabinet has three side panels.

Specification

Part number107370276
BrandNilfisk
Machine typeStationary electrically heated pressure washer
Maximum pressure170 bar
Water flow1200 / 1110 litres per hour
Electrical supply400V, 3 phase, 50Hz, 91A
Power consumption7.5 + 54kW
PumpC3, 4 ceramic pistons, brass cylinder head, 1450 rpm
HeatingElectric, 119 litre tank
Temperature rise at full flow42°C
Maximum temperature85°C
Maximum inlet temperature85°C
Minimum inlet pressure1 bar
Nozzle size.0680
Cleaning impact5.8kg force
Sound pressure level92 dB(A)
Recommended daily use7 hours
ControlsPLC with automatic diagnosis
Weight156kg
Dimensions670 x 900 x 1077mm

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Nilfisk SH SOLAR 7P-170/1200 E54 electrically heated stationary pressure washer, 400V, 170 bar, 20 litres per minute. The cabinet has three side panels.

Specifications

Brand
Nilfisk
Machine Format
Static / Cabinet
Working Pressure
170
Flow Rate
20
RPM
1450
Electrical Supply
415 Volts
Power Source
Electric
Drive
Direct Drive
Hot Water Generation
Electrically Heated
Hot or Cold Water
Hot
Chemical Application
None
Weight
156 kg

Technical information

Weight (kg) 156

Product Model 4610-107370276

Length x width x height (mm) 670x900x1077

Max. temperature (°C) 85

Sound pressure level (dB(A)) 92

Pump Pressure (bar/MPa) 170/17

Cleaning impact (kg/force) 5.8

Water flow Qmax/Qiec (l/h) 1200/1110

Max. inlet temperature (°C) 85

Power consumption (kW) 7.5 + 54

Voltage/phase/frequency/current (V/~/Hz/A) 400/3/50/91

Nozzle size .0680

Water temperature, ΔT at full flow (°C) 42
