Product Overview

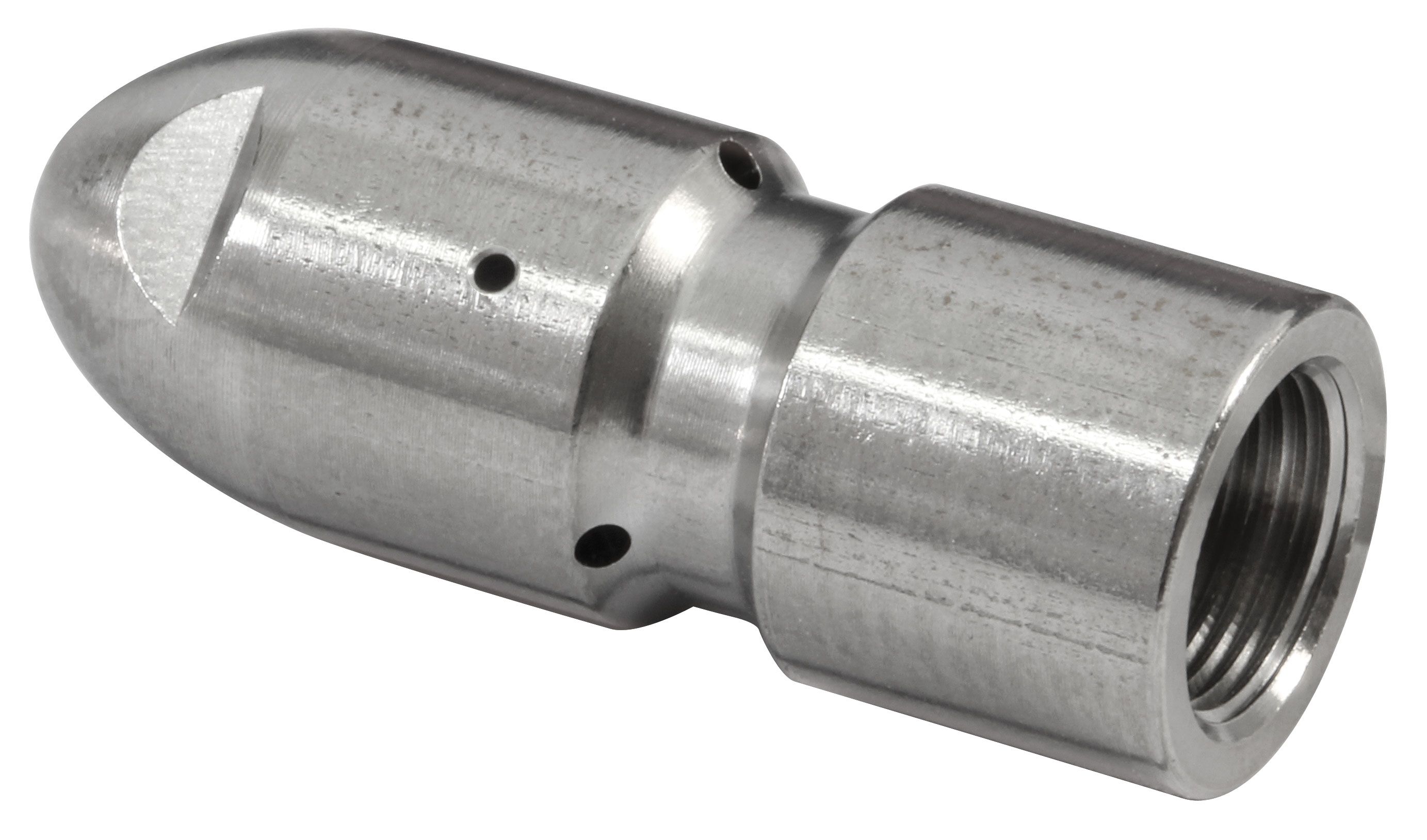

The Sewer Nozzle M7F 065 3R/3S is a precision-engineered, non-rotating micro sewer cleaning nozzle designed for extremely small internal pipe diameters. Manufactured by R&M Suttner, this nozzle is ideally suited for cleaning heat exchanger tubes in thermal power stations and narrow conveyor or process pipes commonly found in the food industry, where internal diameters are typically between 10 and 12 mm.

With an external diameter of just 9.8 mm, the nozzle passes easily through restricted pipework while still withstanding working pressures of up to 500 bar. It features three rear-facing jets set at a 45-degree angle, delivering strong propulsion and effective internal flushing without the use of a forward jet. This design allows for controlled movement and uniform cleaning of small-diameter lines.

Key Features

• Ultra-compact 9.8 mm external diameter for 10–12 mm internal pipework

• Non-rotating design for predictable and controlled cleaning

• Three rear-facing jets for strong propulsion and thorough flushing

• No forward jet, ideal for precision cleaning applications

• High-pressure nozzle size 065

• 45-degree jet angle for effective pipe wall coverage

• Maximum operating pressure of 500 bar

• Maximum operating temperature of 100°C

• M7 female inlet connection

• Designed for professional micro sewer and tube cleaning

Why Choose This Nozzle?

This micro sewer nozzle is purpose-built for applications where standard sewer nozzles are too large. Its compact size combined with high-pressure capability makes it ideal for cleaning fine tubes, heat exchangers, and narrow process pipes where performance and hygiene are critical. When paired with the R+M 1 Bronze hose (30420), the complete sewer cleaning unit is rated for operation up to 300 bar and 100°C, providing a reliable solution for demanding industrial environments.

Order Now

For specialist sewer and tube cleaning applications requiring high pressure in minimal space, the Sewer Nozzle M7F 065 3R/3S is a proven solution. Contact Flowjet Cleaning Equipment today for pricing, availability, and expert technical support.
