Annovi Reverberi RG21.20 Solid Shaft Pump, 200 Bar, 21 LPM, 1450 RPM

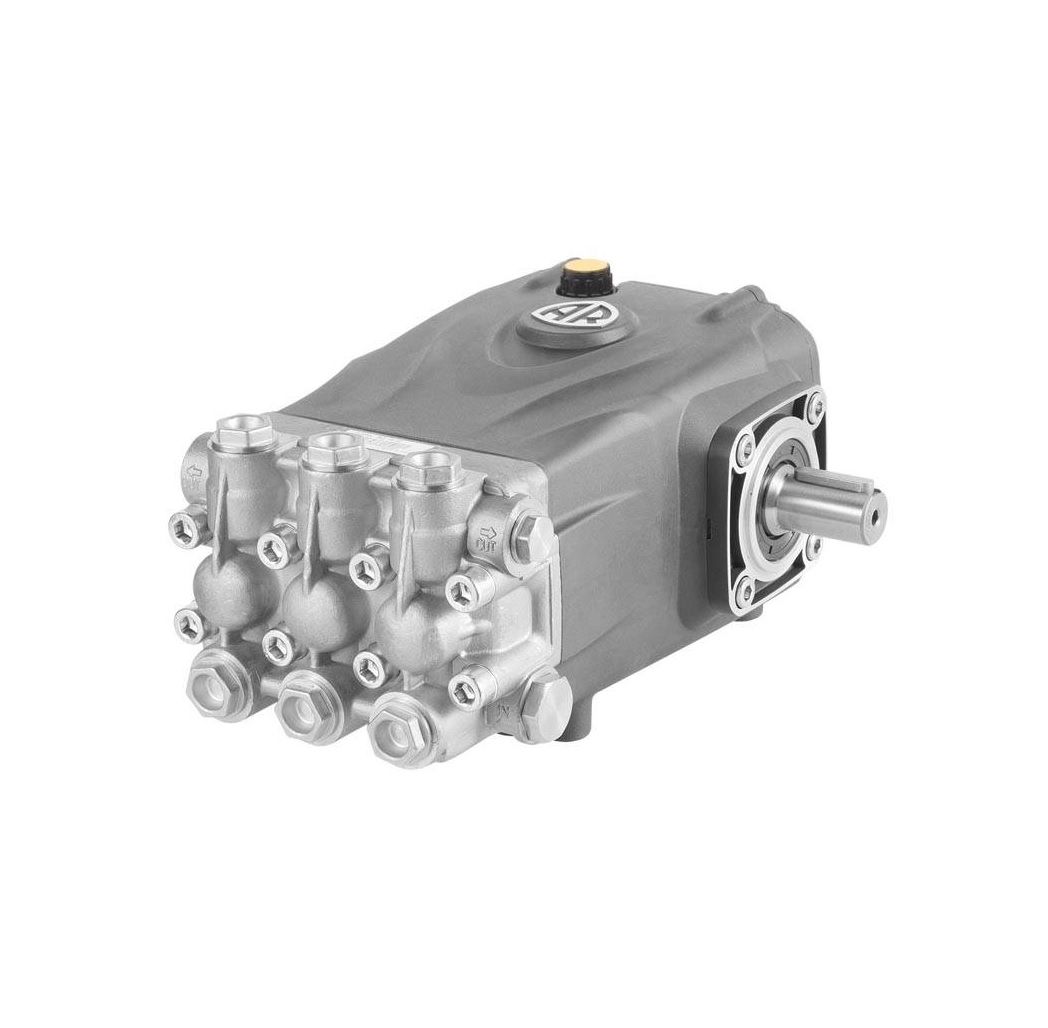

Annovi Reverberi RG21.20 Solid Shaft Pump, 200 Bar, 21 LPM, 1450 RPM – image 1

Annovi Reverberi RG21.20 Solid Shaft Pump, 200 Bar, 21 LPM, 1450 RPM

SKU RG21.20
£453.00 ex VAT
£543.60 inc. VAT
Available on backorderSecure your order now for delivery in approx 2–3 weeks.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Annovi Reverberi RG21.20 three piston pump for electric motor drive, delivering 21 litres per minute at 200 bar (2900 psi) at 1450 RPM and needing 10hp to run at full pressure.

It has a 24mm solid shaft for coupling to a motor directly or through a flexible joint, a die-cast aluminium alloy body and cover, one-piece ceramic pistons and a nickel-plated head with a double gasket sealing system. Oversized bearings, plugged intake and delivery valves and a rear oil drain make servicing easier.

Specification

Part numberRG21.20
BrandAnnovi Reverberi
ModelRG21.20 H N (series 402)
Maximum pressure200 bar (2900 psi)
Maximum flow21 litres per minute
Speed1450 RPM
Power required10hp
Shaft24mm solid
PistonsOne-piece ceramic
HeadNickel plated
Body and coverDie-cast aluminium alloy
Piston diameter18mm
OilSAE 15W40, 0.96 kg
Weight10kg

Repair kits

Valve kit 2864, water seal kit 46848, oil seal kit 47083, piston kit 2872 and piston guide kit 42172. Foot kit: 2748.

Unloader valves

Suitable unloader valves: VR 3B 22621 without chemical injector, or VR 3B 22625 with chemical injector.

Sizing help

To match a motor to your pump, see our electric motor sizing guide.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Annovi Reverberi RG21.20 solid shaft pump, 21 LPM at 200 bar, 1450 RPM, 24mm shaft, needs 10hp.

Specifications

Brand
Annovi Reverberi
Pumps and Parts by Series
Annovi Reverberi RG Series
Search By A&R Pump Model
RG21.20
Working Pressure
200
Flow Rate
21
RPM
1450
Shaft
Solid Shaft 24mm
HP Power Required
7.5KW / 10 Hp
Weight
10 kg
