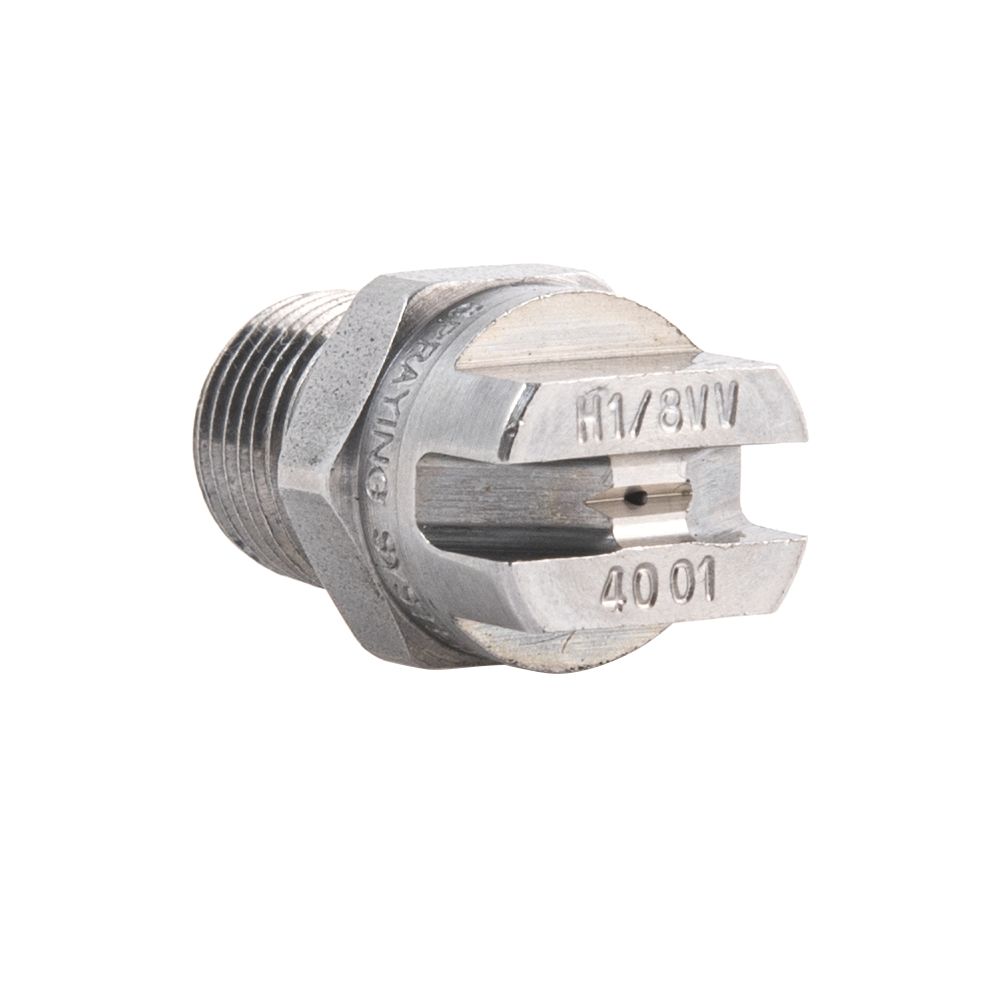

Spraying Systems High Pressure Nozzle, 1/8" MEG VV, 4001

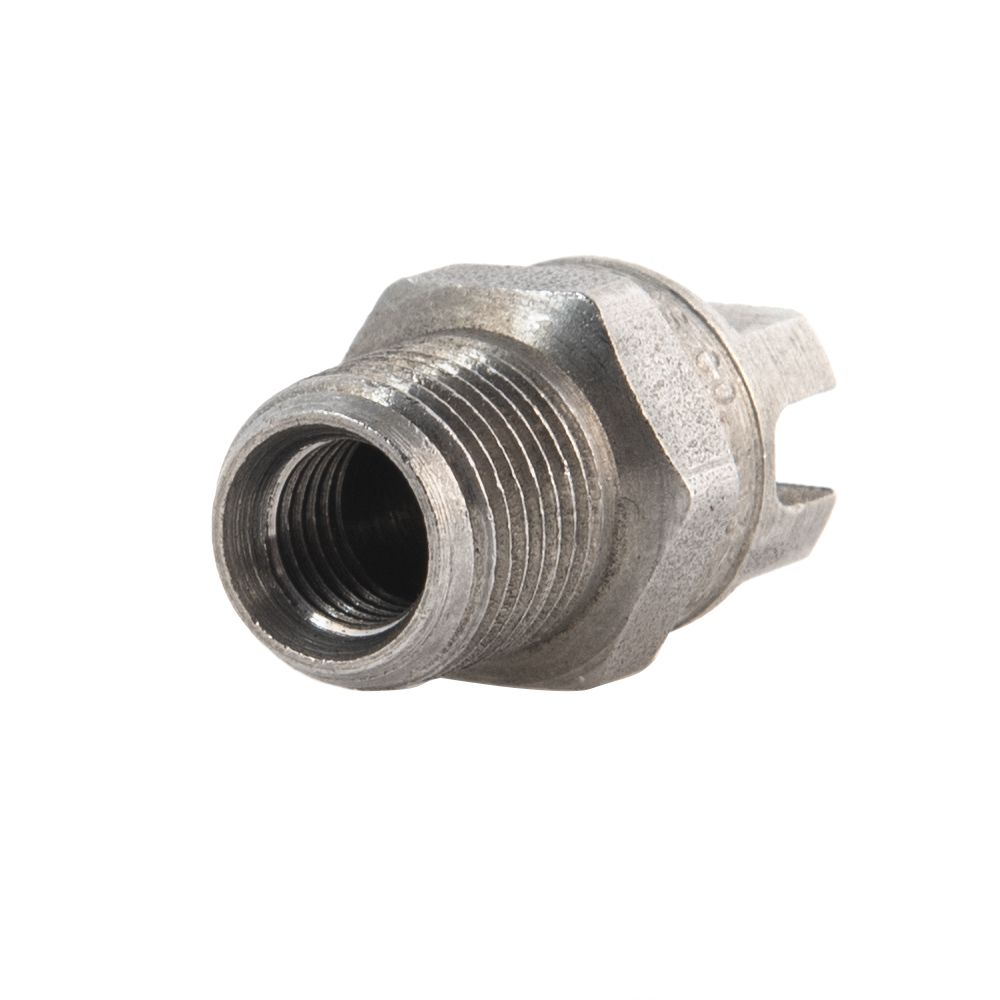

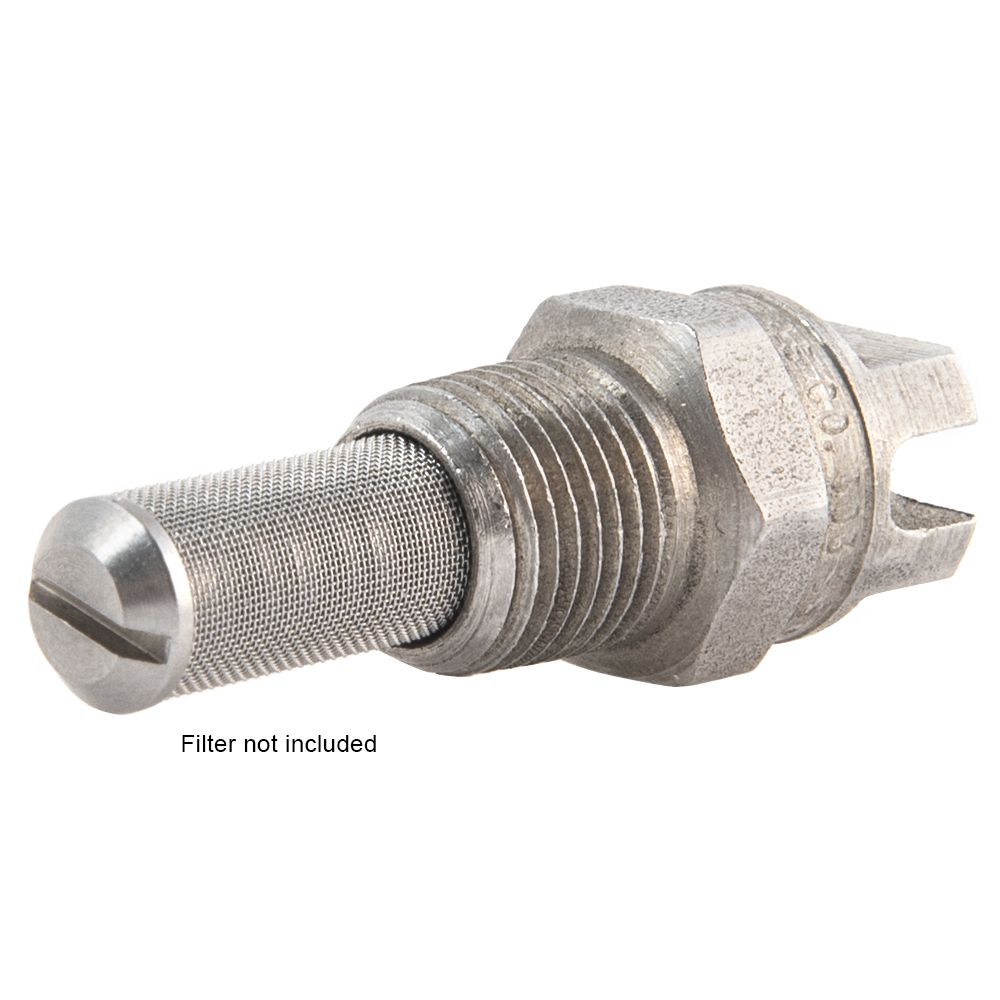

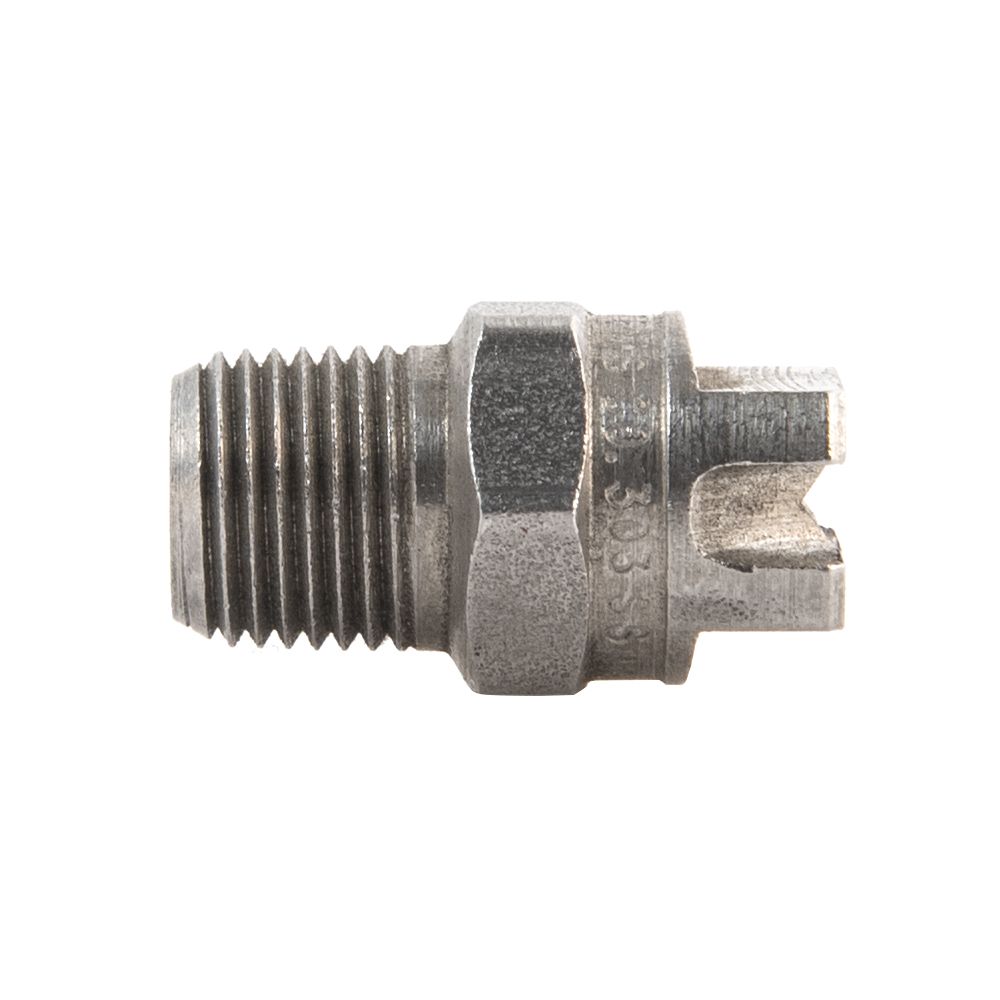

Spraying Systems 304 stainless steel high pressure nozzle with a 40° fan spray, size 01 orifice and a 1/8" male NPT MEG VV inlet with internal thread. The internal thread takes a filter (part number 64995) at the back of the nozzle to prevent blockages, and these nozzles are often used on spray bars for coating or humidification.

Specification

• Part number: 63801
• Brand: Spraying Systems
• Nozzle code: 4001 VV
• Material: 304 stainless steel
• Inlet: 1/8" male NPT MEG VV, filter option
• Spray angle: 40°
• Nozzle size: 01
• Filter: 64995
