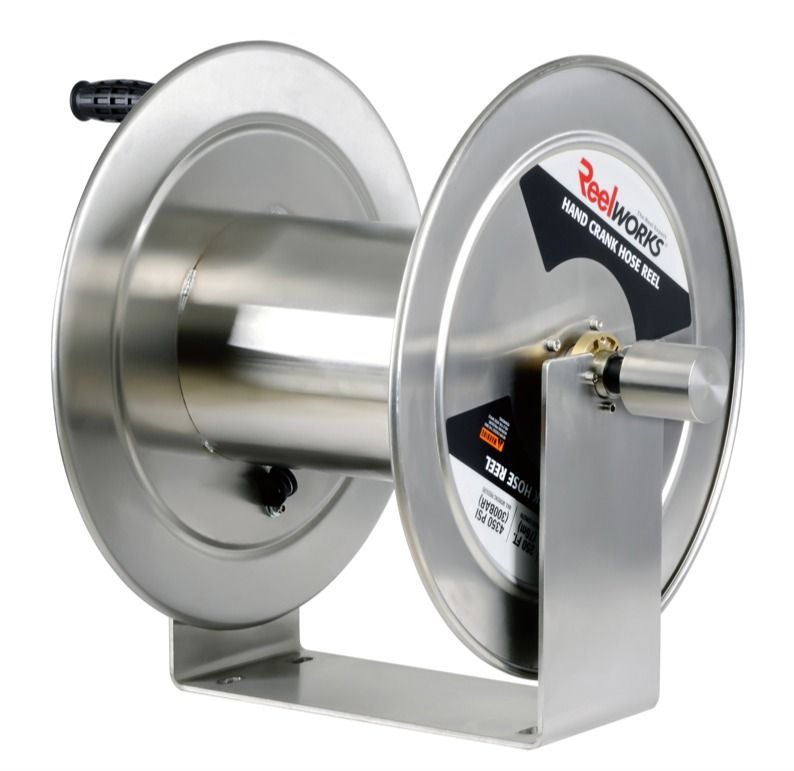

Reelworks CHR181 Stainless Steel Hand Crank Hose Reel – 300 Bar Industrial Hose Reel
Reelworks CHR181 stainless steel hand crank hose reel
ReelworksOur Favourite

Reelworks CHR181 Stainless Steel Hand Crank Hose Reel – 300 Bar Industrial Hose Reel

SKU CHR181
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Product Overview

The Reelworks CHR181 Stainless Steel Hand Crank Hose Reel is a high-quality industrial hose reel engineered for medium to high-pressure applications where reliability, corrosion resistance, and long hose capacity are essential. Manufactured from high-quality 304 stainless steel with a QPQ-coated swivel shaft, this reel is built to withstand harsh working environments including pressure washing, food production, agriculture, marine, manufacturing, and commercial vehicle cleaning.

Designed to accommodate longer hose lengths, the CHR181 is available in two configurations, carrying up to 46 metres of 1/2" high-pressure hose or 60 metres of 3/8" high-pressure hose. Its wider 125mm drum opening makes hose installation easier, while the redesigned crank handle and swivel assembly reduce winding effort by up to 70%, making everyday operation faster and less demanding.

Suitable for floor, wall or vehicle mounting, the CHR181 is supplied as a bare reel, allowing you to select the correct hose to suit your application.


Key Features

  • Heavy-duty 304 stainless steel construction
  • QPQ-coated swivel shaft for improved durability and corrosion resistance
  • Suitable for medium and high-pressure cleaning applications
  • Carries up to 46m of 1/2" hose or 60m of 3/8" hose
  • Wide 125mm drum opening simplifies hose installation
  • Newly designed hand crank and swivel mechanism requires up to 70% less effort
  • Spring-loaded locking pin prevents unwanted hose uncoiling
  • Suitable for floor, wall and vehicle mounting
  • Maximum working pressure of 300 Bar (4350 PSI)
  • Supplied as a bare hose reel (hose sold separately)

Technical Specification

Specification CHR181-02 CHR181-02-3/8
Hose Size 1/2" 3/8"
Hose Capacity 46 metres 60 metres
Maximum Pressure 300 Bar (4350 PSI) 300 Bar (4350 PSI)
Inlet / Outlet 1/2" 3/8"
Width 610mm 610mm
Height 500mm 500mm
Depth 470mm 470mm
Net Weight 14.5kg 14.5kg
Gross Weight 18.2kg 18.2kg
Construction 304 Stainless Steel 304 Stainless Steel
Swivel Shaft QPQ Coated QPQ Coated

Why Choose This Product?

The Reelworks CHR181 has been developed for professionals who require a durable, corrosion-resistant hose reel capable of handling long lengths of high-pressure hose. Its robust stainless steel construction makes it suitable for demanding industrial environments, while the improved winding mechanism significantly reduces operator effort. Whether fitted to a pressure washer trailer, wash bay, service vehicle or factory installation, the CHR181 delivers dependable performance and long service life.


Further Information

If you're unsure which hose reel or hose configuration is right for your pressure washing system, our experienced team is happy to help.

Specifications

Brand
Reelworks
Material
Stainless Steel

Technical information

Option 1 – CHR181-02 (1/2")

Specification Value

Model CHR181-02

Hose Size 1/2"

Hose Capacity 46 metres

Maximum Pressure 300 Bar (4350 PSI)

Inlet / Outlet 1/2" BSP

Width 610 mm

Height 500 mm

Depth 470 mm

Net Weight 14.5 kg

Gross Weight 18.2 kg

Construction 304 Stainless Steel

Swivel Shaft QPQ Coated

Option 2 – CHR181-02-3/8

Specification Value

Model CHR181-02-3/8

Hose Size 3/8"

Hose Capacity 60 metres

Maximum Pressure 300 Bar (4350 PSI)

Inlet / Outlet 3/8" BSP

Width 610 mm

Height 500 mm

Depth 470 mm

Net Weight 14.5 kg

Gross Weight 18.2 kg

Construction 304 Stainless Steel

Swivel Shaft QPQ Coated
