Reelworks C213-2520EX Series Heavy Duty Spring Rewind ATEX Approved Reel

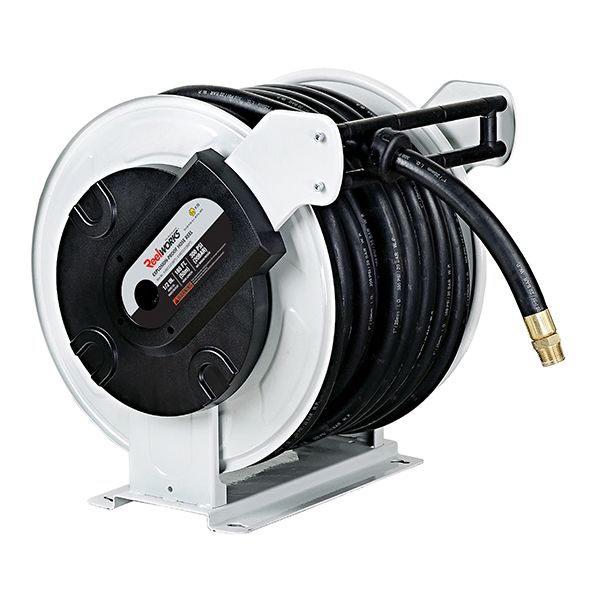

Reelworks C213-2520EX ATEX spring rewind hose reel

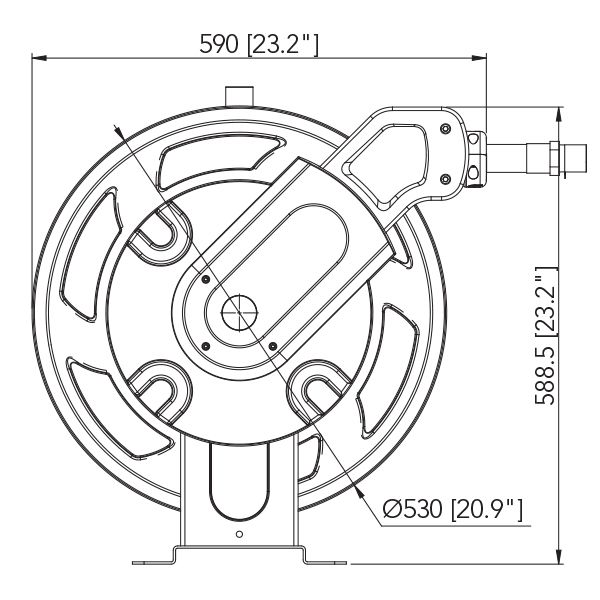

Heavy-duty ATEX hose reel for 20m of 1 inch hose

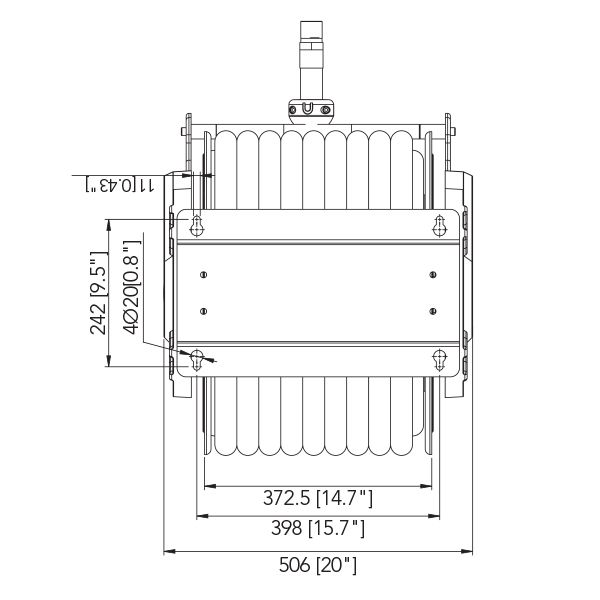

Powder-coated steel industrial ATEX retractable hose reel
Reelworks C213-2520EX Series Heavy Duty Spring Rewind ATEX Approved Reel – image 4
Reelworks C213-2520EX Series Heavy Duty Spring Rewind ATEX Approved Reel – image 5
Reelworks

Reelworks C213-2520EX Series Heavy Duty Spring Rewind ATEX Approved Reel

SKU C213-2520EX
Max pressure
10 bar
Inlet
1" BSP Female
Outlet
1" BSP Female · Thread chart
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

The Reelworks C213-2520EX is a heavy-duty spring rewind hose reel designed for use in potentially explosive atmospheres. Its robust double-arm construction is manufactured from heavy-gauge, powder-coated carbon steel, providing excellent stability and durability in demanding industrial environments.

The spring-powered rewind mechanism makes the hose easy to deploy and retract, while the integrated latching system allows it to be stopped and held at the required working length.

This ATEX hose reel can accommodate up to 20 metres of 1" internal diameter hose and has a maximum working pressure of 10 bar (150 PSI). It can be installed on the floor, wall, workbench or ceiling, making it suitable for a wide range of industrial installations.

The reel is supplied without a hose. A compatible hose can be supplied separately after confirming the intended fluid, working pressure, temperature and application.

Please note: With a maximum pressure of 10 bar, this product is intended for suitable low-pressure hose applications and is not suitable as a conventional high-pressure pressure-washer hose reel.

Key Features

  • ATEX-rated for use in potentially explosive atmospheres
  • ATEX marking: Ex h IIB T4 Gb
  • Ambient operating temperature: -20°C to +60°C
  • Heavy-gauge powder-coated carbon steel construction
  • Stable double-arm reel design
  • Automatic spring-powered hose rewind
  • Hose can be latched at the required working length
  • Accommodates up to 20m of 1" hose

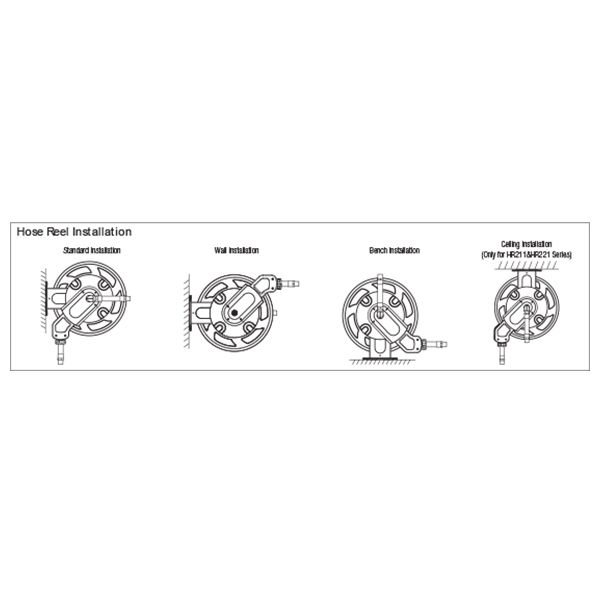

  • Suitable for floor, wall, workbench or ceiling mounting
  • RoHS and REACH compliant
  • Supplied as a bare reel without hose

Technical Specifications

Specification Details
Manufacturer Reelworks
Model C213-2520EX
Reel type Spring rewind
ATEX classification Ex h IIB T4 Gb
Hose capacity 20m / 66ft
Maximum hose internal diameter 1"
Maximum working pressure 10 bar / 150 PSI
Inlet and outlet 1" BSP female
Construction Powder-coated carbon steel
Width 51cm
Height 59cm
Depth 59cm
Net weight 44kg
Gross weight 59kg
Ambient temperature range -20°C to +60°C
Mounting positions Floor, wall, workbench or ceiling
Hose included No – available separately

Application Advice

The correct hose must be selected according to the fluid being transferred, operating temperature, working pressure and surrounding environment. Contact us before ordering if you require the reel supplied with a compatible hose.

Specifications

Brand
Reelworks
Max Pressure Rating
10 bar
Inlet
1" BSP Female
Outlet
1" BSP Female
Ratings and Approvals
ATEX Zone 22
Hose Length
20m
Material
Powder Coated Carbon Steel

Technical information

Manufacturer Reelworks

Model C213-2520EX

Reel type Spring rewind

ATEX classification Ex h IIB T4 Gb

Hose capacity 20m / 66ft

Maximum hose internal diameter 1"

Maximum working pressure 10 bar / 150 PSI

Inlet and outlet 1" BSP female

Construction Powder-coated carbon steel

Width 51cm

Height 59cm

Depth 59cm

Net weight 44kg

Gross weight 59kg

Ambient temperature range -20°C to +60°C

Mounting positions Floor, wall, workbench or ceiling

Hose included No – available separately

Documents
