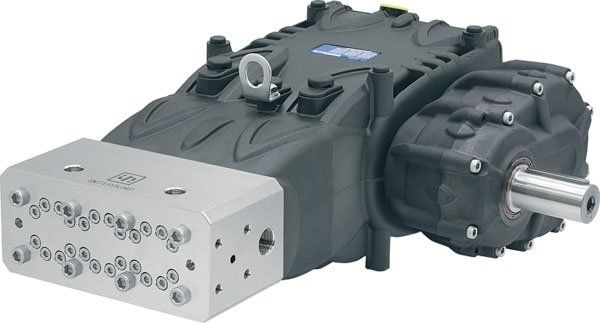

Pratissoli VF Series Pump & 1125 Rpm Gearbox

Pratissoli VF series pump with an 1125 rpm gearbox, rated to 1200 bar at 15 LPM, with a 40mm male shaft and a stainless steel manifold. It has a 1.25:1 reduction gearbox with an input speed range of 625 to 1250 rpm.

Specification

• Part number: VFH12-GB12
• Brand: Pratissoli
• Series: VF
• Performance: 1200 bar, 15 LPM
• Gearbox speed: 1125 rpm
• Reduction gearbox: 1.25:1
• Input speed: 625 rpm minimum, 1250 rpm maximum
• Power: 50hp, 36.8kW
• Shaft: 40mm male
• Manifold: stainless steel
• Maximum water temperature: 30°C
• Inlet: 3/4" BSP female
• Outlet: flanged
