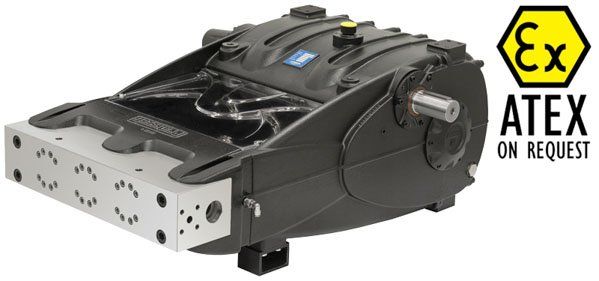

Pratissoli TRS-HP Series Pump - 1500 Rpm Gearbox TRS30-GB15

Pratissoli TRS high pressure series pump with a 1500 rpm integrated gearbox, rated to 1200 bar at 143 LPM, with a 65mm male shaft, a 17/4PH stainless steel manifold and an integrated oil pump. It has a 2" BSP female inlet and a 19mm flanged outlet.

Specification

• Part number: TRS30-GB15
• Brand: Pratissoli
• Series: TRS high pressure
• Performance: 1200 bar, 143 LPM
• Power: 447hp, 328kW
• Integrated gearbox input speed: 1500 rpm
• Shaft: 65mm male
• Manifold: 17/4PH stainless steel
• Lubrication: integrated oil pump
• Maximum water temperature: 40°C
• Inlet: 2" BSP female
• Outlet: 19mm flanged
