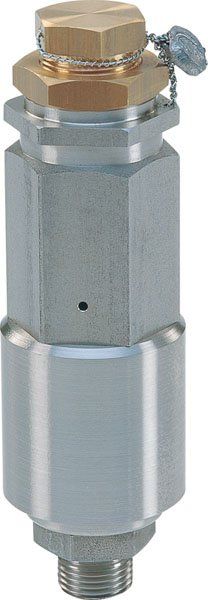

Pratissoli SX3 Safety Relief Valve - AISI 316

Pratissoli SX3 safety relief valve in AISI 316 stainless steel with a 160 bar maximum working pressure and a 192 bar set pressure, for 80-500 LPM and water up to 60°C, on systems up to 200hp, 147kW. It is factory set and sealed, has a 3/4" BSP male inlet and is not PED certified.

Specification

• Part number: SX3/160
• Brand: Pratissoli
• Model: SX3
• Maximum working pressure: 160 bar
• Set pressure: 192 bar
• Flow: 80-500 LPM
• Maximum system power: 200hp, 147kW
• Construction: AISI 316 stainless steel
• Setting: factory set and sealed
• Certification: not PED certified
• Maximum water temperature: 60°C
• Inlet: 3/4" BSP male
